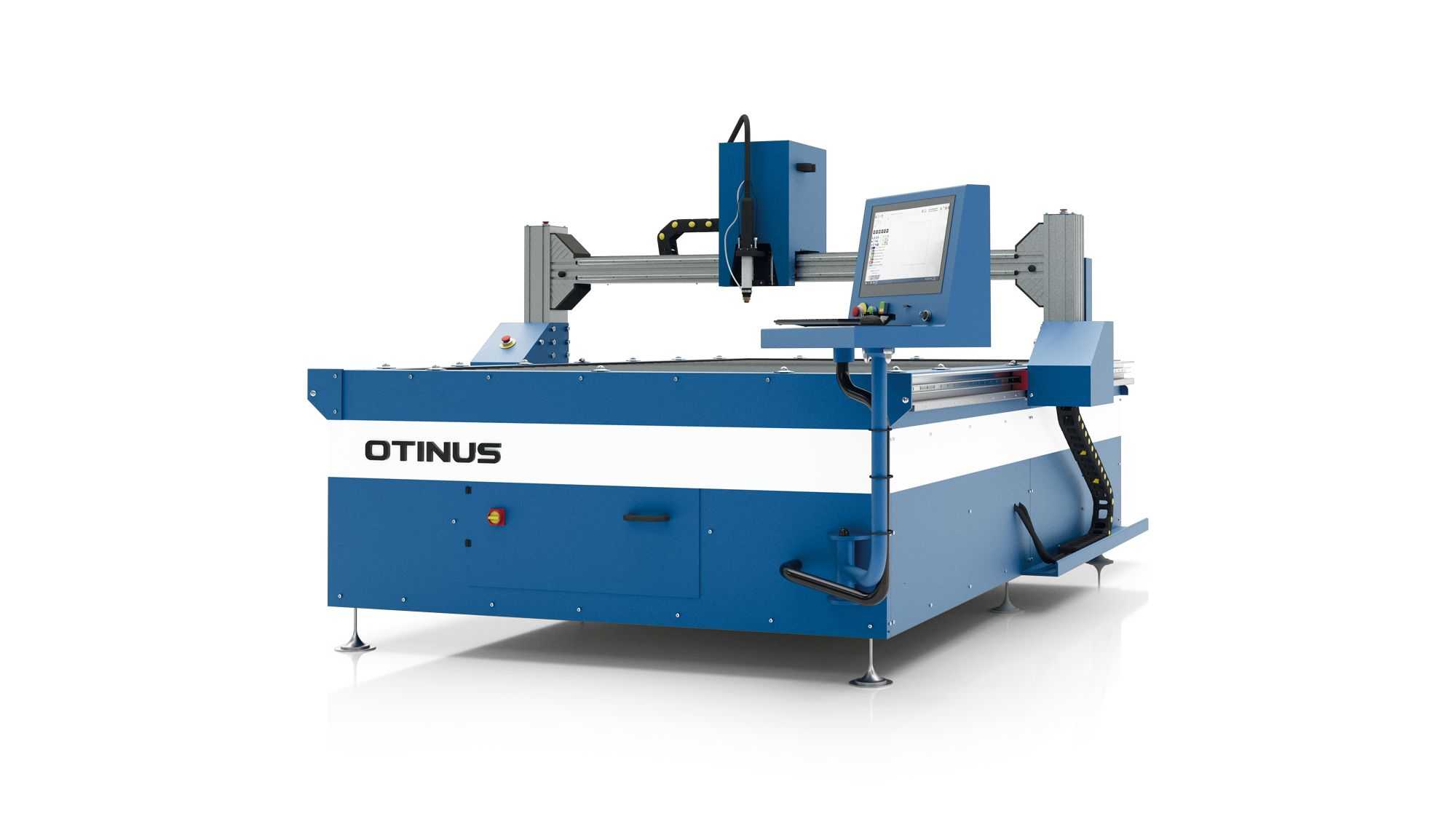

2023 Otinus PCV-3015-D CNC Plasma Cutting Table - 120x60" Working Area, 5510 lb Capacity

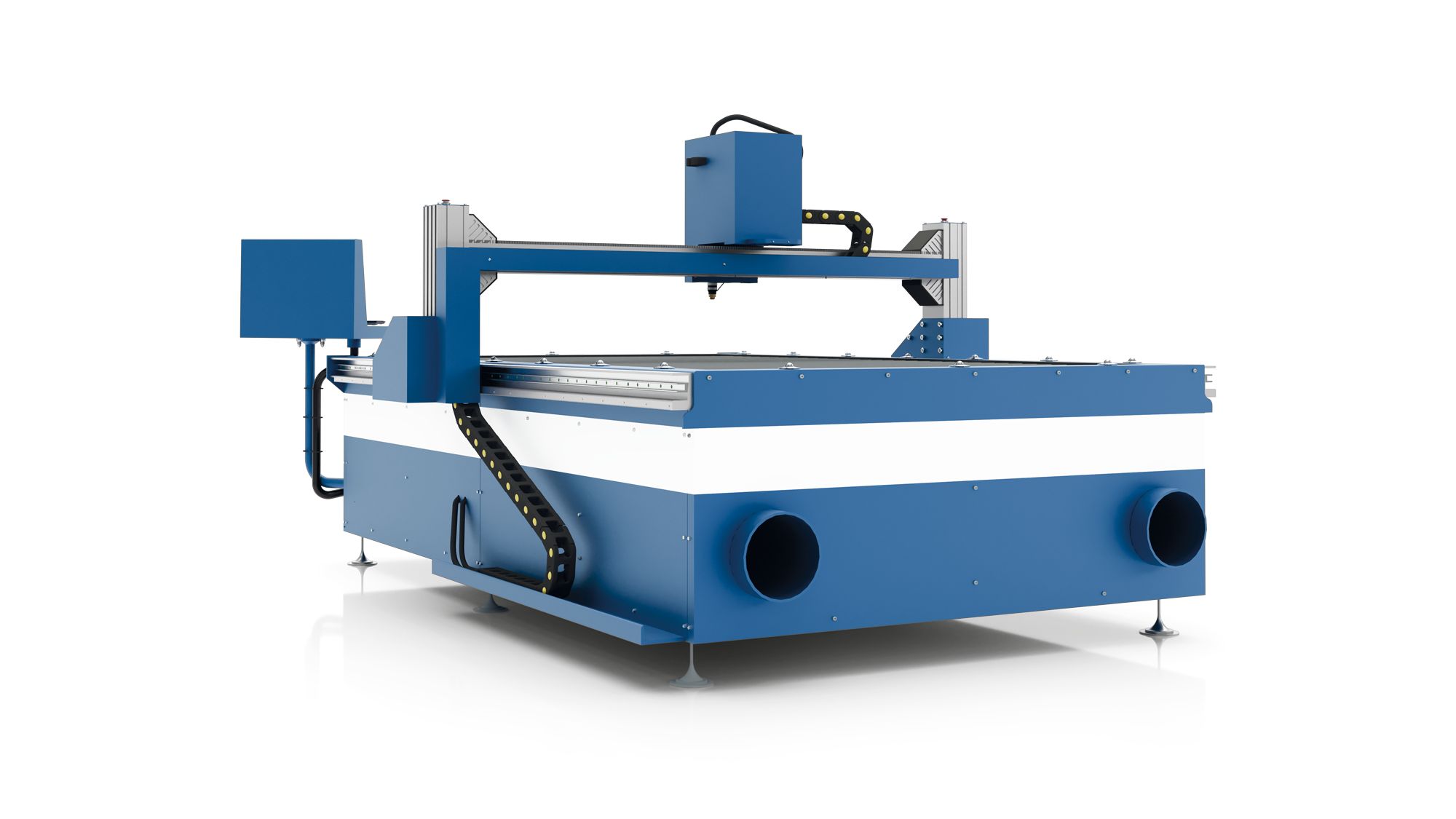

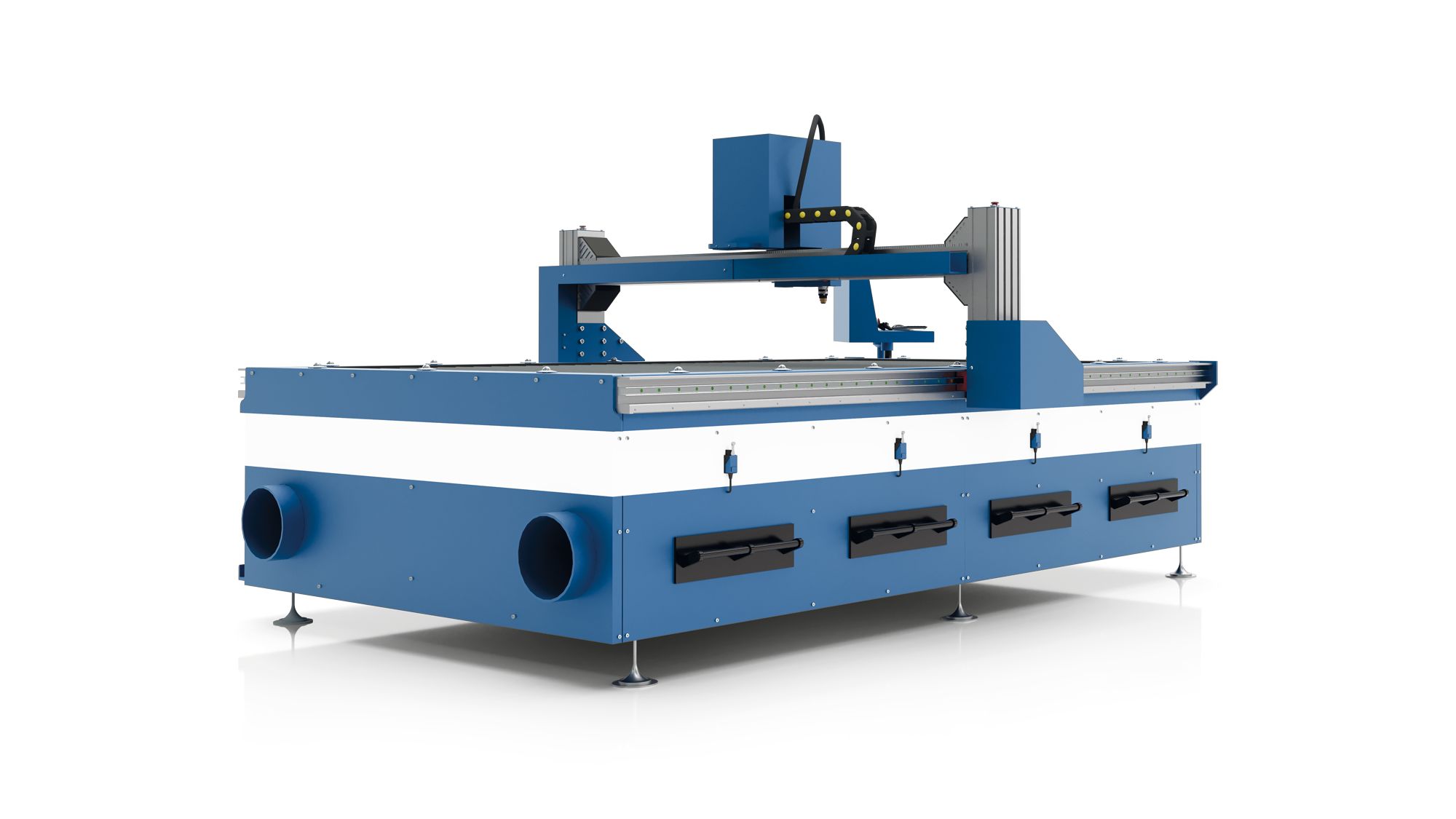

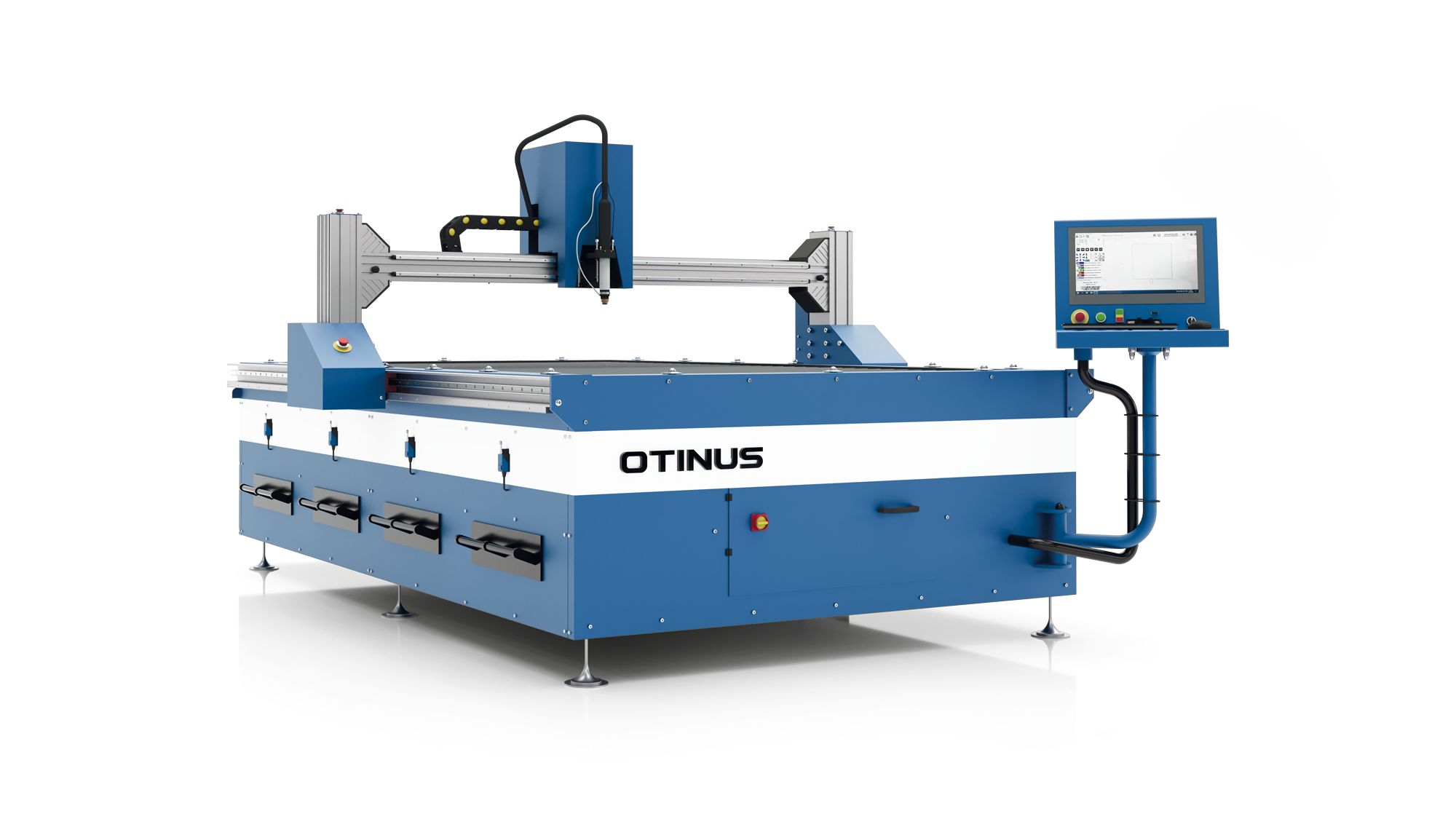

The 2023 Otinus PCV-3015-D is a CNC plasma cutting table with full dimensions of 144 x 90 x 59 in (3650 x 2280 x 1500 mm) and a weight of 2650 lb (1200 kg). It features a downdraft, ventilated table type with a working area of 120 x 60 in (3000 x 1500 mm) and table dimensions of 122 x 60 in (3100 x 1520 mm). The clearance between the table surface and the gantry beam is 9 in (240 mm), and the table load capacity is 5510 lb (2500 kg). The frame construction consists of welded steel and aluminium supported by 6 adjustable legs. Motion is driven by a rack and pinion system for the X/Y axes and a precision ball screw for the Z axis, which features THC MyPlasmCNC height control. The system runs on MyPlasmCNC software and supports 2D path file formats including AutoCAD (.dxf), PLT (.hpgl, .plt), G-code (.tap, .txt), and MyMiniCAD (.2d). It operates at a rapid traverse / idle speed of up to 985 in/min (25 m/min) and a cutting speed of up to 787 in/min (20 m/min). It is powered by a Thermacut EX-TRAFIRE 100SD plasma source.
