2023 SIEMENS WLS2A316 S2A308GV1CXLCEN CUBICLE BUS LOW VOLTAGE AC POWER BREAKER FRAME 12SZ

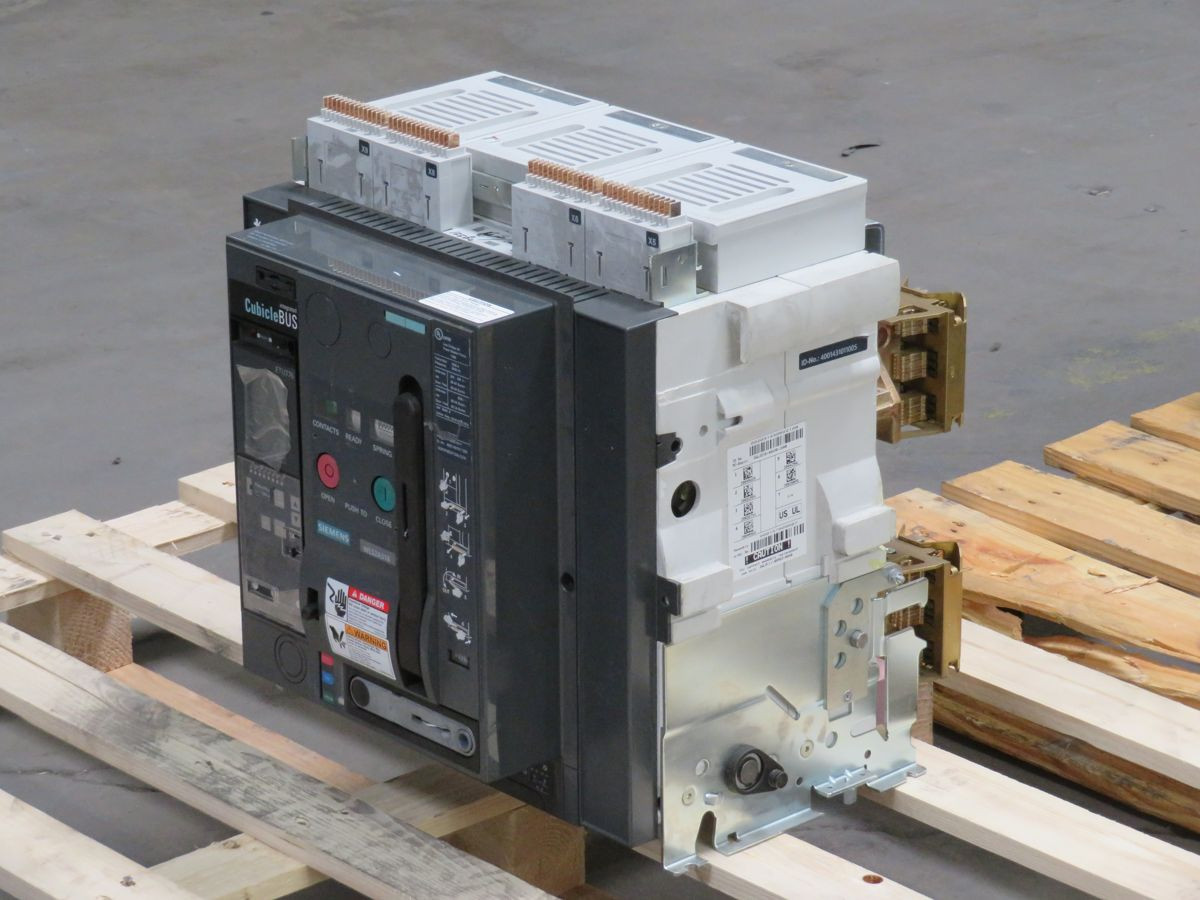

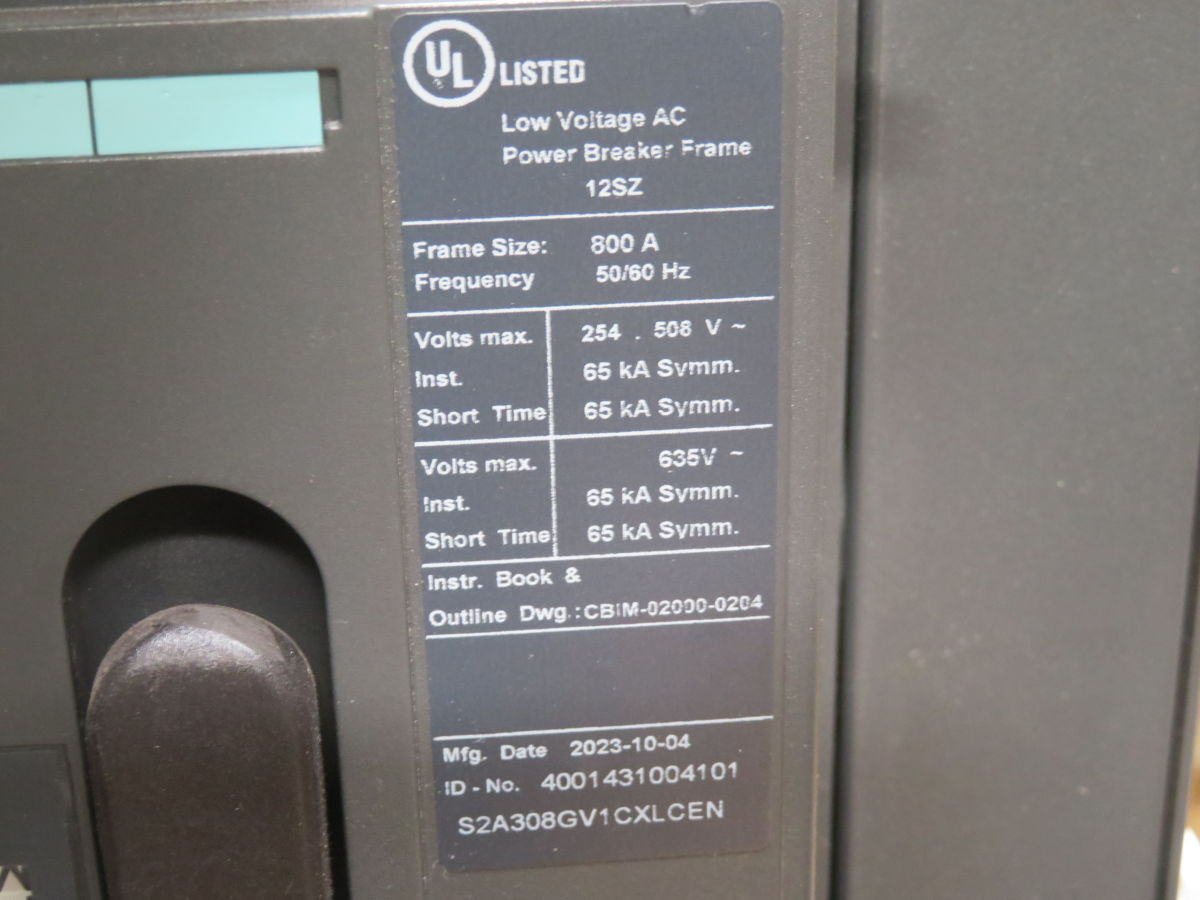

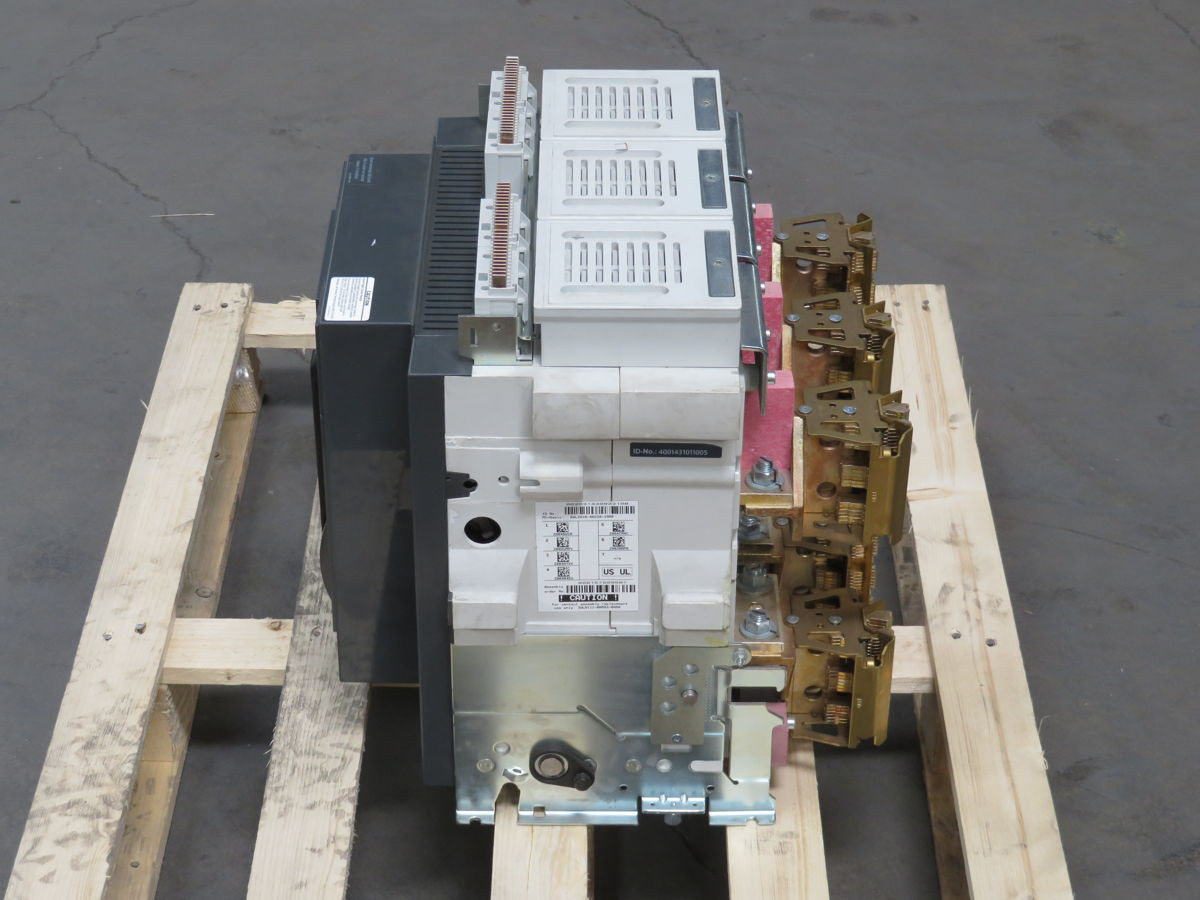

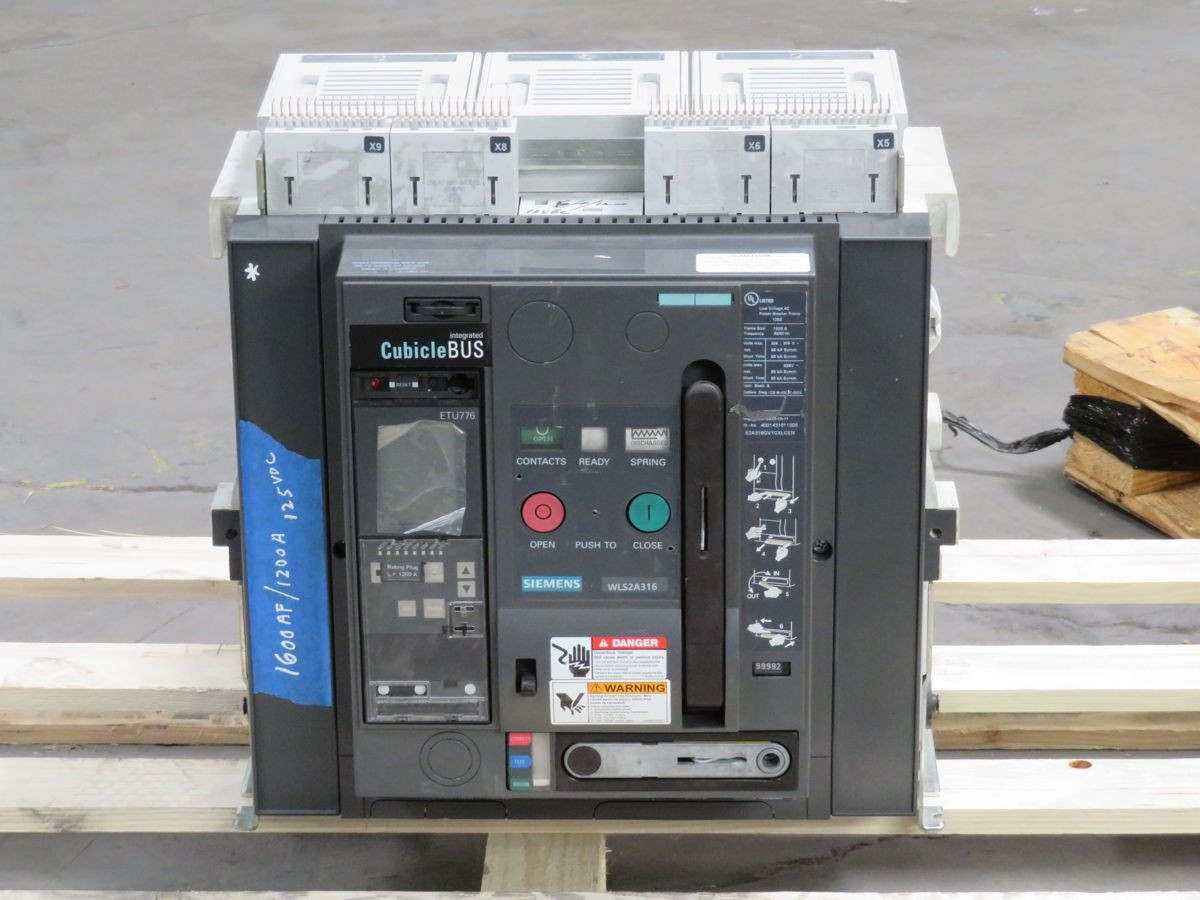

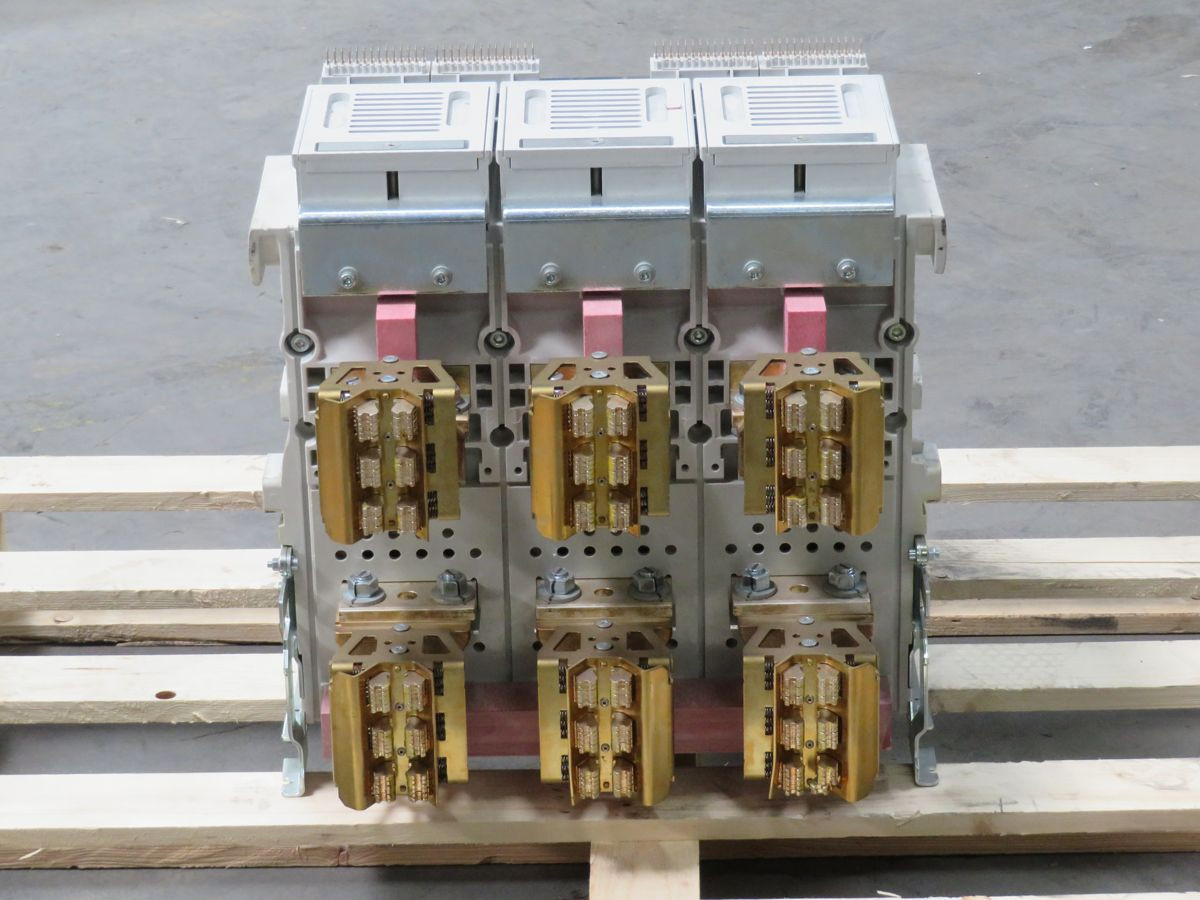

THIS SIEMENS WLS2A316 S2A308GV1CXLCEN IS A LOW VOLTAGE AC AIR CIRCUIT BREAKER FRAME DESIGNED FOR CUBICLE BUS APPLICATIONS. IT FEATURES A 3-POLE CONFIGURATION WITH A RATED OPERATIONAL CURRENT OF 800 A. THE BREAKER FRAME PROVIDES A RATED ULTIMATE SHORT-CIRCUIT BREAKING CAPACITY (ICU) AND RATED SERVICE SHORT-CIRCUIT BREAKING CAPACITY (ICS) OF 65 KA AT 415 V AC. IT IS RATED FOR AN OPERATIONAL VOLTAGE UP TO 690 V AC, AN INSULATION VOLTAGE (UI) OF 1000 V, AND AN IMPULSE WITHSTAND VOLTAGE (UIMP) OF 12 KV. THIS UNIT IS CONFIGURED AS A FIXED-MOUNTED TYPE WITHIN THE SIEMENS WL2 FRAME SERIES.
