2024 SPX FLOW LIGHTNIN EV5Q33 PORTABLE MIXER 1/3 HP, 115/230V, 1760 RPM, TEFC, 56C FRAME

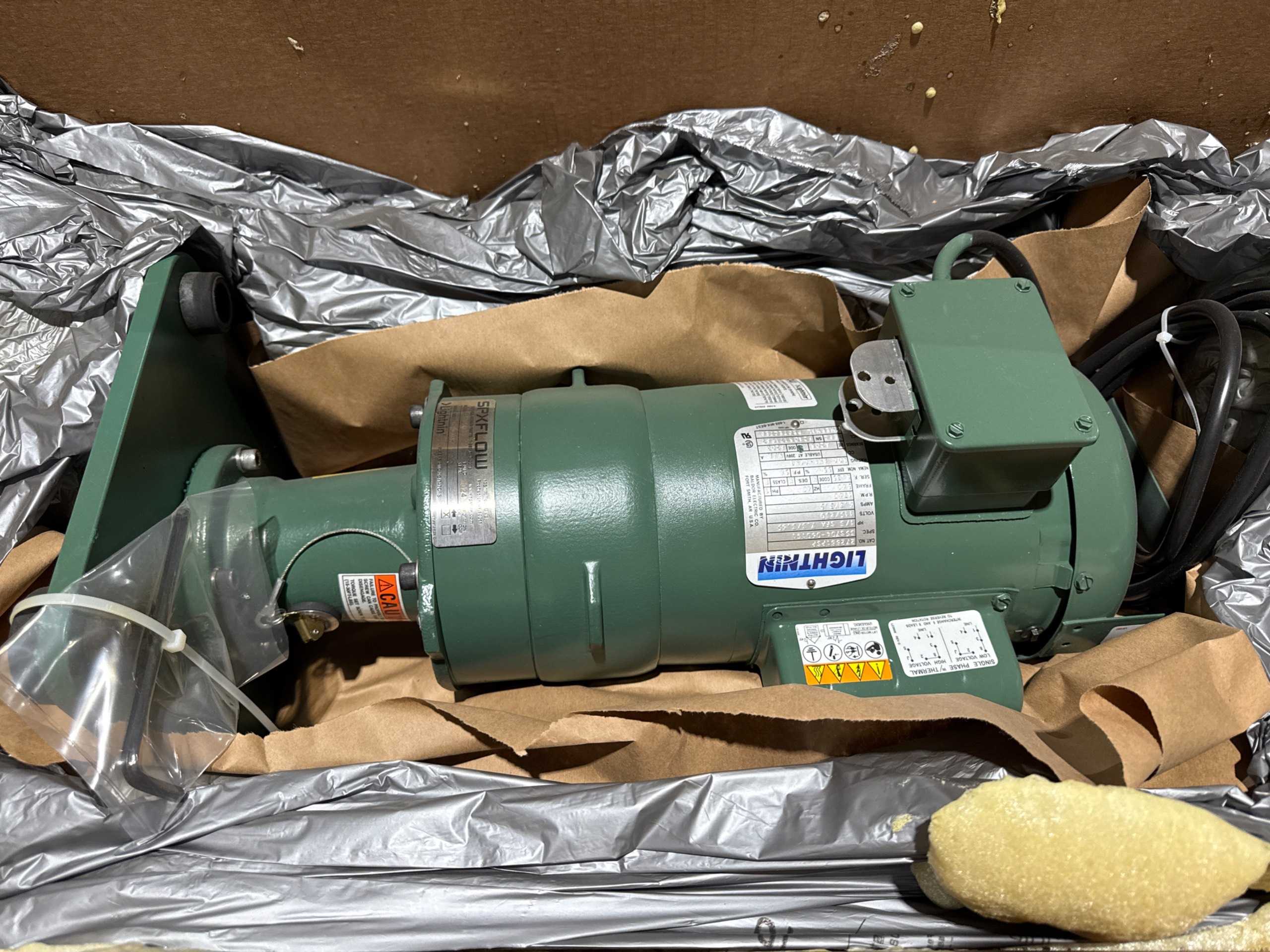

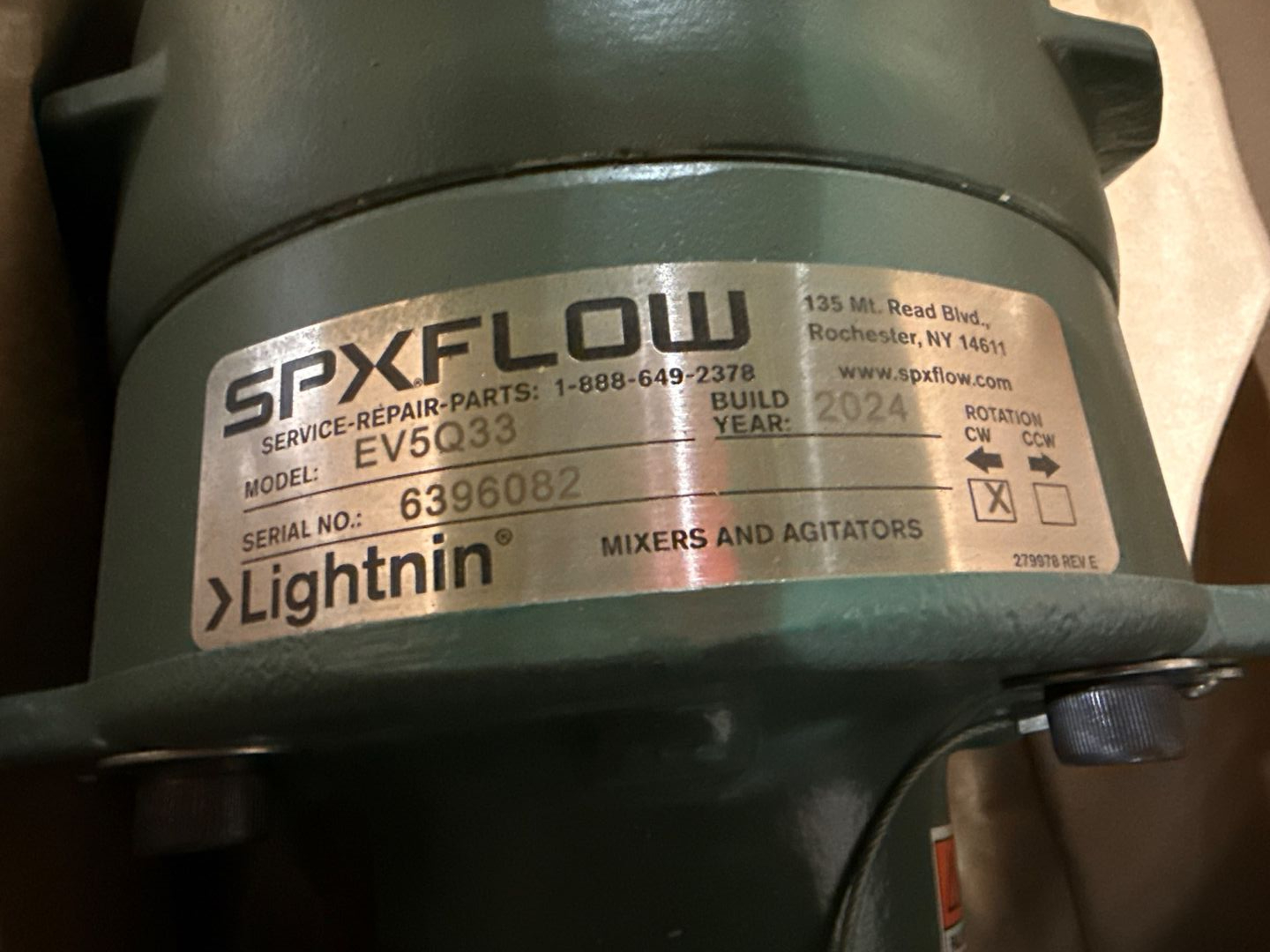

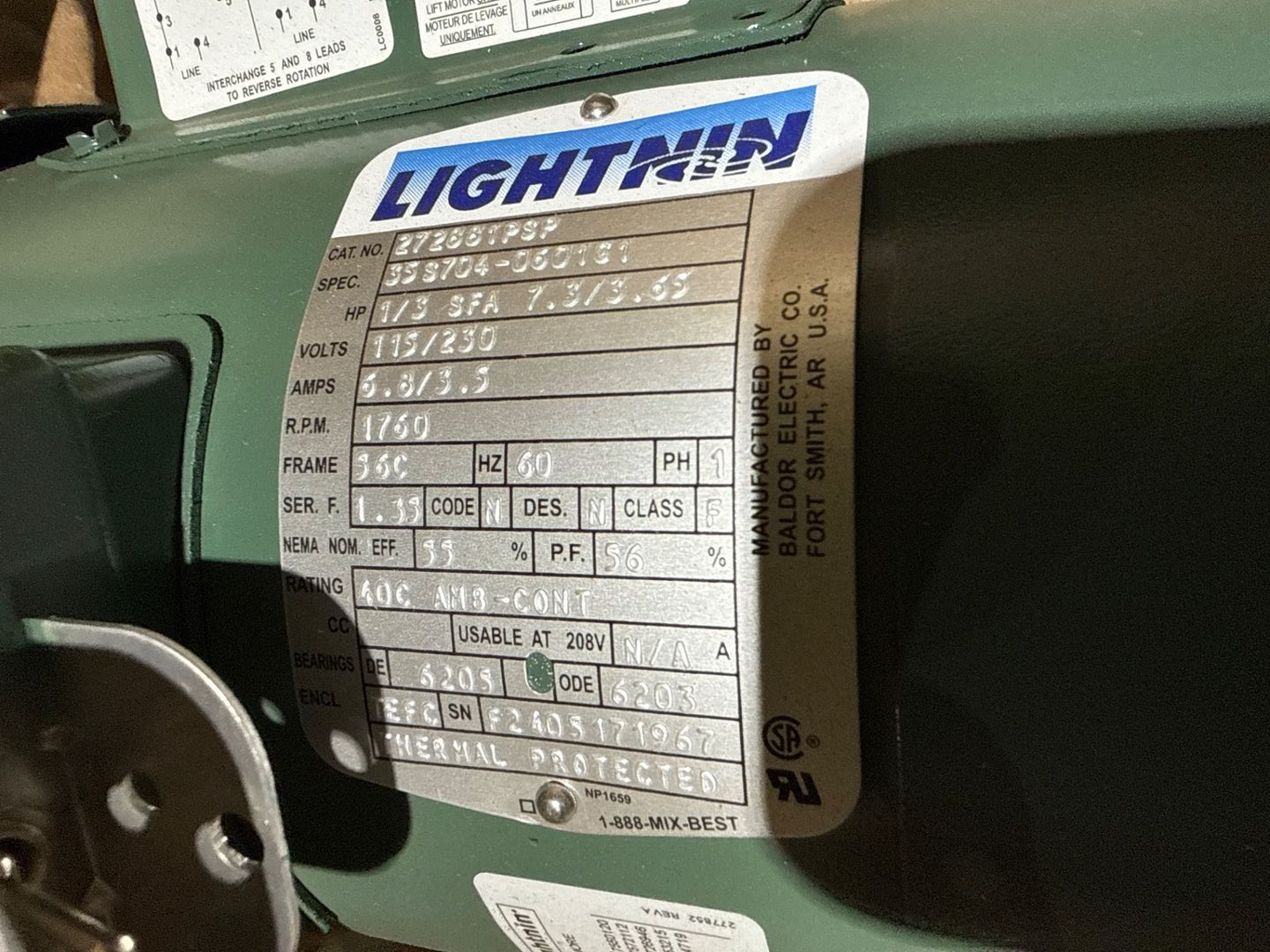

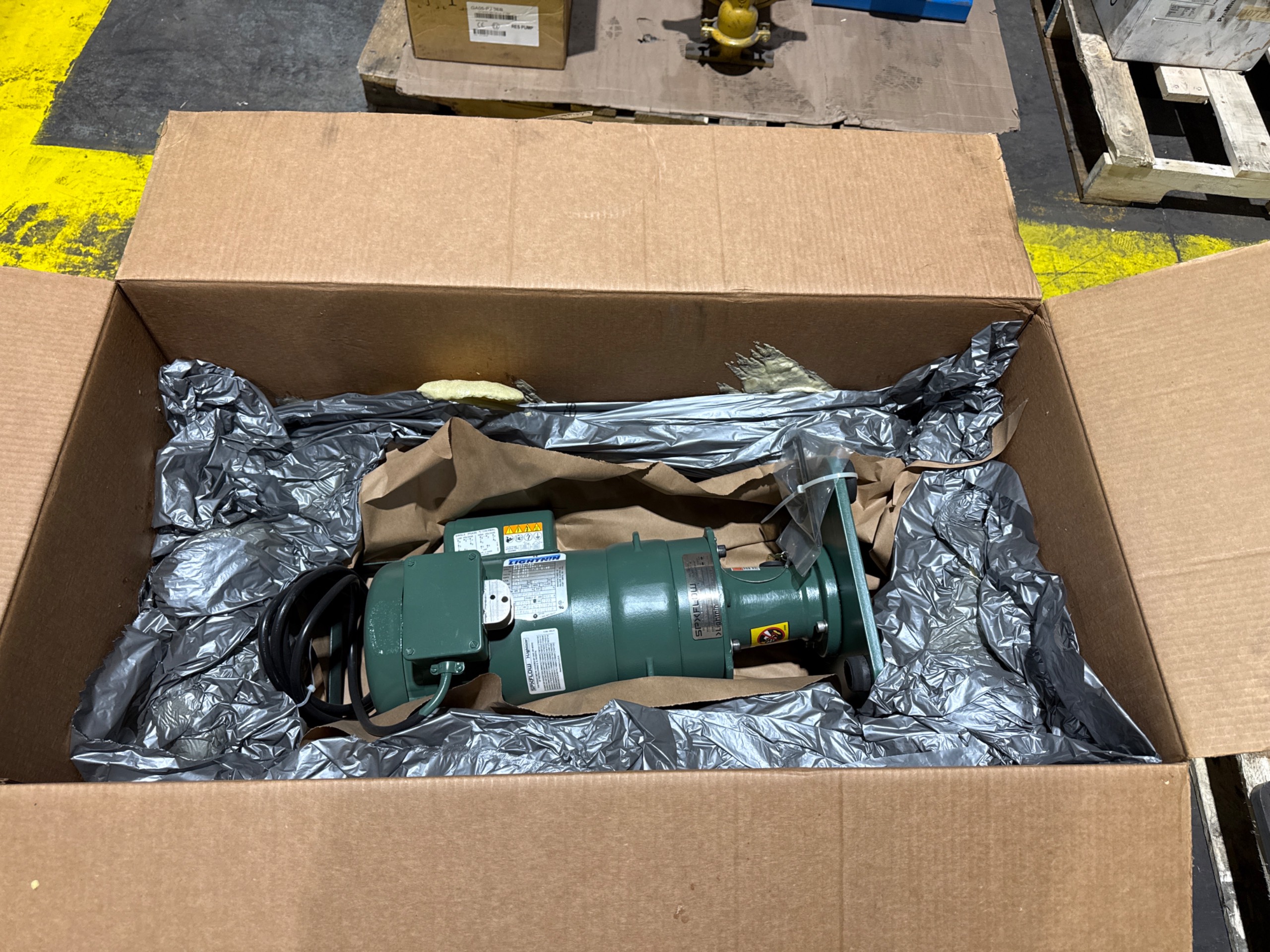

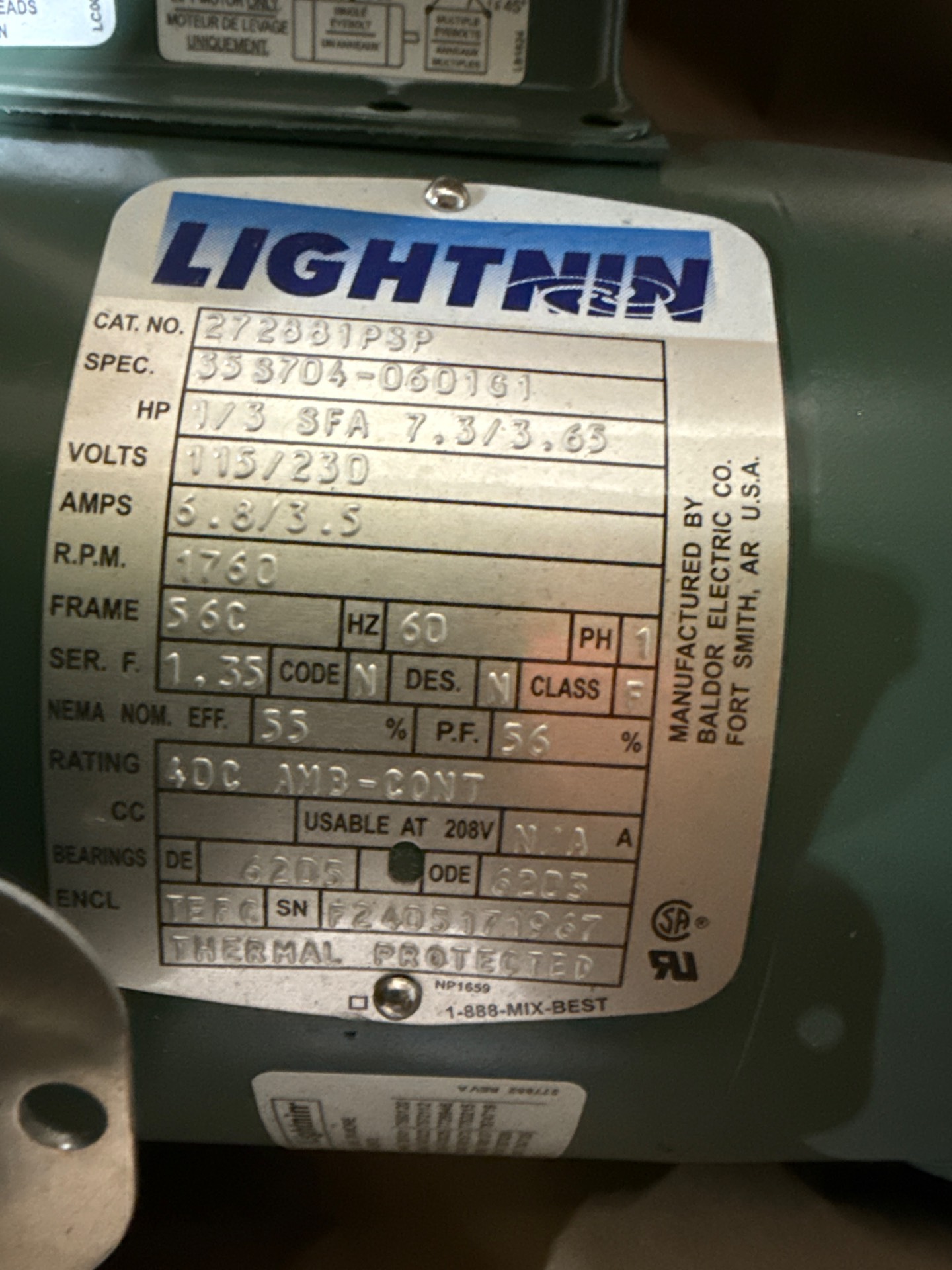

THE SPX FLOW LIGHTNIN EV5Q33 IS A HIGH-PERFORMANCE SMALL PORTABLE MIXER FROM THE EV SERIES, DESIGNED FOR INDUSTRIAL FLUID MIXING APPLICATIONS. THIS DIRECT-DRIVE UNIT IS POWERED BY A 1/3 HP, SINGLE-PHASE TEFC (TOTALLY ENCLOSED FAN COOLED) MOTOR OPERATING AT 115/230 V AND 60 HZ WITH A NOMINAL SPEED OF 1760 RPM. THE MOTOR FEATURES A 56C FRAME, CLASS F INSULATION, A 1.35 SERVICE FACTOR, AND NEMA DESIGN CODE N. BUILT IN 2024, THE MIXER IS CONFIGURED FOR HIGH FLUID SHEAR AND SMALL-BATCH MIXING, UTILIZING A HIGH-EFFICIENCY A310 HYDROFOIL IMPELLER AS STANDARD. TECHNICAL SPECIFICATIONS INCLUDE A 55% NEMA NOMINAL EFFICIENCY, A 56% POWER FACTOR, AND THERMAL PROTECTION. THE UNIT IS RATED FOR CONTINUOUS OPERATION IN AMBIENT TEMPERATURES UP TO 40°C AND IS USABLE AT 208 V. IT INCORPORATES OVERSIZED BEARINGS (DE 6205 / ODE 6203) FOR SUPERIOR SHAFT SUPPORT AND EXTENDED OPERATIONAL LIFE.
