38,000,000 BTU Dragon Frac Water Heater Unit

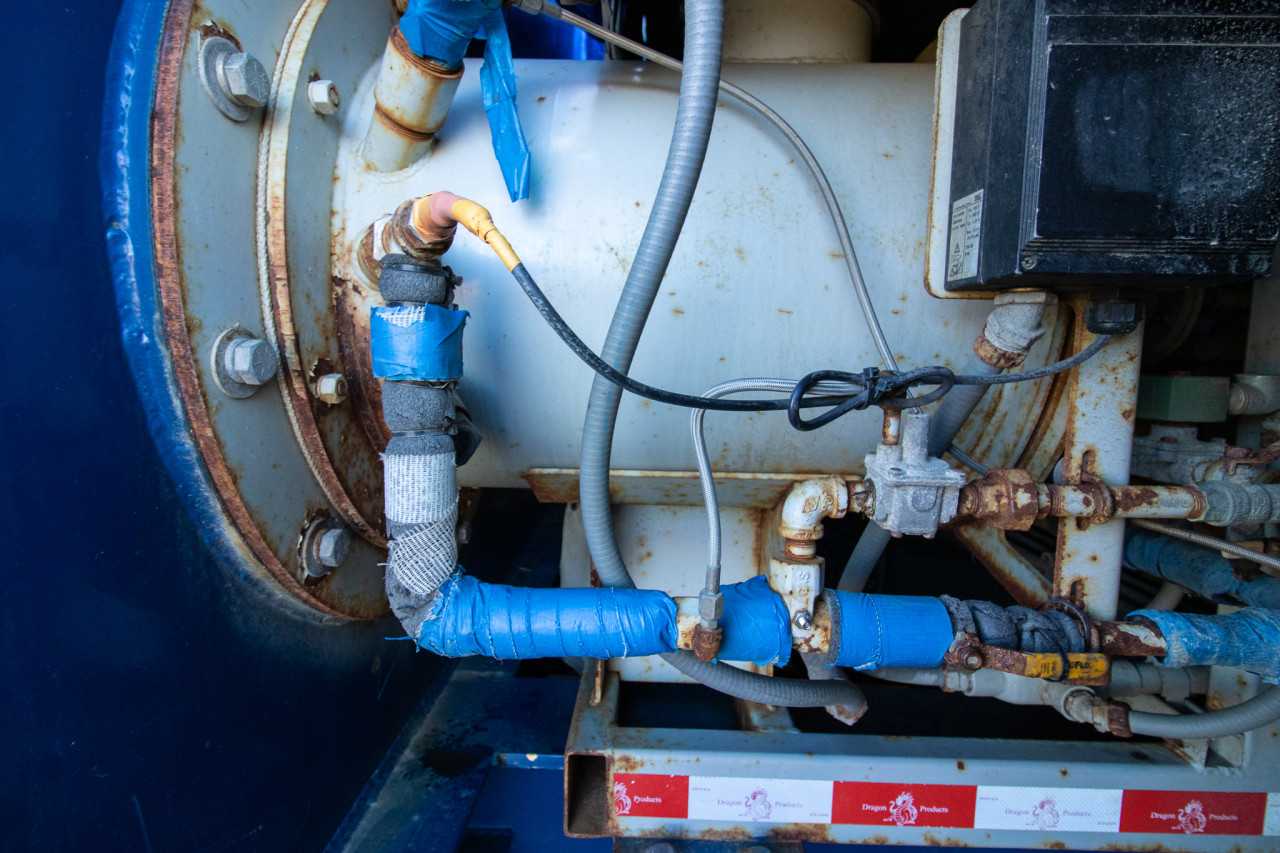

Diesel or Tri-fuel units available Lot is for singe unit only 38,000,000 BTU Dragon Frac Water Heater Unit State of the art, diesel-fired, trailer-mounted Self-contained frac water heater systems Offers superior heating times and efficiencies in fuel consumption Performance Water Flow: 850 GPM @ 50 PSI Inlet Pressure (Nom) 550 GPM @ 30 PSI Inlet Pressure (Nom) 400 GPM @ 20 PSI Inlet Pressure (Nom) Temperature Rise: 70 Deg F @ 850 GPM (Nom) 100 Deg F @ 500 GPM (Nom) Fuel Rate: 4.3 GPM, 258 GPH @ Full Fire (Nom) Dimensions: 45’ Long, 8’ 6” Wide, 13’ High 66,000 Lbs (Nom, Dry Heat Exchanger) Specifications Type Diesel fired, dual burner, trailer mounted self contained system: Burner Dual burner package, NFPA combustion system, 19 million BTU per hour per burner Pressurized fuel and pressurized air systems for fuel atomization Blower system for positive combustion air • LP fired pilot with spark ignition Digital burner controls with programmable water temperature and burner fire rates Safety shutdowns Heat Exchanger 2”– SA106 GR B, SCH 40 pipe Multi core, multi pass, low pressure design inlet and outlet manifolds within burner chamber 6×5 hydraulic drive centrifugal water charge pump Multiple 4” suction and discharge connections at rear of trailer Burner Chamber 1/4” steel plate construction removable top with air operated hinged covers 3” ceramic fiber insulation rated at 2300° on all surfaces including top Fuel Tank 2700 gal aluminum fuel tank Top fill and lower pressure fill connections Top manway, pressure relief valve, level gauge air operated vent valve, air operated fuel supply valve to burner Manual fuel supply valve to deck engine Heated and insulated tank bottom shell John Deere engine with jacket water heater and aluminum enclosure Hydraulic System 300 gal hydraulic tank 4 Pump system with 2 oil coolers, valves and controls : System operates water charge pump, combustion blower, fuel pump, air compressor Air Compressor rotary screw air compressor system with reservoir tanks, moisture separator, and aluminum enclosure Trailer High strength drop deck frame 3 axle with air ride suspension, lift on rear axle ABS brake system, LED lights
