6 Position Rotary Table Transfer Machine

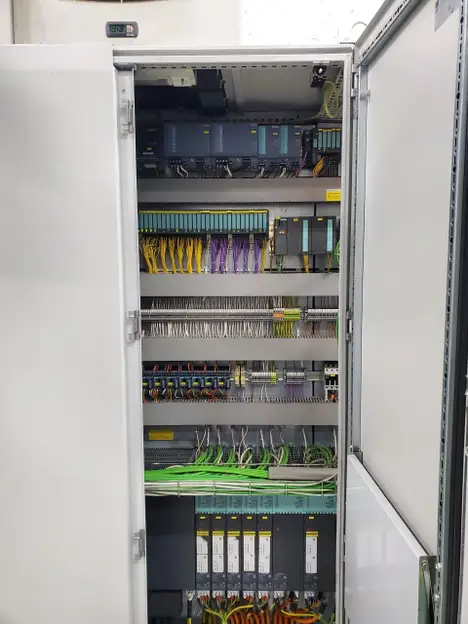

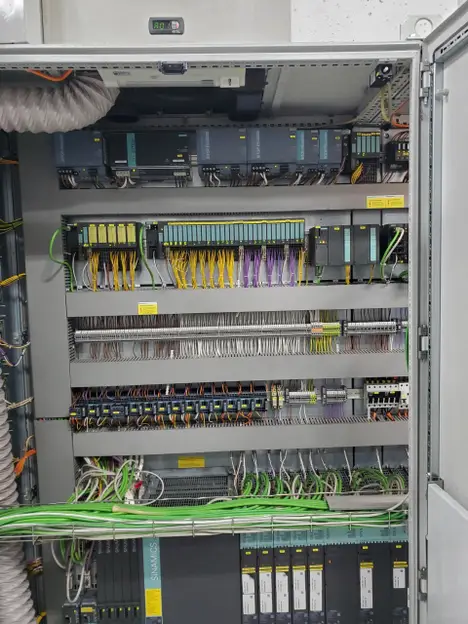

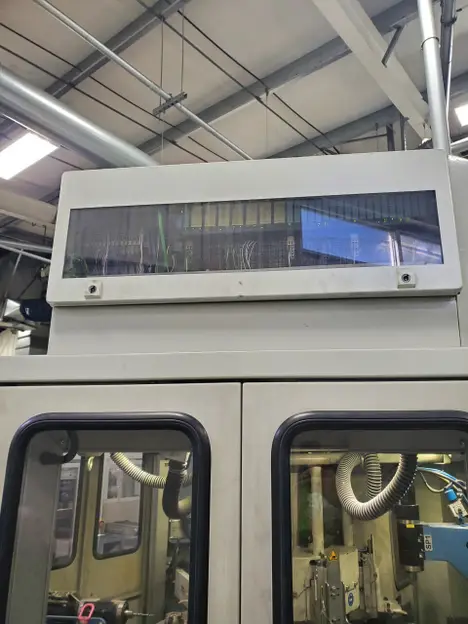

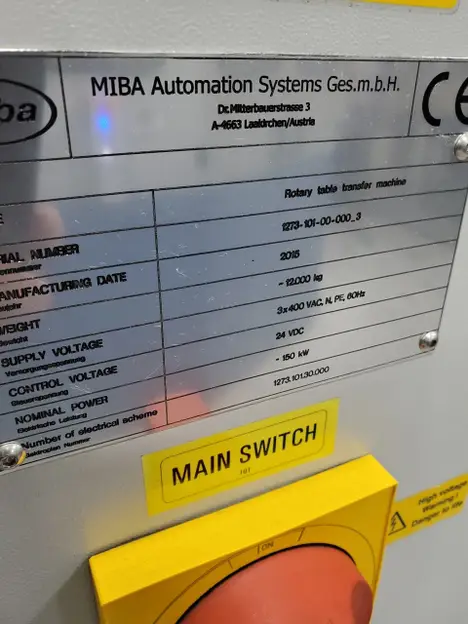

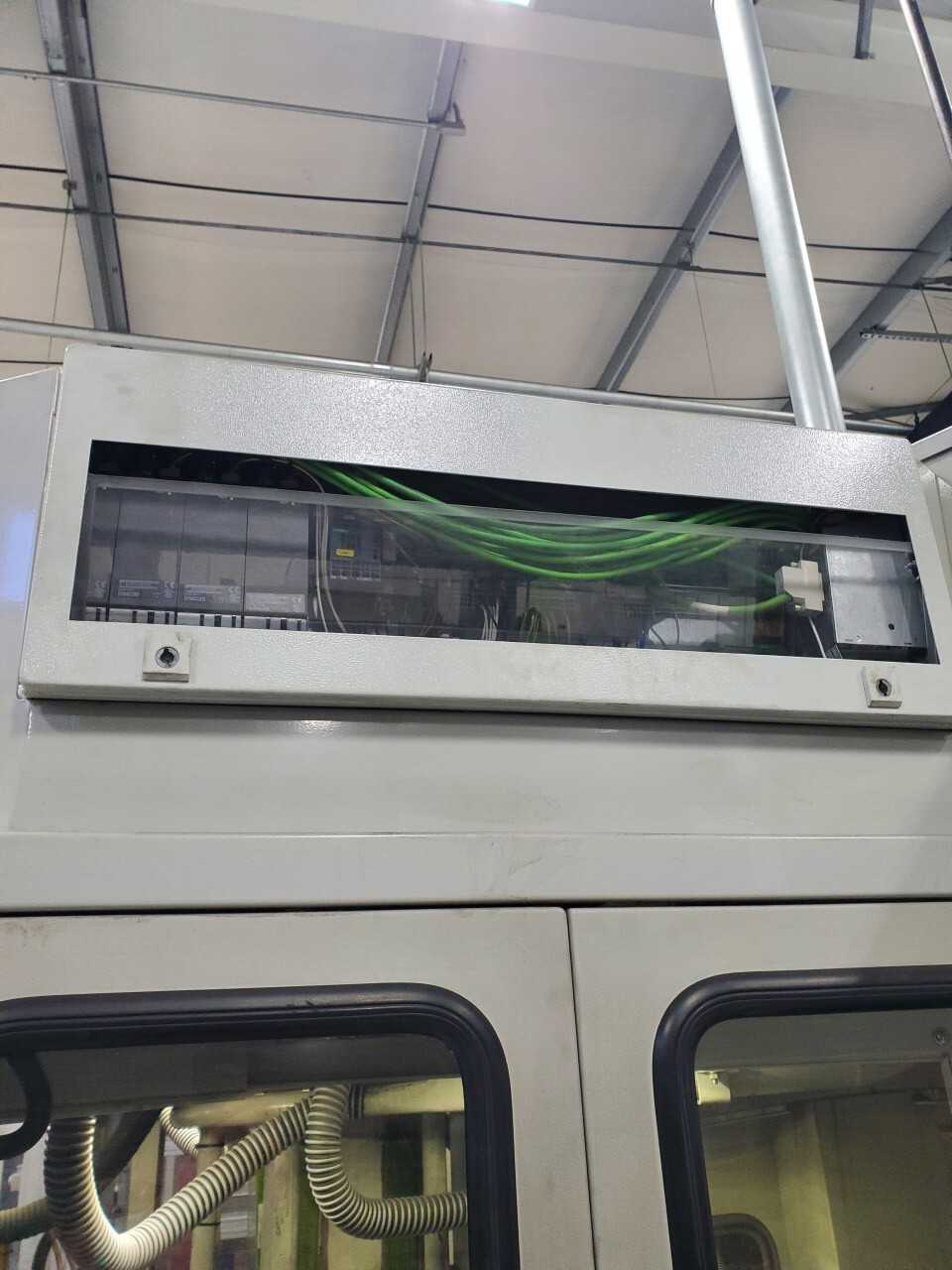

Siemens 840D Control with Customized User friendly HMI Screens Machine Table is a 0-300 degree ratchet return system ( Table will index 0, 60, 120, 180, 240, 300 in Clockwise direction, Then return to 0 degrees in CCW direction) 6 independent 140 flat Pneumatic Clamping Spindles (Weiss) with Thru air part seat detection. C-Axis Spindles have both positioning and turning capabilities • Position 1: Handling o 3 Axis Linear Pick and place system o Pre-loading Vision orientation System o Scrap Conveyor o Quality part conveyor • Position 2: Station 1 o 3 Axis CNC Machine (X,Y,Z) o 40,000 RPM Vertical mounted Drilling Spindle HSK32E Tool Adaption o Thru tool 6bar max pneumatic cooling o Tool Break Detection (Amperage Controlled) • Position 3: Station 2 o 3 Axis CNC Machine (X,Y,Z) o 40,000 RPM Horizontal mounted Drilling Spindle HSK32E Tool Adaption o Thru tool 6bar max pneumatic cooling o Tool Break Detection (Amperage Controlled) • Position 4: Station 3 o 3 Axis CNC Machine (X,Y,Z) o 40,000 RPM Horizontal mounted Drilling Spindle HSK32E Tool Adaption o Thru tool 6bar max pneumatic cooling o Tool Break Detection (Amperage Controlled) • Position 5: Station 4 o 3 Axis CNC Machine (X,Y,Z) o 40,000 RPM Horizontal mounted Drilling Spindle HSK32E Tool Adaption o Thru tool 6bar max pneumatic cooling o Tool Break Detection (Amperage Controlled) • Position 6: Station 5 o 3 Axis CNC Machine (X,Y,Z) o 5000 RPM Vertical mounted Brushing Spindle Manual HSK32E Tool Adaption o Thru tool 6bar max pneumatic cooling Serial# 1273-101-00-000_3 Manufacture date: 2015 Weight: 12,000 kg Supply Voltage: 3x400 VAC, N, PE, 60Hz Control Voltage: 24 VDC Nominal Power: 150 kw
