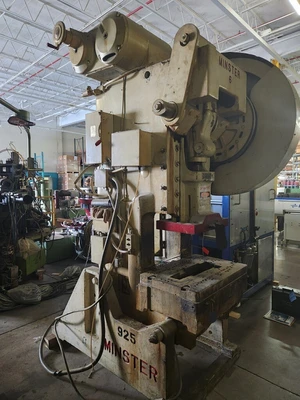

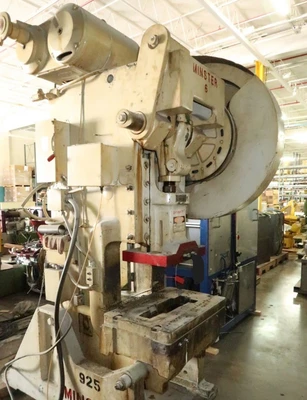

60 TON MINSTER O.B.I. PRESS, 4" STROKE, 13" SHUT HEIGHT, 90-180 SPM, 7.5 HP MOTOR

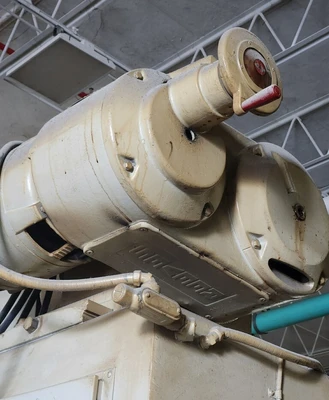

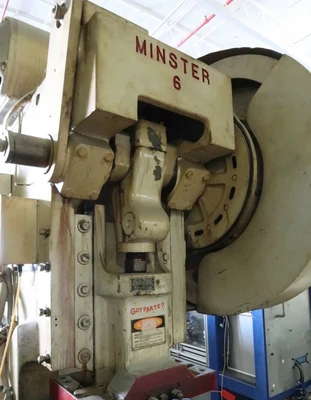

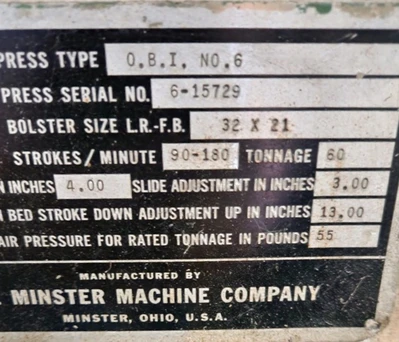

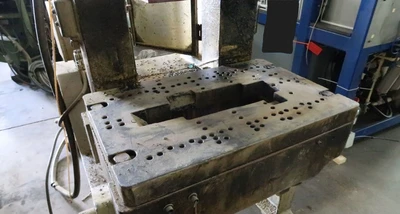

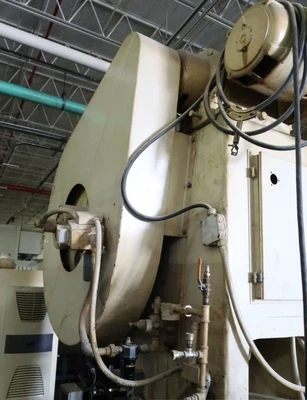

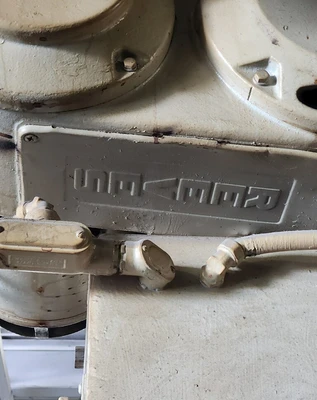

THE MINSTER MODEL 6 OPEN BACK INCLINABLE (O.B.I.) PRESS IS A ROBUST 60-TON CAPACITY MACHINE. KEY FEATURES INCLUDE AN AIR CLUTCH AND BRAKE SYSTEM, AND A REEVES VARIABLE-SPEED DRIVE, POWERED BY A 7.5 HP MOTOR IN A FLYWHEEL DESIGN. TECHNICAL SPECIFICATIONS DETAIL A 4-INCH STROKE LENGTH AND A 13-INCH SHUT HEIGHT TO THE BED (SDAU) WITH A 3-INCH RAM ADJUSTMENT. THE PRESS OFFERS VARIABLE SPEEDS RANGING FROM 90 TO 180 STROKES PER MINUTE (SPM). DIMENSIONAL CAPACITIES INCLUDE A RAM AREA OF 21" L-R X 14" F-B, A BED AREA OF 32" L-R X 21" F-B, AND A BOLSTER AREA MATCHING THE BED AREA WITH A 2.5" BOLSTER THICKNESS. THE BED OPENING MEASURES 18" L-R X 14" F-B, AND THE THROAT DEPTH IS 11". THE OVERALL HEIGHT OF THE MACHINE IS 114".
