75 TON DAKE MODEL 5-075 ELEC-DRAULIC H-FRAME TRAVELING-COLUMN STRAIGHTENING PRESS

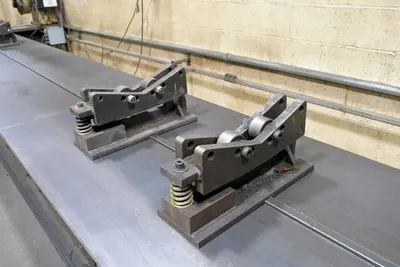

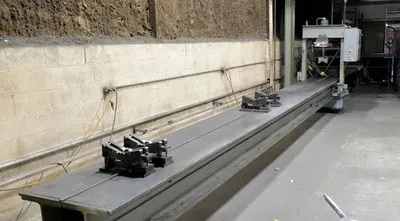

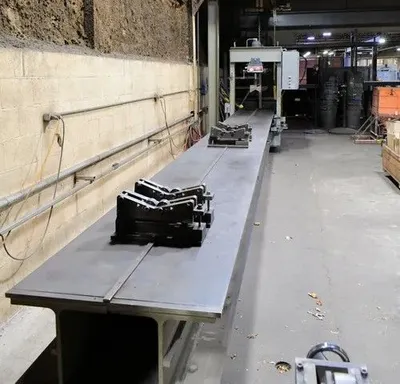

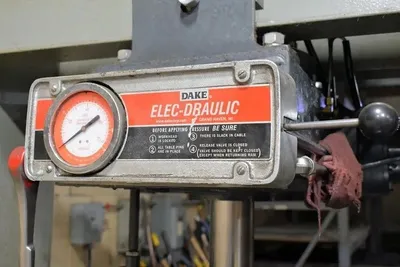

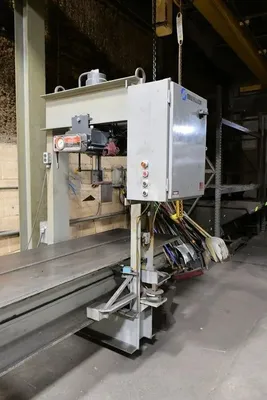

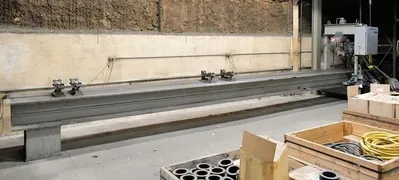

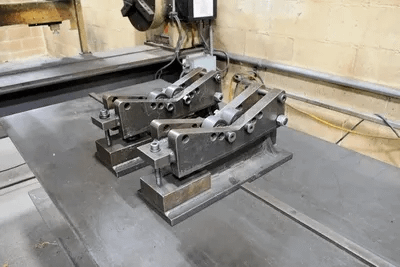

THE MODEL 5-075 75 TON DAKE ELEC-DRAULIC H-FRAME TRAVELING-COLUMN HYDRAULIC STRAIGHTENING PRESS IS ENGINEERED FOR PRECISION AND POWER. IT FEATURES A ROBUST 75-TON TONNAGE CAPACITY AND A 10-INCH STROKE LENGTH. THE MACHINE INCLUDES A 2 HP ELEC-DRAULIC MOVEABLE WORKHEAD AND IS EQUIPPED WITH POWER COLUMN TRAVERSE, VARIABLE RAM SPEED, AND (3) ADJUSTABLE WORK SUPPORTS. KEY SPECIFICATIONS INCLUDE 35 INCHES DISTANCE BETWEEN HOUSINGS AND A SUBSTANTIAL 360-INCH (30 FEET) BY 32-INCH WORKTABLE. RAM SPEEDS ARE 5 IPM FOR PRESSING AND 28 IPM FOR ADVANCING. THE UNIT IS POWERED BY A 2 HP/1745 RPM MOTOR, OPERATING ON A 230-460/3/60 ELECTRICAL SYSTEM. OVERALL DIMENSIONS ARE 360 INCHES LONG BY 64 INCHES WIDE, WITH AN OVERALL HEIGHT OF 96 INCHES.
