ABB 923A186G06 CT, 15 KV VOLT, 110 KV BIL, 75/150 A PRIM, 5 A SEC, C400/C800 ACC

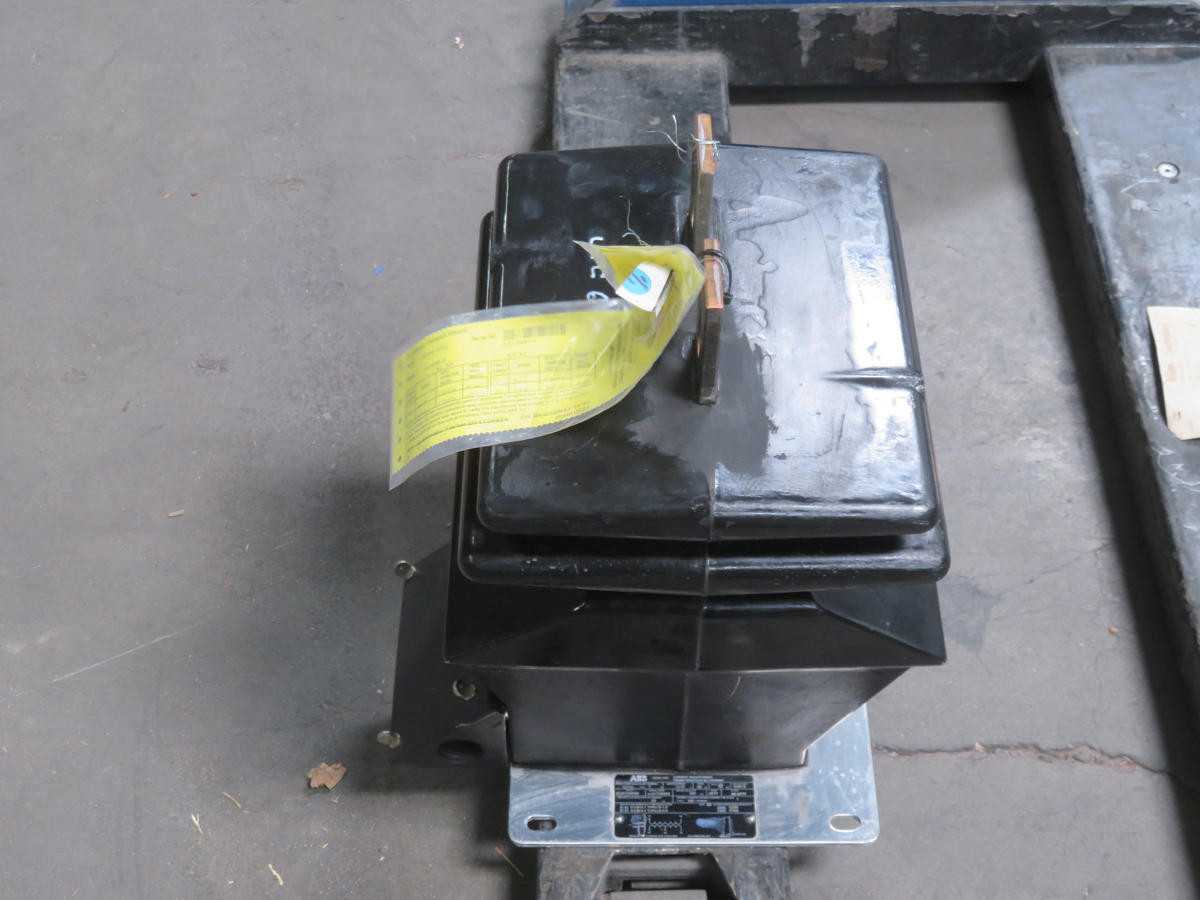

THE ABB KOR-15C OUTDOOR WINDOW-TYPE CURRENT TRANSFORMER, PART NUMBER 923A186G06, IS DESIGNED FOR 15 KV SYSTEMS WITH A 110 KV BASIC IMPULSE LEVEL (BIL) AND OPERATES AT 60 HZ. IT FEATURES A MOLDED RUBBER CONSTRUCTION SUITABLE FOR OUTDOOR APPLICATIONS. THIS DUAL-RATIO TRANSFORMER OFFERS PRIMARY CURRENT RATINGS OF 75 A AND 150 A, BOTH WITH A 5 A SECONDARY OUTPUT. ON THE 75 A PRIMARY TAP, THE UNIT ACHIEVES A C400 ACCURACY CLASS WITH A B0.9 BURDEN RATING. WHEN CONFIGURED FOR THE 150 A PRIMARY TAP, IT PROVIDES A C800 ACCURACY CLASS WITH A B1.8 BURDEN RATING.
