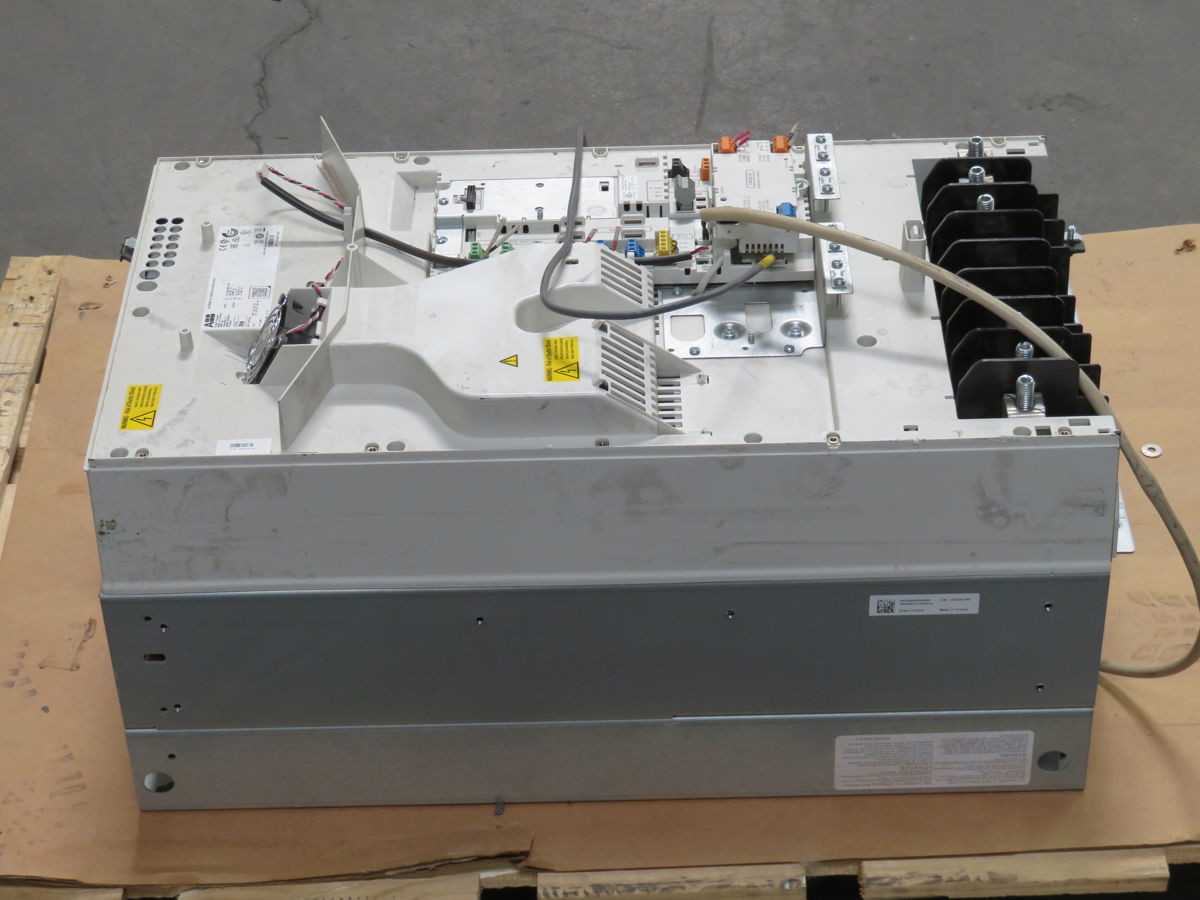

ABB ACS580-01-363A-4+0J400+P922 AC DRIVE, 200 KW POWER, 363A OUT CURRENT, 400-480V

THE ABB ACS580-01-363A-4+0J400+P922 IS AN AC DRIVE ENGINEERED FOR THREE-PHASE MOTOR CONTROL APPLICATIONS. IT OPERATES WITH A NOMINAL INPUT VOLTAGE RANGE OF 400-480 VAC AT 50/60 HZ, ACCEPTING AN INPUT CURRENT OF 363/361 A. THE DRIVE PROVIDES A THREE-PHASE OUTPUT WITH A VARIABLE VOLTAGE FROM 0 TO 480 VAC AND A CURRENT OF 363/361 A, SUPPORTING AN ADJUSTABLE OUTPUT FREQUENCY FROM 0 TO 500 HZ. RATED FOR HEAVY-DUTY OPERATION, IT DELIVERS A NOMINAL OUTPUT POWER OF 200 KW (250 HP). THIS MODEL TYPICALLY FEATURES AN IP21 ENCLOSURE FOR WALL-MOUNTED INSTALLATIONS. IT INCORPORATES BOTH SCALAR (V/HZ) AND DIRECT TORQUE CONTROL METHODS, ALONG WITH INTEGRATED SAFE TORQUE OFF (STO) FUNCTIONALITY FOR ENHANCED SAFETY. COMMUNICATION CAPABILITIES INCLUDE BUILT-IN MODBUS RTU.
