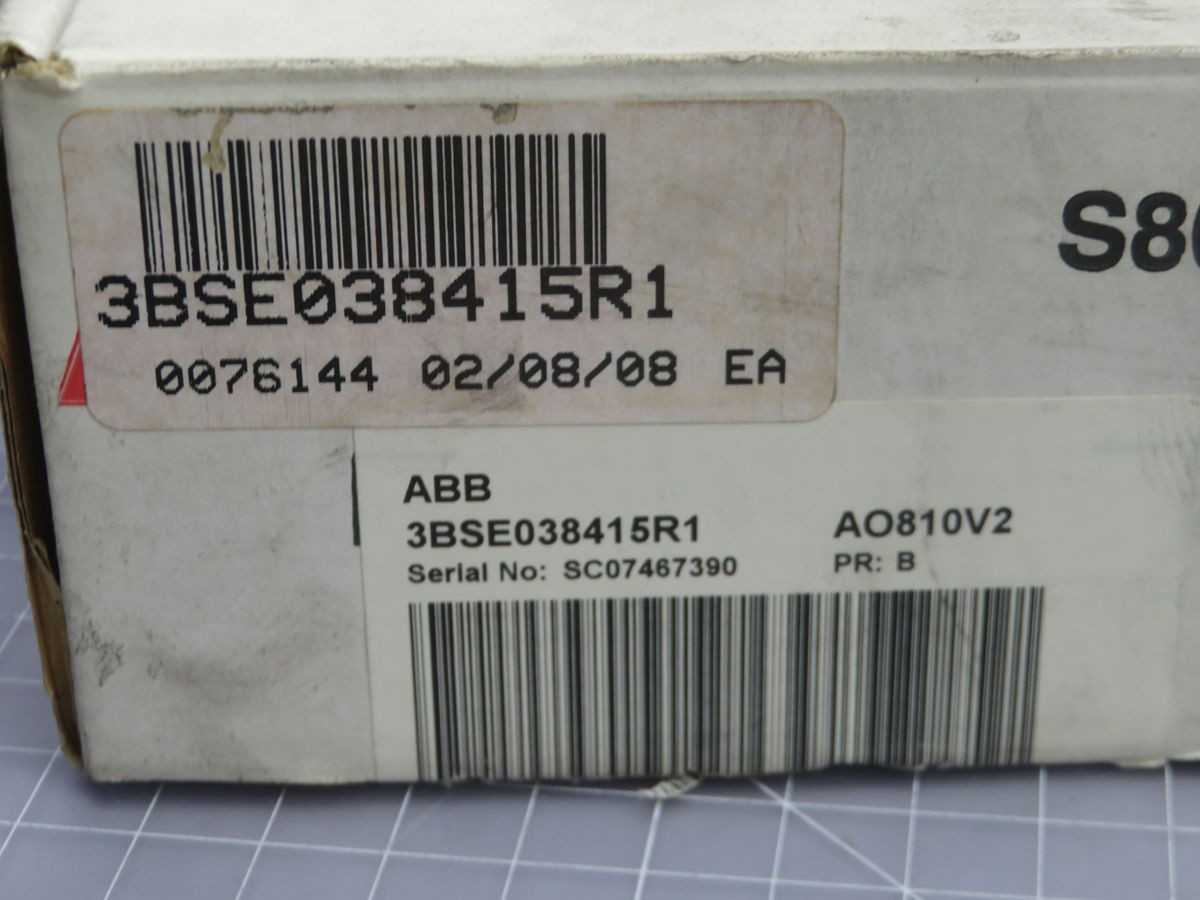

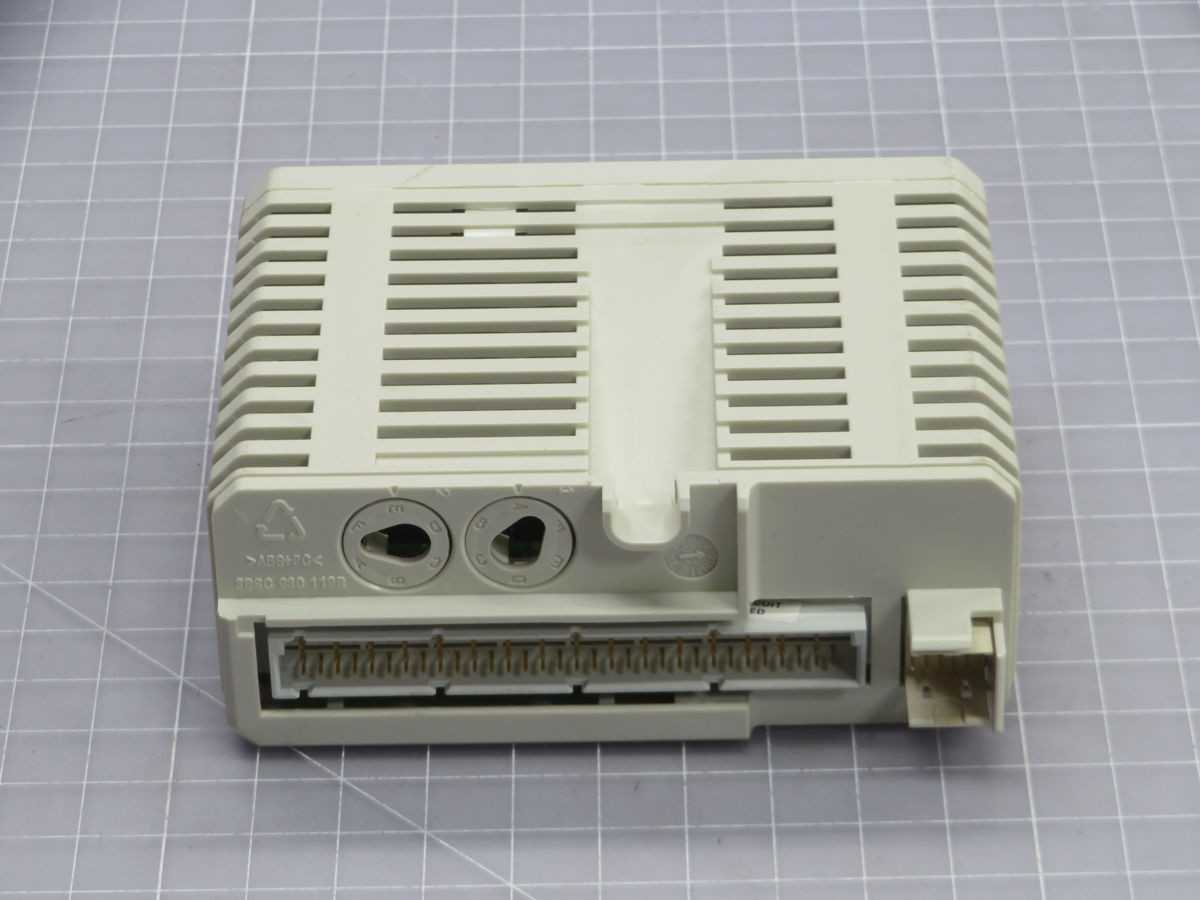

ABB AO810 3BSE038415R1 IO MODULE, 8 CH, 0-20/4-20 MA OUT, 14-BIT RES, 850 OHM LOAD, 2 MS UPDATE

THE ABB 3BSE038415R1 IS AN 8-CHANNEL ANALOG OUTPUT MODULE, IDENTIFIED AS AN AO810. IT SUPPORTS CURRENT OUTPUTS IN RANGES OF 0-20 MA AND 4-20 MA WITH A 14-BIT RESOLUTION. THE MODULE ACCOMMODATES A MAXIMUM LOAD RESISTANCE OF 850 OHM WHEN OPERATING WITH AN EXTERNAL 24 VDC SUPPLY, OR 50 OHM WITH AN INTERNAL POWER SUPPLY. EACH CHANNEL FEATURES AN UPDATE TIME OF 2 MS. IT INCORPORATES ISOLATION BETWEEN CHANNELS AND TO THE PROCESS SIDE. POWER REQUIREMENTS INCLUDE AN EXTERNAL 24 VDC AND AN INTERNAL 5 VDC, WITH A MAXIMUM POWER CONSUMPTION OF 4.5 W. CURRENT CONSUMPTION IS 0.1 A AT 5 V AND 0.1 A AT 24 V (WITHOUT LOAD). THE AMBIENT OPERATING TEMPERATURE RANGE IS -20 TO +70 °C. COMPATIBLE TERMINATION UNITS INCLUDE TU810, TU812, TU814, TU830, TU833, TU834, AND TU835.
