ABB HIGH PRESSURE TURBINE SYSTEM WITH 45 MVA GENERATOR
Aucto ID: AA254520
Premium Listing
Ends in:
52a64b70-c319-4d25-bbe0-496bb57627fb
Asking Price:
$885,000.00
active
Location: Mecca, California, United States
Logistics:
Rigging:
Buyer
Loading:
Buyer
Shipping:
Buyer
buy now
Buy Now: Submit an offer or purchase immediately!
FAQsVerified Seller: Desert View Power LLC
3028Selling since 2025.
Item Description
Turbine Model: VAX HT25/LT25 (ABB)

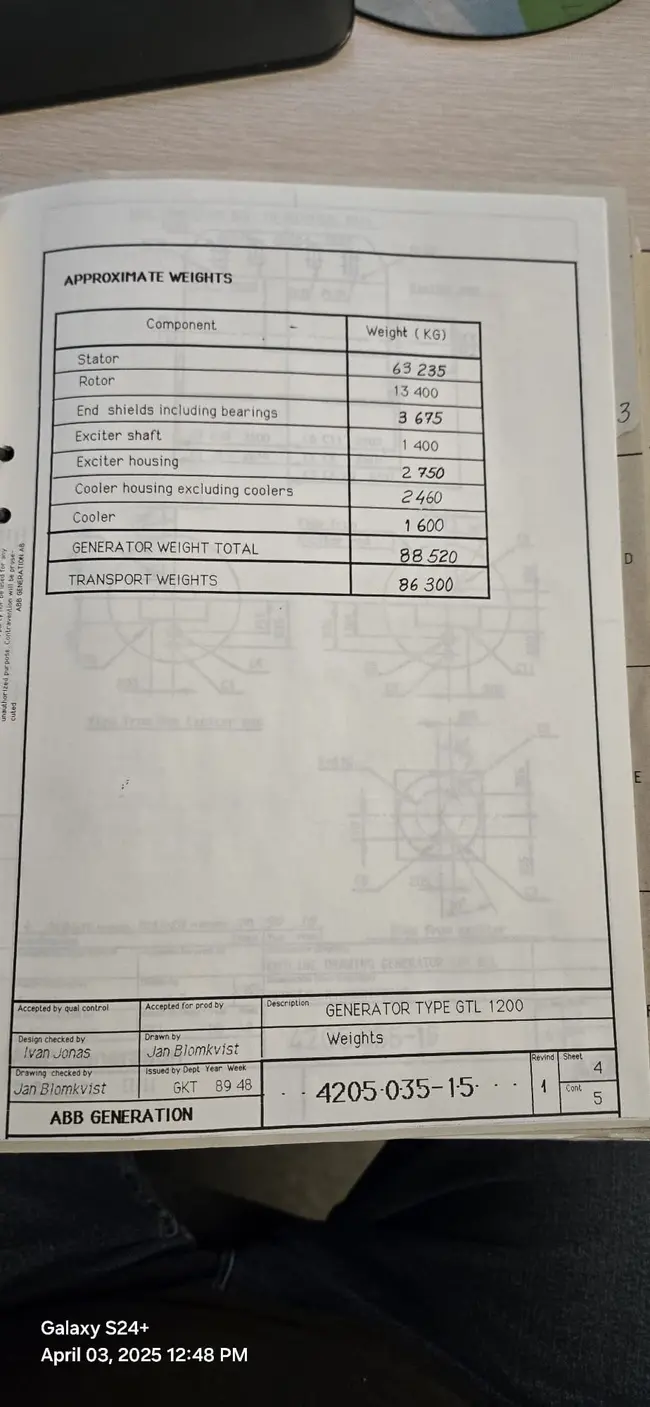

Generator Model: GTL 1200EP (ABB)
Generator Capacity: 45 MVA
Rated Output Power: 54,150 kW
Turbine Specifications:
Inlet Pressure: 1,235 psig
Inlet Temperature: 920°F
High-Pressure (HP) Turbine Rated Speed: 7,629 rpm
Low-Pressure (LP) Turbine Rated Speed: 3,600 rpm
Turbine Gearbox : Graffenstaden TRL 50 (Flender-Graffenstaden)
Gearbox Power: 27,500 kW
Gearbox Speed Ratio: 2.1
Oil Flow: 620 L/min
Oil Inlet Pressure: 15 bar
Service Factor: 11
Gearbox Weight: 5,800 kg
Generator Specifications:
Rated Speed: 3,600 rpm
Configuration: High-pressure and low-pressure turbine sections with a Graffenstaden TRL50 gearbox to match turbine speed with generator speed.
Application: Designed for large-scale power plants to convert high-temperature steam into electricity and utilize exhaust steam from gas turbines for additional power generation.
Technical Specifications
Manufacturer: ABB
Condition: Fair
- Item functions as originally intended, shows signs of normal wear.Category
