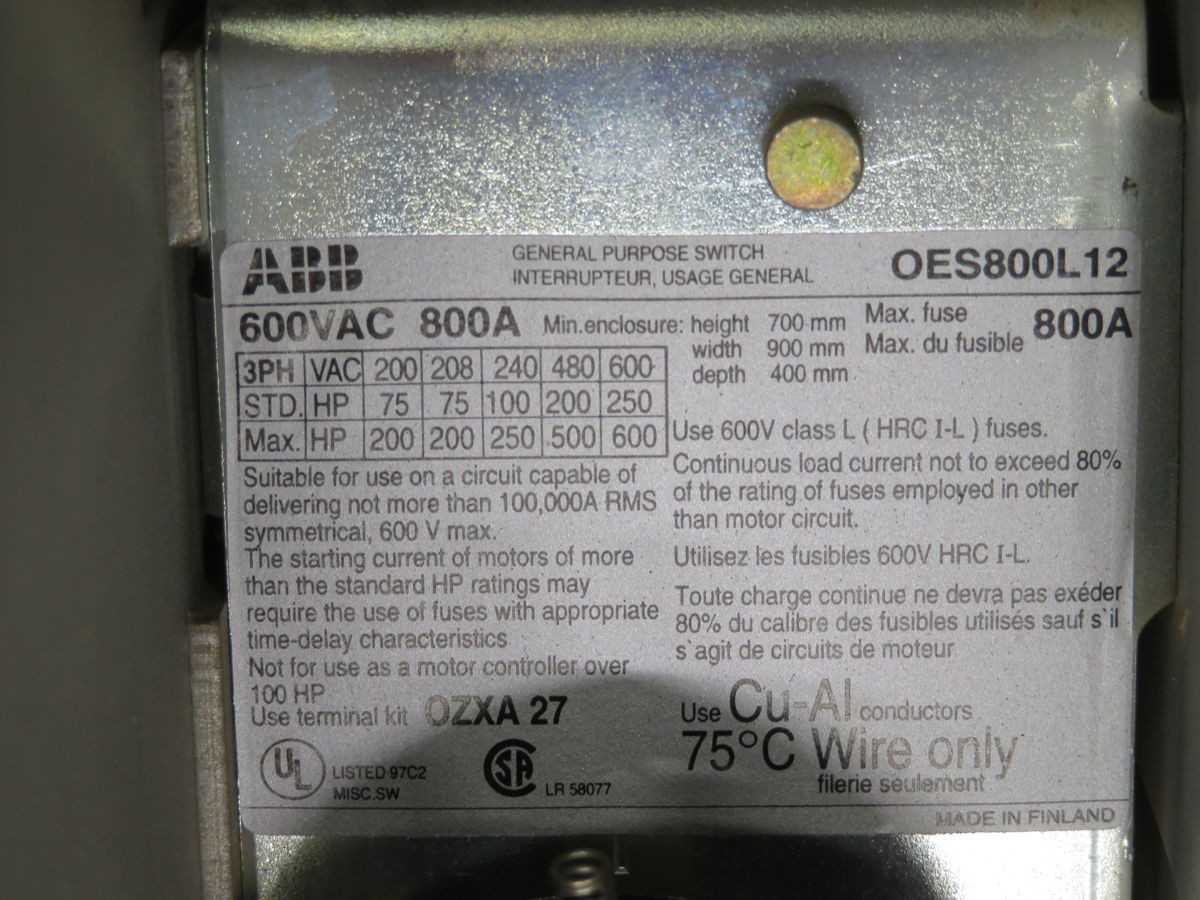

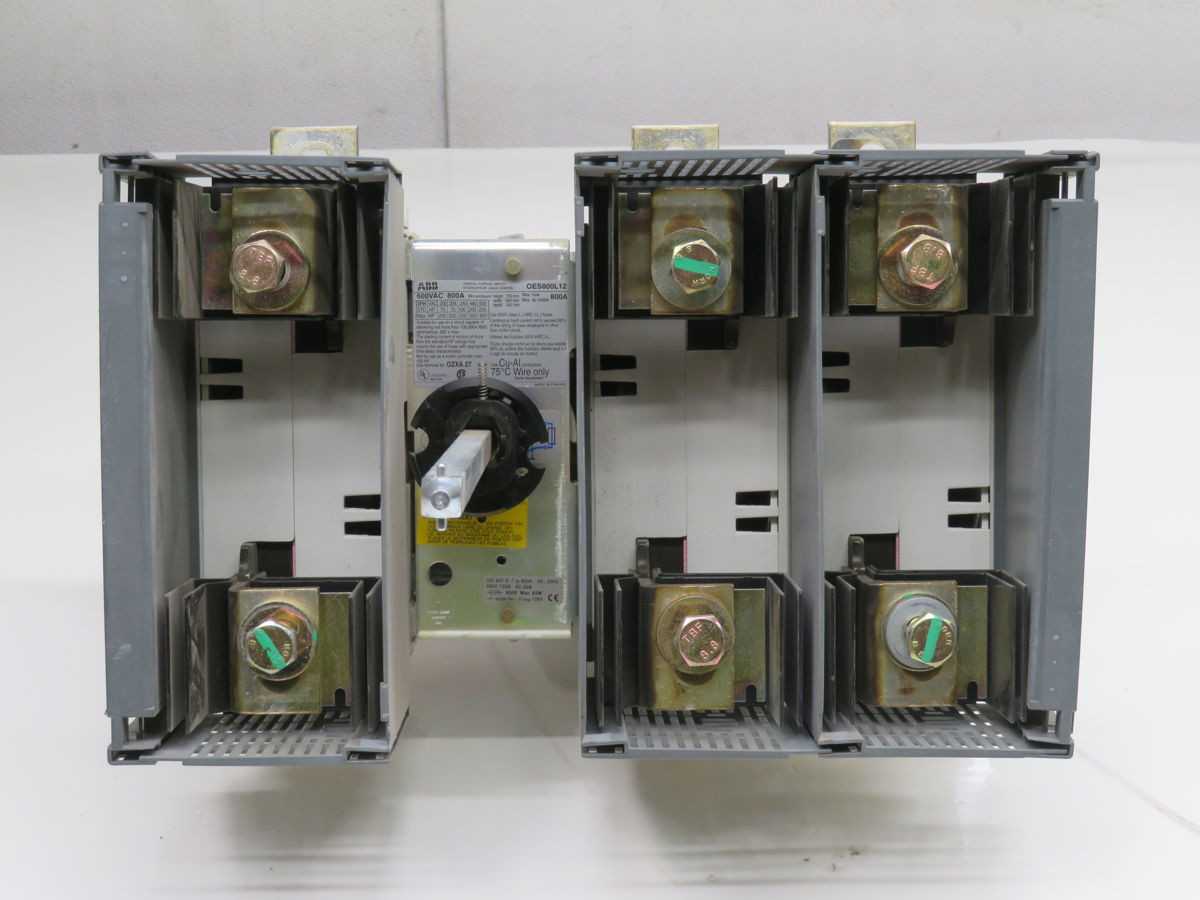

ABB OES800L12 DISCONNECT SWITCH, 3-POLE, 800A CURRENT, 600V VOLTAGE, 200KA SCCR, 1000V UI

THE ABB OES800L12 IS A 3-POLE, GENERAL-PURPOSE DISCONNECT SWITCH DESIGNED FOR INDUSTRIAL POWER DISTRIBUTION. IT FEATURES A RATED OPERATIONAL CURRENT OF 800 AMPERES AND A RATED OPERATIONAL VOLTAGE OF 600 VOLTS AC. THE SWITCH IS SPECIFICALLY ENGINEERED FOR USE WITH CLASS L FUSES, OFFERING A CONDITIONAL SHORT-CIRCUIT CURRENT RATING (SCCR) OF 200 KA AT 600V WHEN PROTECTED BY APPROPRIATE CLASS L FUSES. THIS CAPABILITY MAKES IT SUITABLE FOR ENVIRONMENTS WITH HIGH PROSPECTIVE FAULT CURRENTS. THE DEVICE IS UL 98 LISTED, ENSURING COMPLIANCE WITH SAFETY STANDARDS FOR ENCLOSED SWITCHES AND AFFIRMING ITS SUITABILITY FOR SERVICE ENTRANCE APPLICATIONS. IT HAS A RATED INSULATION VOLTAGE (UI) OF 1000V AND A RATED IMPULSE WITHSTAND VOLTAGE (UIMP) OF 8KV. THE OES800L12 IS DESIGNED FOR BASE MOUNTING.
