ABB S6N600TWAS8 26324 CIRCUIT BREAKER, 3-POLE, 600A, 1000V UI, 8KV UIMP, 65KA ICU

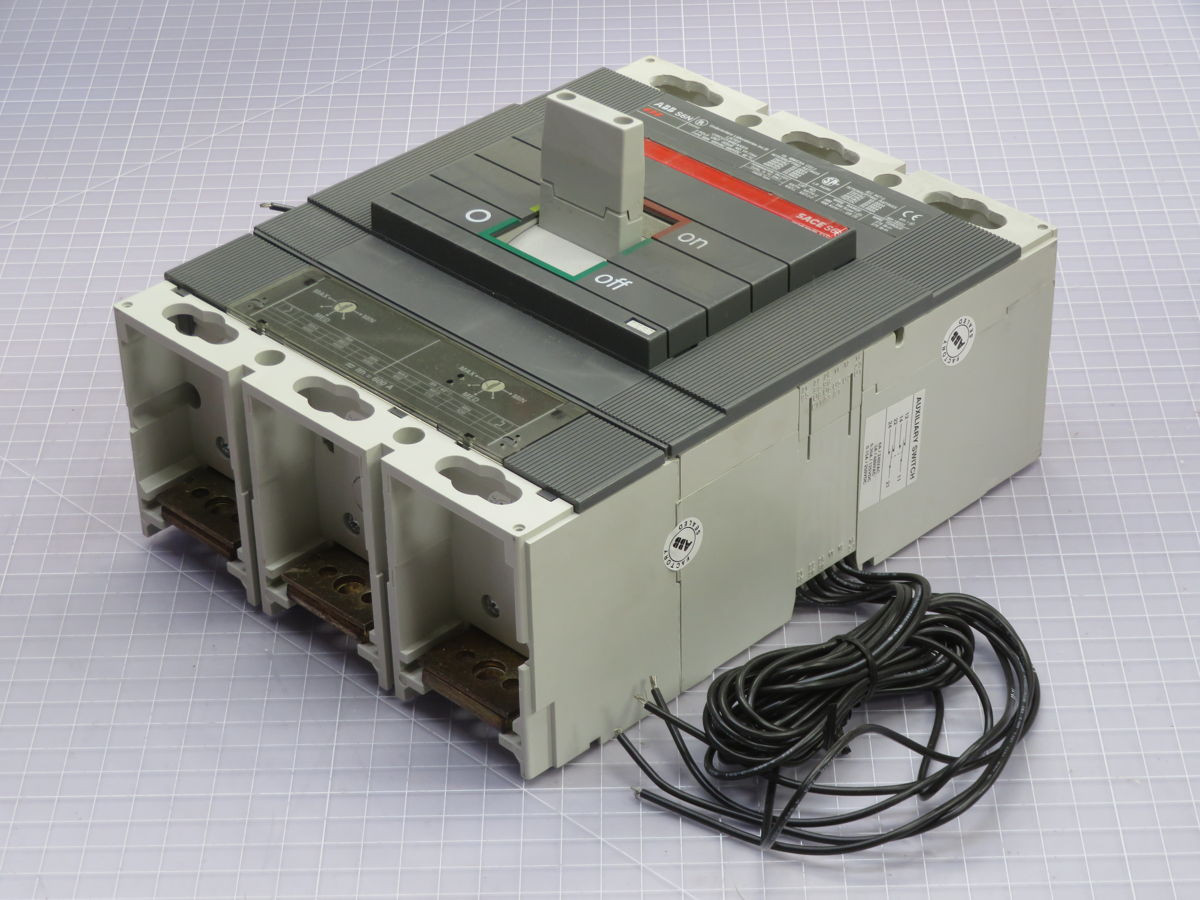

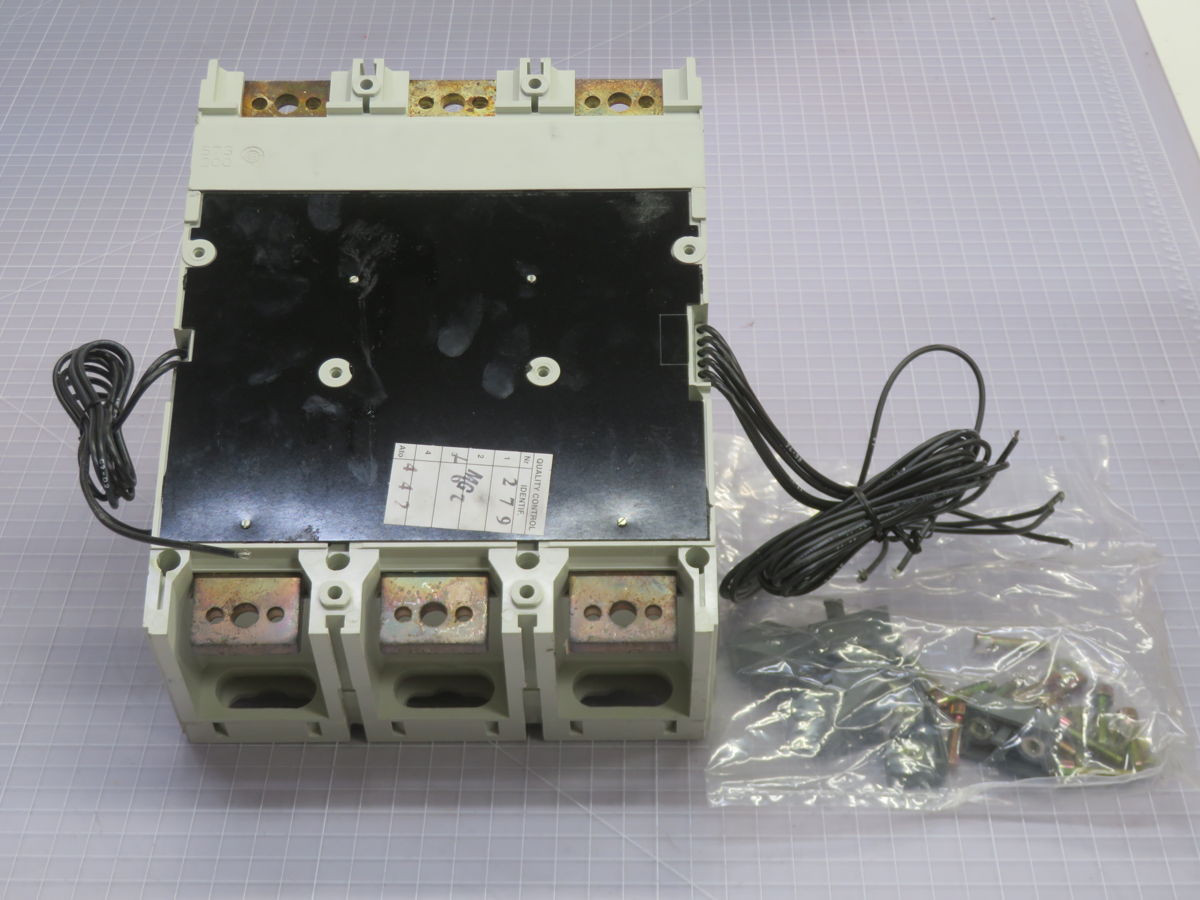

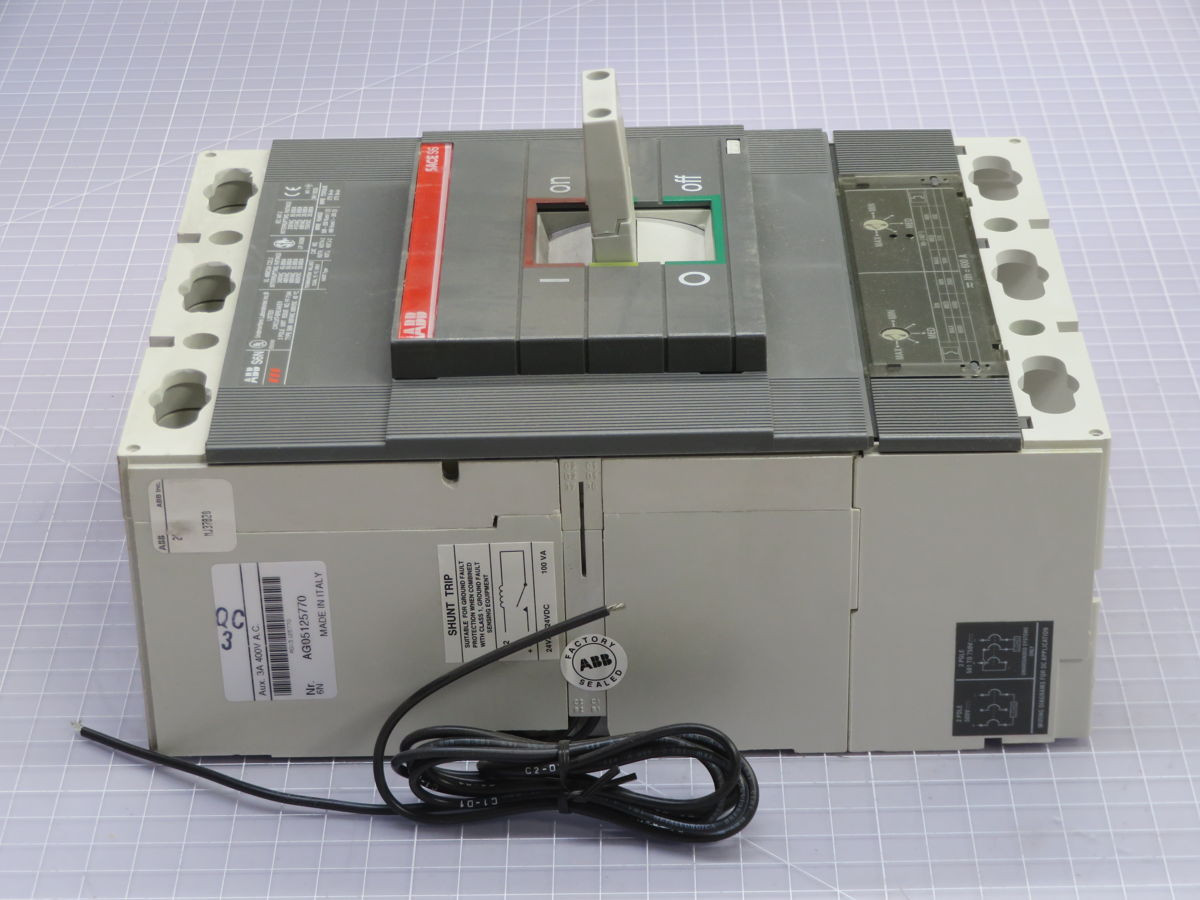

THIS ABB SACE ISOMAX S6N MOLDED CASE CIRCUIT BREAKER IS A 3-POLE DEVICE RATED FOR A CONTINUOUS CURRENT OF 600 A. IT FEATURES A THERMAL-MAGNETIC TRIP UNIT AND IS DESIGNED WITHIN THE S6 FRAME SIZE, OFFERING AN N-TYPE (NORMAL) BREAKING CAPACITY. THE BREAKER HAS A RATED INSULATION VOLTAGE (UI) OF 1000 V AC AND A RATED IMPULSE WITHSTAND VOLTAGE (UIMP) OF 8 KV. ITS RATED SHORT-CIRCUIT BREAKING CAPACITY (ICU) IS SPECIFIED AS 65 KA AT 220/240 V AC, 50 KA AT 380/415 V AC, 42 KA AT 440 V AC, 36 KA AT 500 V AC, AND 20 KA AT 690 V AC.
