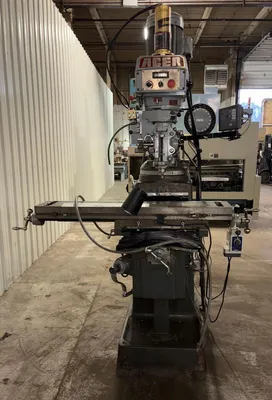

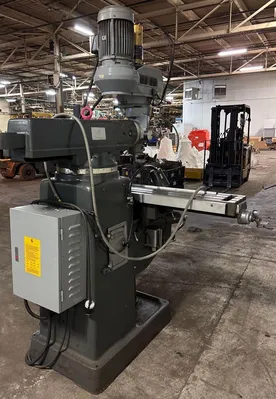

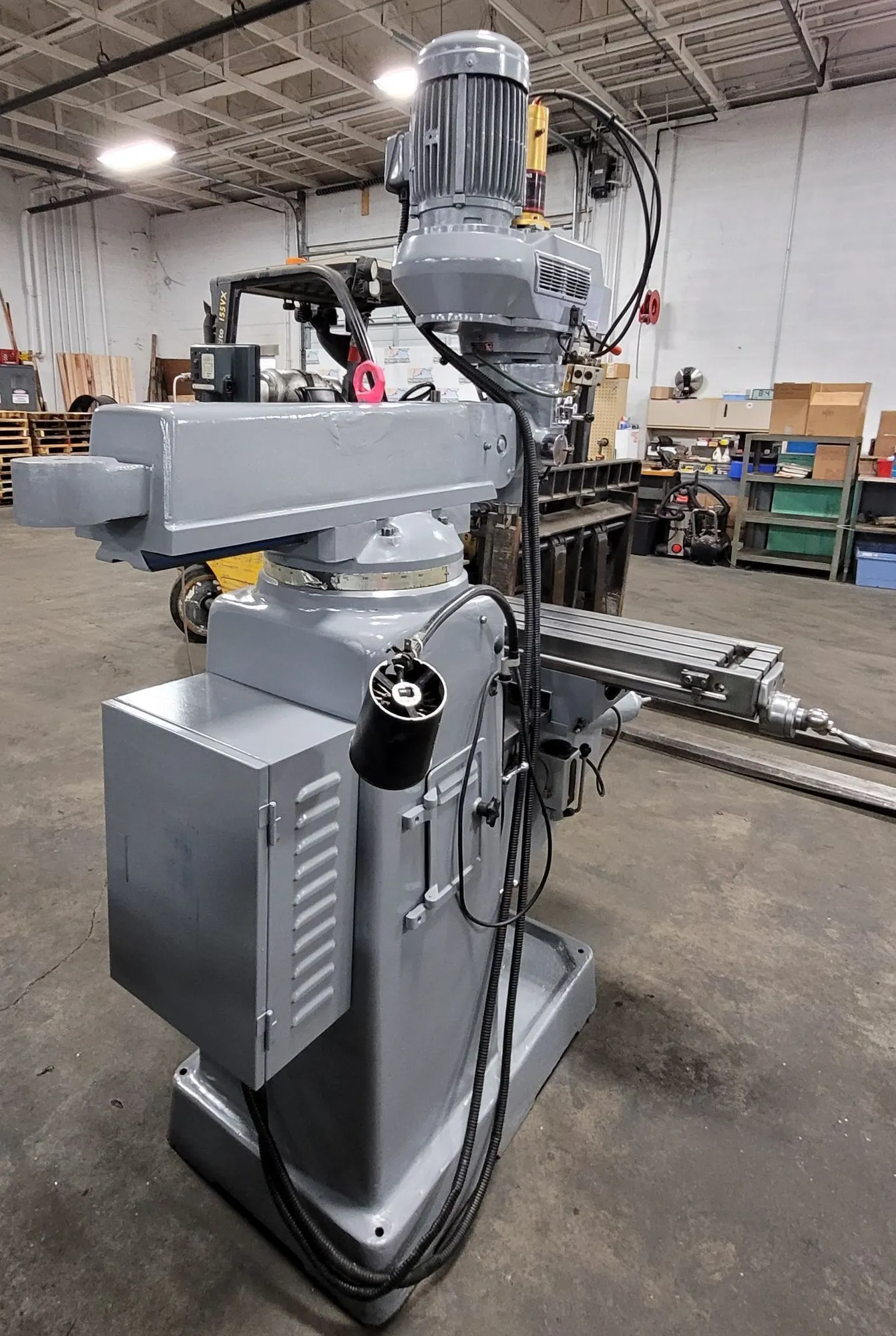

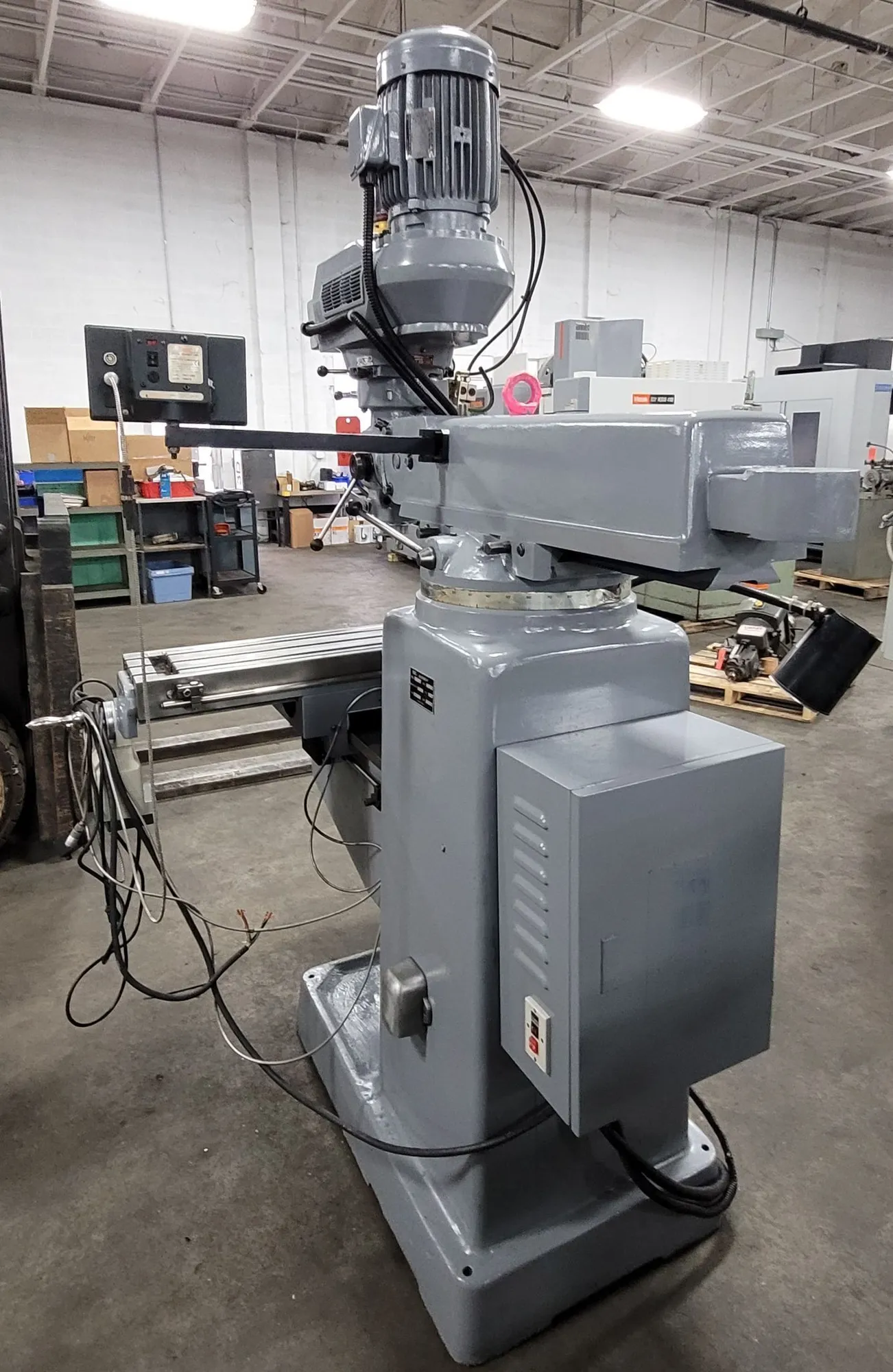

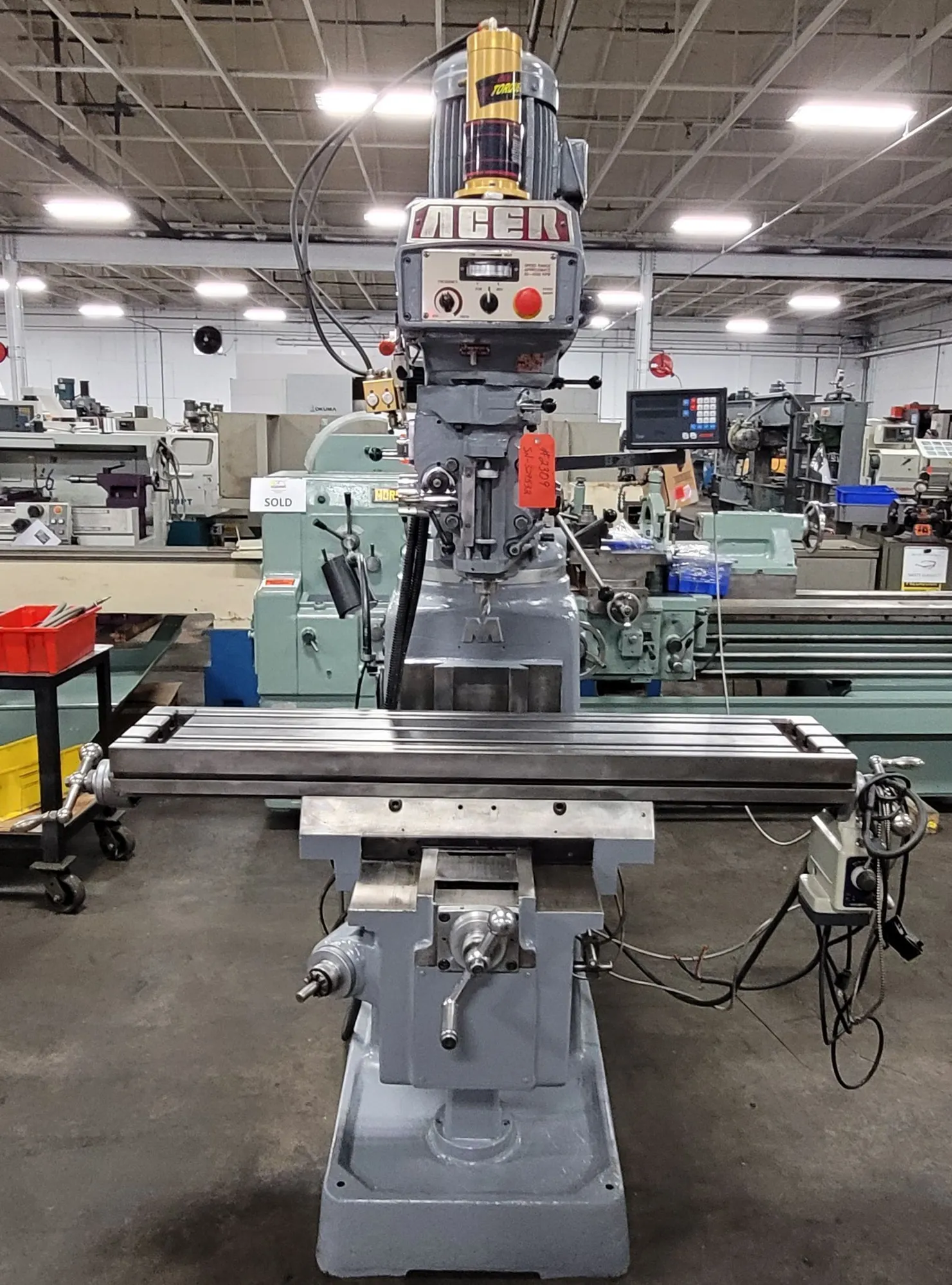

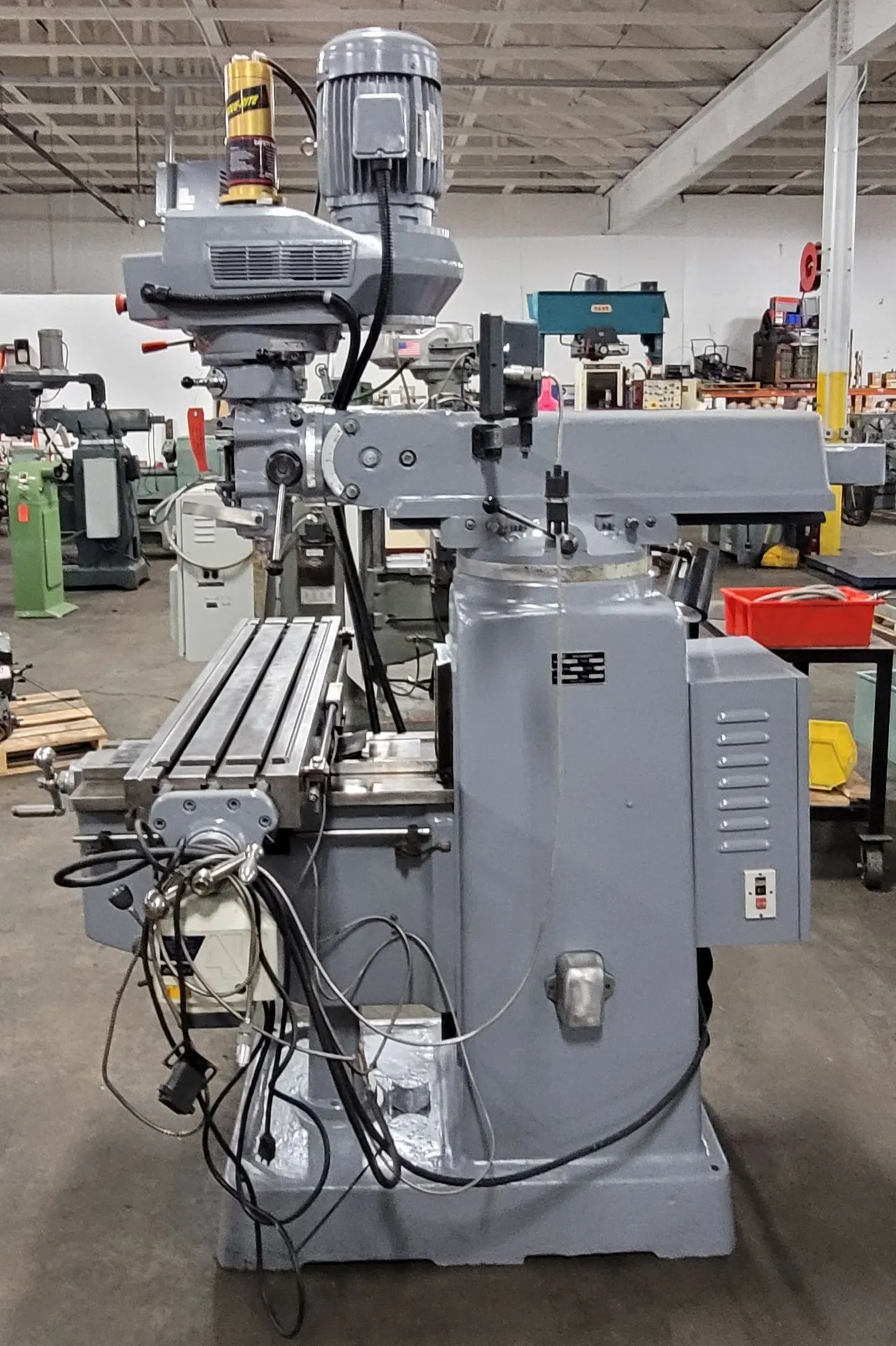

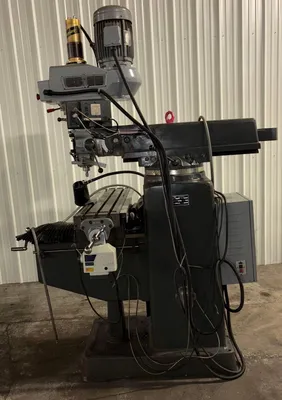

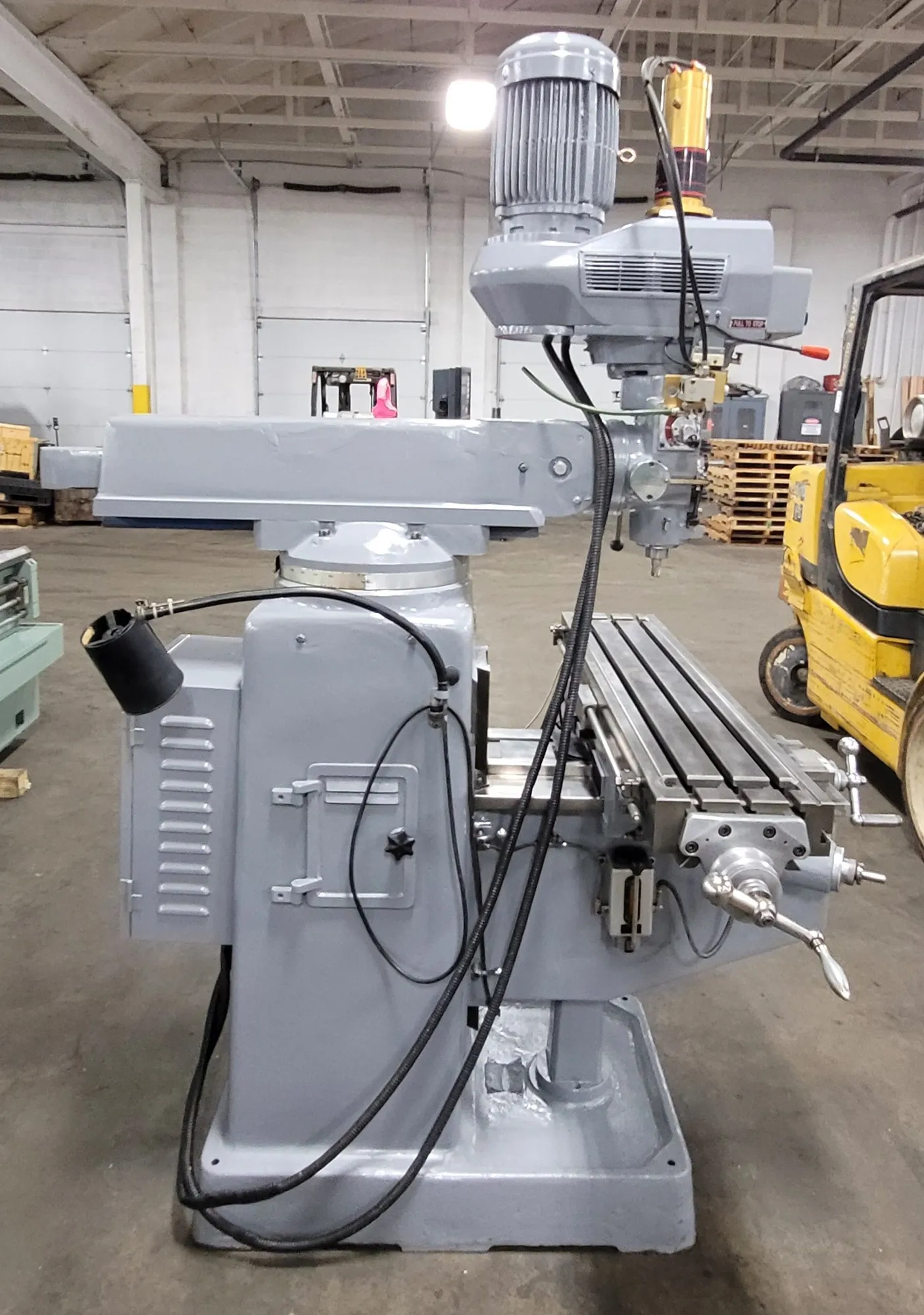

ACER 3CVS MILL W/ X-AXIS POWER FEED, MAXI RITE POWER DRAWBAR, NEWALL DRO, R8 SPINDLE TAPER

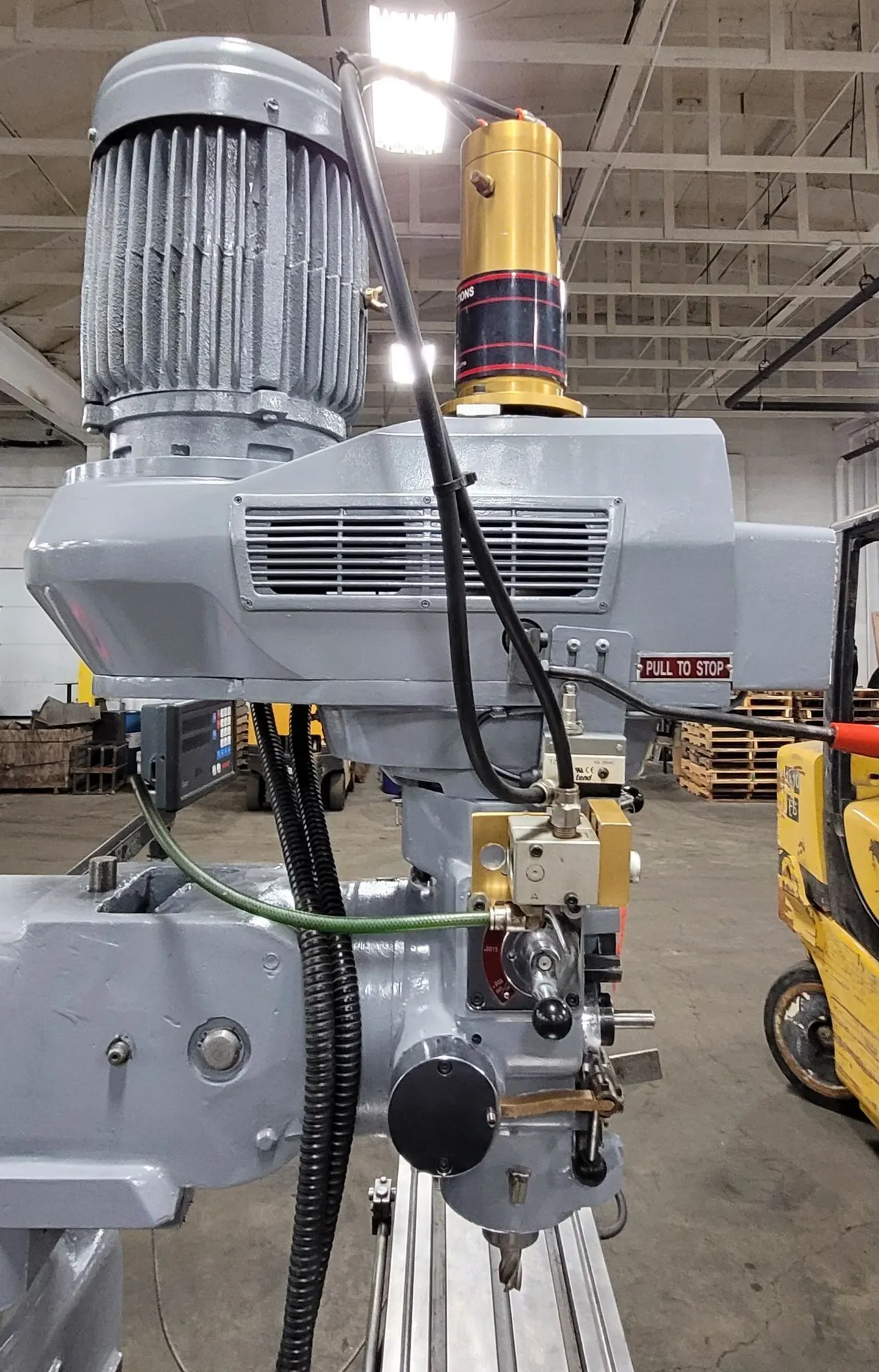

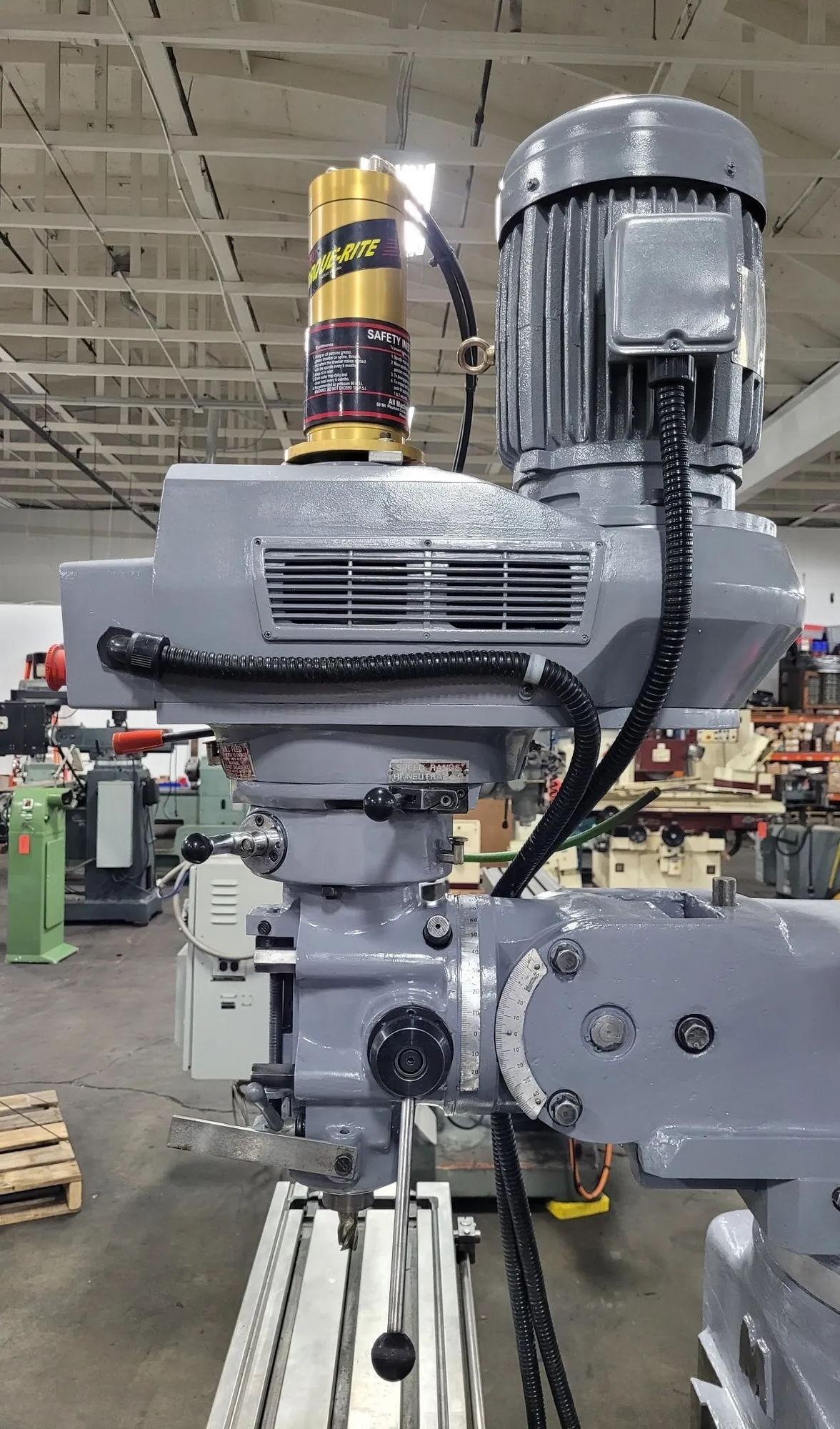

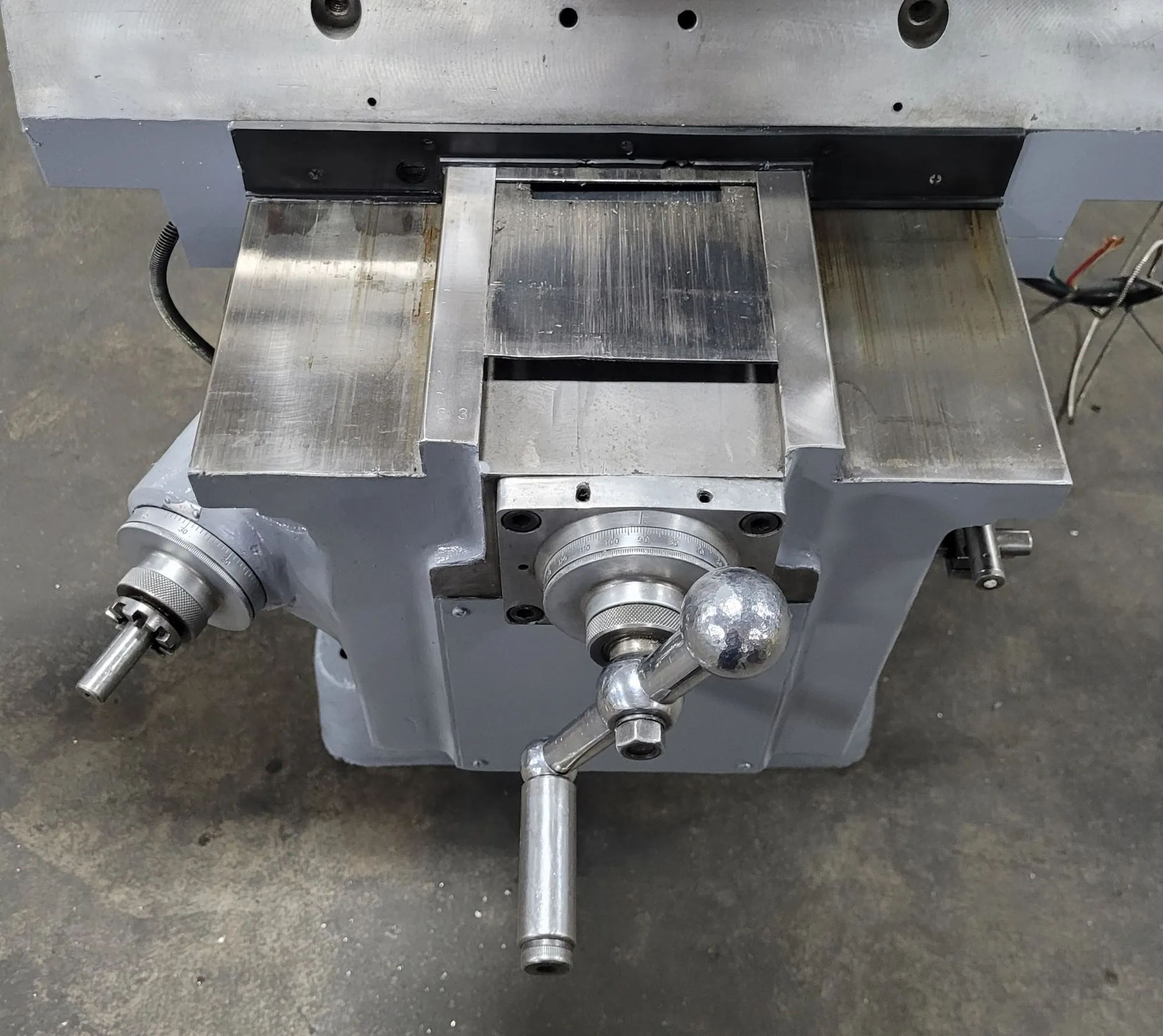

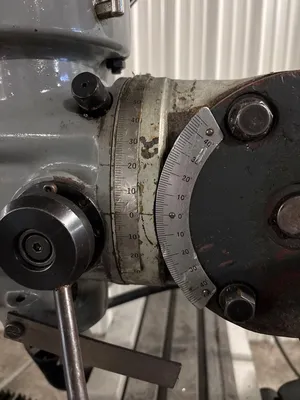

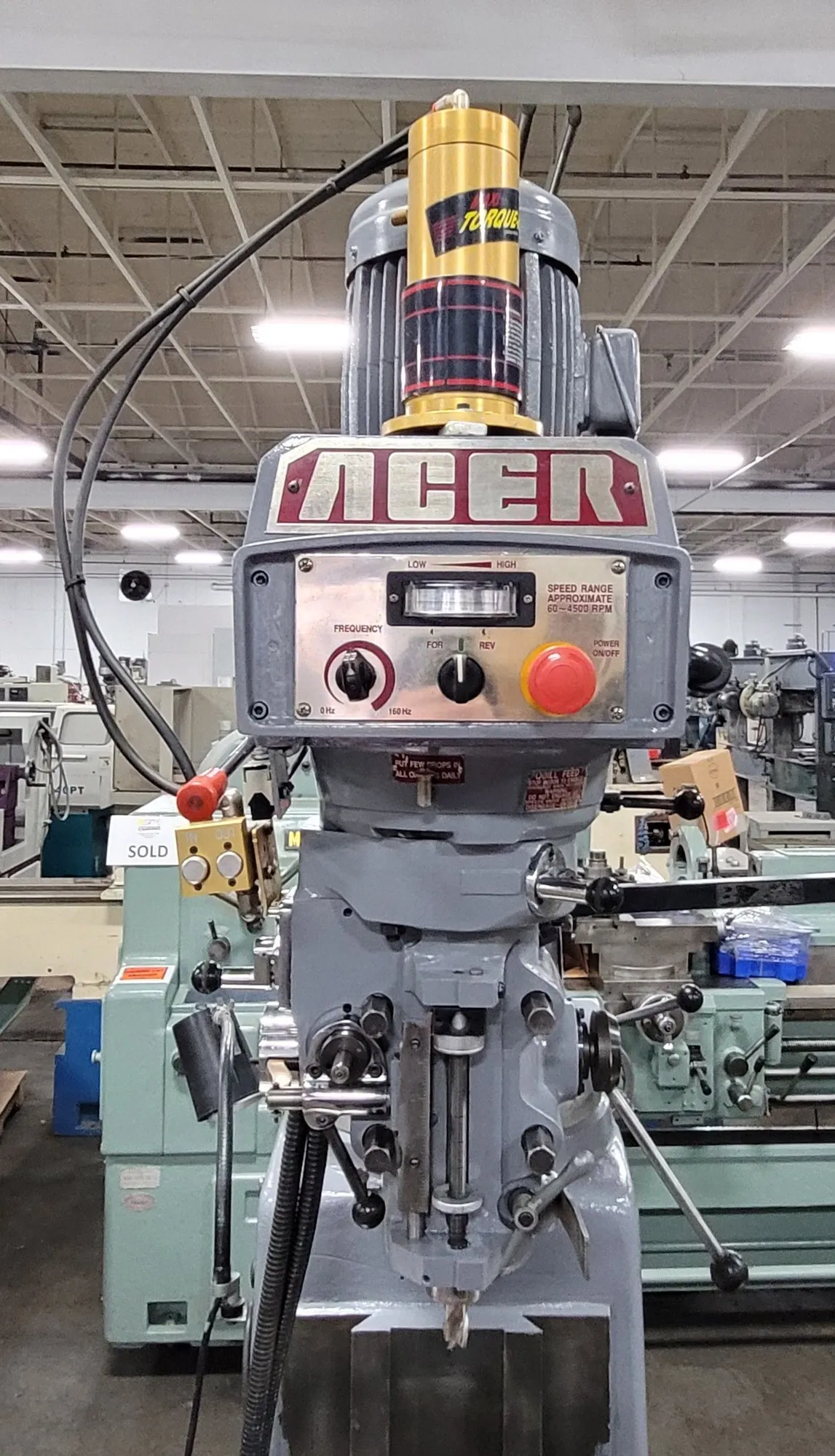

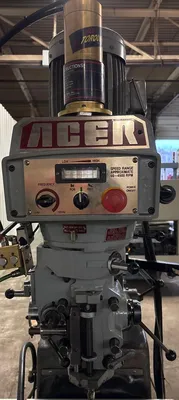

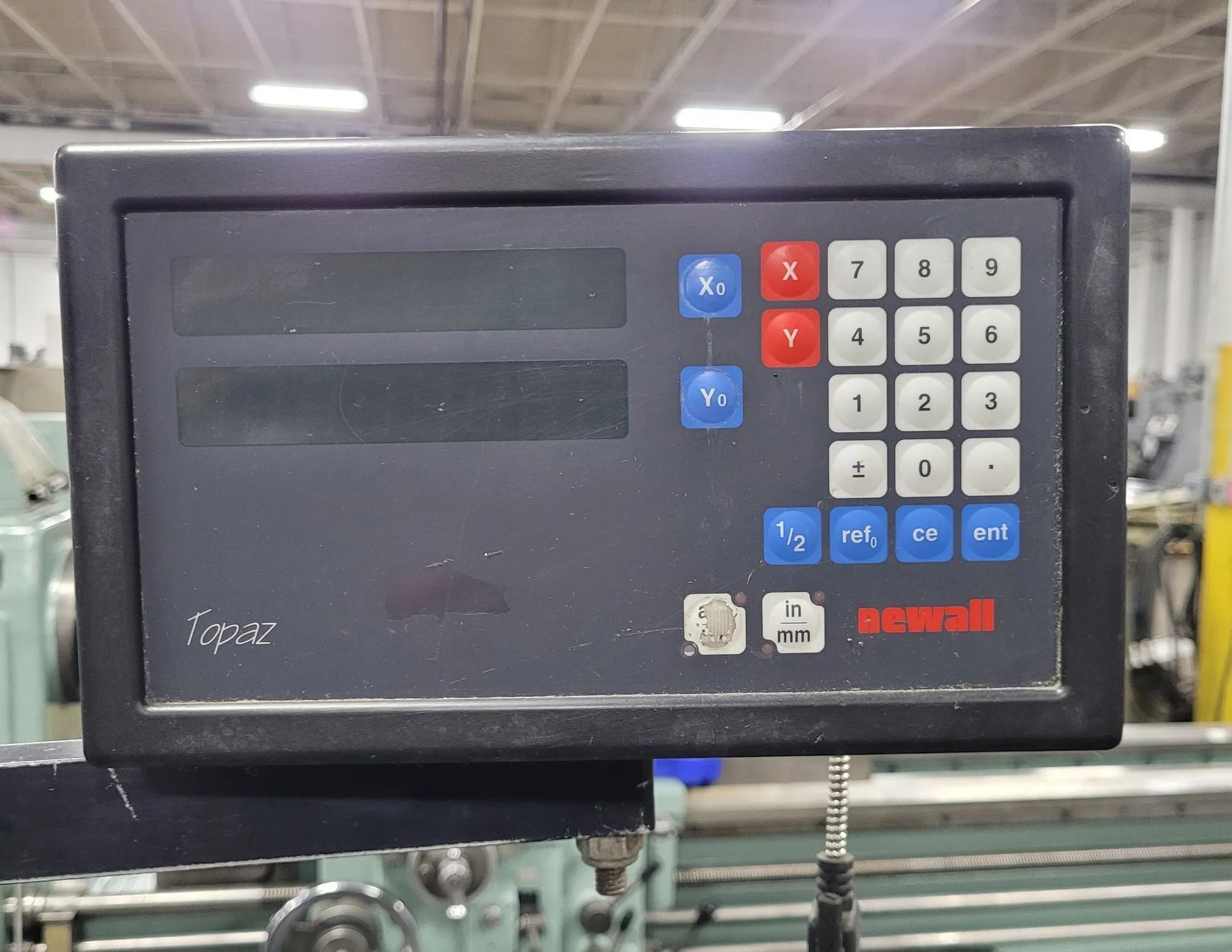

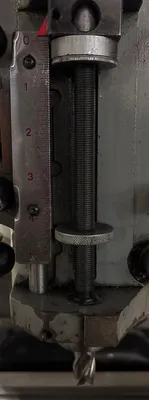

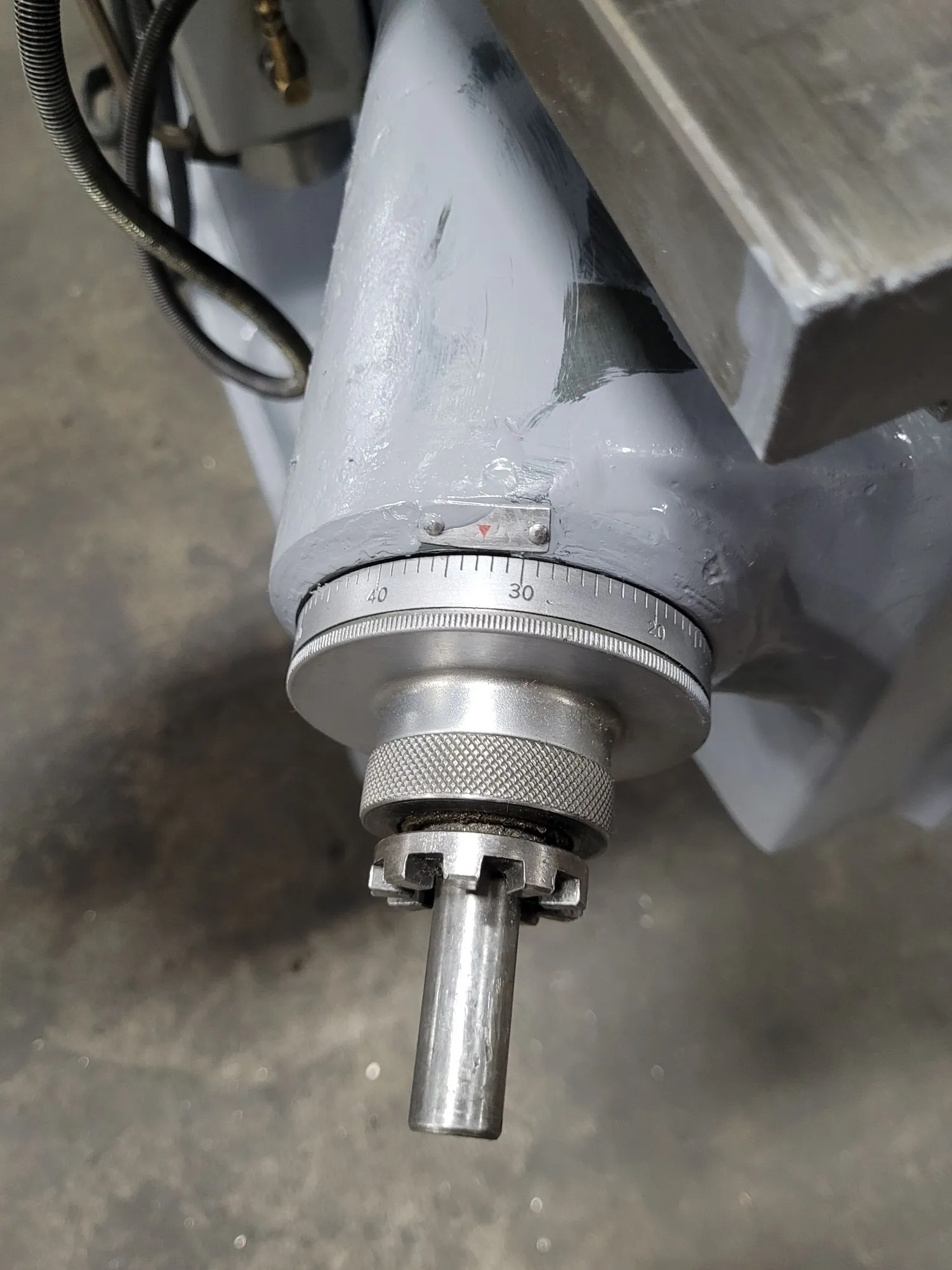

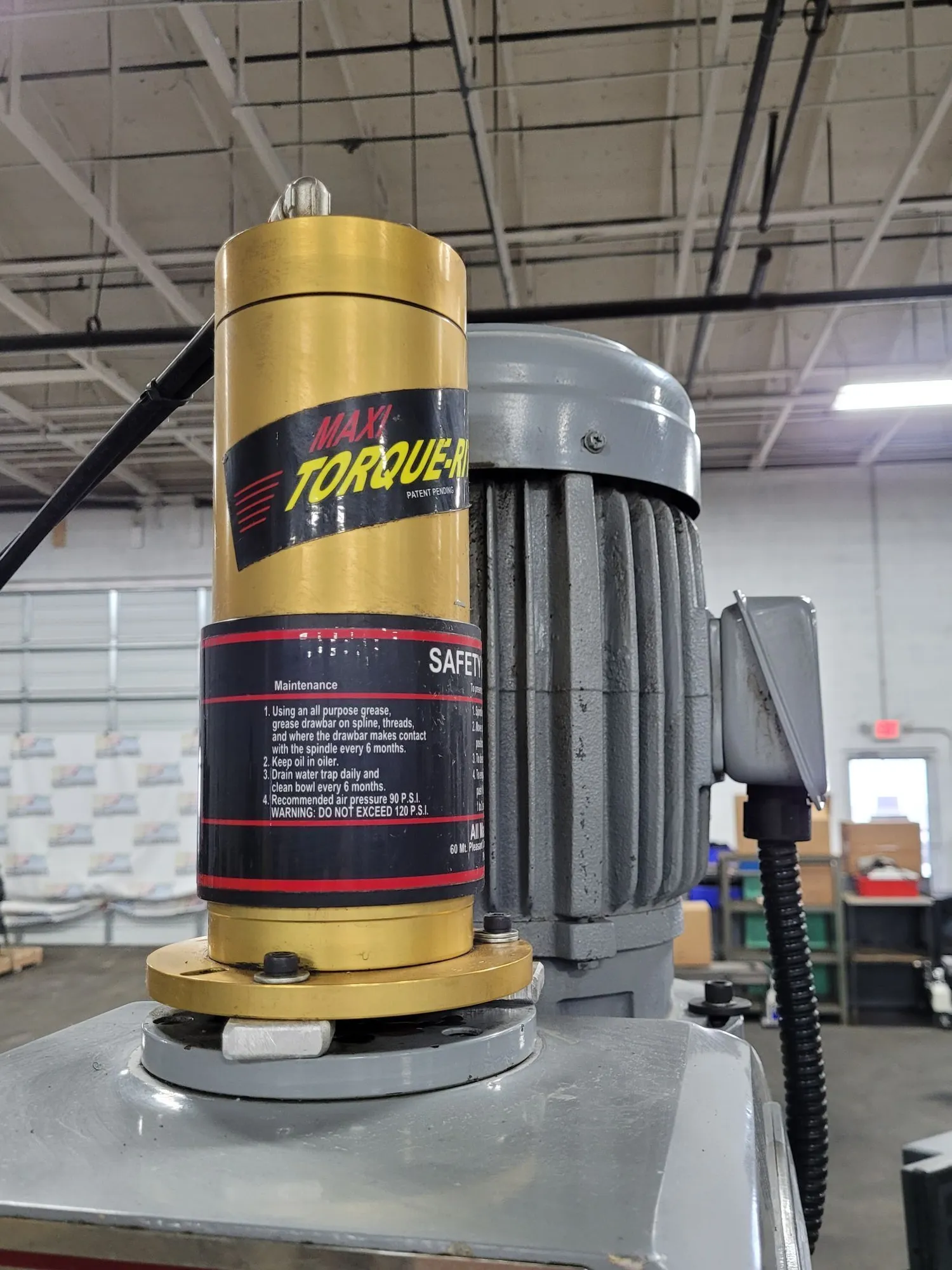

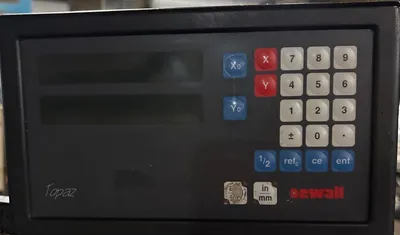

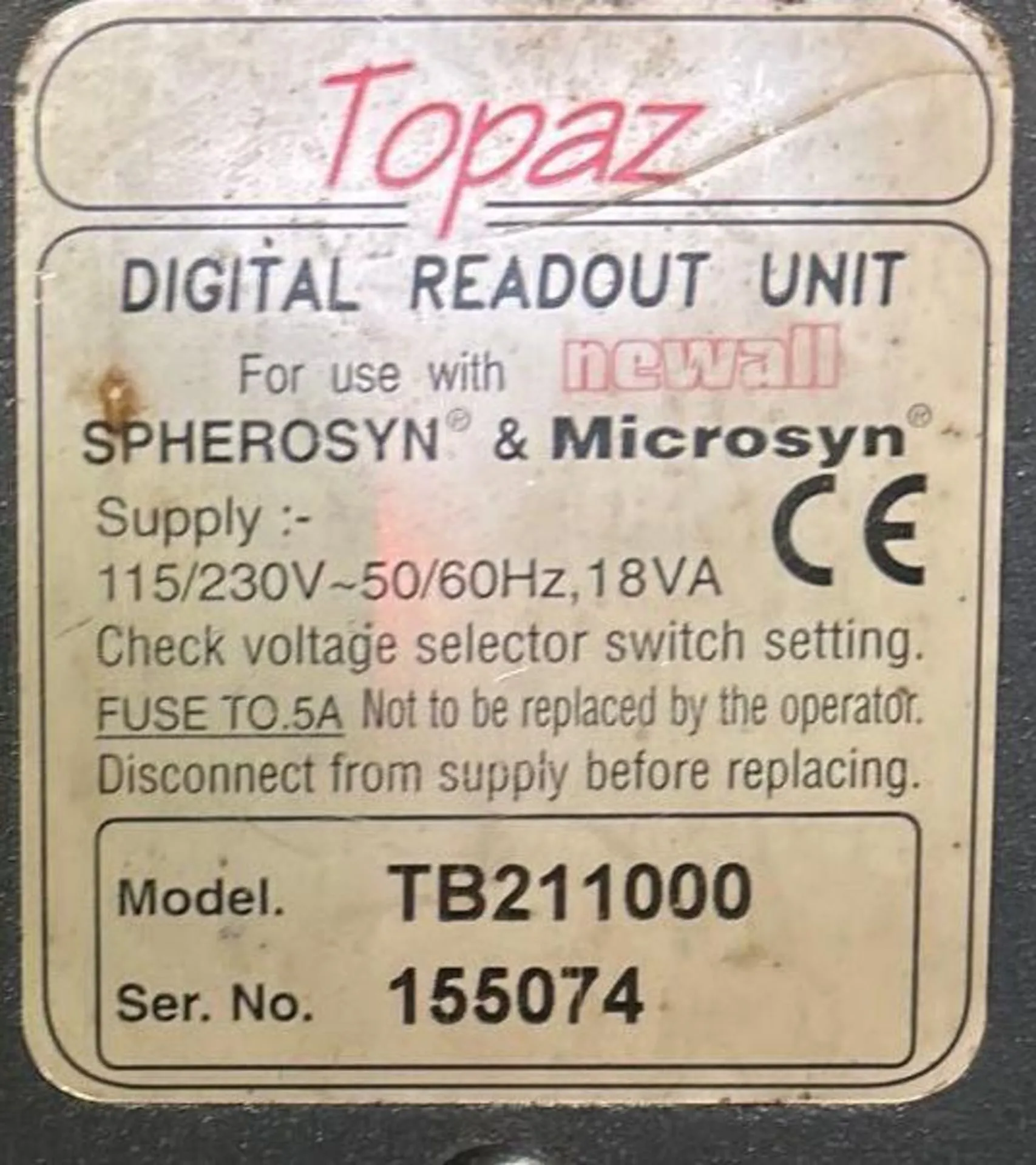

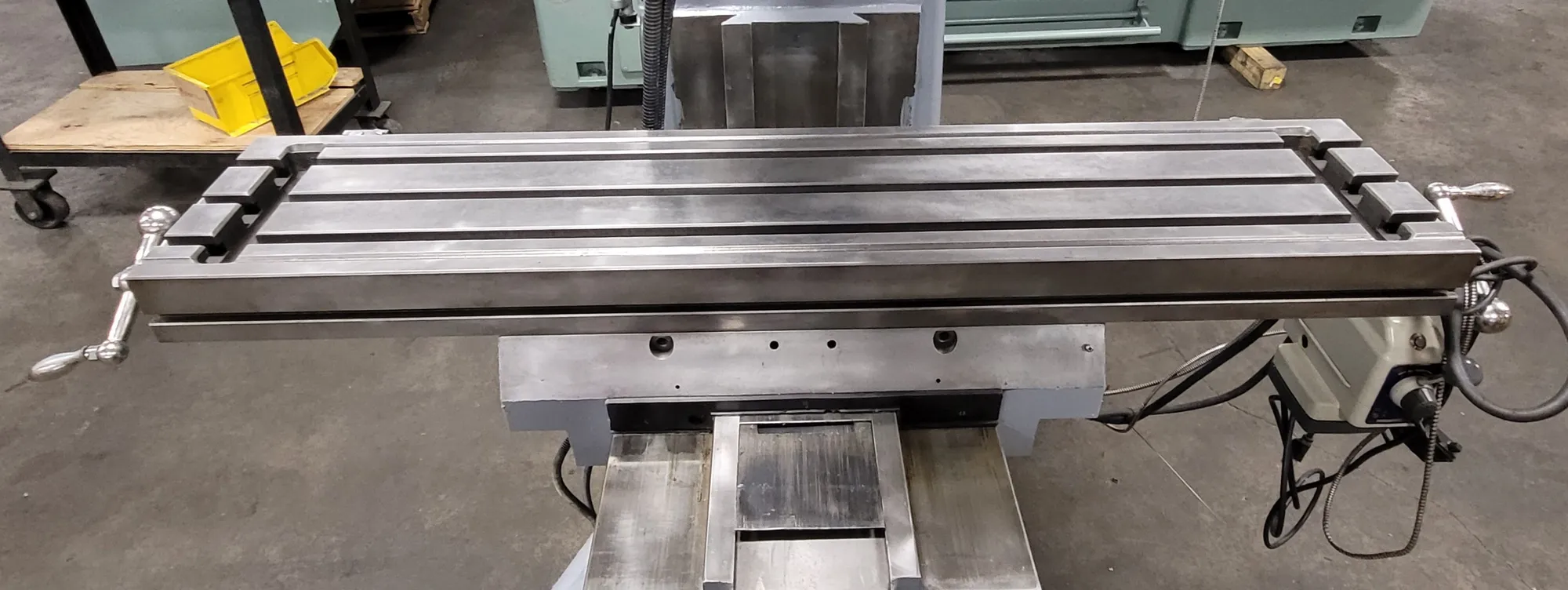

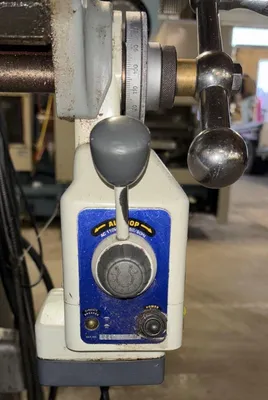

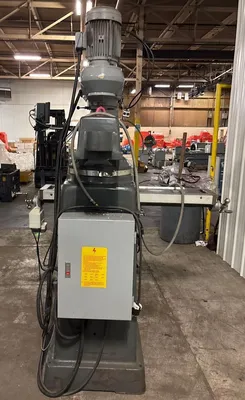

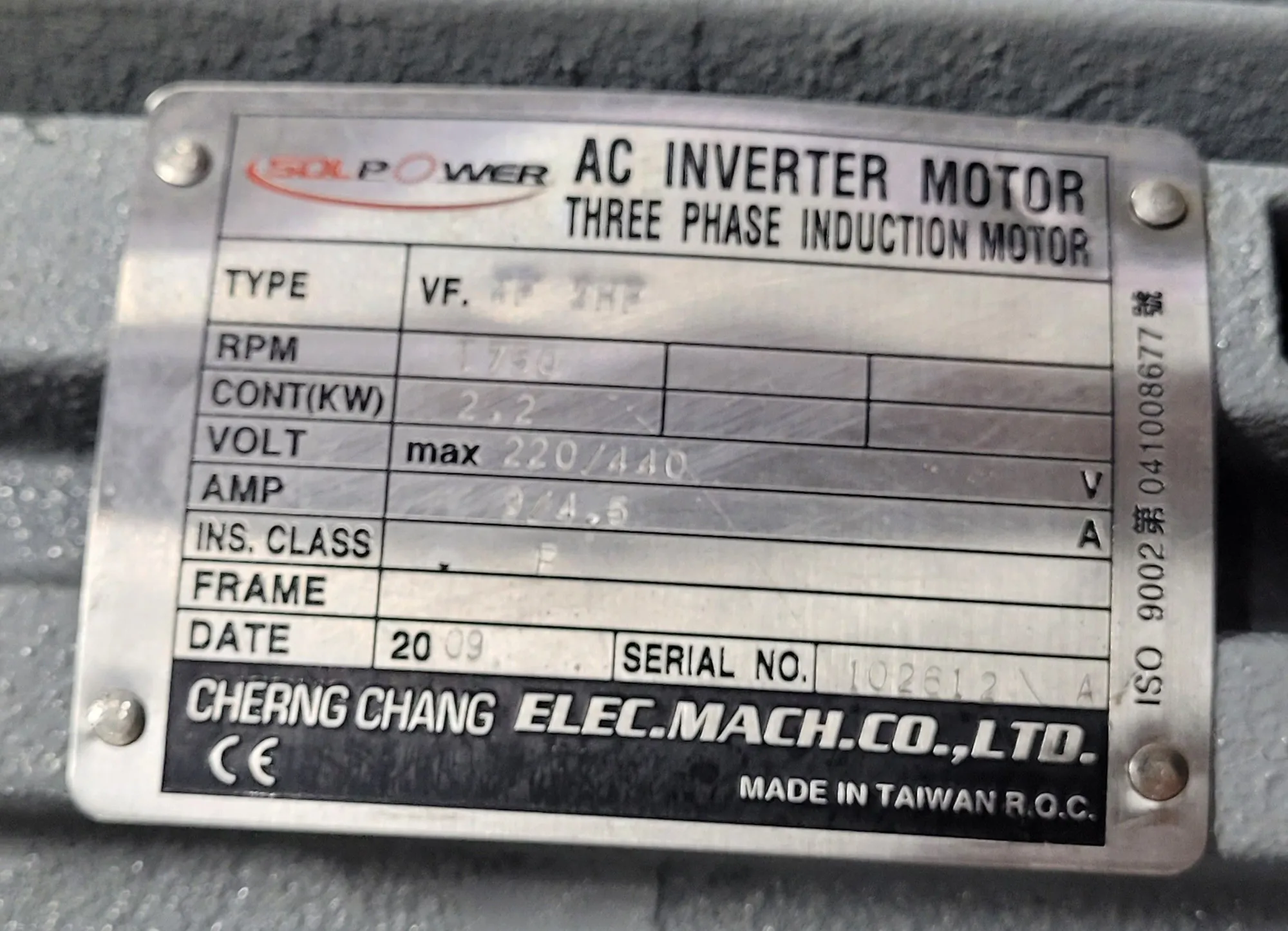

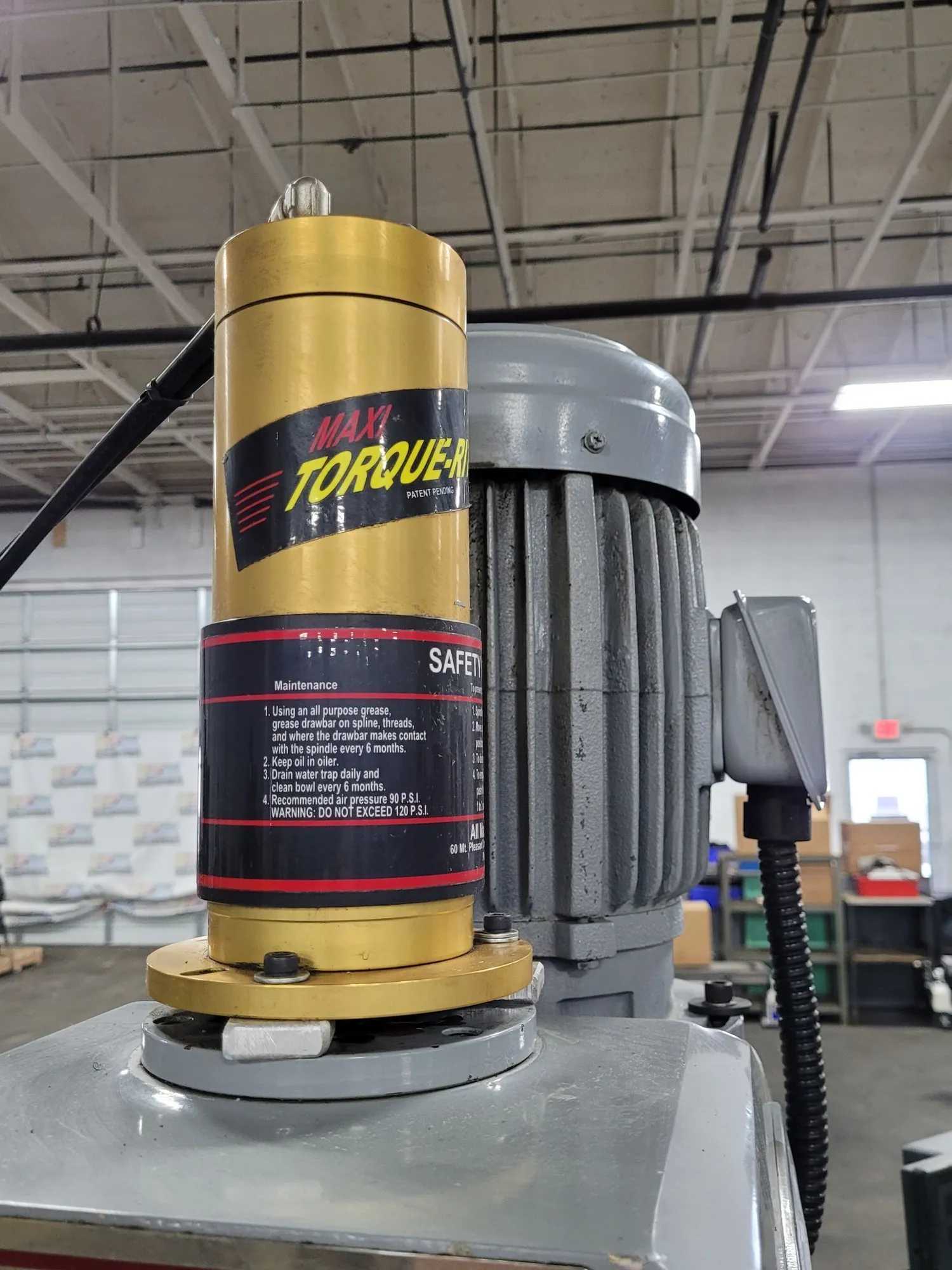

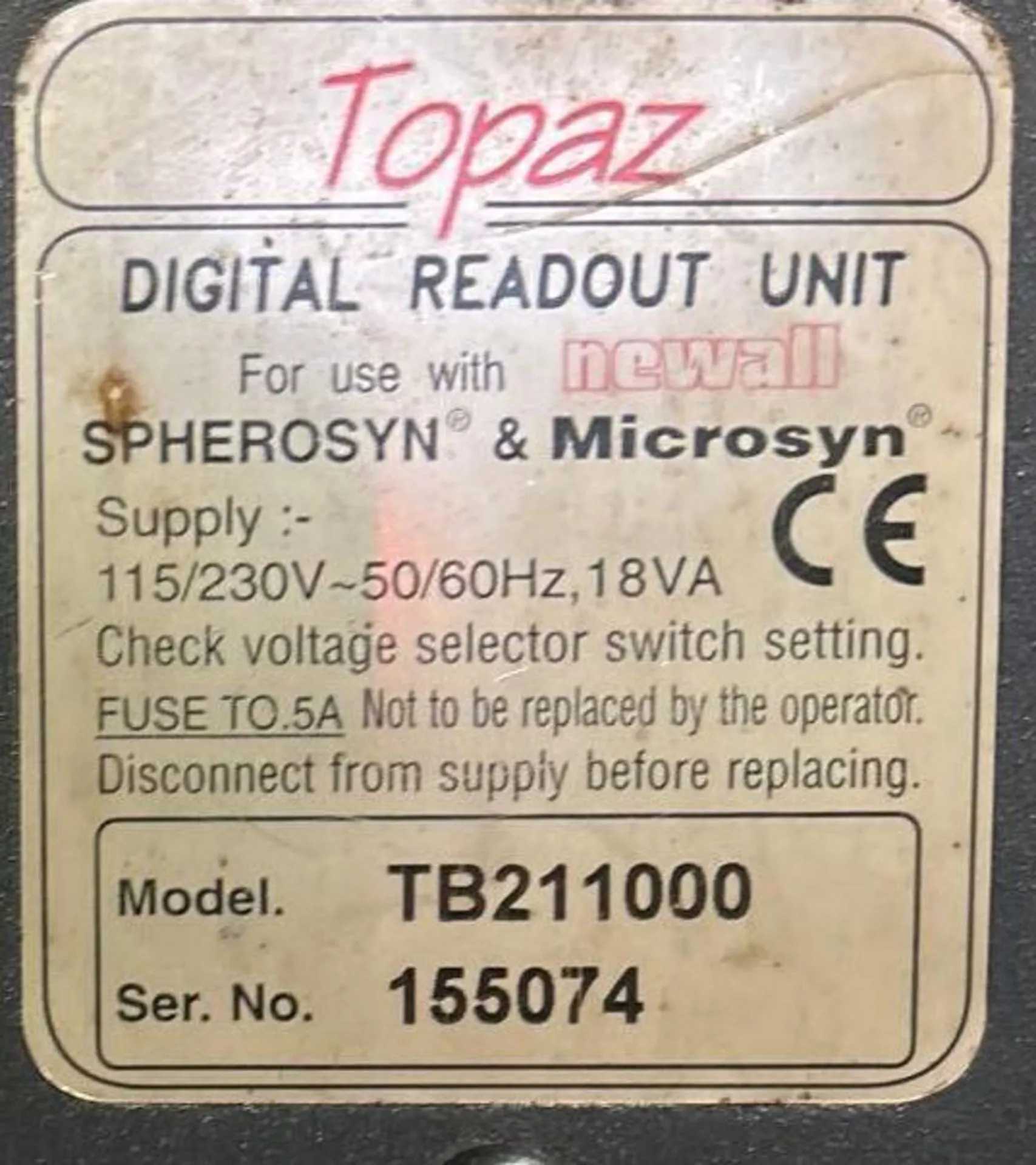

THE ACER 3CVS VERTICAL MILL IS EQUIPPED WITH A 3 HP MOTOR WIRED FOR 230V 3 PHASE OPERATION, FEATURING AN R8 SPINDLE TAPER AND A VARIABLE SPINDLE SPEED RANGE OF 60 TO 4,500 RPM. THE MACHINE UTILIZES A 9" X 42" TABLE AND INCLUDES AN X-AXIS POWER FEED AND A MAXI RITE POWER DRAWBAR. TRAVEL DIMENSIONS INCLUDE 28" FOR LONGITUDINAL MOVEMENT, 12" FOR CROSS MOVEMENT, 16" FOR VERTICAL KNEE TRAVEL, AND 12" FOR RAM TRAVEL. THE QUILL HAS A 3-3/8" DIAMETER AND 5" OF TRAVEL. HEAD ADJUSTMENTS ALLOW FOR 90 DEGREES LEFT-TO-RIGHT AND 45 DEGREES FRONT-TO-BACK TILT. INSTRUMENTATION INCLUDES A NEWALL TOPAZ DIGITAL READOUT FOR THE X AND Y AXES. THE TABLE IS FITTED WITH THREE 5/8" T-SLOTS.
