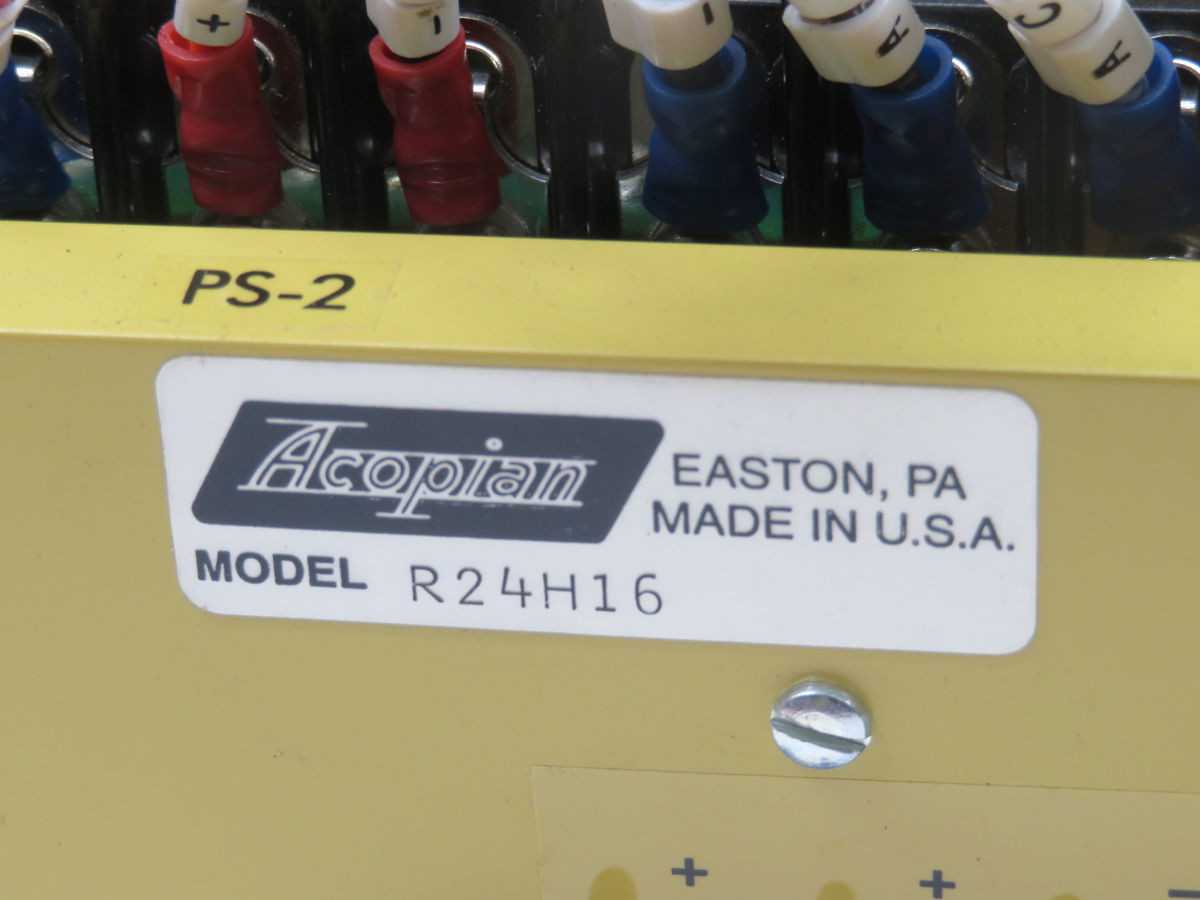

Acopian R24H16 Power Supply, 24V DC, 16A, N+1 Redundancy, Rack-Mount

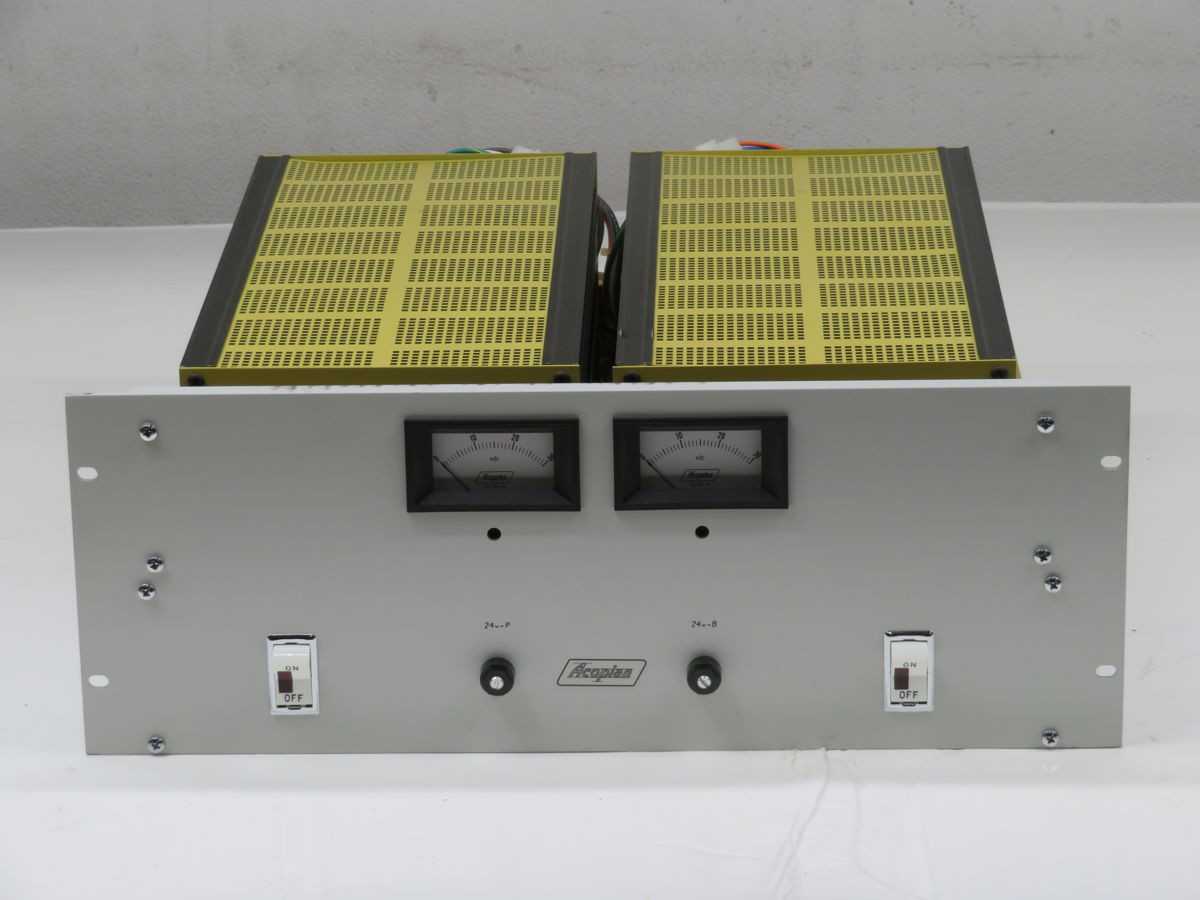

THE ACOPIAN R24H16 IS AN AC-DC SINGLE OUTPUT REDUNDANT POWER SUPPLY CONFIGURED FOR RACK MOUNTING. IT DELIVERS A NOMINAL OUTPUT VOLTAGE OF 24V DC AND AN OUTPUT CURRENT OF 16A. THE UNIT OPERATES FROM AN INPUT VOLTAGE RANGE OF 105-125 VAC AT 47-63 HZ. THIS POWER SUPPLY IMPLEMENTS N+1 REDUNDANCY, UTILIZING HOT-SWAPPABLE OUTPUT MODULES TO ENSURE SYSTEM UPTIME. ITS DESIGNATED CASE SIZE IS 7R20, CORRESPONDING TO PHYSICAL DIMENSIONS OF 5.25 INCHES (133.4 MM) IN HEIGHT, 19 INCHES (482.6 MM) IN WIDTH, AND 10 INCHES (254 MM) IN DEPTH. INTEGRATED FEATURES INCLUDE ACTIVE CURRENT SHARING AMONG MODULES, REMOTE SENSE CAPABILITIES, AND ALARM OUTPUTS FOR MODULE FAILURE AND VOLTAGE MONITORING. THE R24H16 OPERATES WITHIN A TEMPERATURE RANGE OF 0 TO +71°C AND INCORPORATES OVERVOLTAGE PROTECTION AND THERMAL SHUTDOWN FOR OPERATIONAL SAFETY. IT OFFERS SPECIFIED LINE AND LOAD REGULATION TYPICALLY AROUND 0.05% AND RIPPLE AND NOISE LEVELS OF 1MV RMS.
