Addison Mckee PB40

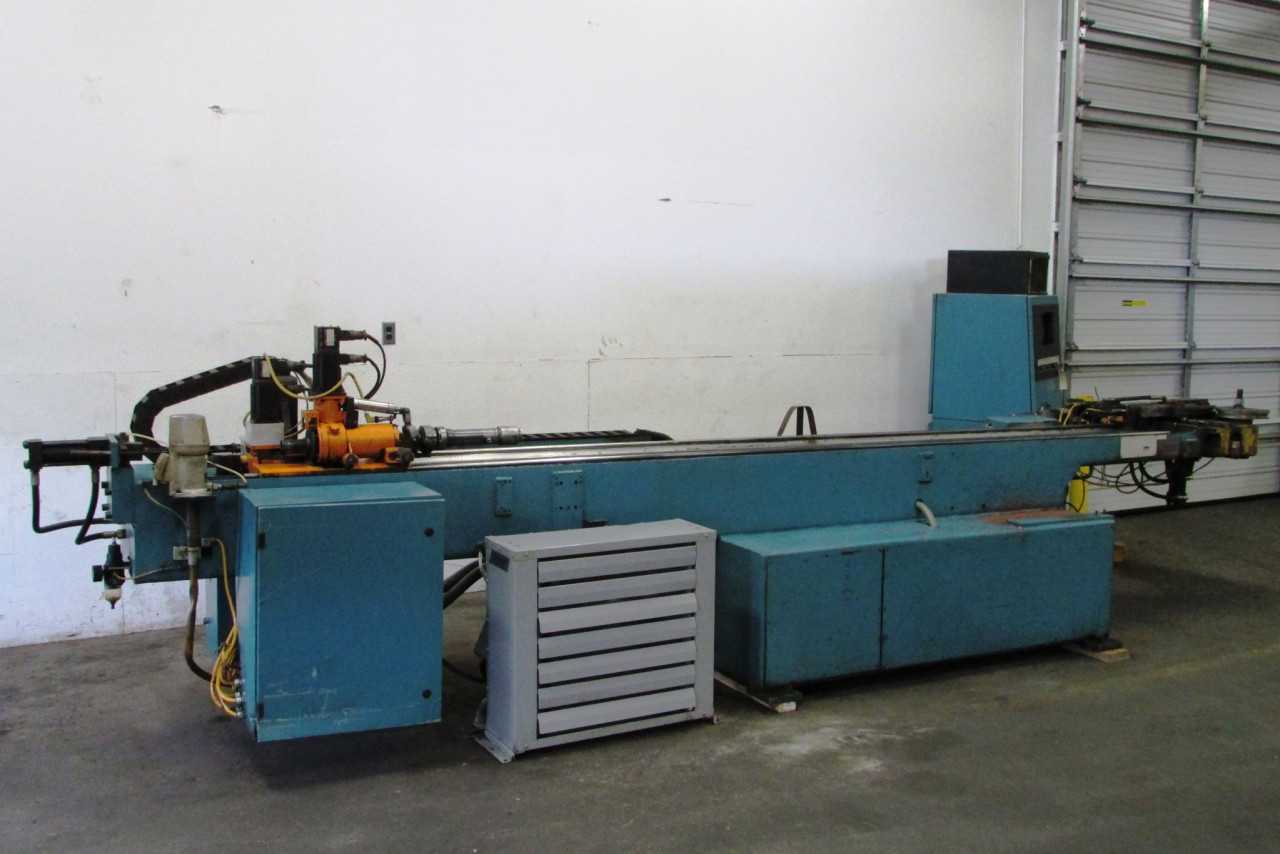

ADDISON 3-Axis CNC high production horizontal tube bending machine Model: PB40 Serial: MC33310485 Capacities: Maximum tube diameter: 1-1/2” (40mm) OD Maximum bend radius: 180° + springback Maximum bend centerline radius: 12” (300mm) Maximum tube length over mandrel: 160” Bend rotation: Right hand (clockwise) Includes: Adaptive CNC control Electric servo driven carriage for positioning of tube Drop-away clamp die Direct acting pressure die Hydraulic pressure die assist Pneumatic tube support Hydraulic oil heat exchanger – fan type Electrical requirements: 480 V, 3 phase electrics
