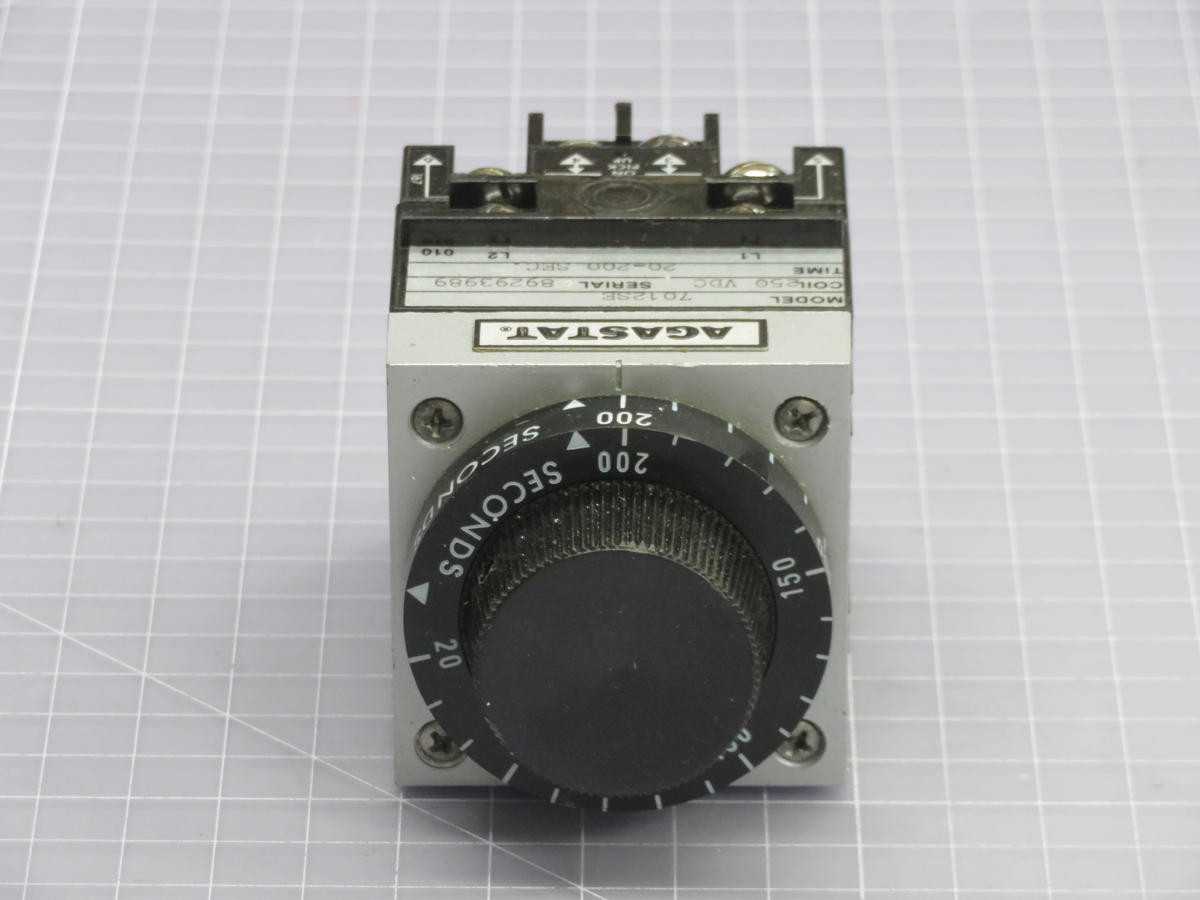

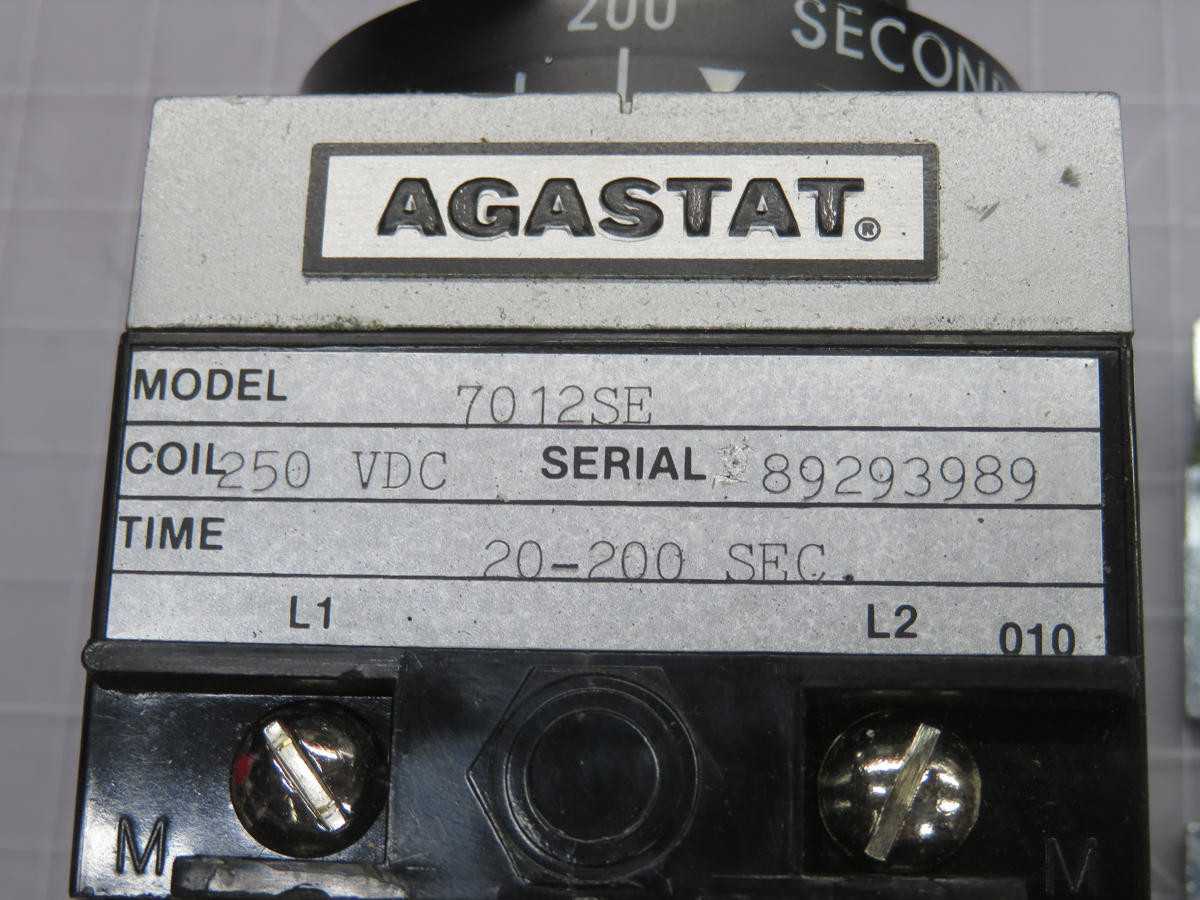

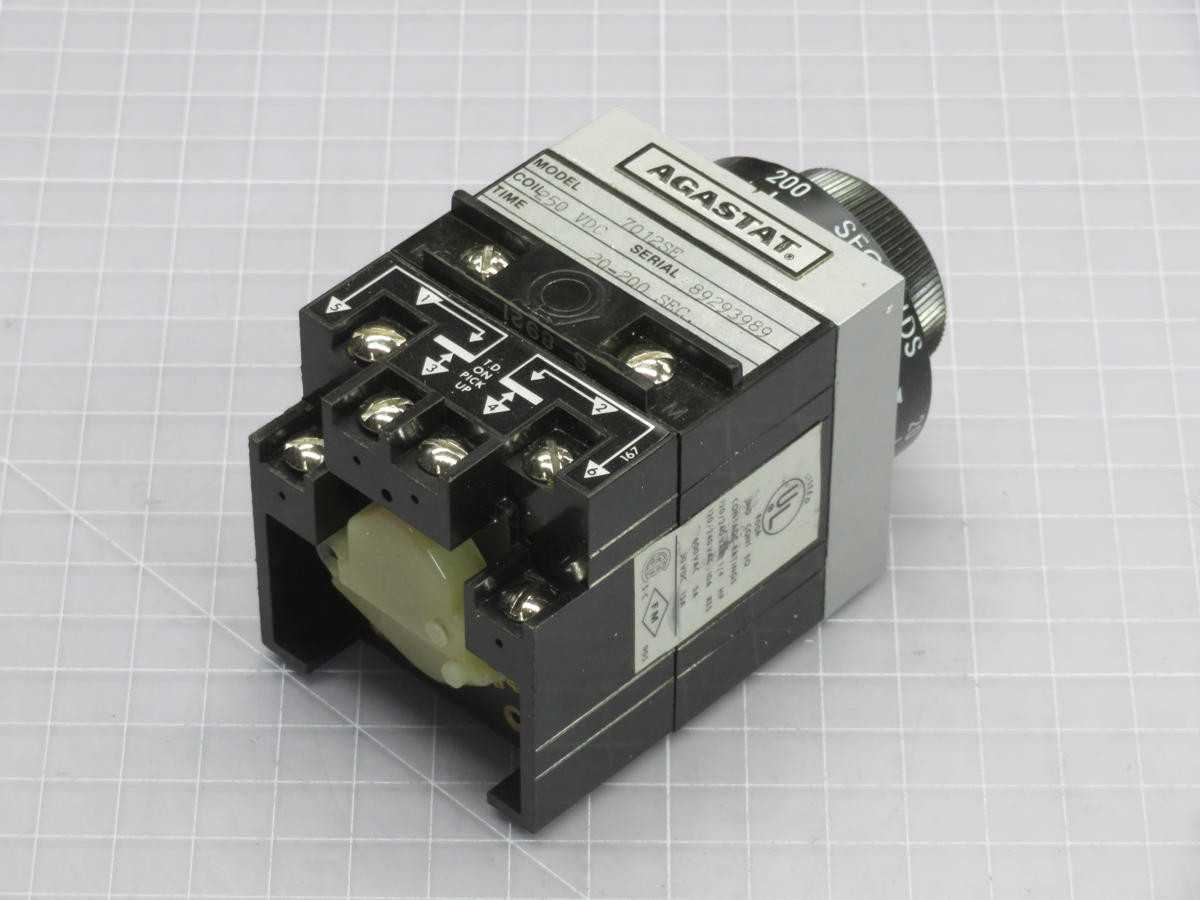

AGASTAT 7012SE, TIME DELAY RELAYS, 2PDT, 250 VDC COIL, 20-200 SEC DELAY, 10A @ 120 VAC, -20/+65C TEMP

THE AGASTAT 7012SE IS AN ELECTROPNEUMATIC TIME DELAY RELAY FEATURING A 2PDT CONTACT CONFIGURATION AND A 250 VDC COIL. IT OFFERS A TIME DELAY RANGE ADJUSTABLE FROM 20 TO 200 SECONDS. THE RELAY CONTACTS ARE RATED FOR 10A RESISTIVE AT 120 VAC, 5A RESISTIVE AT 240 VAC, AND 1A RESISTIVE AT 48 VDC. OPERATING WITHIN A TEMPERATURE RANGE OF -20°C TO +65°C, THIS DEVICE DEMONSTRATES A REPEATABILITY OF ±5% OF THE SET VALUE AND AN ACCURACY OF ±20% OF THE SET VALUE.
