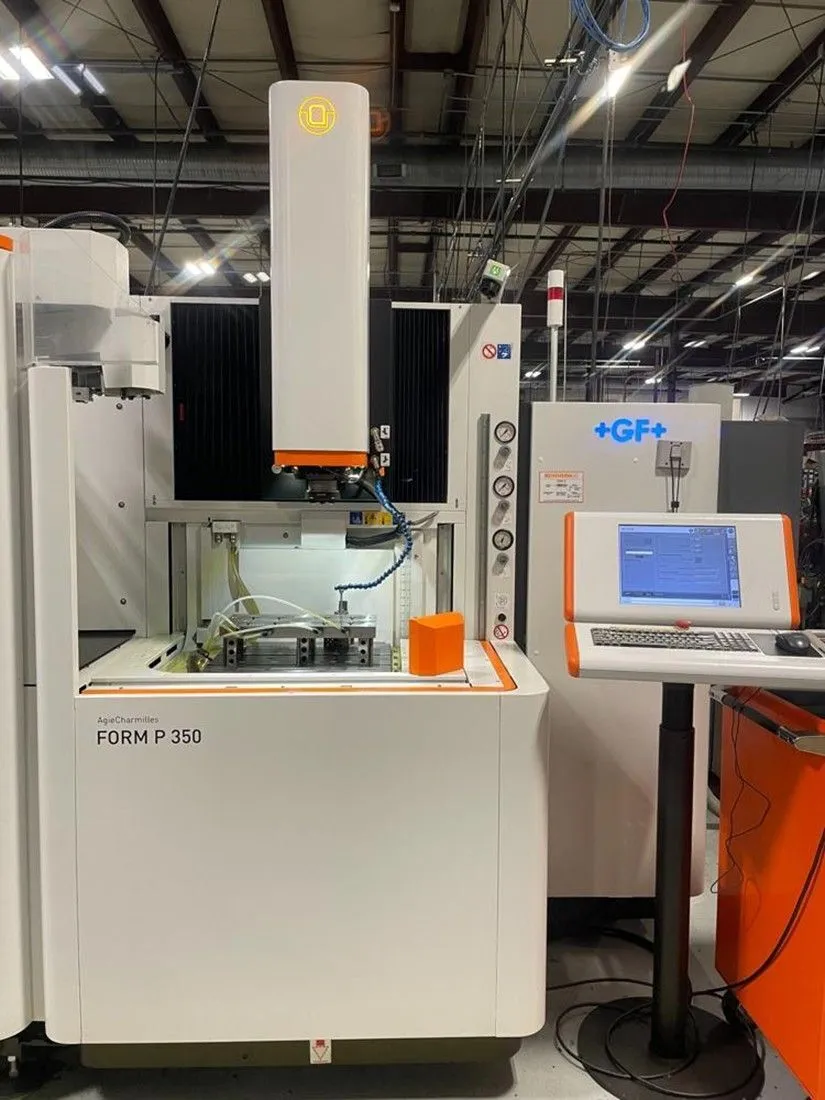

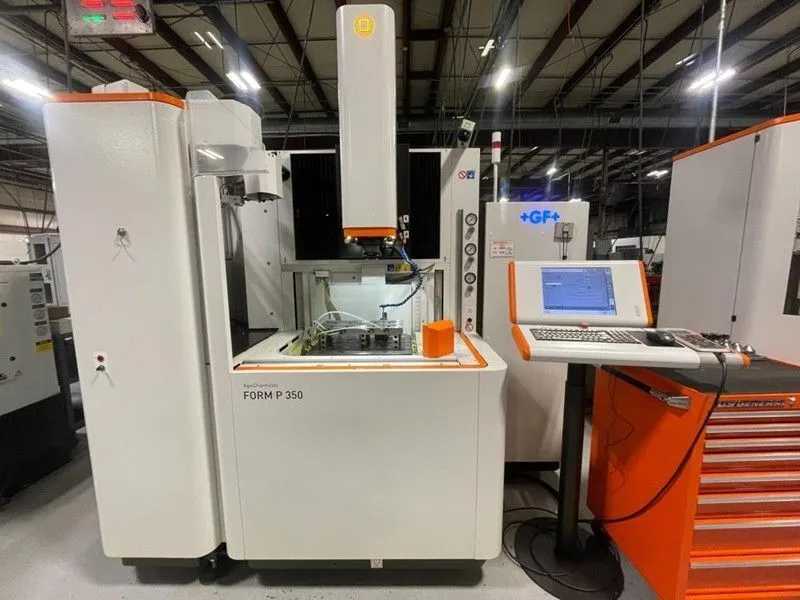

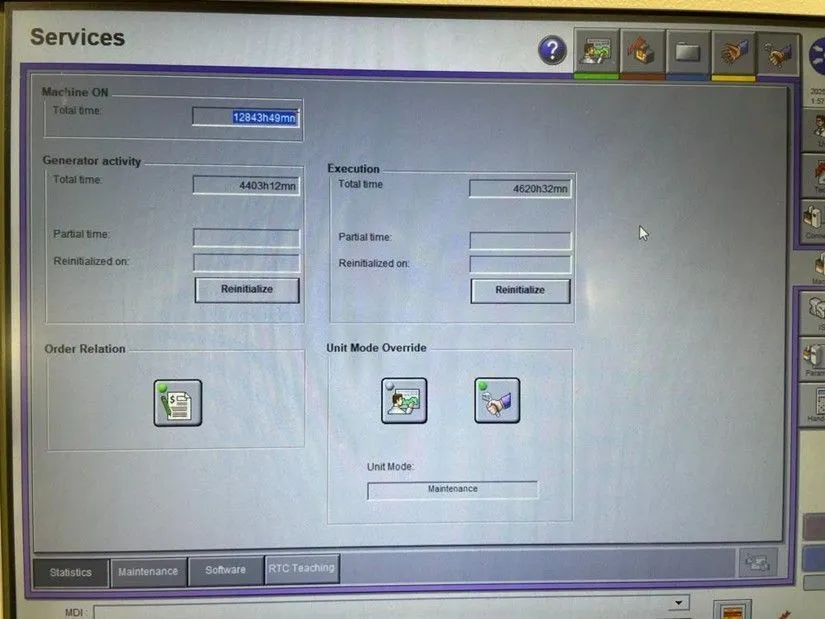

AgieCharmilles Form P 350 Sinker EDM With 19.7x15.75 Table Size, 12843 Hours

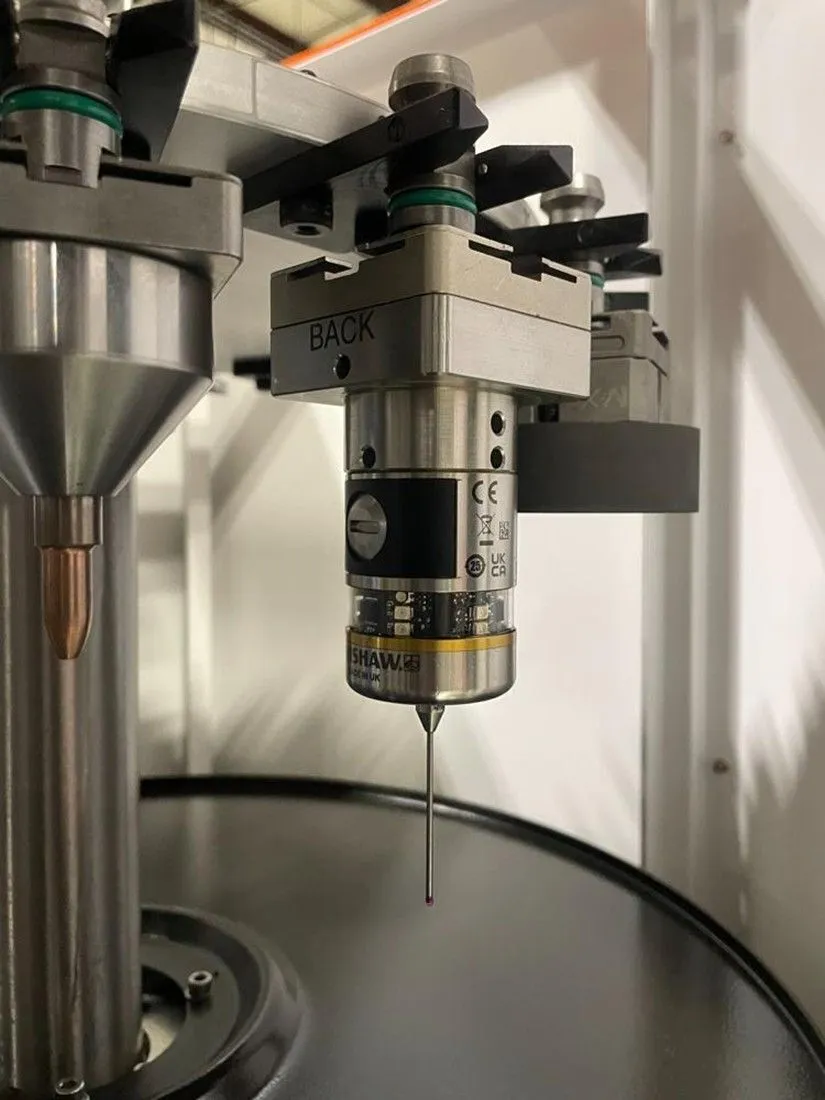

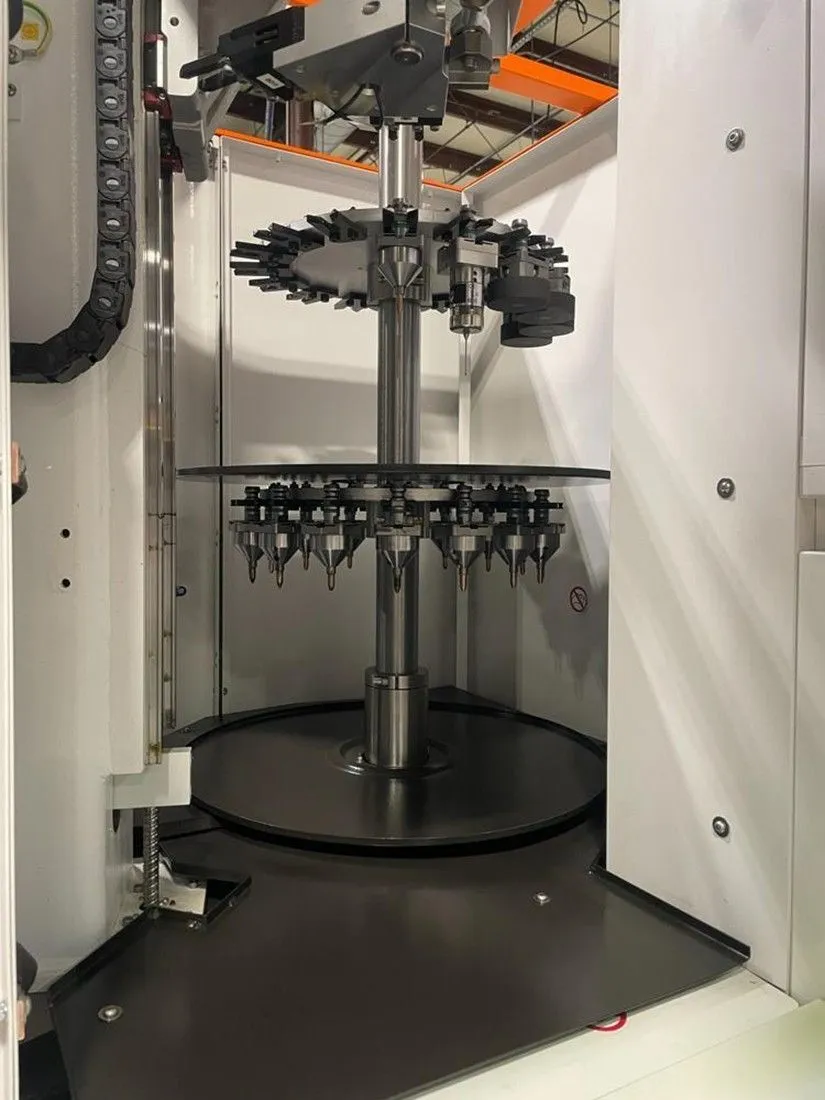

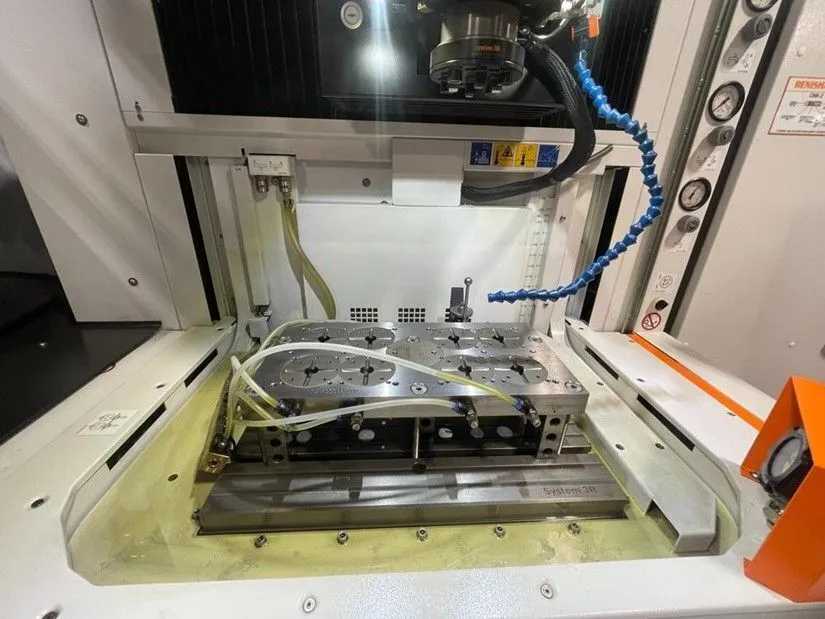

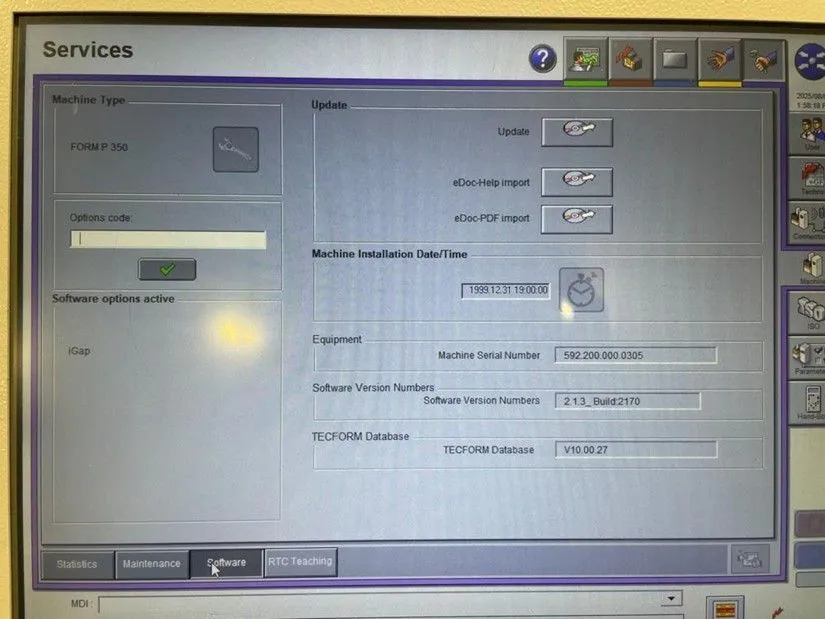

The Form P 350 Die Sinker EDM System features X, Y, and Z axis travel of 13.78 x 9.84 x 11.81 inches, a table size of 19.68 x 15.75 inches, and an integrated Accura C-axis in the Z-axis. It supports a maximum workpiece weight of 1,340 lbs and electrode weights up to 110 lbs with chuck or 220 lbs without chuck. The machine delivers traversing speeds of 78.74 in/min in X/Y and 560 in/min in Z, with a 0.00002-inch display resolution. Its internal tank measures 31.49 x 20.47 x 13.78 inches with a programmable dielectric level from 0 to 12.01 inches and a 108-gallon capacity utilizing 4 paper filter cartridges. Powered by an ISPG generator with 80 A peak amperage (140 A optional), the system achieves surface finishes down to 0.08 Ra µm with no white layer. CNC operations are driven by an AC Form HMI control running on a Celeron 2.2 GHz processor with 2 GB RAM, 64 GB SSD, a 15-inch TFT touchscreen, Ethernet RJ45, and dual USB ports. Equipment includes a 32-tool automatic toolchanger (11 lbs max weight per position), a Renishaw 3D probe, System 3R workholding, internal cooling, pressure gauges, tool measurement system, and a programmable 3-sided drop tank.
