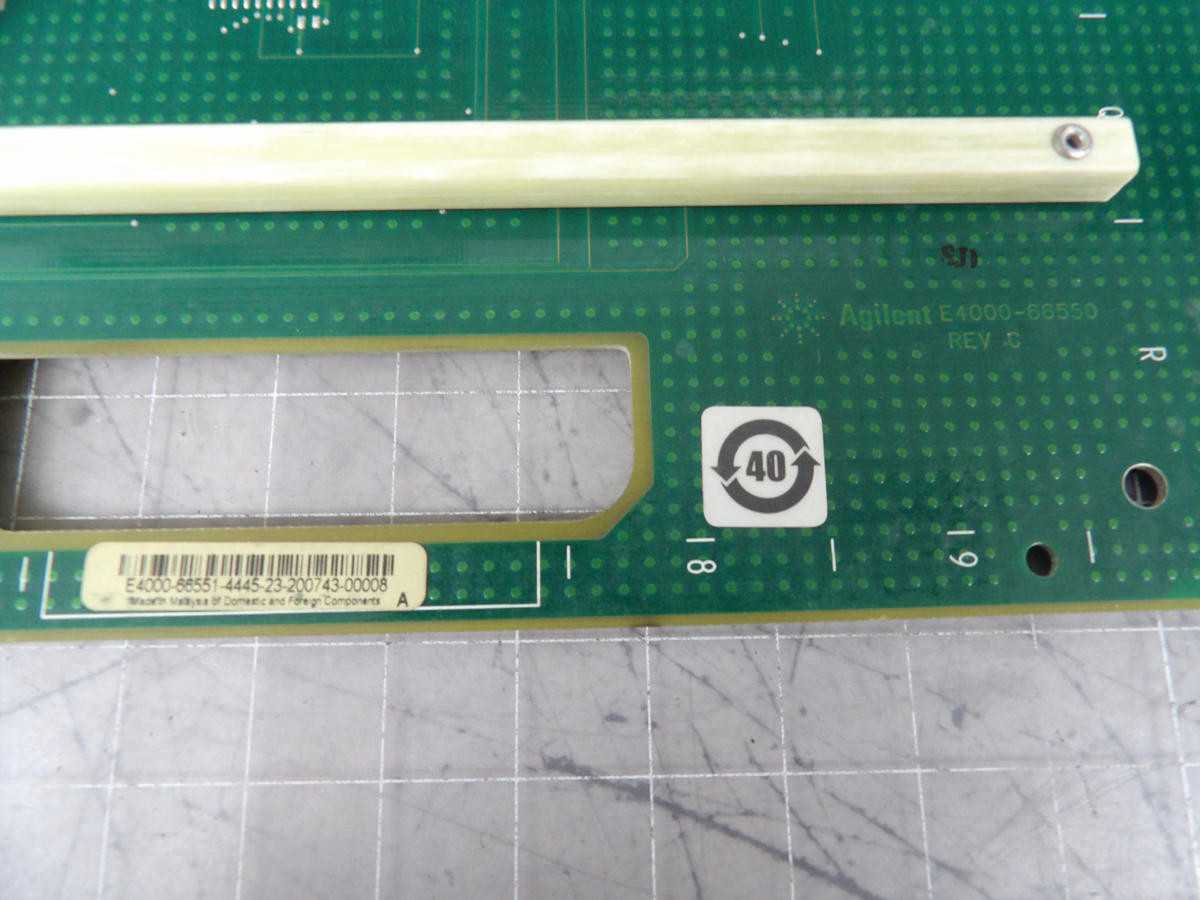

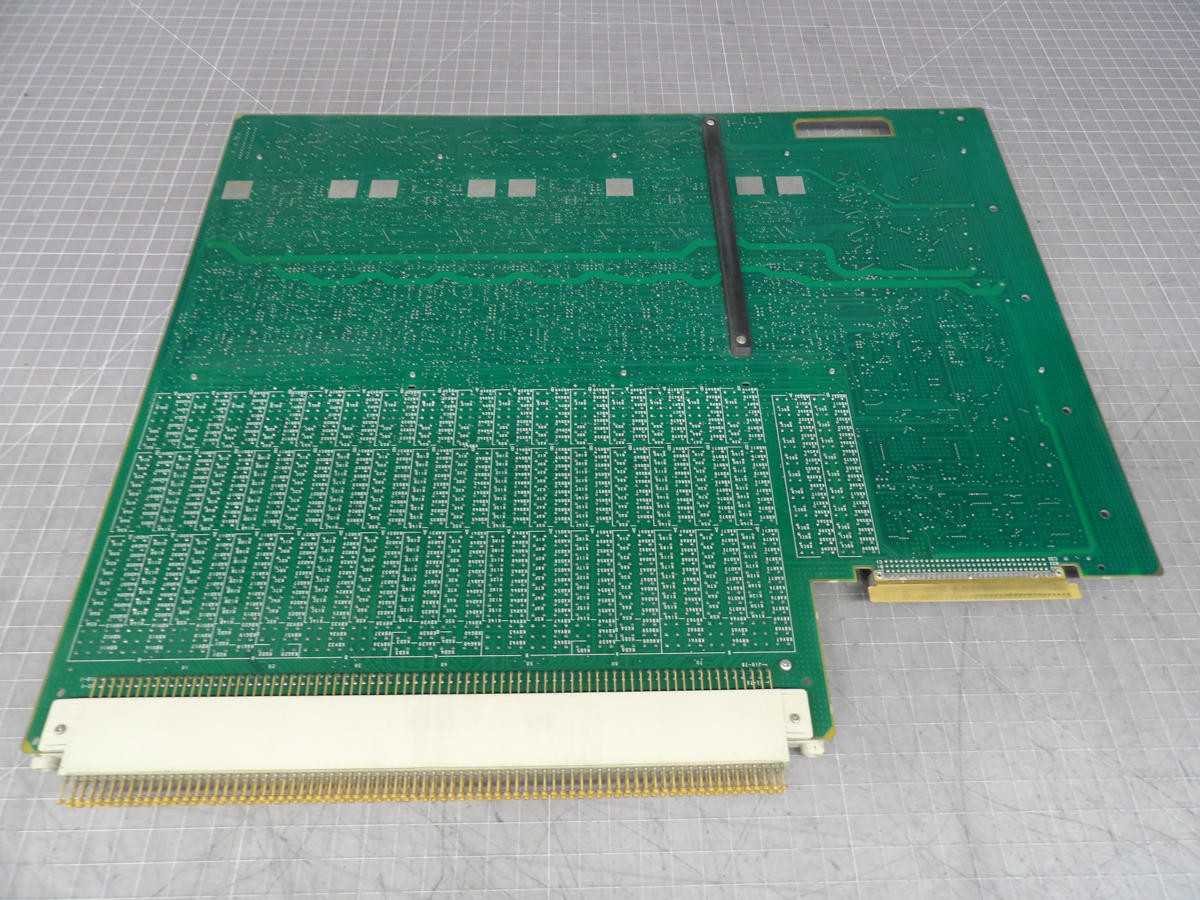

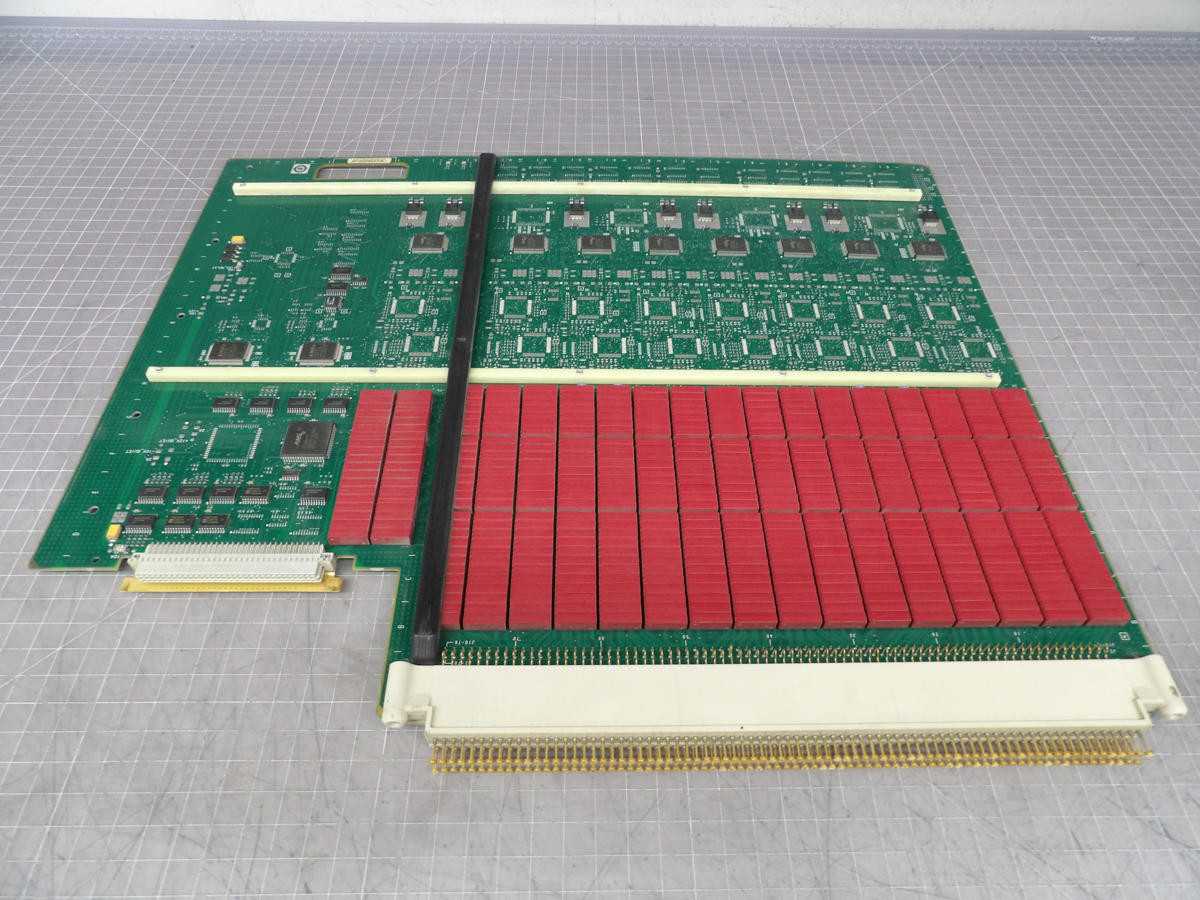

AGILENT E4000-66550 CIRCUIT BOARDS, 256 CHANNELS, DIGITAL DRIVER/SENSOR

THE AGILENT E4000-66550 IS A DIGITAL DRIVER/SENSOR (DS) BOARD DESIGNED FOR INTEGRATION WITHIN THE AGILENT (FORMERLY HP) 3070 SERIES III IN-CIRCUIT TEST (ICT) SYSTEM. THIS CIRCUIT BOARD FUNCTIONS AS A PRIMARY DIGITAL TEST INTERFACE, PROVIDING THE CAPABILITY TO APPLY DIGITAL TEST VECTORS AND SENSE RESPONSES FROM THE DEVICE UNDER TEST (DUT). IT TYPICALLY FEATURES 256 DIGITAL TEST CHANNELS, FACILITATING COMPREHENSIVE FUNCTIONAL AND STRUCTURAL TESTING OF PRINTED CIRCUIT BOARD ASSEMBLIES. THE E4000-66550 OPERATES AS A CRITICAL COMPONENT FOR VERIFYING DIGITAL CIRCUIT PERFORMANCE AND DETECTING FAULTS ON TARGET BOARDS WITHIN THE AUTOMATED TEST ENVIRONMENT OF THE 3070 SERIES III PLATFORM.
