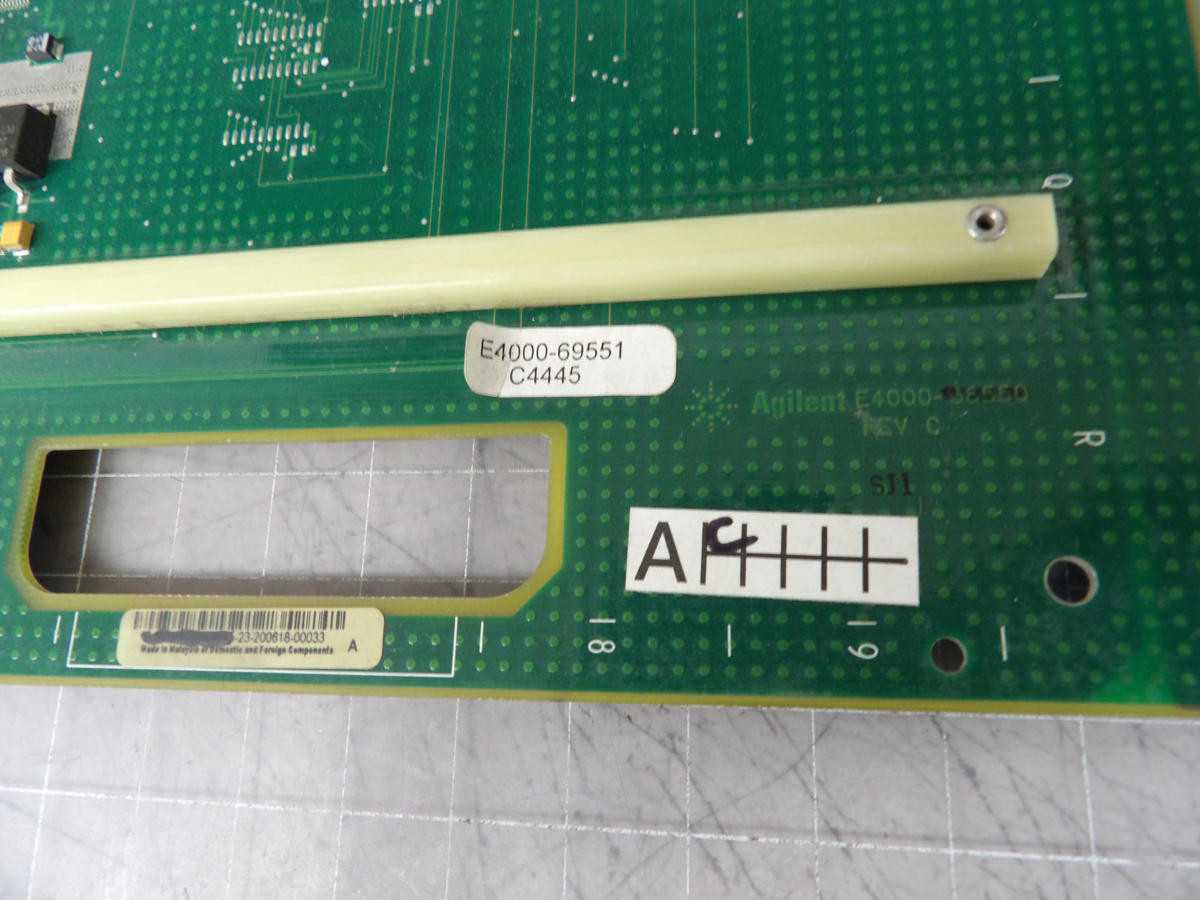

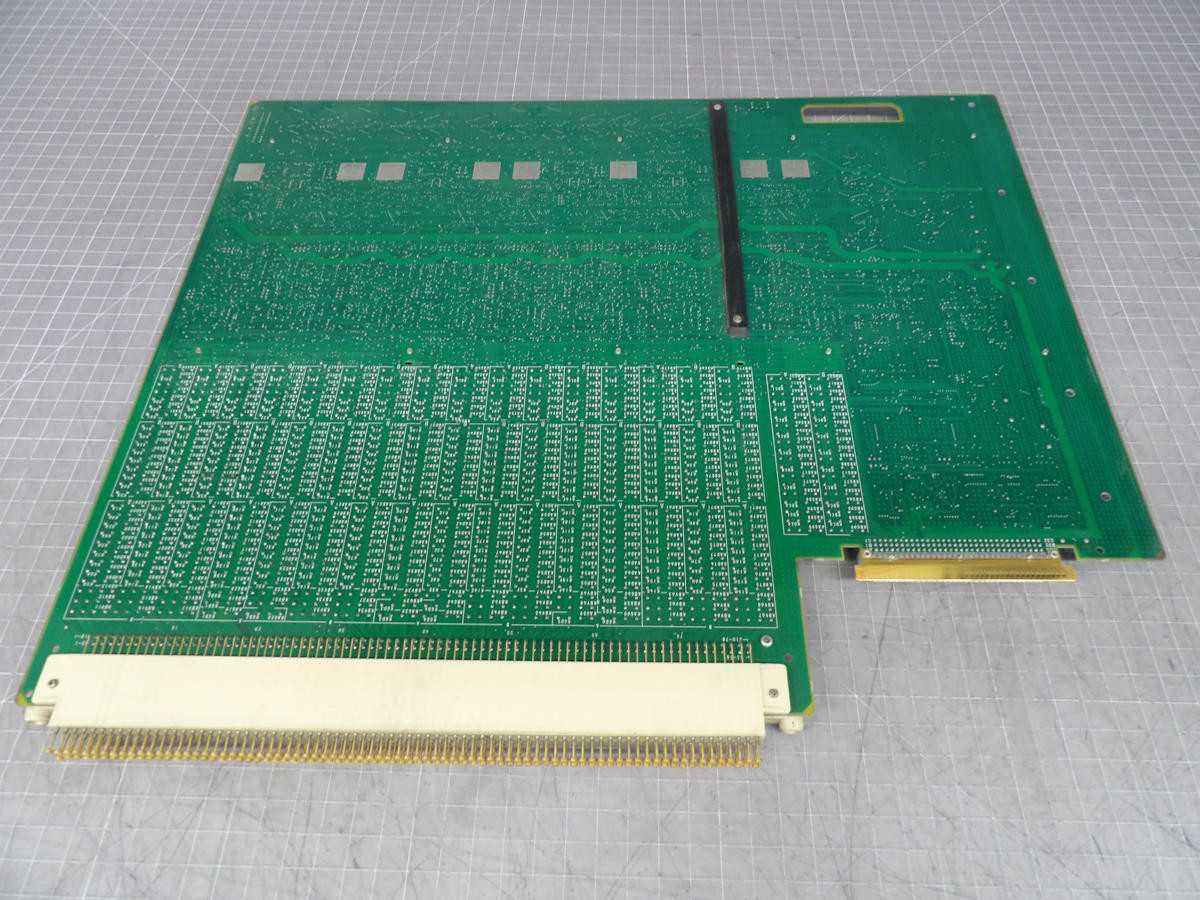

AGILENT E4000-66550, CIRCUIT BOARDS, DIGITAL MEASUREMENT

THE AGILENT E4000-66550 IS A DIGITAL MEASUREMENT BOARD DESIGNED FOR INTEGRATION WITHIN THE AGILENT HP 3070 SERIES III IN-CIRCUIT TEST (ICT) SYSTEM. THIS CIRCUIT BOARD FUNCTIONS AS A CORE COMPONENT FOR PERFORMING DIGITAL TEST OPERATIONS ON PRINTED CIRCUIT BOARD ASSEMBLIES (PCBAS) WITHIN THE AUTOMATED TEST ENVIRONMENT. IT IS IDENTIFIED BY PART NUMBER E4000-66550, WITH E4000-69551 AND M4425 ALSO ASSOCIATED AS POTENTIAL REVISIONS OR MODULE IDENTIFIERS. THE BOARD FACILITATES THE EXECUTION OF VARIOUS DIGITAL TEST PATTERNS AND MEASUREMENTS ESSENTIAL FOR VERIFYING THE FUNCTIONALITY AND INTEGRITY OF DIGITAL COMPONENTS ON THE UNIT UNDER TEST (UUT) DURING HIGH-VOLUME PRODUCTION TESTING.
