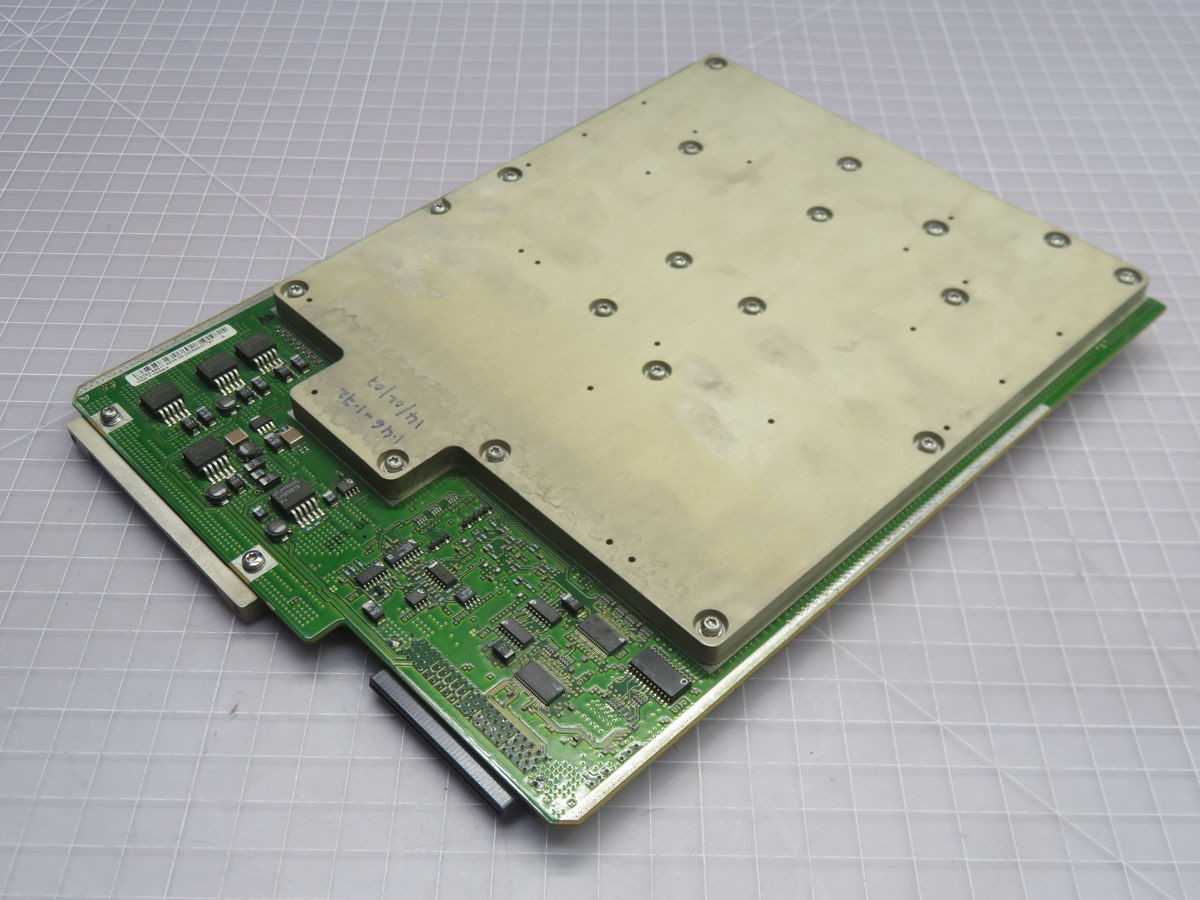

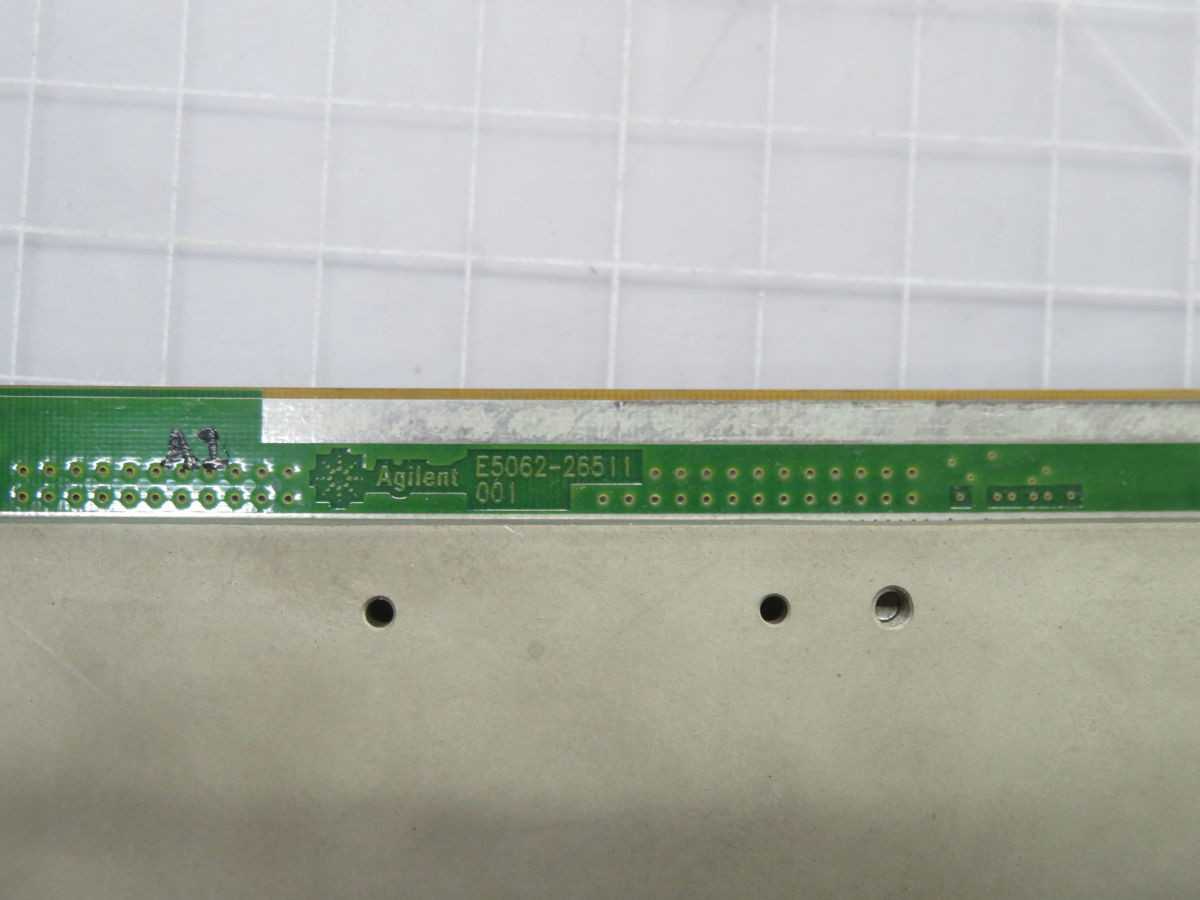

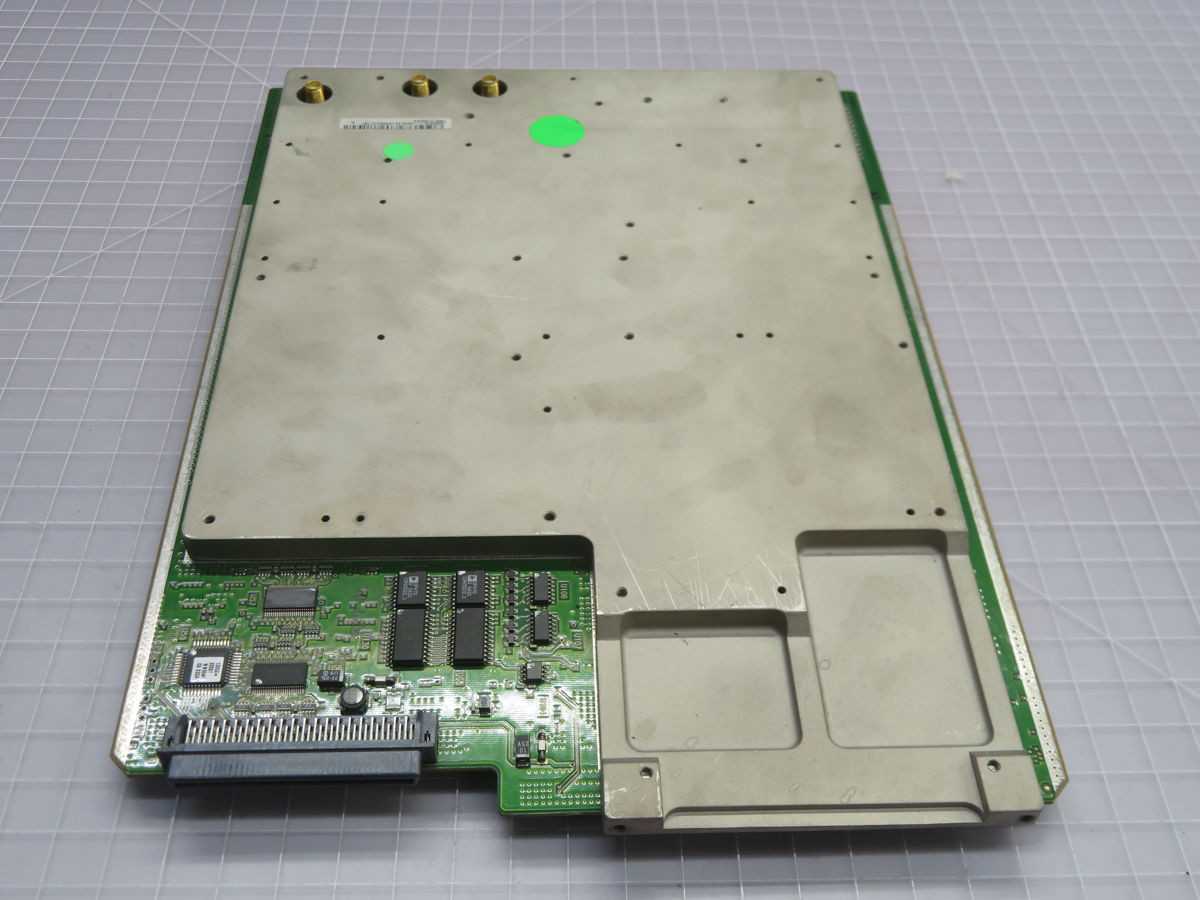

AGILENT E5062-26511 E5062-61111, RF CONTROL BOARD, 3 GHZ BANDWIDTH

THE AGILENT E5062-26511 E5062-61111 IS A PRINTED CIRCUIT BOARD (PCB) ASSEMBLY, IDENTIFIED AS AN RF CONTROL BOARD, DESIGNED FOR INTEGRATION WITHIN THE AGILENT E5062A ENA SERIES RF NETWORK ANALYZER. THIS COMPONENT IS ENGINEERED TO MANAGE AND ROUTE RADIO FREQUENCY SIGNALS ESSENTIAL FOR THE ANALYZER'S MEASUREMENT OPERATIONS. IT FACILITATES SIGNAL PATH CONTROL AND PROCESSING FOR FREQUENCIES UP TO 3 GHZ, CONSISTENT WITH THE OPERATIONAL BANDWIDTH OF ITS HOST INSTRUMENT. THE BOARD INCORPORATES VARIOUS RF AND DIGITAL COMPONENTS TO ENSURE PRECISE SIGNAL INTEGRITY AND CONTRIBUTE TO MEASUREMENT ACCURACY WITHIN THE NETWORK ANALYZER SYSTEM.
