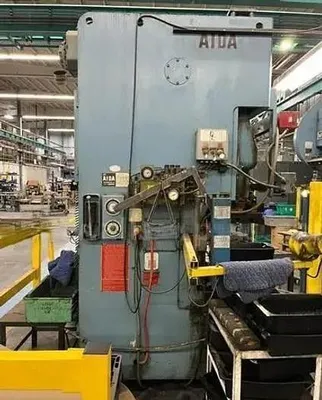

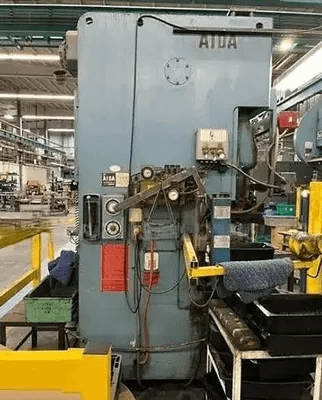

AIDA NC1-80(1) 88 TON SINGLE-CRANK GAP-FRAME PRESS, 3.93" STROKE, 10 HP, 55-110 SPM

THE AIDA NC1-80(1) SINGLE-CRANK GAP-FRAME PRESS IS ENGINEERED FOR RELIABILITY AND PERFORMANCE, FEATURING A NOMINAL TONNAGE CAPACITY OF 80 TONS (88 SHORT TONS). THIS MACHINE IS EQUIPPED WITH AN AIR CLUTCH & BRAKE SYSTEM AND HYDRAULIC OVERLOAD PROTECTION. KEY SPECIFICATIONS INCLUDE A 3.93-INCH STROKE LENGTH AND A VARIABLE STROKES-PER-MINUTE RANGE OF 55 TO 110 SPM. SLIDE ADJUSTMENT IS 3.14 INCHES, WITH A SLIDE AREA MEASURING 21.25 INCHES LEFT-TO-RIGHT BY 18.11 INCHES FRONT-TO-BACK. THE BOLSTER AREA PROVIDES A WORKING SURFACE OF 37.4 INCHES BY 18.11 INCHES. POWER IS SUPPLIED BY A 10 HP MOTOR, AND THE REQUIRED FLOOR SPACE IS 40 INCHES BY 54 INCHES.
