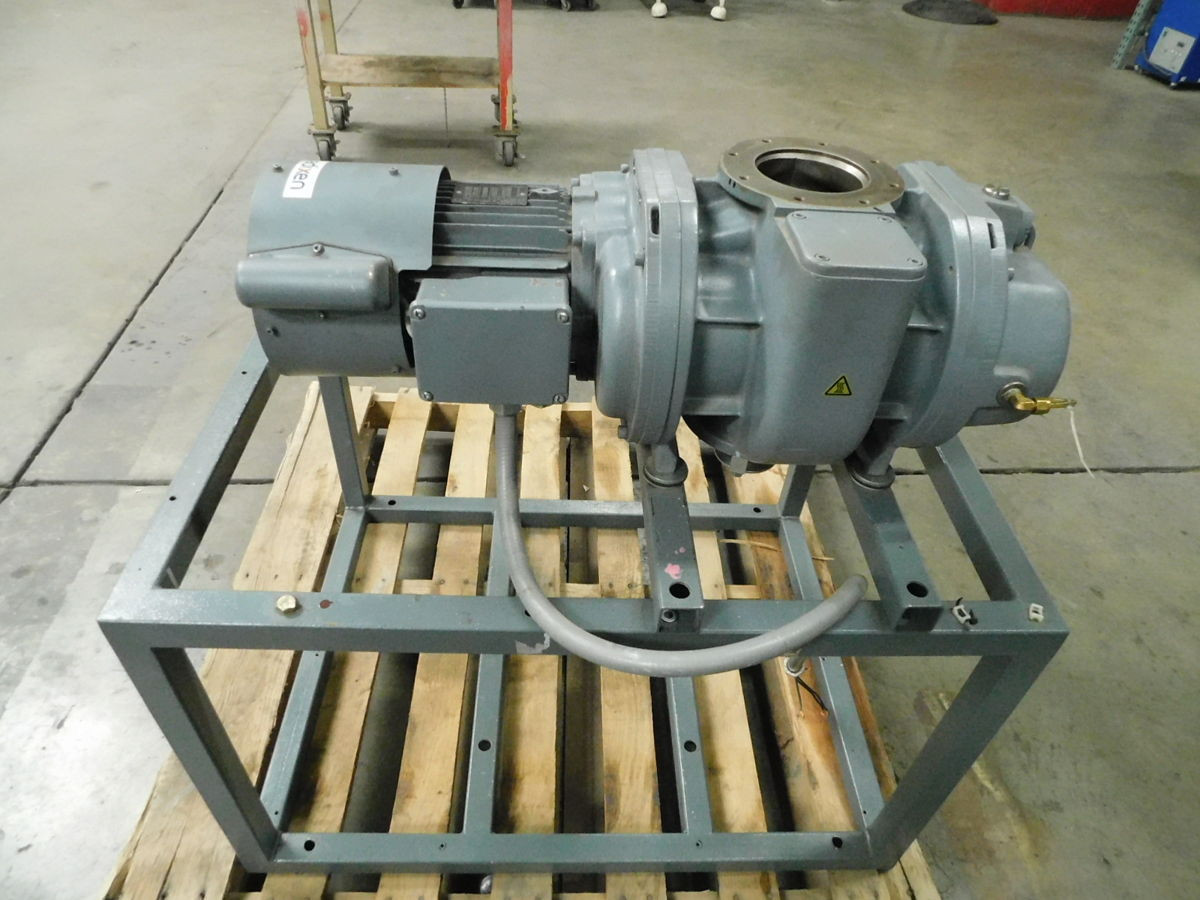

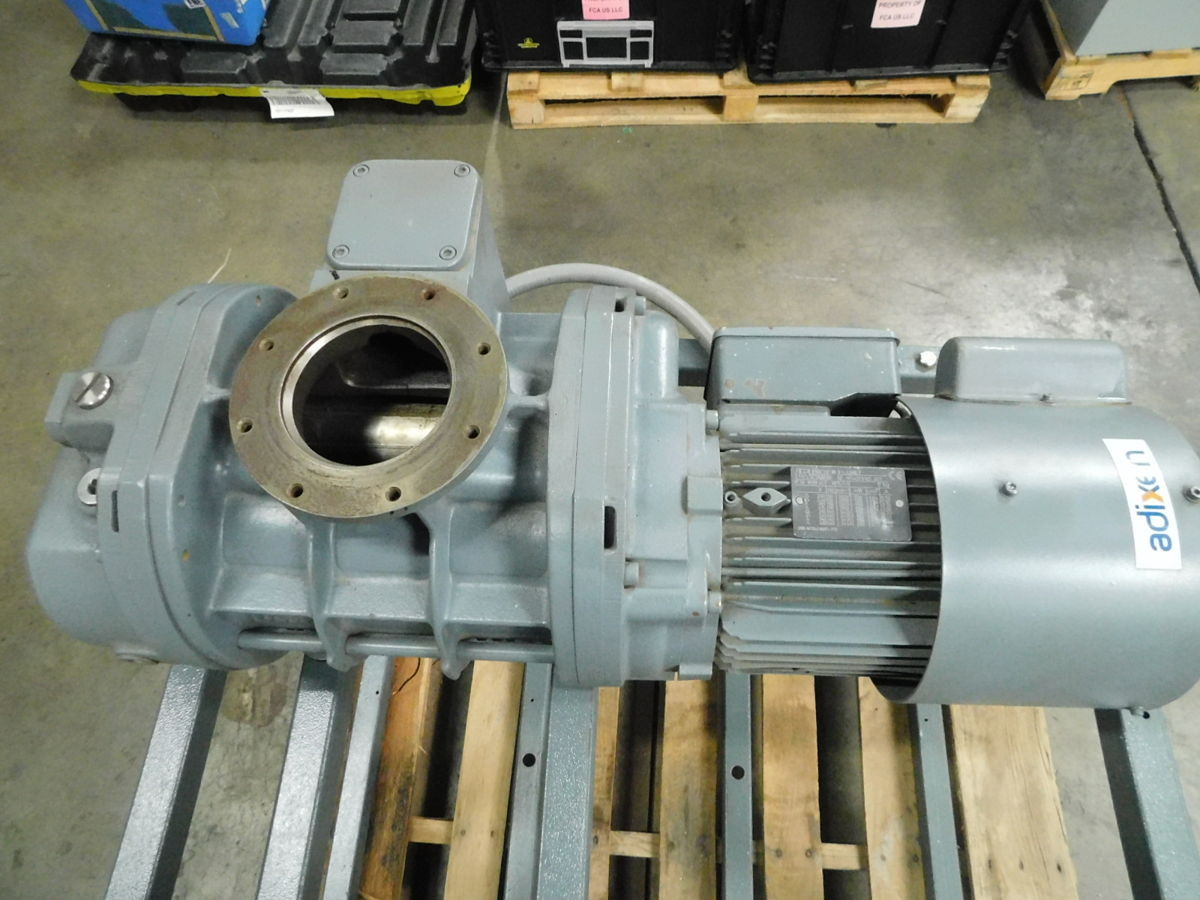

ALCATEL R601B VACUUM PUMP, 60M³/H PUMPING SPEED, 1.5KW POWER

THE ALCATEL R601B IS A TWO-STAGE ROTARY VANE ROUGHING VACUUM PUMP ENGINEERED FOR INDUSTRIAL VACUUM APPLICATIONS. IT FEATURES A NOMINAL PUMPING SPEED OF 60 M³/H (35.3 CFM) AT 50/60 HZ AND IS CAPABLE OF ACHIEVING AN ULTIMATE PRESSURE OF 5 X 10⁻² MBAR (3.75 X 10⁻² TORR). THE PUMP IS POWERED BY A 1.5 KW MOTOR, CONFIGURED FOR OPERATION AT 240/480 VAC, 3-PHASE. PROCESS CONNECTIONS INCLUDE AN NW40 INLET FLANGE AND AN NW25 OUTLET FLANGE. THE UNIT HAS AN OIL CAPACITY OF 2.8 LITERS, A REPORTED NOISE LEVEL BELOW 65 DB(A), AND A WEIGHT OF APPROXIMATELY 75 KG.
