Allen Bradley 1326AB-B3E-11-A5 Servo Motors, 1.0 kW Power, 3000 RPM Speed, 3.2 NM Stall Torque

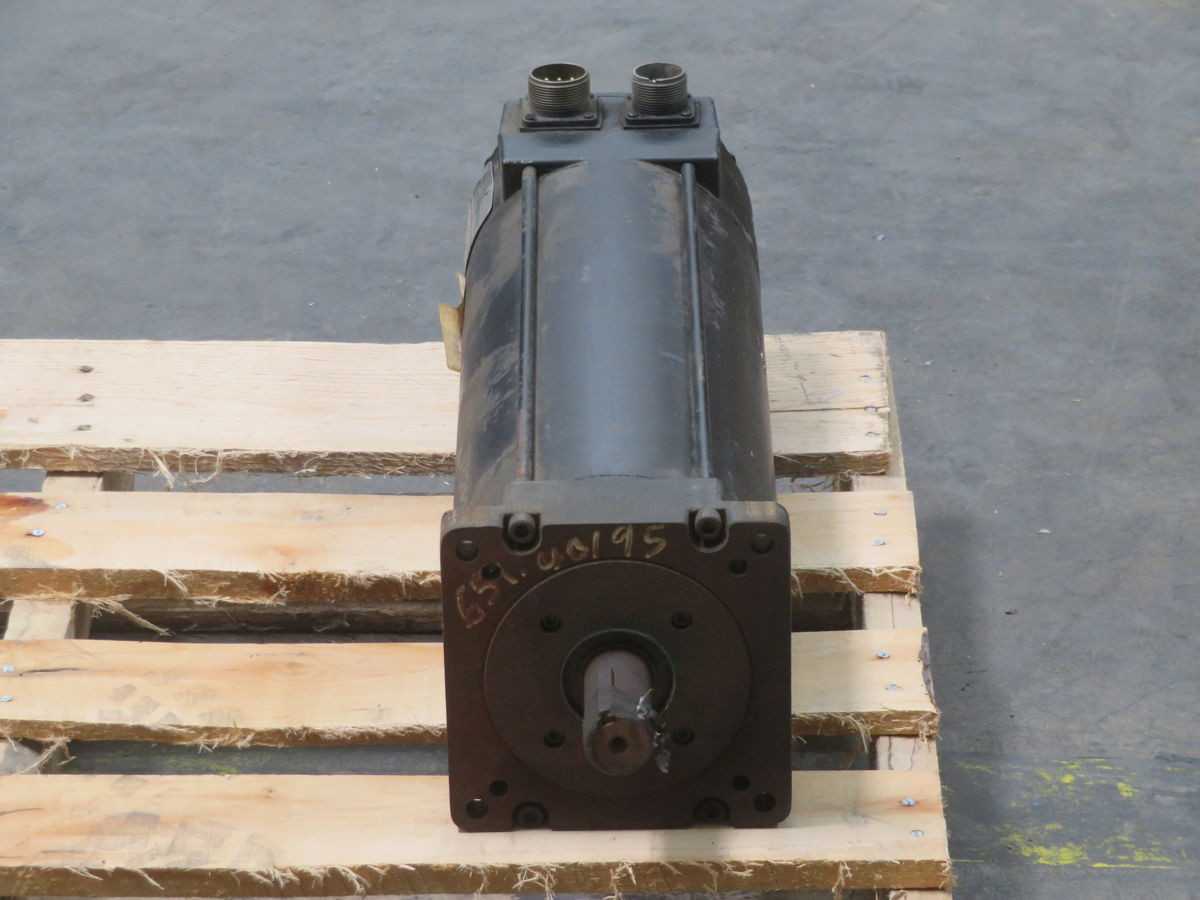

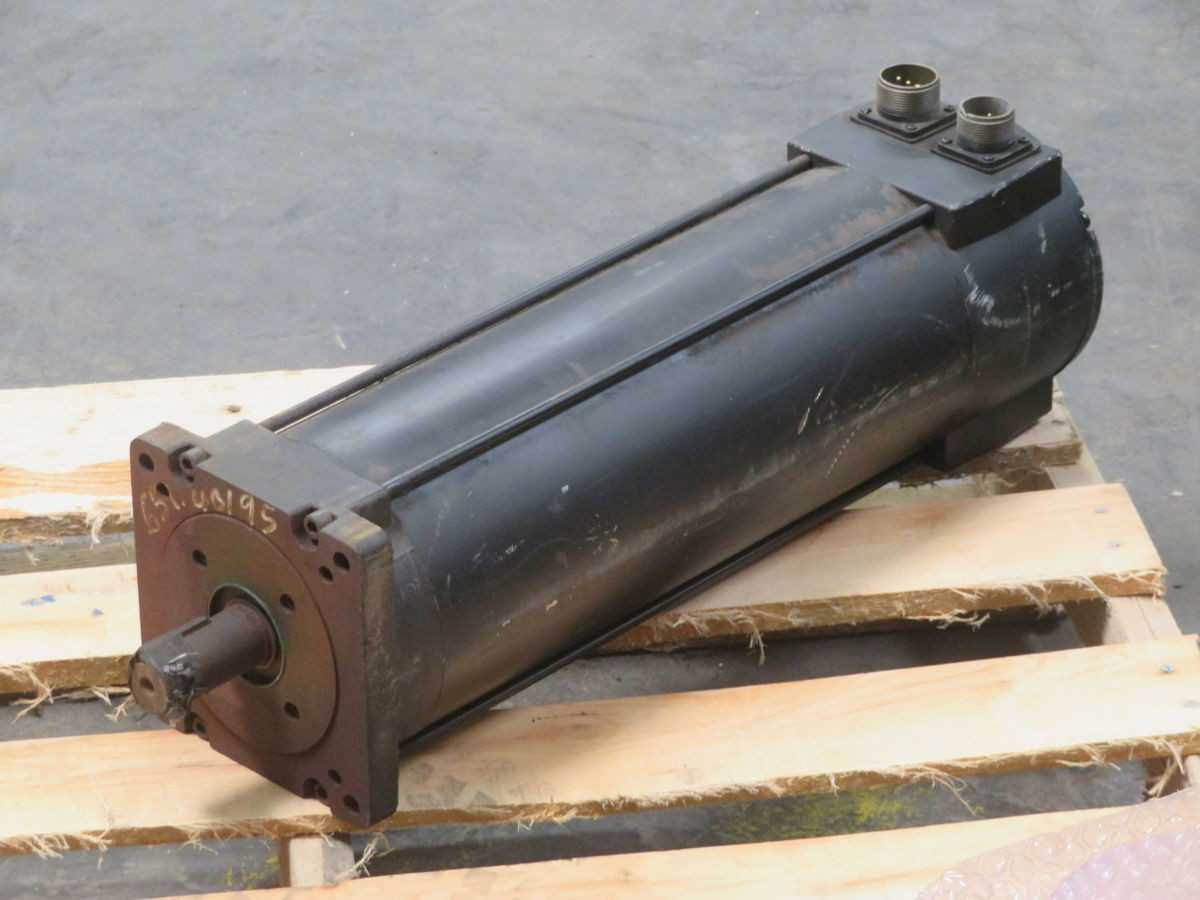

The Allen Bradley 1326AB-B3E-11-A5 is a permanent magnet AC servo motor from the 1326AB series, featuring a B3 frame. It is specified for a maximum speed of 3000 RPM and equipped with a 5.88 mm shaft with a keyway, designed for an inch combination face mounting flange. This model incorporates a resolver feedback device for precise positional control and includes thermistor (PTC) thermal protection. Performance specifications include a continuous stall torque of 3.2 NM (28 lb-in) at a continuous stall current of 3.2 A, and a peak stall torque of 9.6 NM (85 lb-in) at a peak stall current of 9.6 A. It has a rated output power of 1.0 kW. An integrated holding brake provides 120 lb-in (13.6 N-m) of torque, actuated by a 90V DC coil.
