Allen Bradley 1502-VC8DXDA-1 Contactor, 800 a Rating, 7.2 Kvac Voltage, 50/60 Hz Freq
Aucto ID: #98455
Ends in:
a3367e34-408f-4548-b9bc-fc0282fe5915
Location: El Paso, Texas, United States
Logistics:
Rigging:
Not Required
Loading:
Included
Shipping:
Buyer
orAucto Delivery! Get a Quote!buy now
Buy Now: Submit an offer or purchase immediately!
FAQsVerified Seller - Since 2026
3106Product Description

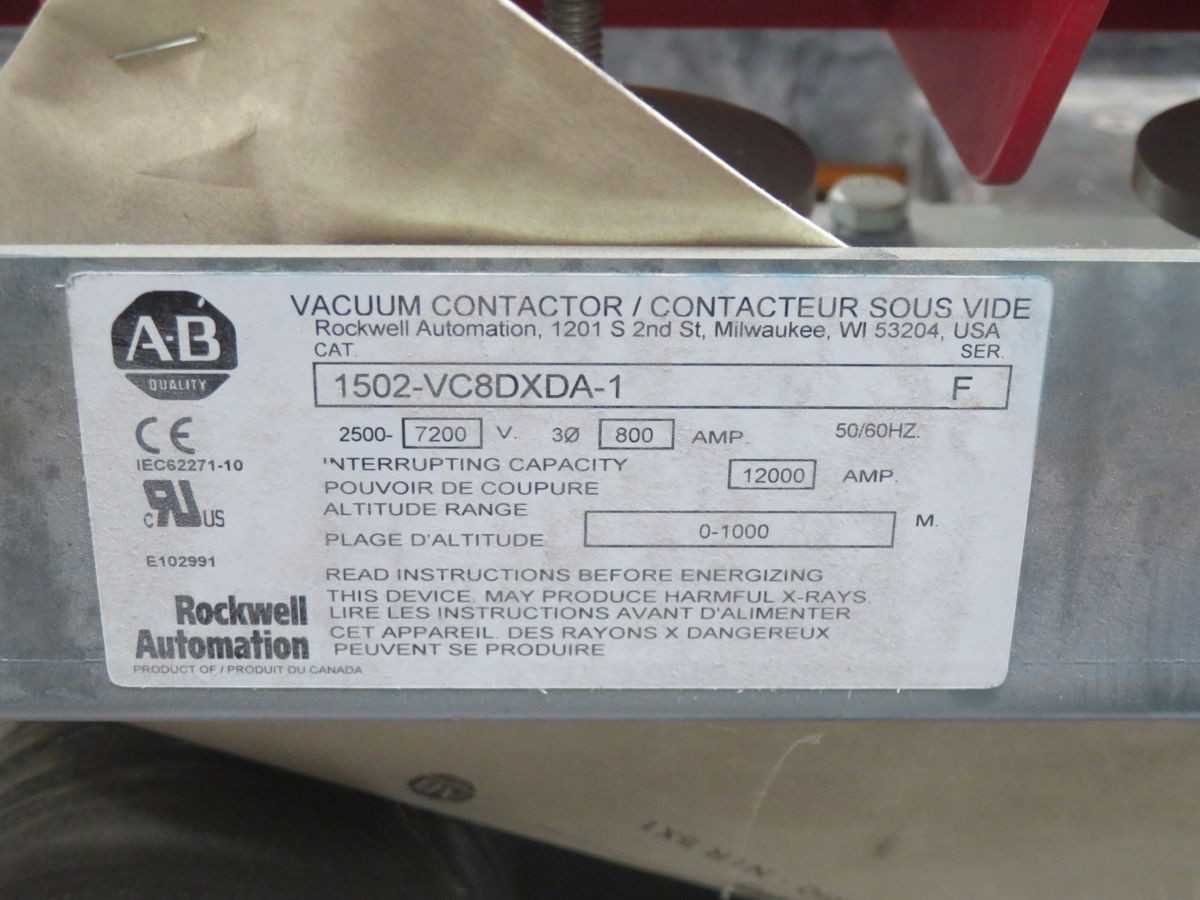

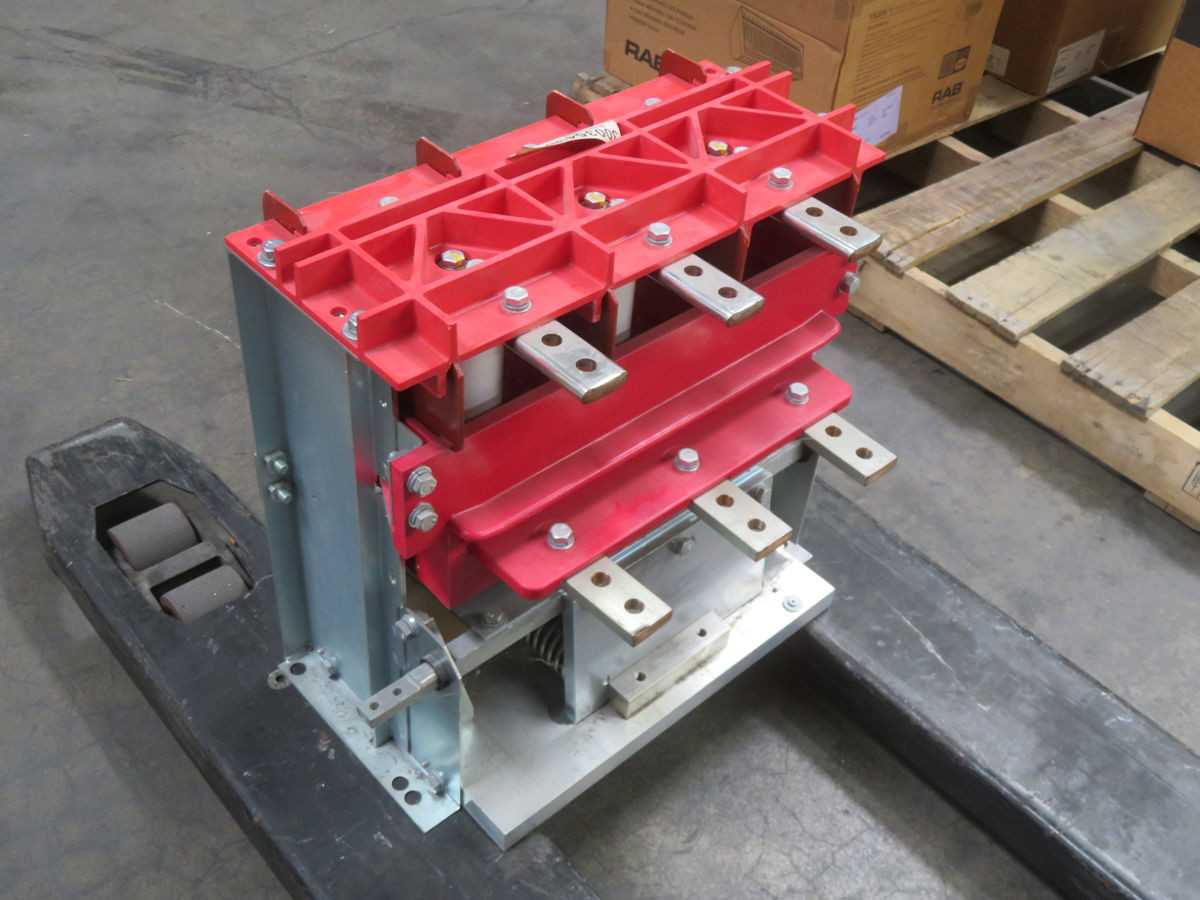

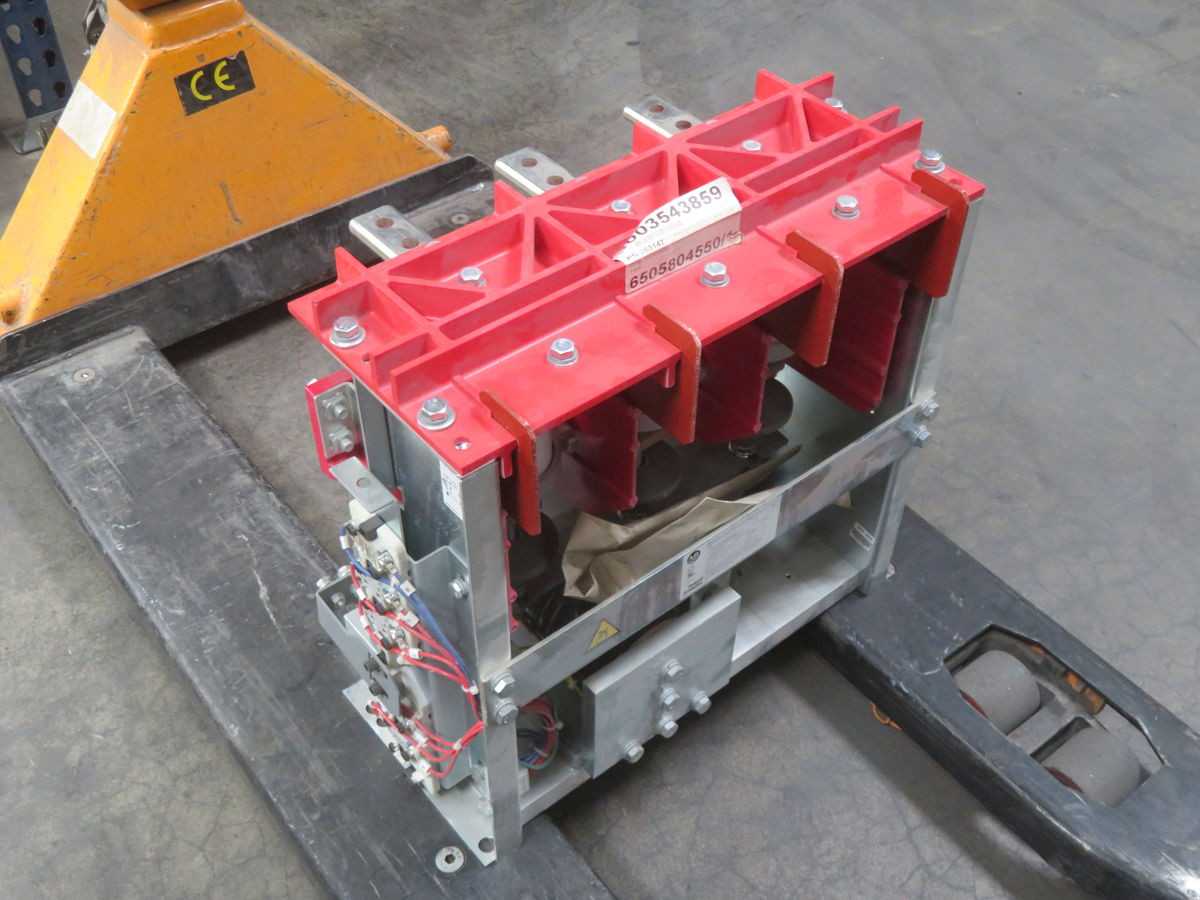

The Allen Bradley 1502-VC8DXDA-1 is an electrically held, 3-pole vacuum contactor with Intellivac control. It features an 800 amp current rating and operates at a 7.2 KVAC rated voltage and 50/60 Hz frequency. The unit has an insulation level of 60 KV BIL / 20 KVAC, controlled by a 110 VDC coil. Its interrupting capacity is 12000 amps, and it is rated for operation at altitudes from 0 to 1000 meters (0-3300 feet).
Core Specifications
Manufacturer: ALLEN BRADLEY
Model: 1502-VC8DXDA-1
Condition: New Other
- New, never used, may be missing original packagingCategory:
INDUSTRIAL PARTS > ELECTRICAL COMPONENTS > CONTACTORS > AC CONTACTORLogistics
