ALLEN BRADLEY 1502-VC8DXDA-1 CONTACTOR, 800 A RATING, 7.2 KVAC VOLTAGE, 50/60 HZ FREQ
Aucto ID: #98455
Ends in:
ad633724-6382-4635-ae83-a8436fd10930
Location: El Paso, Texas, United States
Logistics:
Rigging:
Not Required
Loading:
Included
Shipping:
Buyer
buy now
Buy Now: Submit an offer or purchase immediately!
FAQsVerified Seller: OCO Industrial
3106Selling since 2026.
Product Description

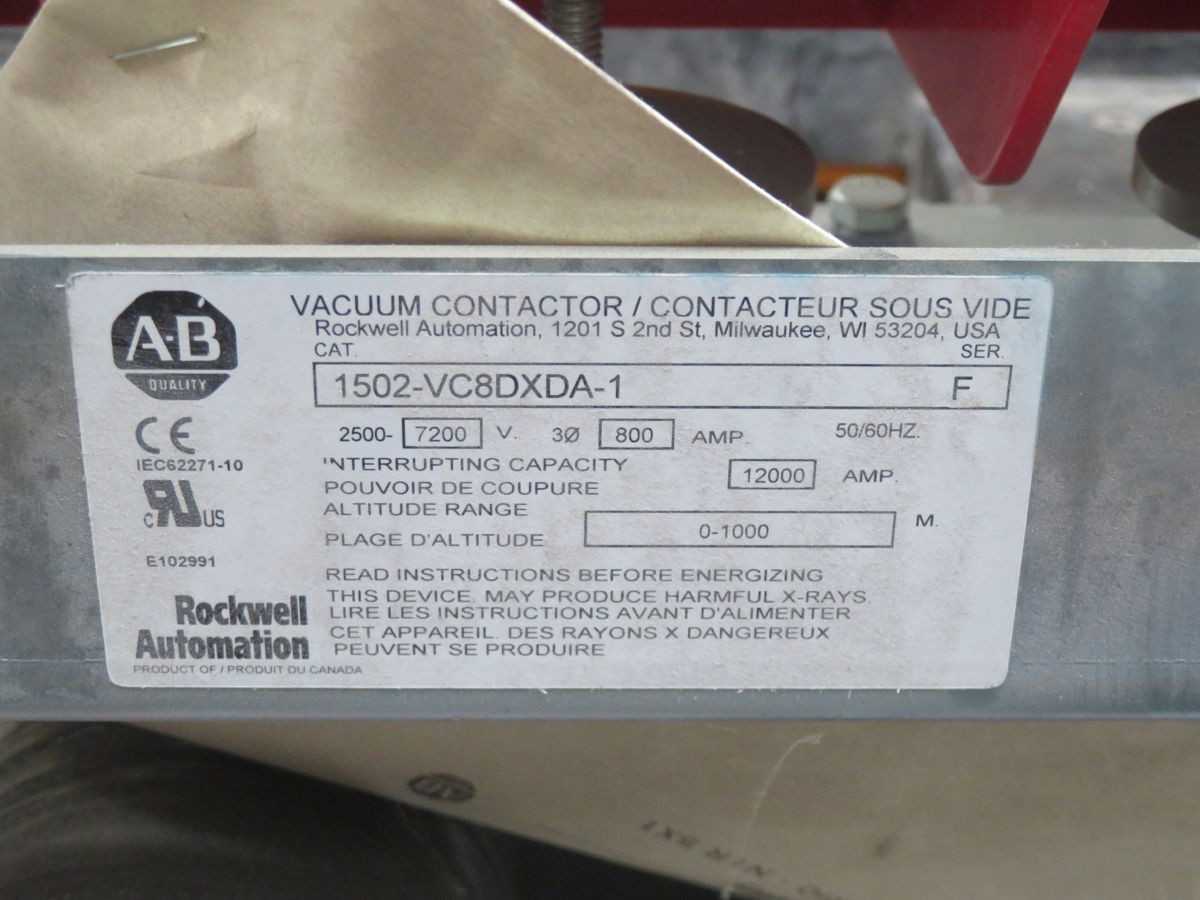

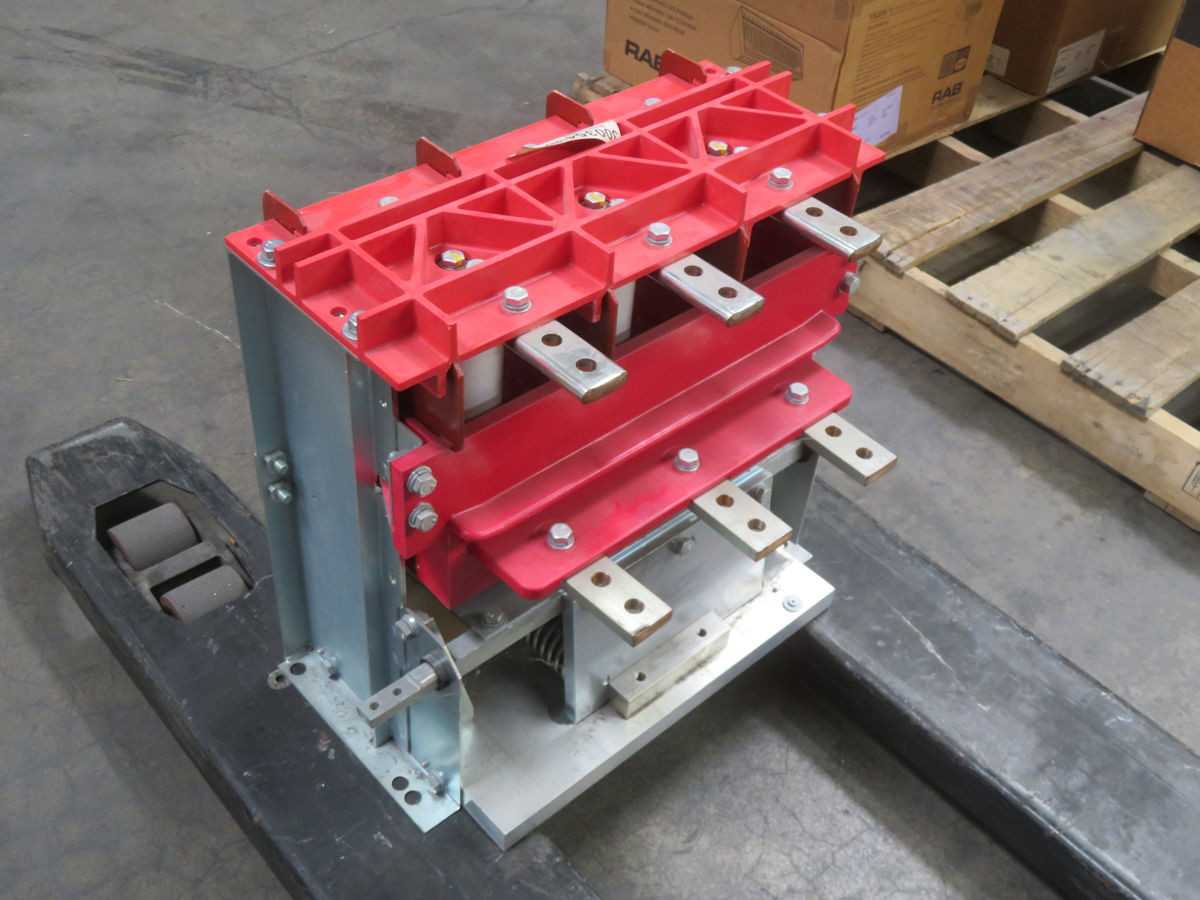

THE ALLEN BRADLEY 1502-VC8DXDA-1 IS AN ELECTRICALLY HELD, 3-POLE VACUUM CONTACTOR WITH INTELLIVAC CONTROL. IT FEATURES AN 800 AMP CURRENT RATING AND OPERATES AT A 7.2 KVAC RATED VOLTAGE AND 50/60 HZ FREQUENCY. THE UNIT HAS AN INSULATION LEVEL OF 60 KV BIL / 20 KVAC, CONTROLLED BY A 110 VDC COIL. ITS INTERRUPTING CAPACITY IS 12000 AMPS, AND IT IS RATED FOR OPERATION AT ALTITUDES FROM 0 TO 1000 METERS (0-3300 FEET).
Core Specifications
Manufacturer: ALLEN BRADLEY
Model: 1502-VC8DXDA-1
Condition: New Other
- New, never used, may be missing original packagingCategory:
INDUSTRIAL PARTS > ELECTRICAL COMPONENTS > CONTACTORS > AC CONTACTORLogistics
Rigging Responsibility:
Not Required
Loading Responsibility:
Included
Shipping Responsibility:
Buyer
