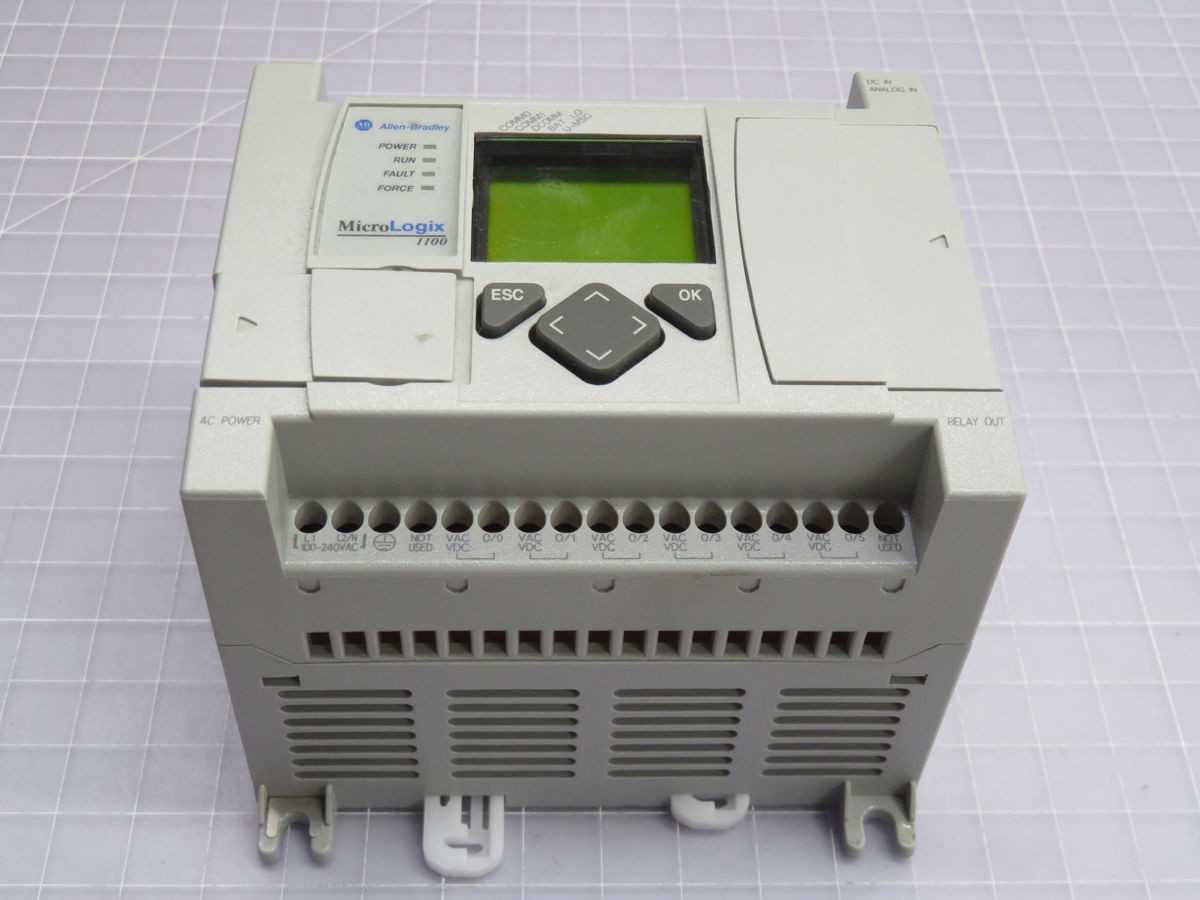

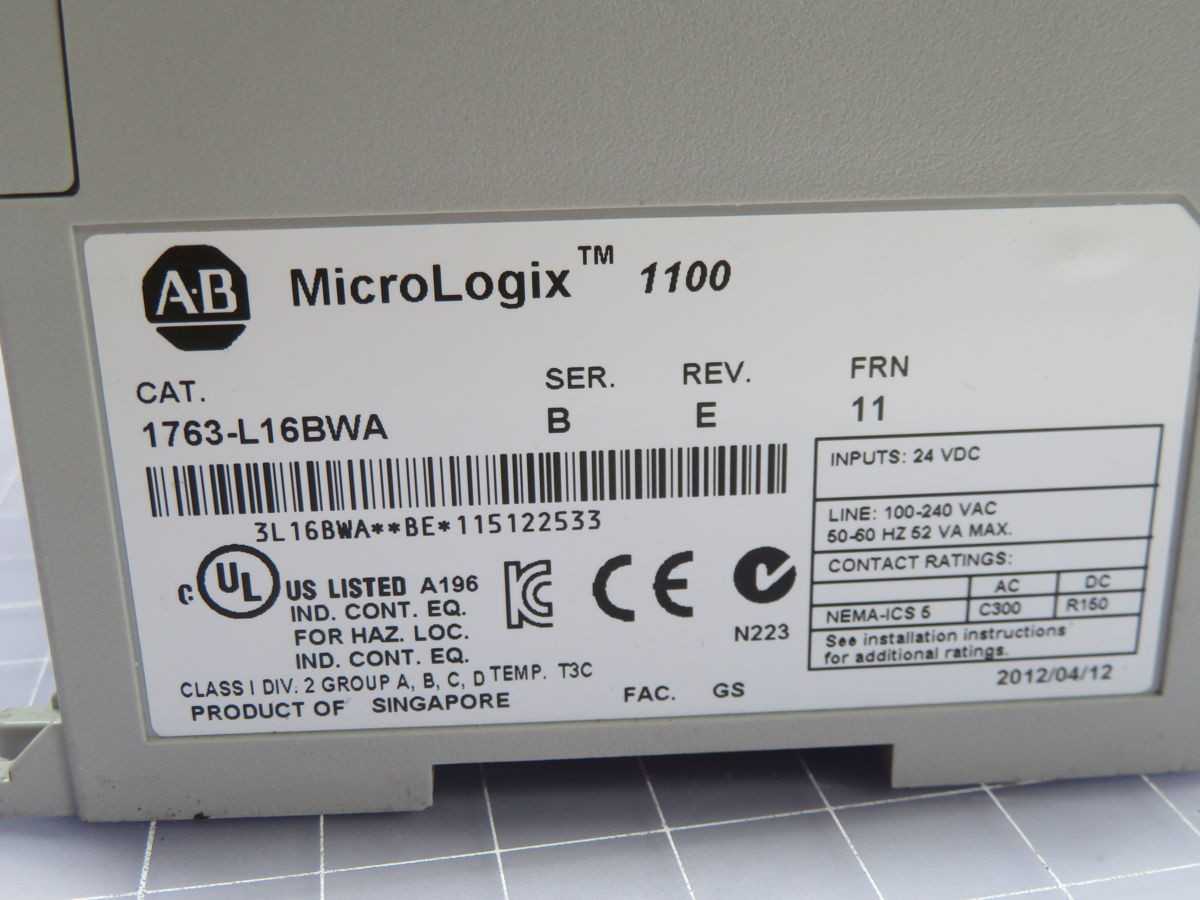

ALLEN BRADLEY 1763-L16BWA CONTROLS PLCS, 120-240V AC, 10 DI, 2 AI, 6 RELAY OUT, 8KB MEM, ETHERNET

THE ALLEN BRADLEY 1763-L16BWA IS A MICROLOGIX 1100 SMALL LOGIC CONTROLLER DESIGNED FOR INDUSTRIAL CONTROL APPLICATIONS. IT OPERATES ON A 120-240 VAC POWER SUPPLY. THE CONTROLLER IS EQUIPPED WITH TEN 24 VDC DIGITAL INPUTS AND TWO 10 V ANALOG INPUTS. OUTPUT CAPABILITIES INCLUDE SIX RELAY OUTPUTS. FOR COMMUNICATION, IT FEATURES AN INTEGRATED 10/100 MBPS ETHERNET/IP PORT AND A CONFIGURABLE RS-232/RS-485 SERIAL PORT. THE UNIT INCORPORATES 8 KB OF MEMORY, DIVIDED INTO 4 KB FOR PROGRAM STORAGE AND 4 KB FOR DATA. AN INTEGRATED LCD DISPLAY FACILITATES STATUS MONITORING AND INTERACTION, AND THE CONTROLLER SUPPORTS THE ADDITION OF UP TO FOUR 1762 MICROLOGIX EXPANSION I/O MODULES.
