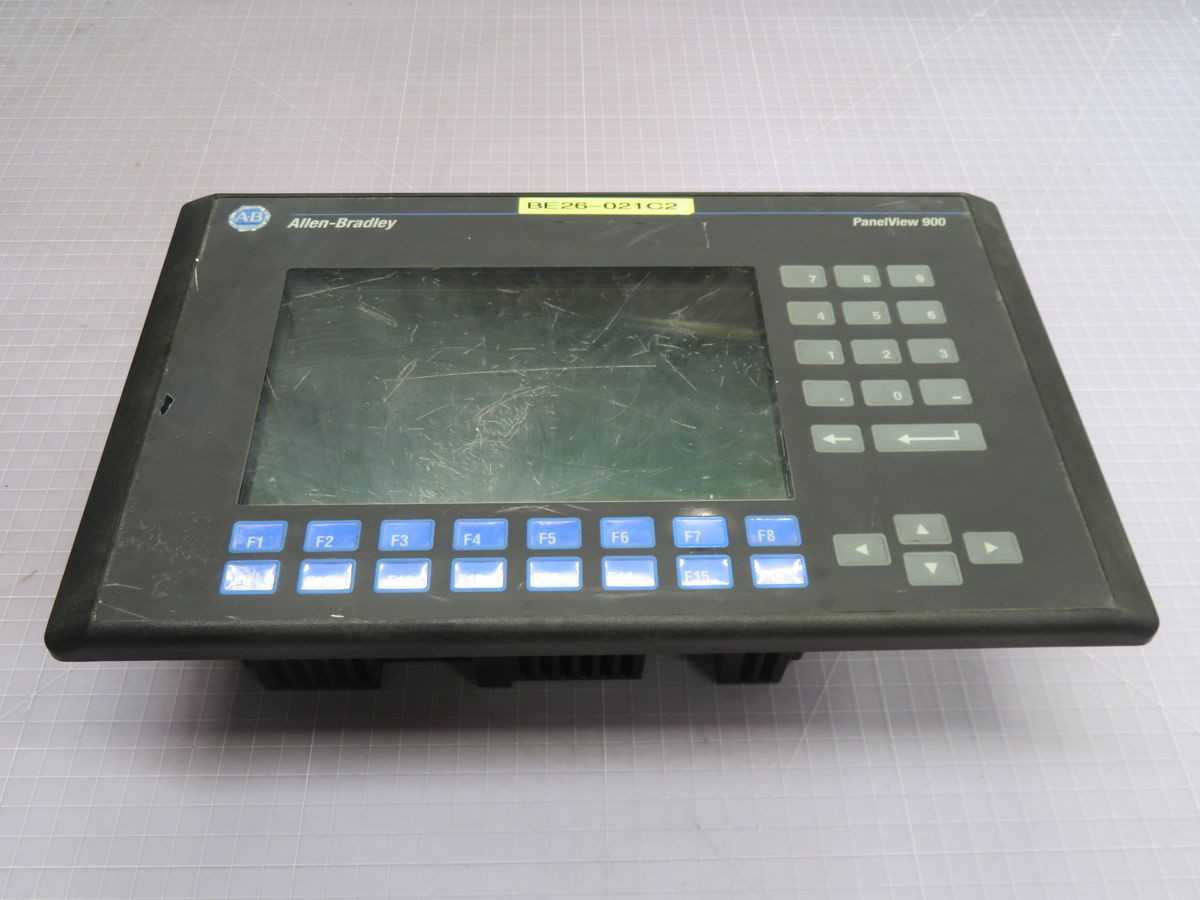

ALLEN BRADLEY, 2711-K9A2, PANEL INTERFACE, 9-INCH MONO LCD, KEYPAD, NEMA 4X/IP65 ENCL

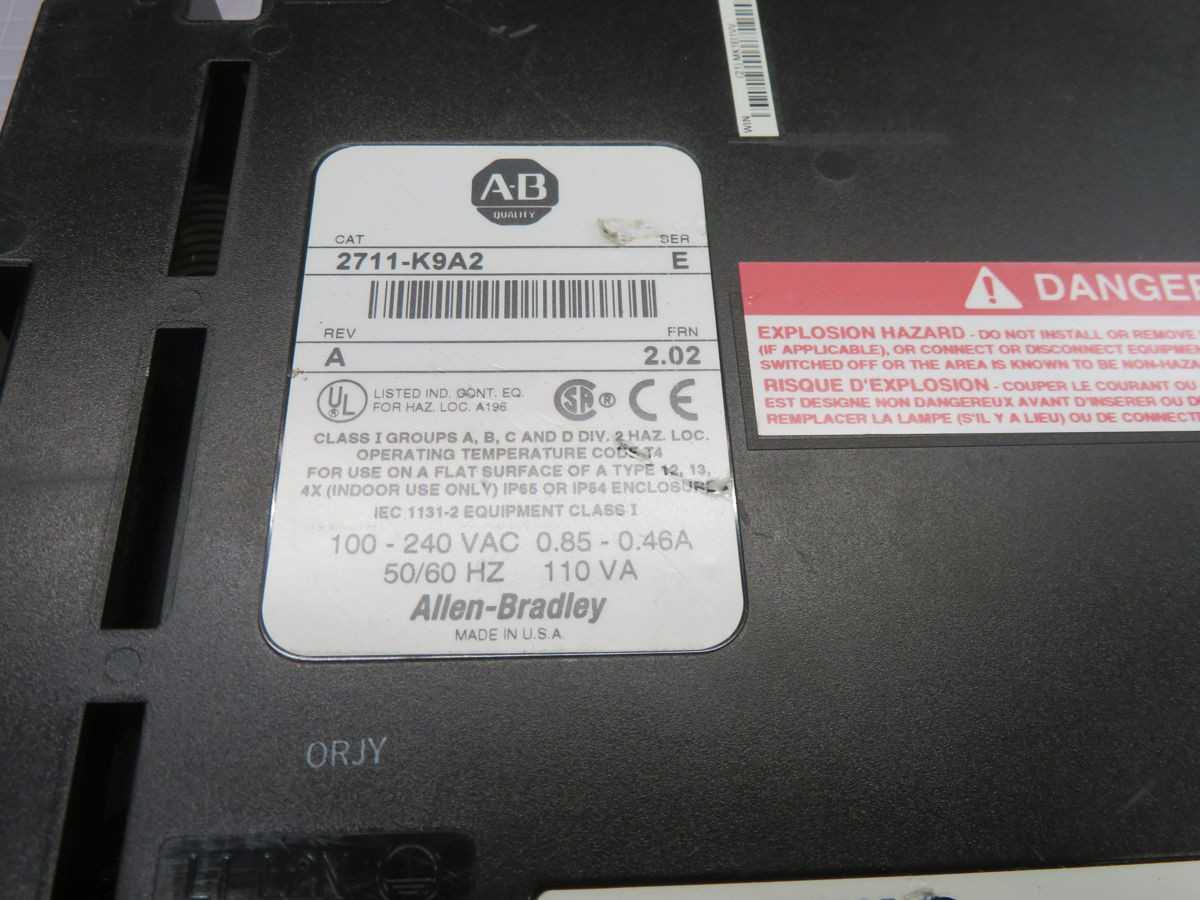

THE ALLEN BRADLEY 2711-K9A2 IS A PANELVIEW STANDARD OPERATOR INTERFACE FEATURING A 9-INCH MONOCHROME LCD DISPLAY, OFFERING A RESOLUTION OF 640 X 480 PIXELS. THE DISPLAY UTILIZES A COLD CATHODE FLUORESCENT LAMP (CCFL) BACKLIGHT, RATED FOR A TYPICAL 50,000-HOUR HALF-LIFE. USER INTERACTION IS MANAGED THROUGH AN INTEGRATED KEYPAD. IT PROVIDES 170 KB OF APPLICATION MEMORY. COMMUNICATION IS FACILITATED VIA A DH-485 INTERFACE. THE UNIT IS DESIGNED FOR PANEL MOUNTING AND FEATURES AN ENCLOSURE RATED NEMA 4X, 12, 13, AND IP65, SUITABLE FOR INDOOR USE. IT OPERATES WITHIN A TEMPERATURE RANGE OF 0 TO 50°C (32 TO 122°F). POWER INPUT REQUIREMENTS ARE 100-240 VAC AT 50/60 HZ.
