ALLEN BRADLEY, 2711-K9A2X, HMI, 9-INCH LCD, KEYPAD, DH+, NEMA 4X, IP65, 100-240 VAC

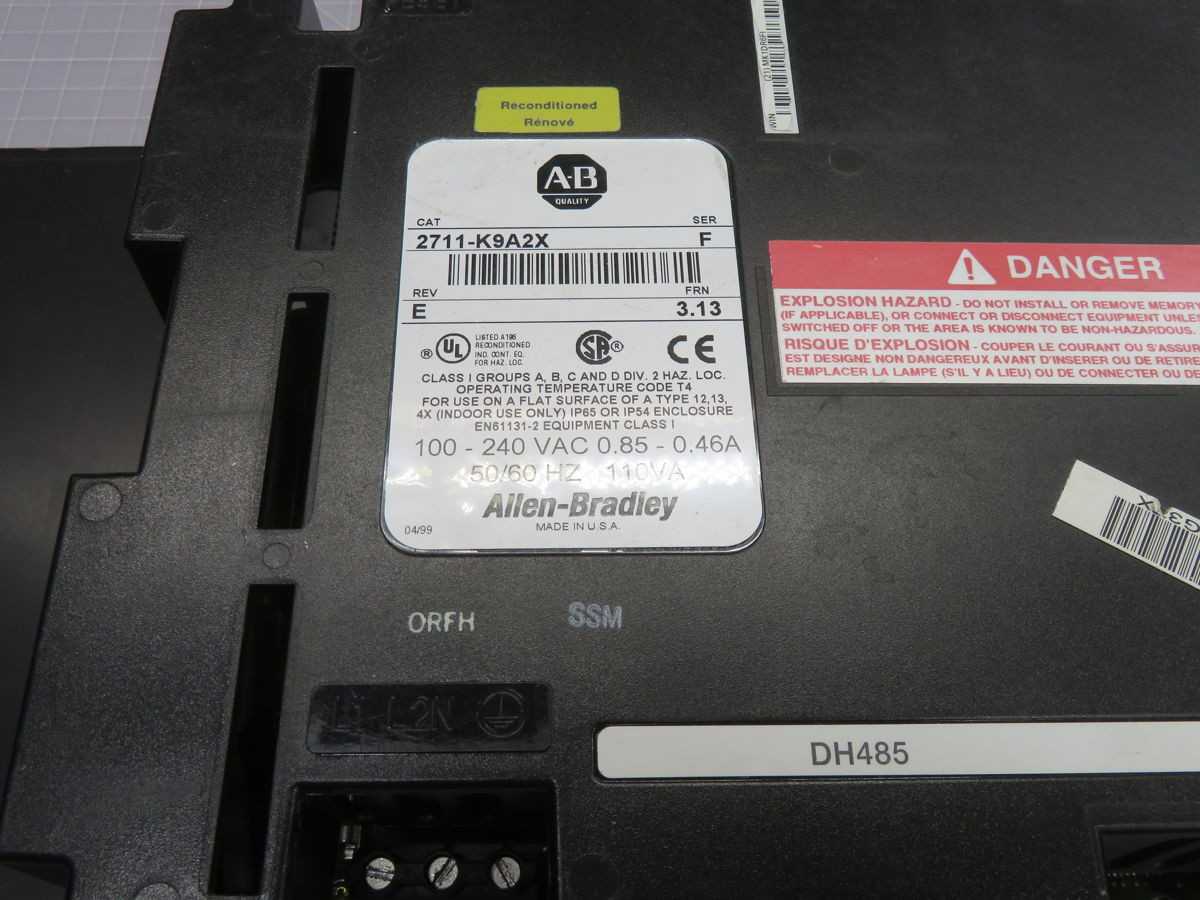

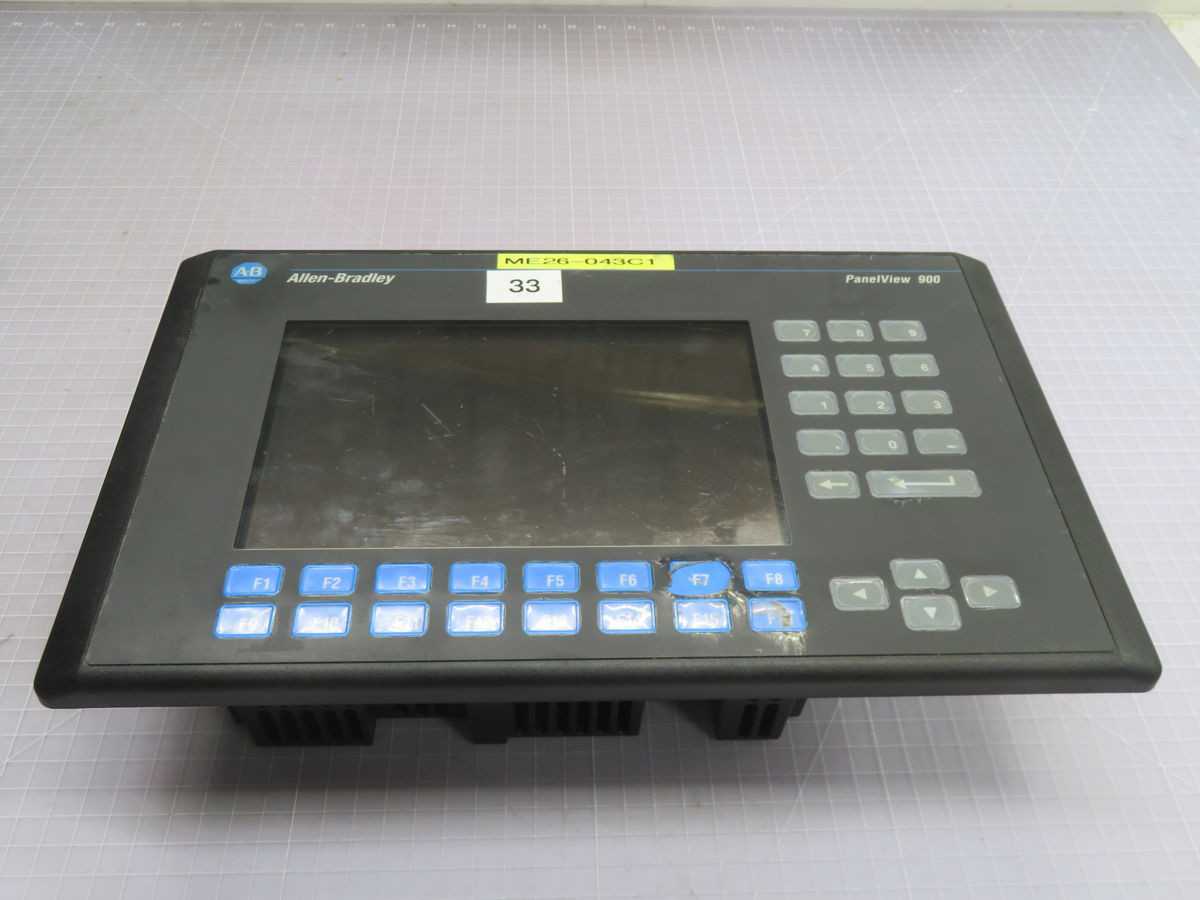

THE ALLEN-BRADLEY 2711-K9A2X IS A PANELVIEW 900 STANDARD KEYPAD OPERATOR INTERFACE TERMINAL. IT FEATURES A 9-INCH MONOCHROME LCD WITH A RESOLUTION OF 320 X 234 PIXELS, ILLUMINATED BY A COLD CATHODE FLUORESCENT LAMP (CCFL) BACKLIGHT. INPUT IS MANAGED VIA AN INTEGRATED KEYPAD. THE UNIT OPERATES ON 100-240 VAC AT 50/60 HZ, DRAWING 0.85-0.46 A AND CONSUMING 110 VA. COMMUNICATION IS FACILITATED THROUGH DATA HIGHWAY PLUS (DH+) CONNECTIVITY. IT INCLUDES 170 KB OF APPLICATION MEMORY AND 240 KB OF RUNTIME MEMORY. THE ENCLOSURE CARRIES A NEMA 4X, 12, 13 AND IP65 RATING, SUITABLE FOR INDOOR ENVIRONMENTS. OPERATIONAL TEMPERATURE RANGE IS 0°C TO 55°C.
