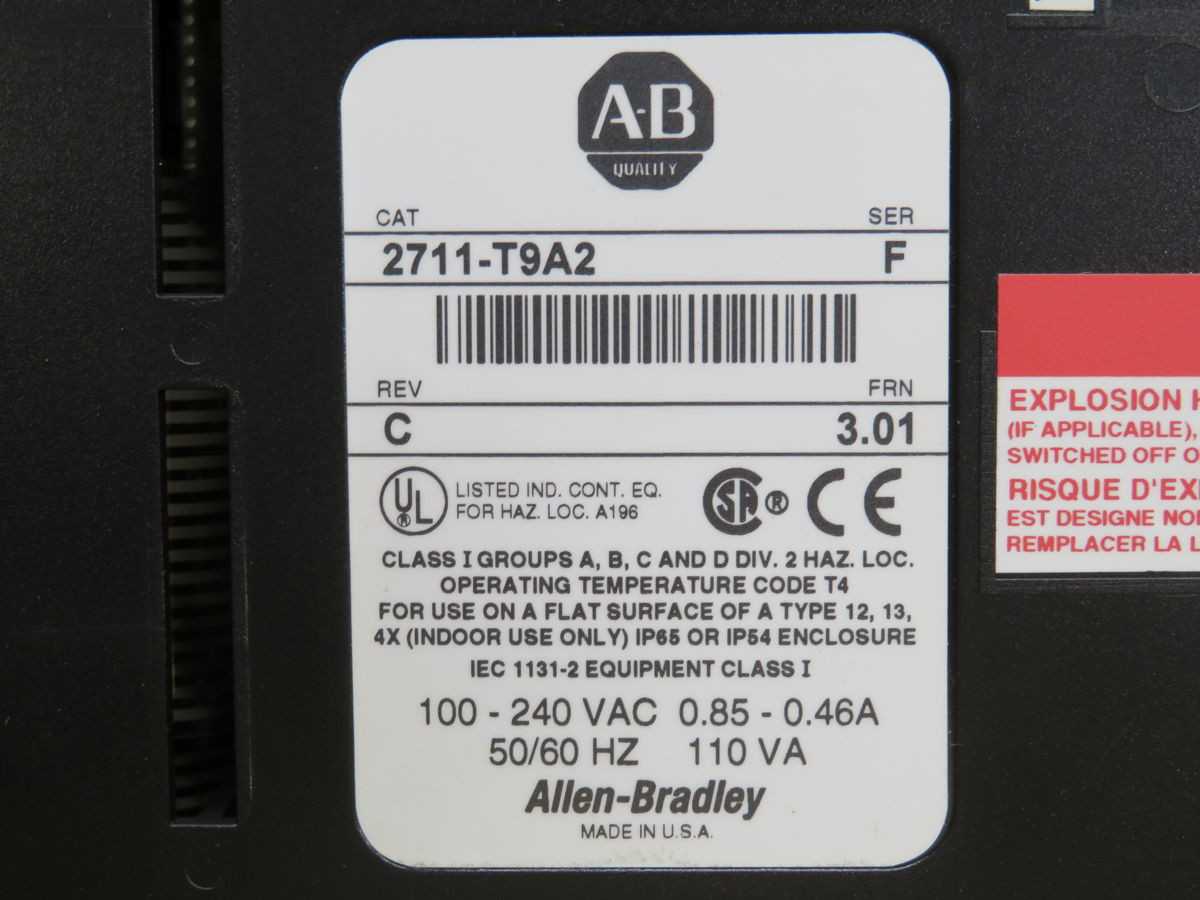

ALLEN BRADLEY 2711-T9A2, 9-INCH DISPLAY, 640X480 RES, DH-485 COMMS, NEMA 4X IP65 RATING

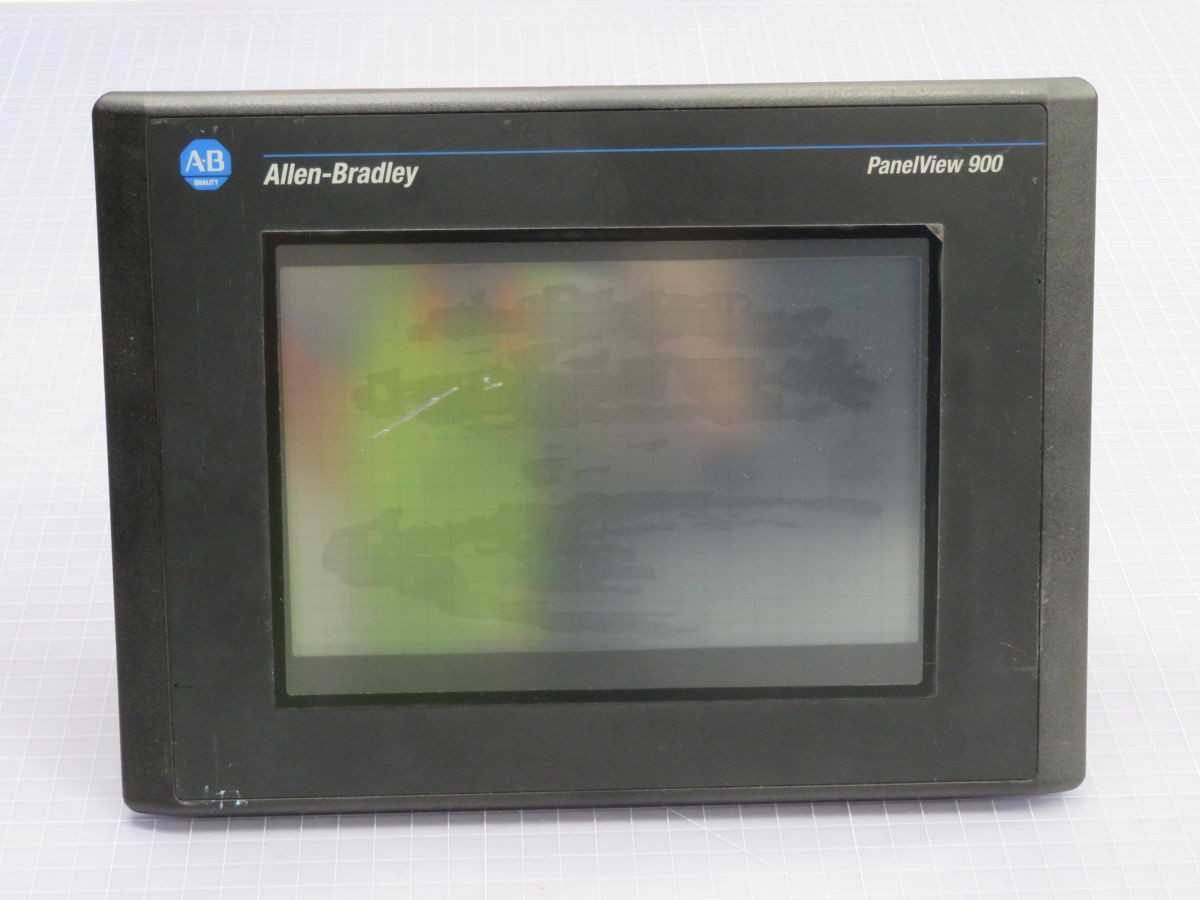

THE ALLEN BRADLEY 2711-T9A2 IS A PANELVIEW STANDARD OPERATOR INTERFACE FEATURING A 9-INCH MONOCHROME TOUCH SCREEN DISPLAY WITH A RESOLUTION OF 640 X 480 PIXELS. IT UTILIZES DH-485 COMMUNICATION AND OPERATES WITH A POWER INPUT OF 100-240 VAC AT 50/60 HZ. INTERNALLY, THE UNIT IS EQUIPPED WITH AN 80386EX PROCESSOR, 1MB OF NON-VOLATILE MEMORY FOR CONFIGURATION STORAGE, AND 170KB OF RUNTIME MEMORY FOR APPLICATION EXECUTION. THE DISPLAY'S BACKLIGHT IS CCFL-BASED. THIS OPERATOR INTERFACE MAINTAINS A FRONT ENCLOSURE RATING OF NEMA 4X / IP65, PROVIDING PROTECTION FOR INDUSTRIAL ENVIRONMENTS, AND IS DESIGNED TO OPERATE WITHIN A TEMPERATURE RANGE OF 0 TO 55°C. CONFIGURATION AND PROGRAMMING ARE PERFORMED USING PANELBUILDER32 SOFTWARE.
