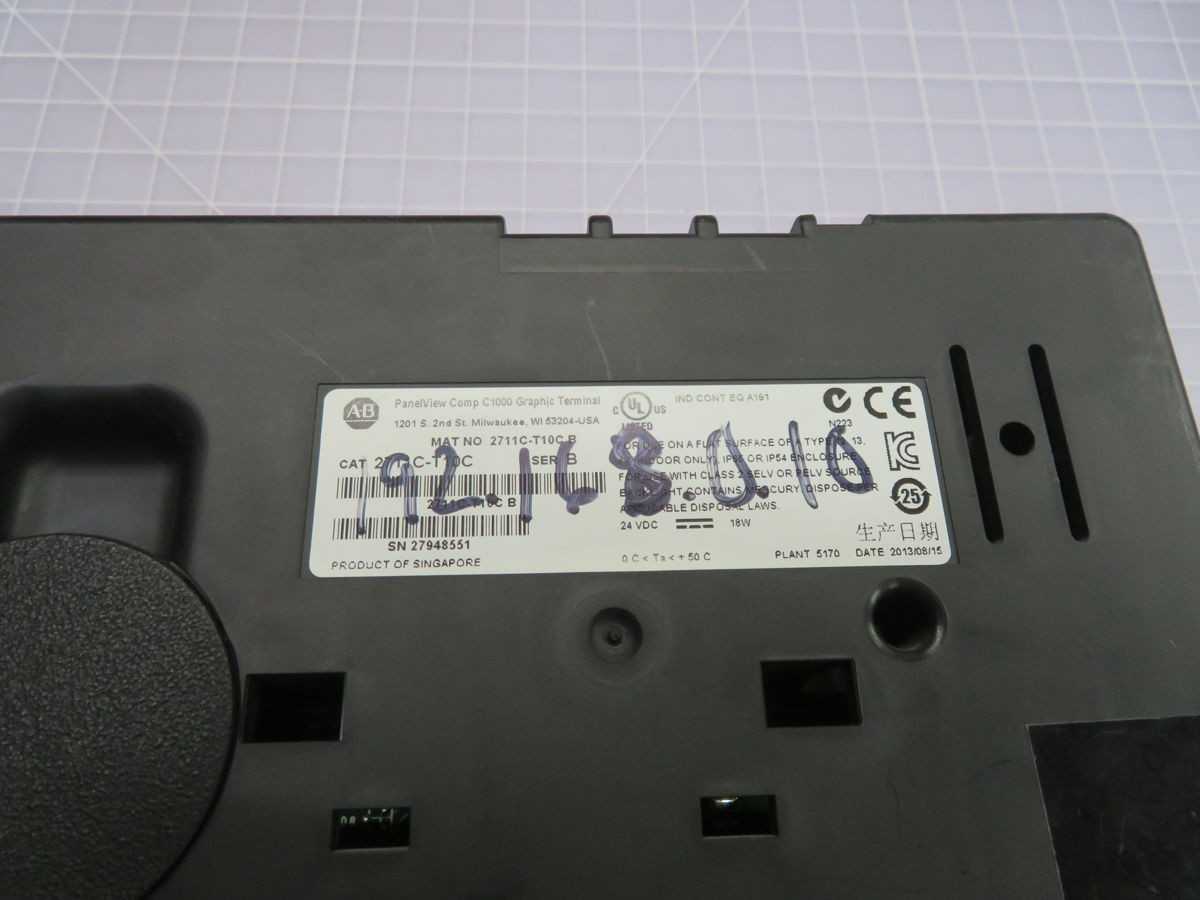

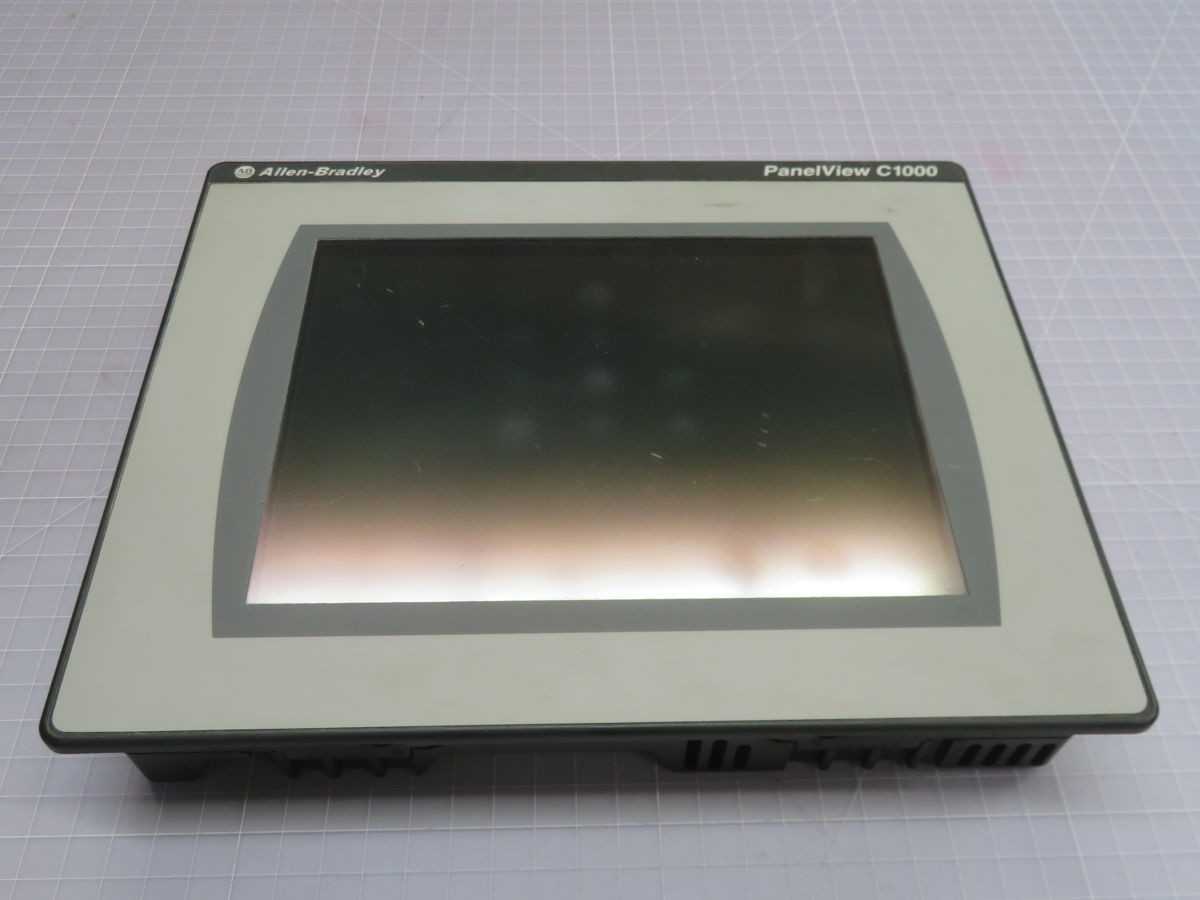

ALLEN BRADLEY, 2711C-T10C, HMI, 10 IN DISPLAY, TOUCH, 24V DC, ETHERNET, RS232, USB, NEMA4X IP66

THE ALLEN-BRADLEY 2711C-T10C IS A PANELVIEW C1000 GRAPHIC COMPONENT HMI TERMINAL FEATURING A 10-INCH COLOR STN DISPLAY WITH A RESOLUTION OF 640 X 480 PIXELS AND SUPPORT FOR 256 COLORS. INPUT IS MANAGED VIA AN INTEGRATED TOUCH SCREEN. THIS OPERATOR INTERFACE IS POWERED BY A 24 VDC INPUT. FOR COMMUNICATION, IT INCLUDES ONE ETHERNET RJ45 PORT, ONE RS-232 PORT SUPPORTING DH-485/DF1 PROTOCOLS, AND ONE USB PORT. THE TERMINAL IS EQUIPPED WITH 128 MB OF FLASH MEMORY AND 64 MB OF SDRAM. IT HAS A FRONT PANEL RATED NEMA 4X AND IP66, DESIGNED FOR ROBUST INDUSTRIAL ENVIRONMENTS. THE TYPICAL OPERATING TEMPERATURE RANGE IS 0 TO 50°C.
