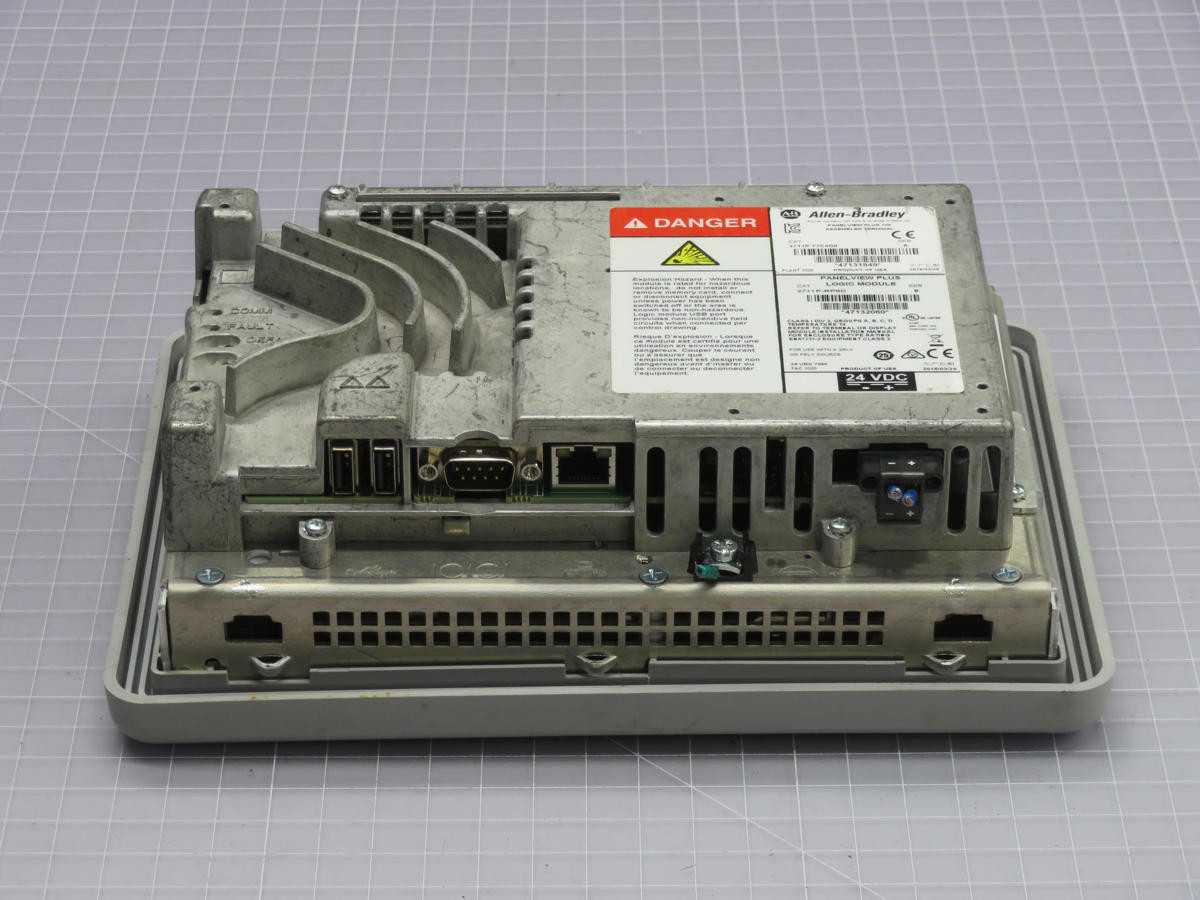

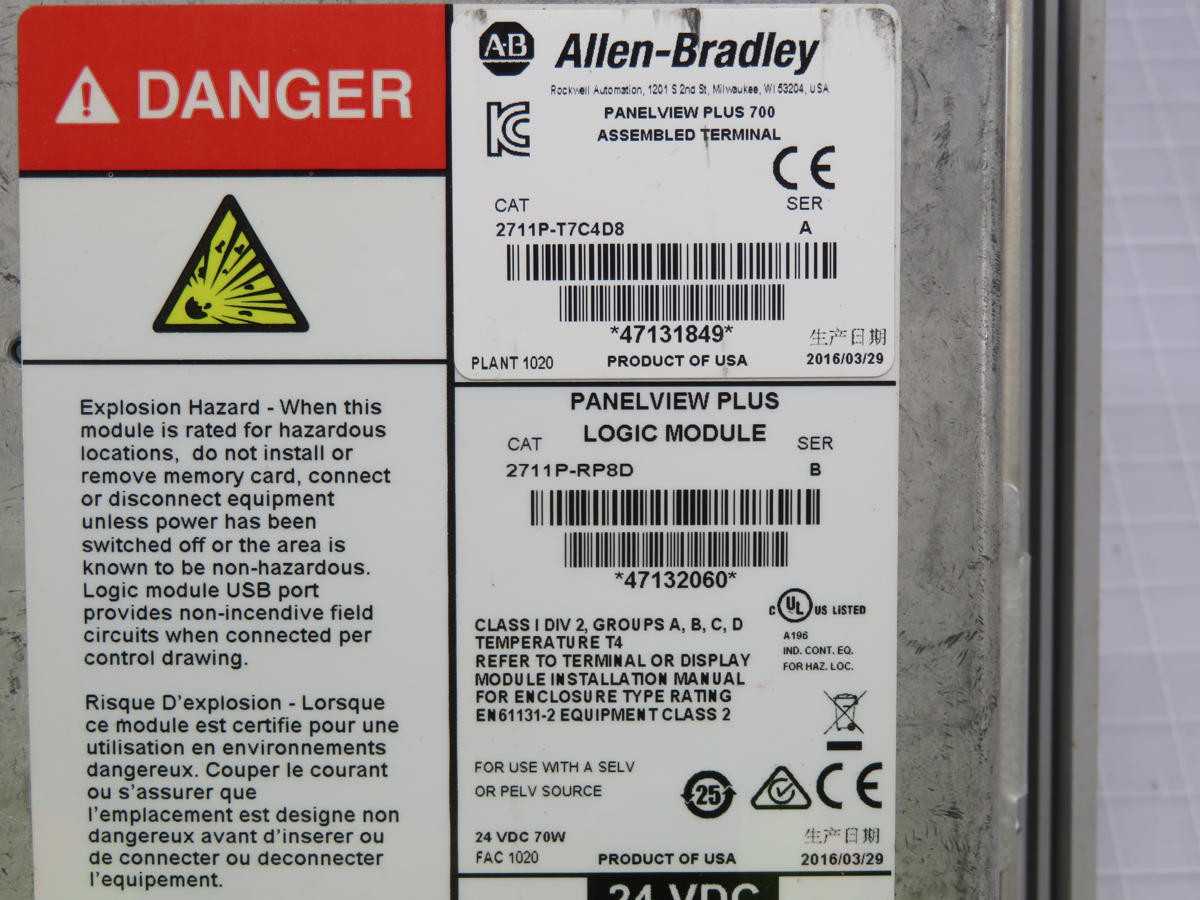

ALLEN BRADLEY 2711P-T7C4D8 HMI, 6.5 INCH DISPLAY, 24V POWER, 512MB RAM, NEMA 4X/IP66 RATING

THE ALLEN BRADLEY 2711P-T7C4D8 IS A PANELVIEW PLUS 6 HUMAN MACHINE INTERFACE (HMI) TERMINAL. IT FEATURES A 6.5-INCH COLOR TFT TOUCHSCREEN DISPLAY WITH A RESOLUTION OF 640 X 480 PIXELS AND 18-BIT COLOR GRAPHICS. THE UNIT IS POWERED BY 24VDC. IT INTEGRATES AN ARM CORTEX-A8 600 MHZ PROCESSOR AND OPERATES ON MICROSOFT WINDOWS CE 6.0. MEMORY SPECIFICATIONS INCLUDE 512 MB OF RAM AND 512 MB OF NON-VOLATILE FLASH STORAGE. COMMUNICATION CAPABILITIES CONSIST OF A 10/100 MBPS ETHERNET PORT, TWO USB HOST PORTS (TYPE A), ONE USB DEVICE PORT (TYPE B), AND AN RS-232 PORT PRIMARILY FOR PRINTER CONNECTIVITY. THE TERMINAL SUPPORTS FACTORYTALK VIEW MACHINE EDITION RUNTIME APPLICATIONS AND FEATURES AN LED BACKLIGHT WITH A TYPICAL HALF-LIFE OF 50,000 HOURS. ITS ENCLOSURE IS RATED NEMA 4X, 12, 13 AND IP66, SUITABLE FOR VARIOUS INDUSTRIAL ENVIRONMENTS.
