Allen-Bradley MPL-A4530K-MJ72AA E24, Motor Gear Reducer, 2.2kW Pwr, 7NM Torq, 30:1 Ratio

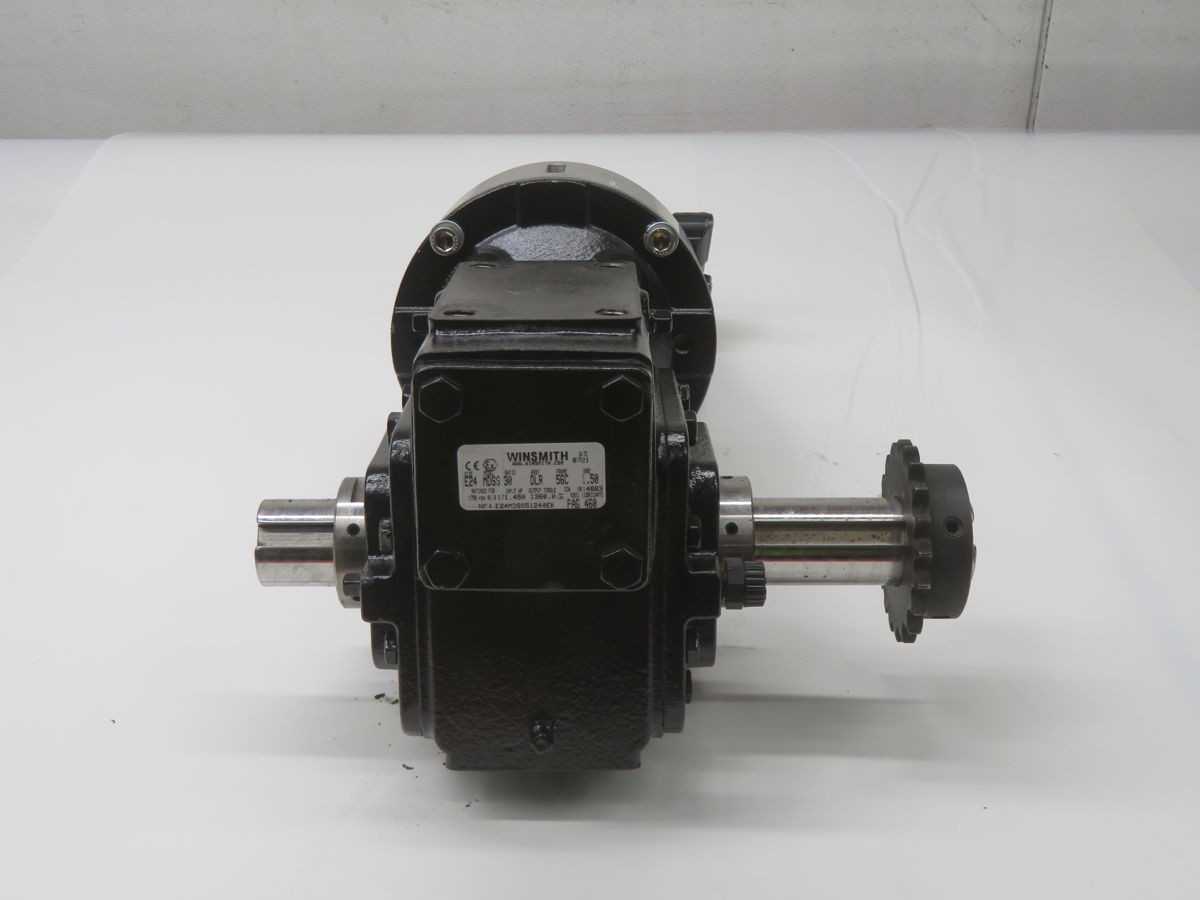

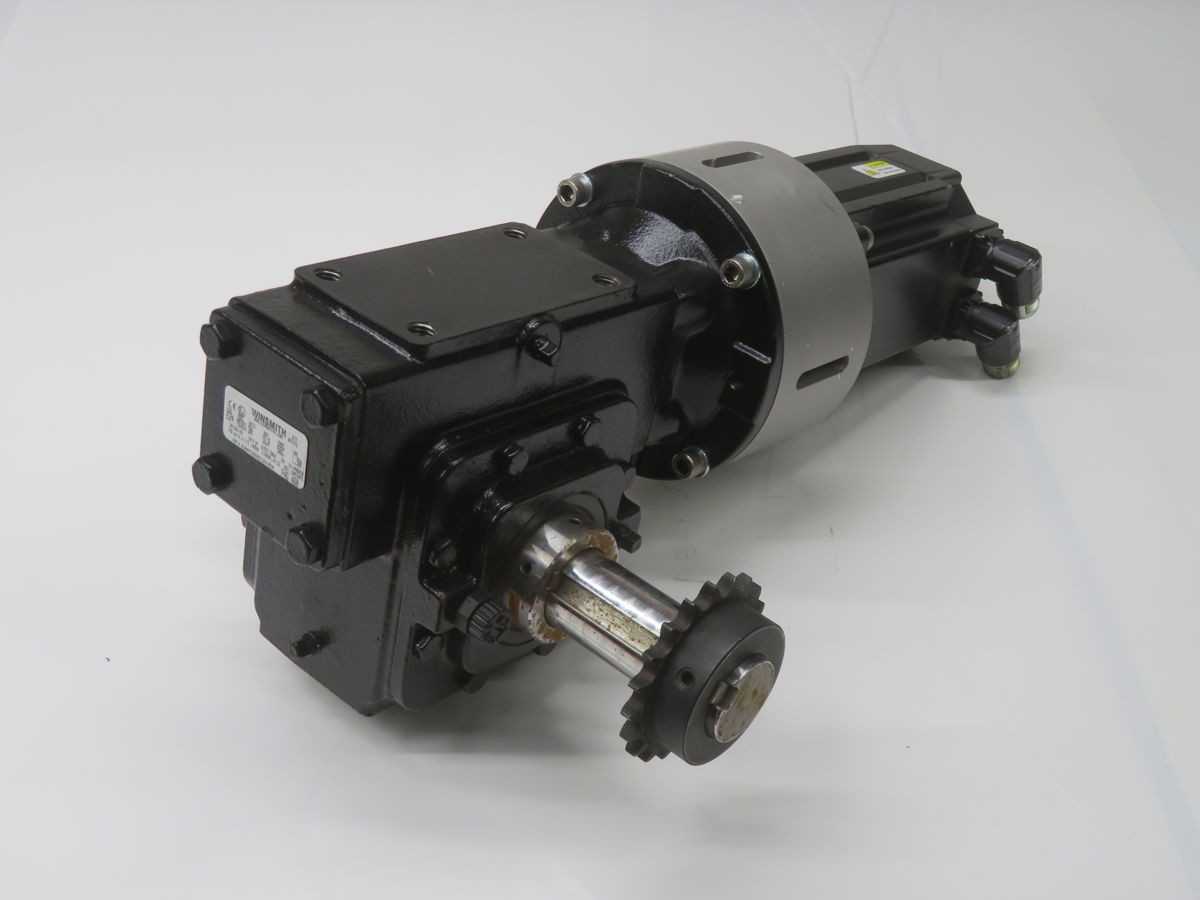

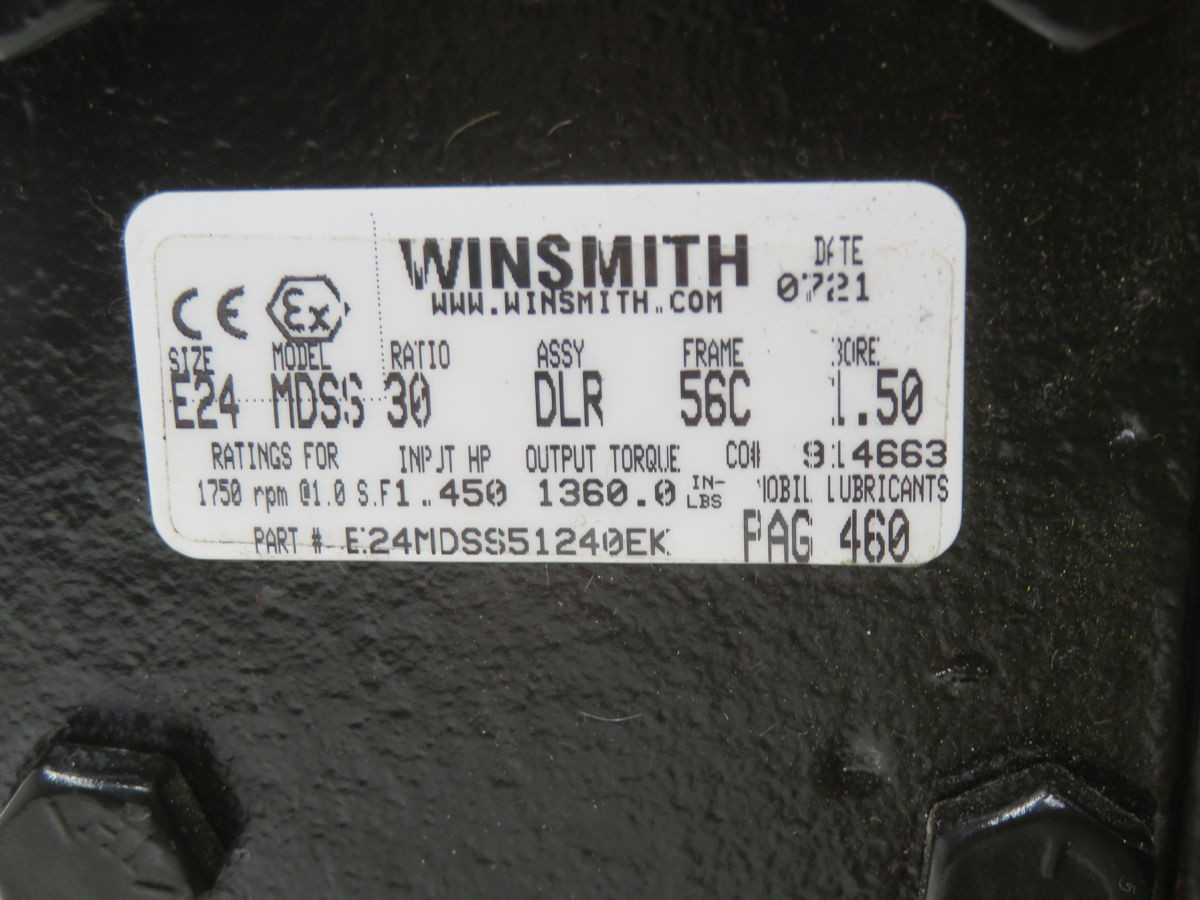

The Allen-Bradley MPL-A4530K-MJ72AA E24 is an AC servo motor and gear speed reducer assembly. It integrates an Allen-Bradley MPL-A4530K servo motor with a Winsmith E24 worm gear reducer. The MPL-A4530K motor features a 100mm frame, a rated output power of 2.2 kW, a rated torque of 7.0 NM, a peak torque of 20.9 NM, and a rated speed of 3000 RPM. Electrical specifications include 230 VAC, 3-phase operation. The motor is equipped with an MJ72 multi-turn absolute encoder, providing position retention after power loss and eliminating the need for homing routines. The Winsmith E24 reducer provides a 30:1 single-reduction ratio, delivering excellent holding power with self-locking capabilities. This configuration forms a high-torque motion control system.
