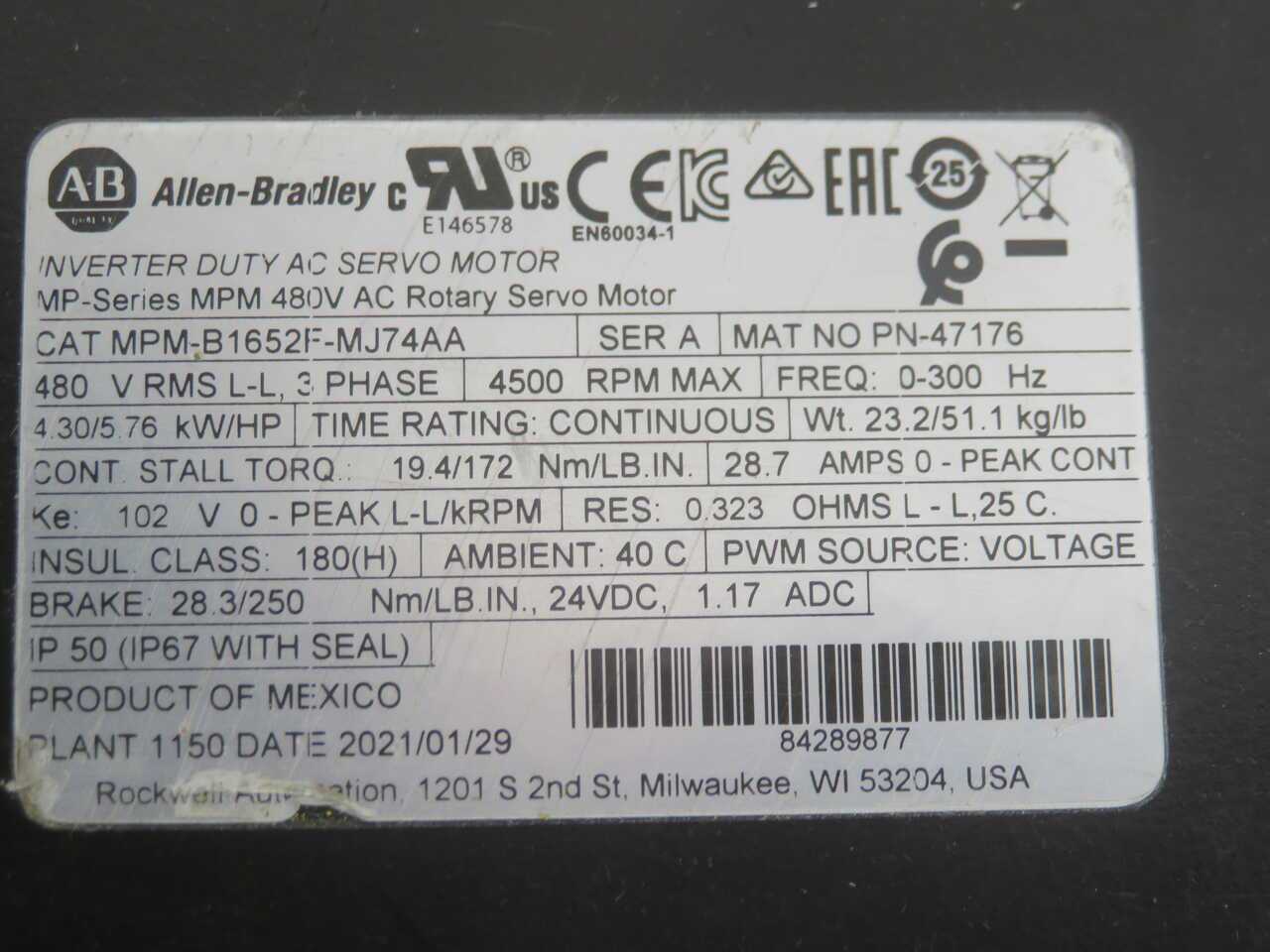

ALLEN BRADLEY MPM-B1652F-MJ74AA SERVO MOTOR, 460V, 3000 RPM, KEYED SHAFT, HOLDING BRAKE

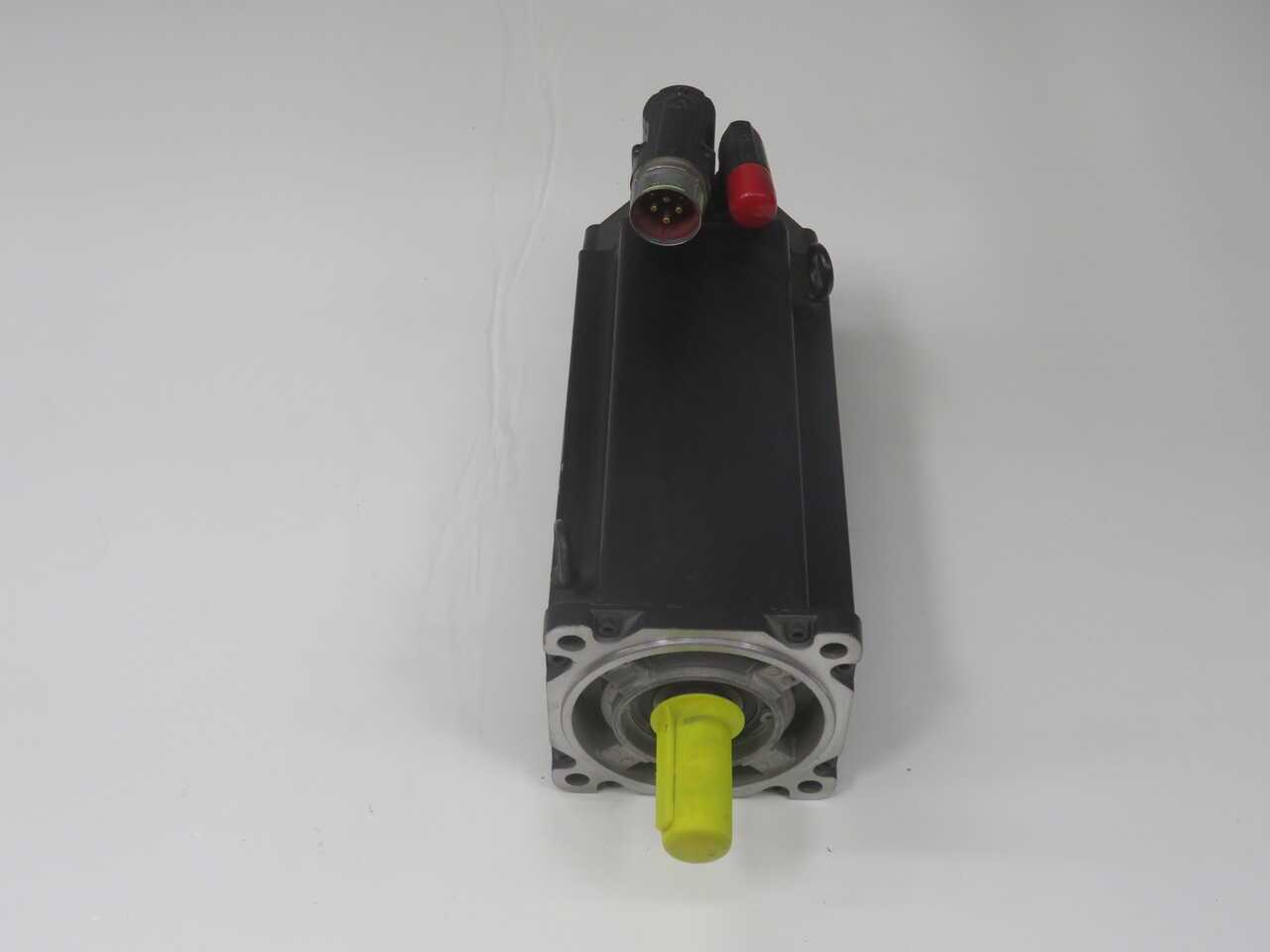

THE ALLEN-BRADLEY MPM-B1652F-MJ74AA IS A BULLETIN MPM MEDIUM-INERTIA, BRUSHLESS AC ROTARY SERVO MOTOR DESIGNED FOR HIGH-PERFORMANCE MOTION CONTROL AND INDUSTRIAL AUTOMATION APPLICATIONS. OPERATING AT A RATED VOLTAGE OF 460V AC (WITH COMPATIBILITY UP TO 480V AC), THIS MOTOR FEATURES A 165 MM FRAME SIZE AND 2 MAGNET STACKS, DELIVERING A RATED SPEED OF 3000 RPM. IT IS EQUIPPED WITH A HIGH-RESOLUTION, MULTI-TURN ABSOLUTE FEEDBACK ENCODER TO ENSURE PRECISE POSITIONING. FOR SECURE MECHANICAL INTEGRATION, THE MOTOR INCLUDES A KEYED SHAFT EXTENSION AND AN IEC METRIC MOUNTING FLANGE WITH FREE MOUNTING HOLES (TYPE FF). IT FEATURES A BUILT-IN 24V DC ELECTROMAGNETIC HOLDING BRAKE AND CARRIES AN IP65/IP67 ENVIRONMENTAL ENCLOSURE RATING. ELECTRICAL CONNECTIONS ARE ACCOMMODATED VIA RIGHT-ANGLE, 180-DEGREE ROTATABLE SPEEDTEC DIN CONNECTORS FOR FLEXIBLE CABLE ROUTING.
