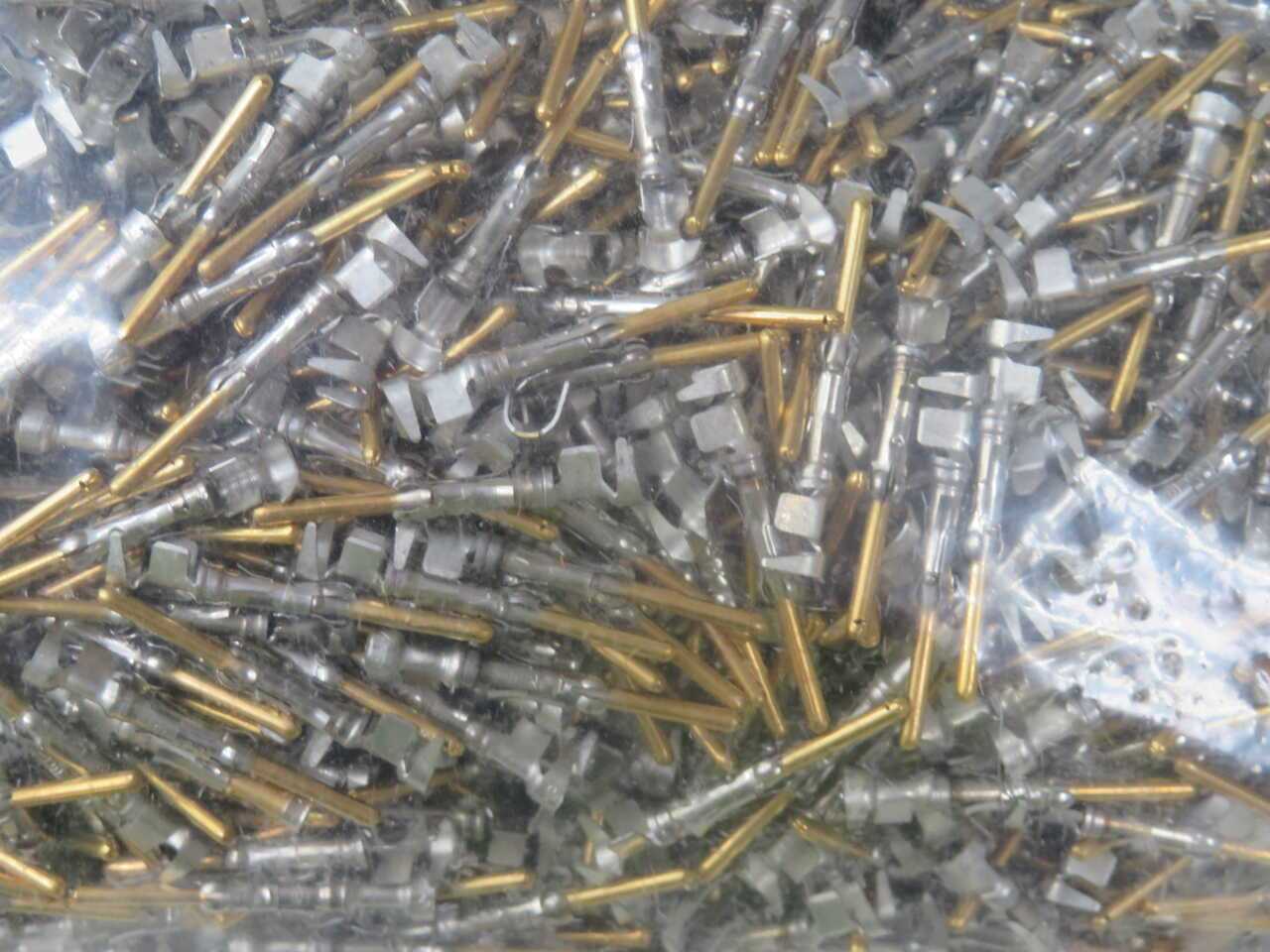

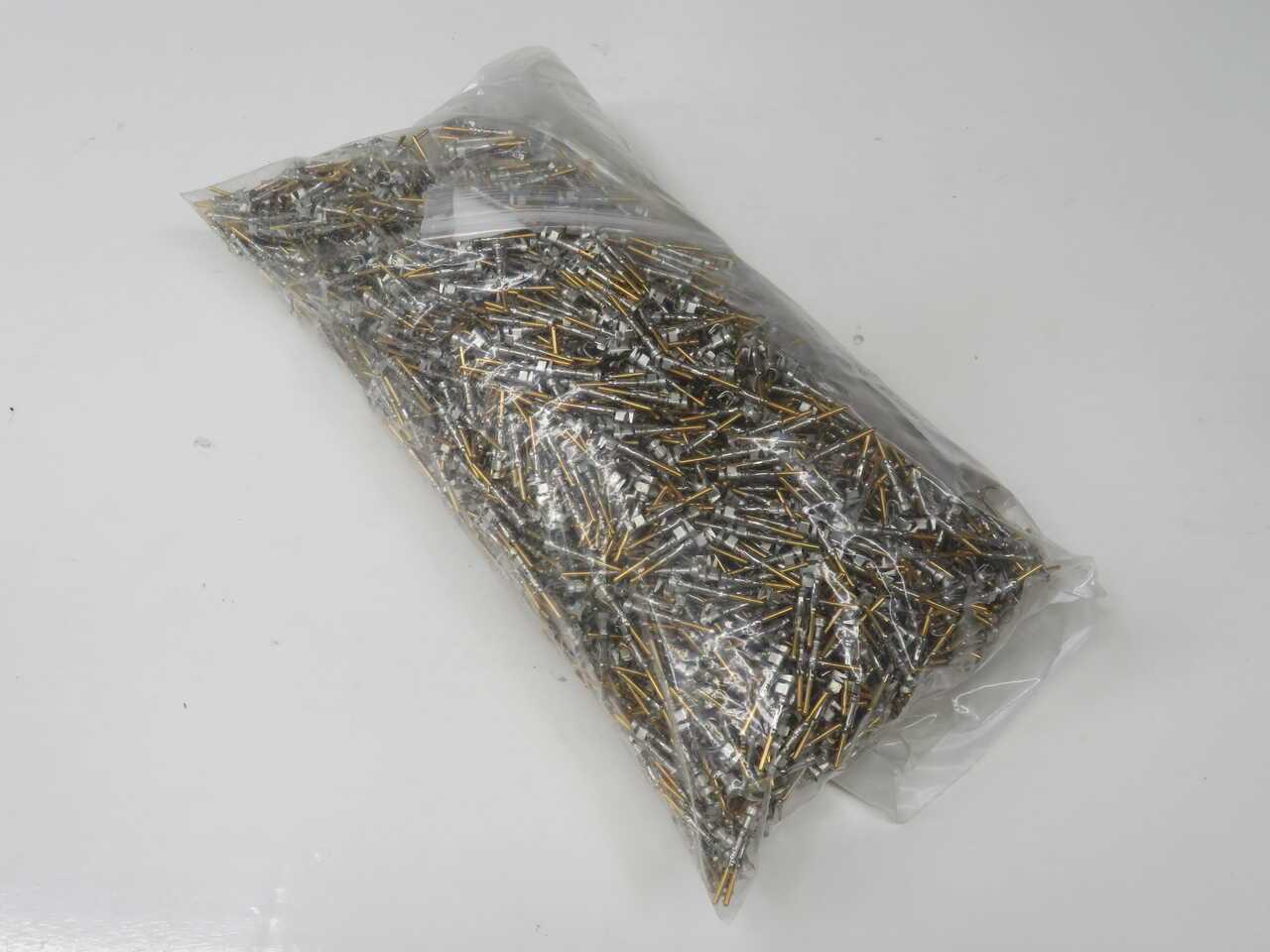

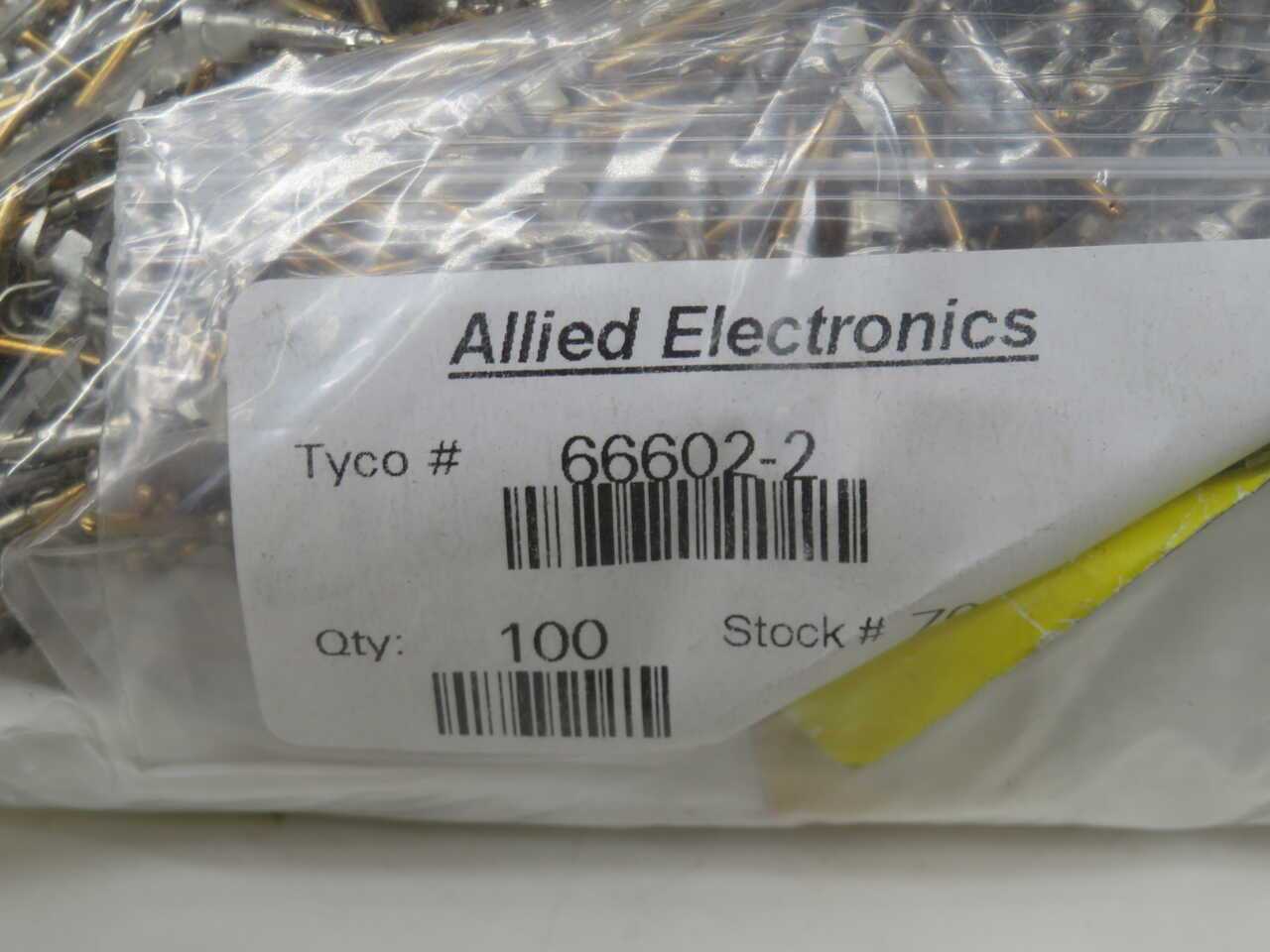

ALLIED ELECTRONICS 66602-2 CONNECTOR PIN CONTACT SIZE 16 BRASS GOLD PLATED 18-14 AWG 13A

THE TE CONNECTIVITY / AMP 66602-2 IS A HIGH-PERFORMANCE TYPE III+ SERIES MULTIMATE CIRCULAR CONNECTOR PIN CONTACT DESIGNED FOR RELIABLE POWER AND SIGNAL TRANSMISSION IN INDUSTRIAL AND COMMERCIAL APPLICATIONS. CONSTRUCTED FROM HIGH-QUALITY BRASS, THIS STRAIGHT PIN CONTACT FEATURES A MATING AREA PLATED WITH PRECIOUS METAL (GOLD OR PALLADIUM-NICKEL WITH A GOLD FLASH) TO A THICKNESS OF 0.76 ΜM (30 ΜIN), AND A CRIMP TERMINATION AREA PLATED WITH 1.27 ΜM (50 ΜIN) OF TIN OVER A 1.27 ΜM (50 ΜIN) NICKEL UNDERPLATING. ENGINEERED FOR DISCRETE WIRE TERMINATION VIA CRIMPING, THE CONTACT IS COMPATIBLE WITH WIRE SIZES RANGING FROM 18 TO 14 AWG (0.8 TO 2 MM²) AND ACCOMMODATES INSULATION DIAMETERS BETWEEN 2.79 AND 3.81 MM (0.11 TO 0.15 IN). WITH A SIZE 16 CONTACT CLASSIFICATION AND A MATING PIN DIAMETER OF 1.57 MM (0.062 IN), IT SUPPORTS A MAXIMUM TEST CURRENT RATING OF 13 A. BUILT TO WITHSTAND DEMANDING OPERATING ENVIRONMENTS, THIS ROHS-COMPLIANT CONTACT OPERATES RELIABLY WITHIN A BROAD TEMPERATURE RANGE OF -55°C TO 150°C AND IS COMPATIBLE WITH TE CONNECTIVITY M SERIES AND CIRCULAR PLASTIC CONNECTORS (CPC).
