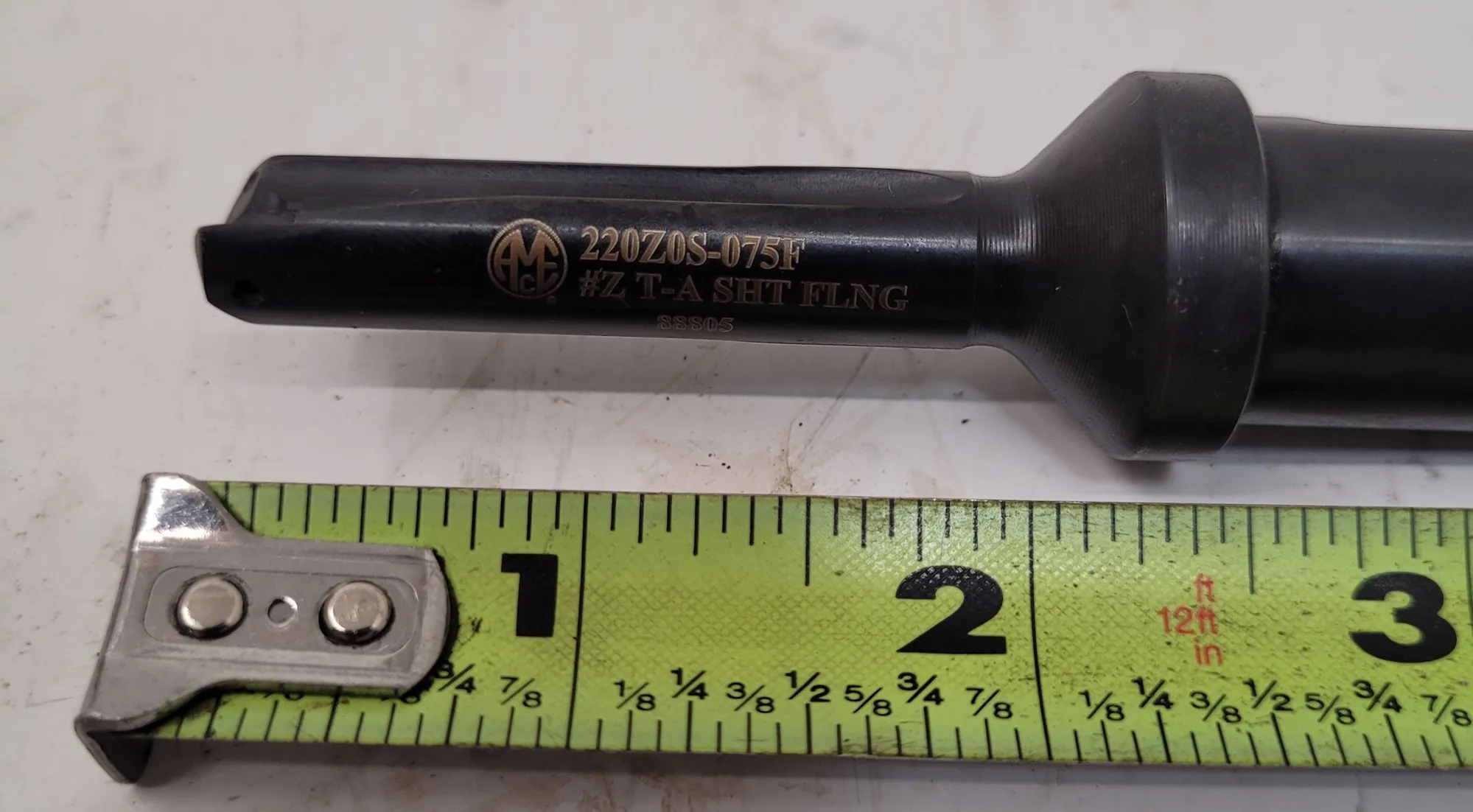

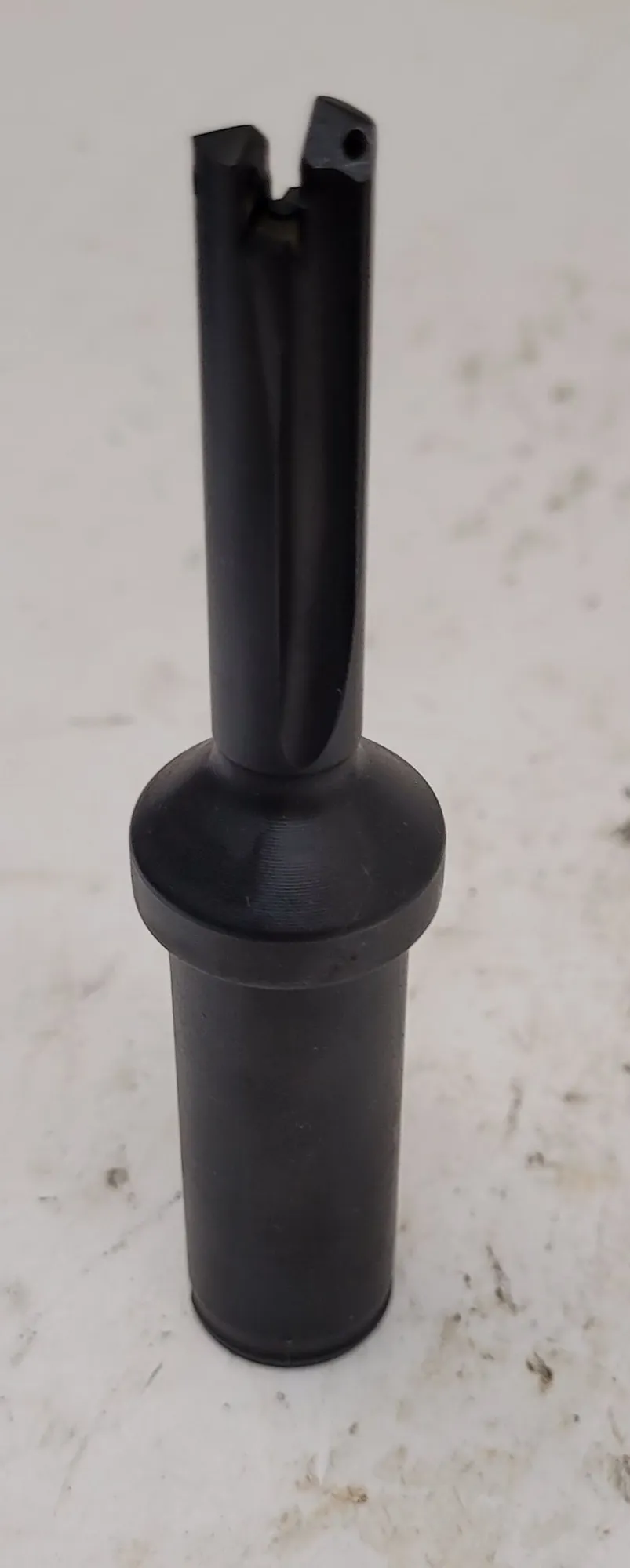

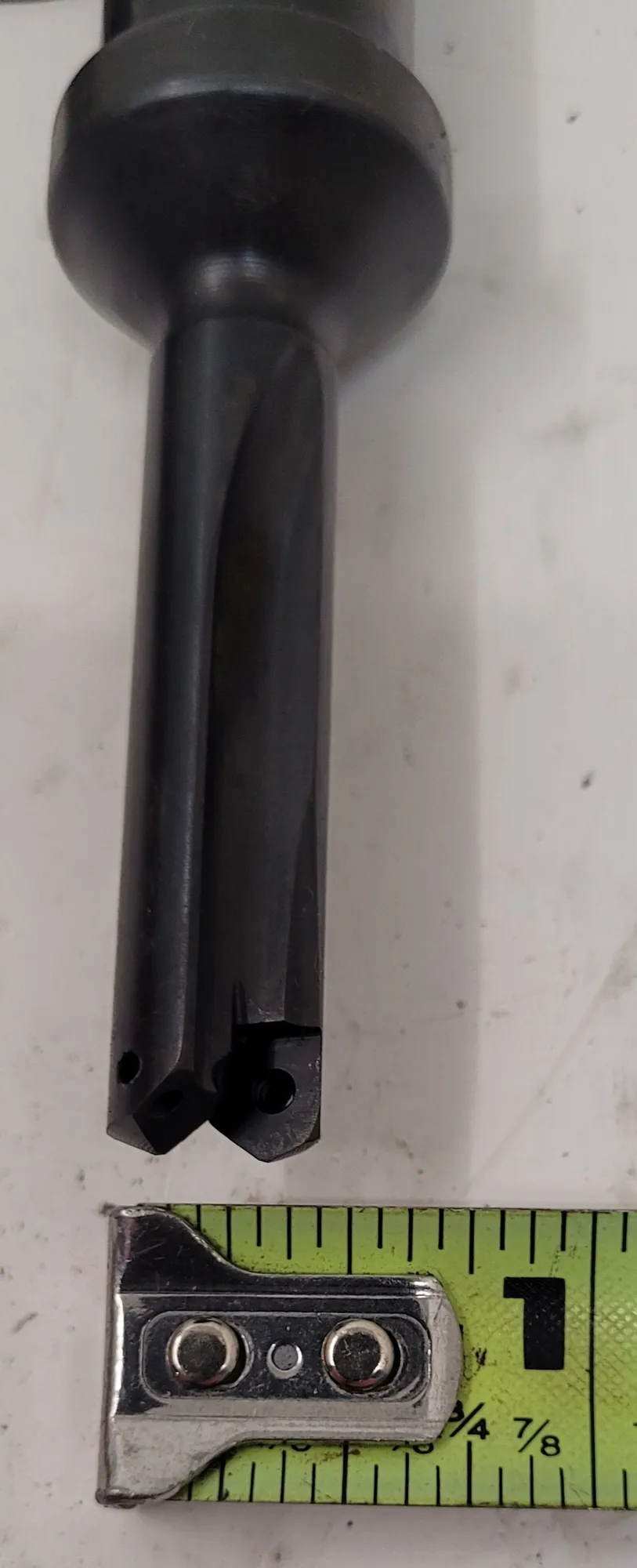

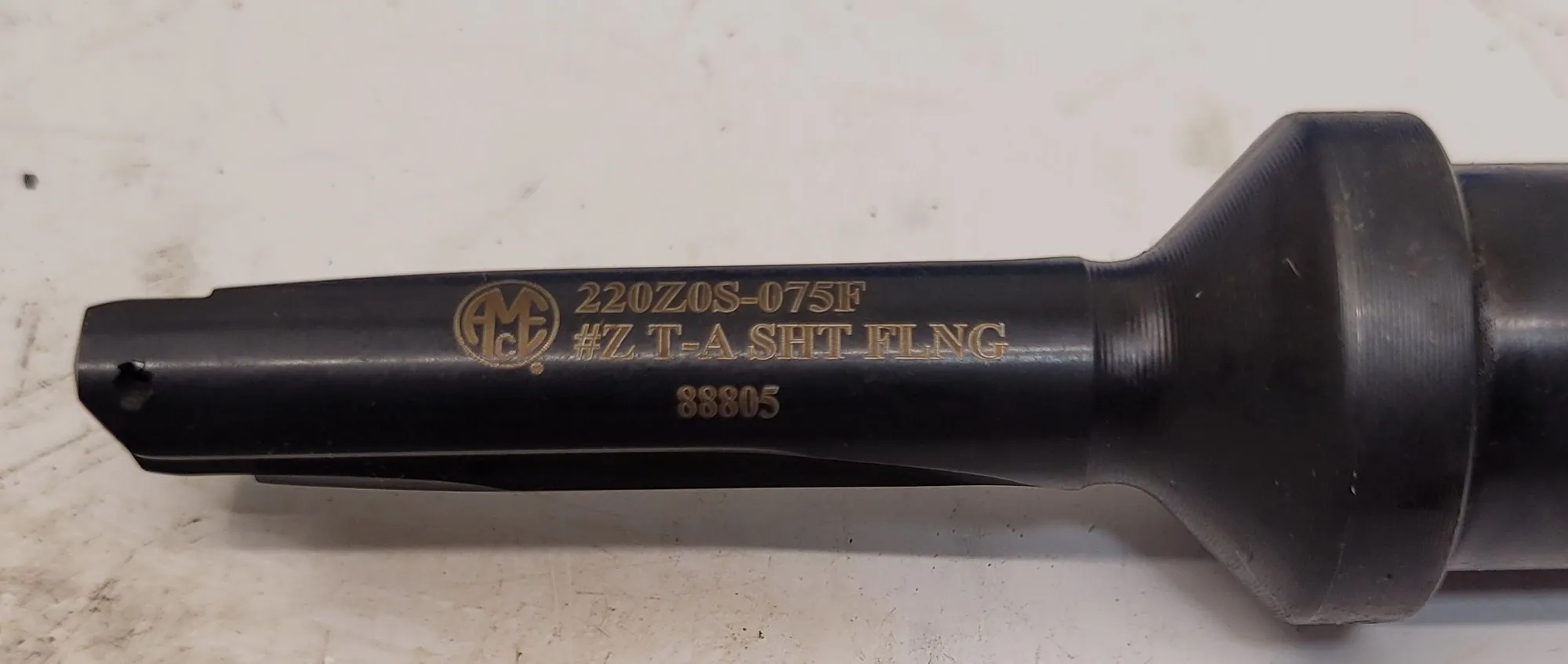

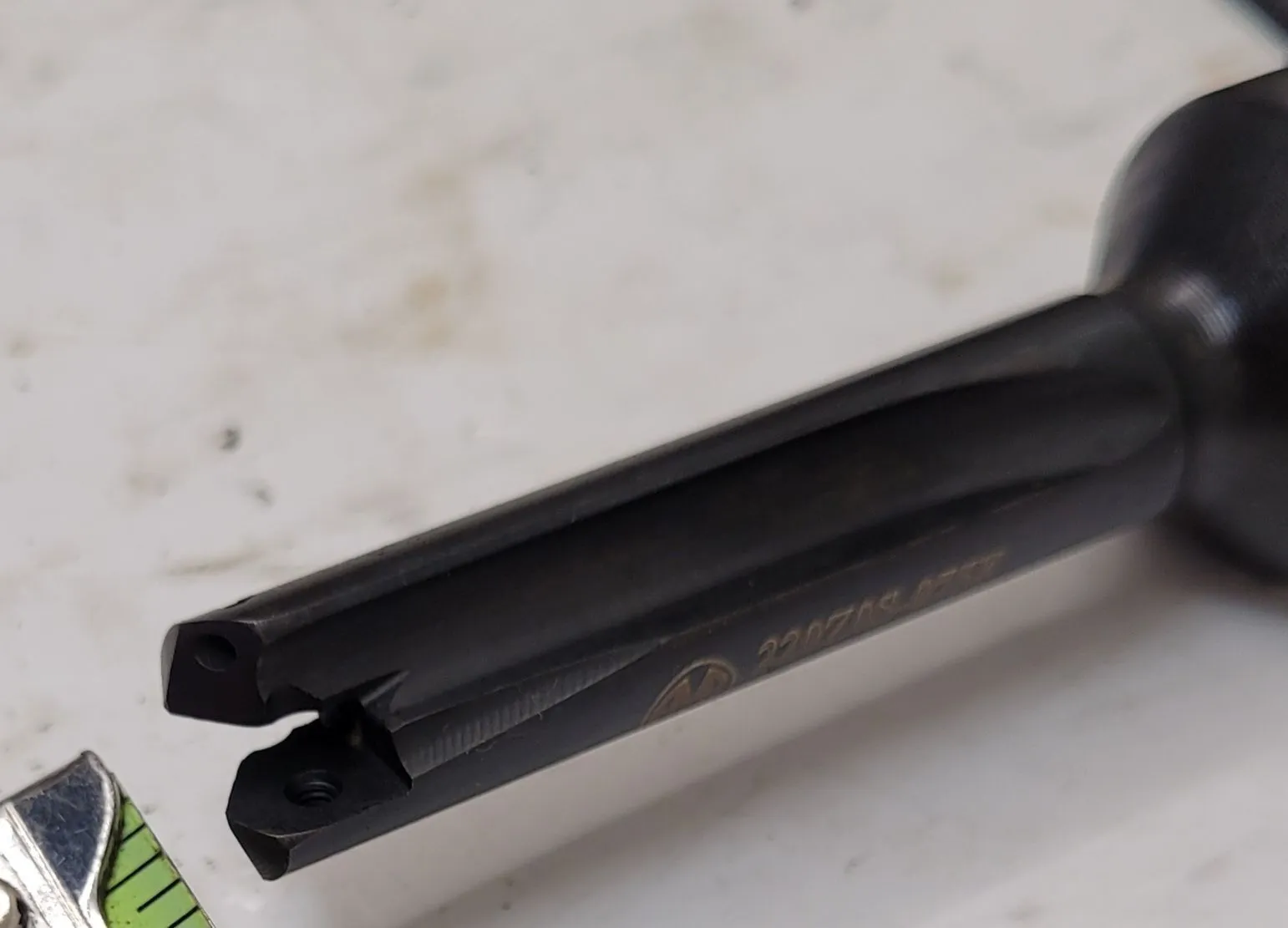

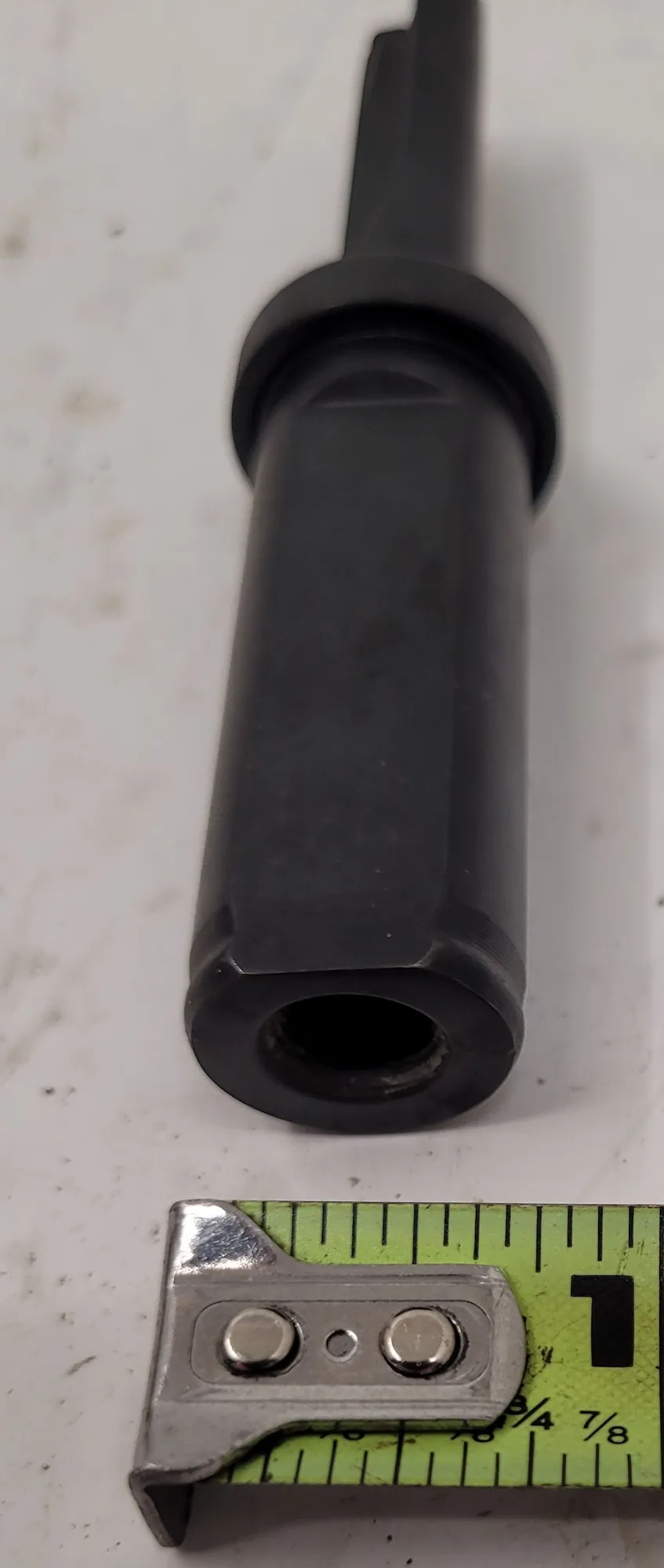

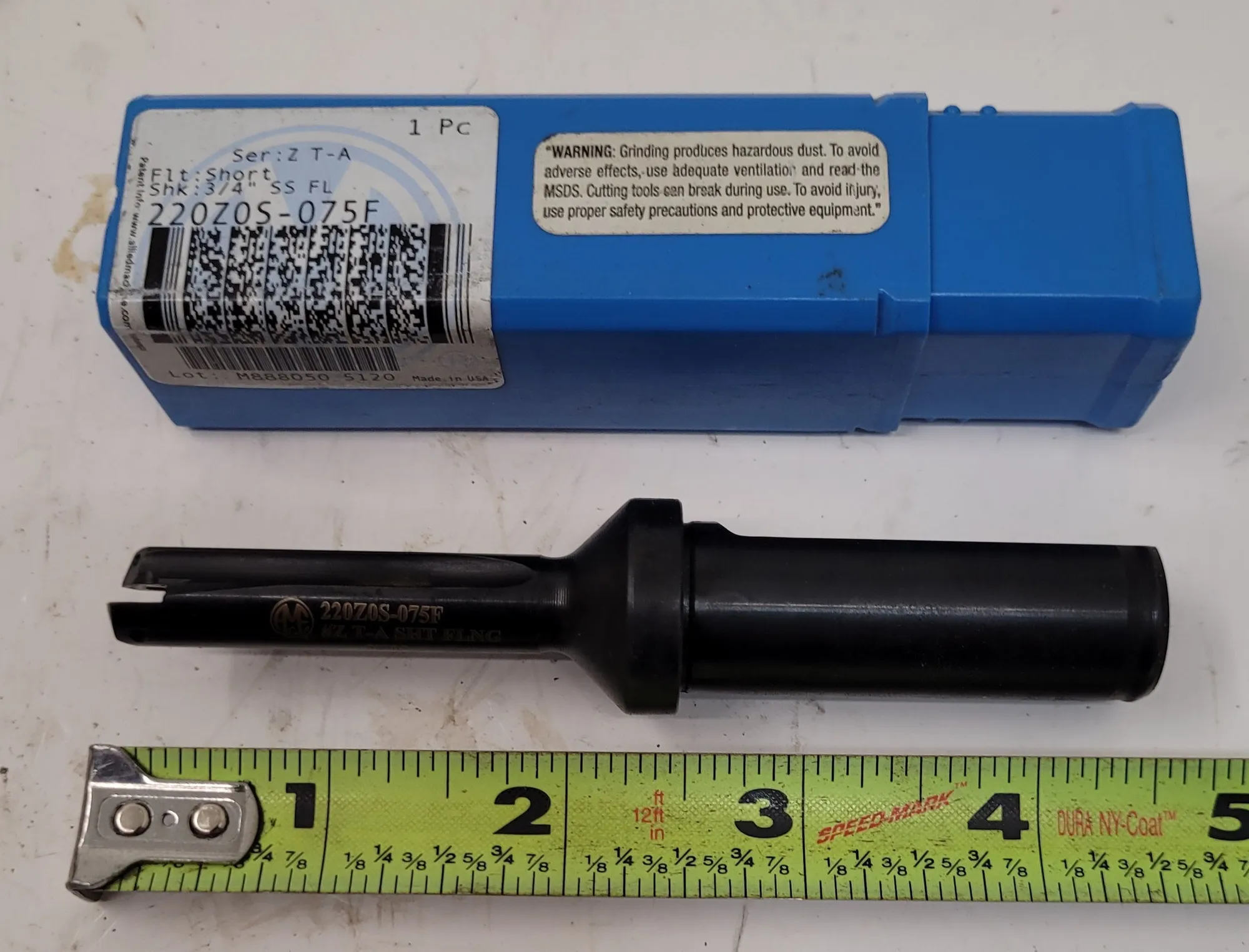

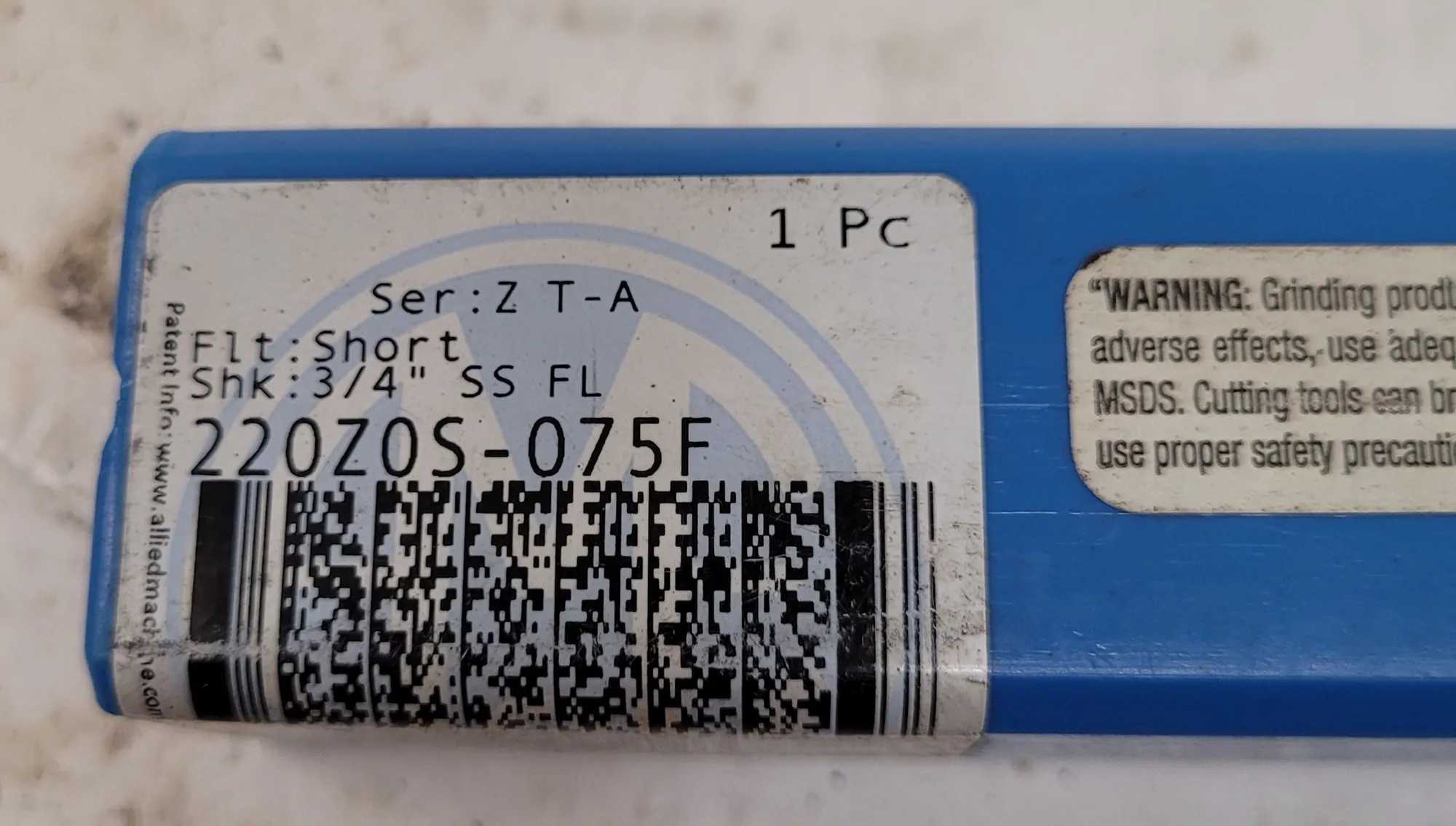

Allied Machine 220Z0S-075F T-a - Series Z Flanged Shank Straight Flute Holder - Short Drill

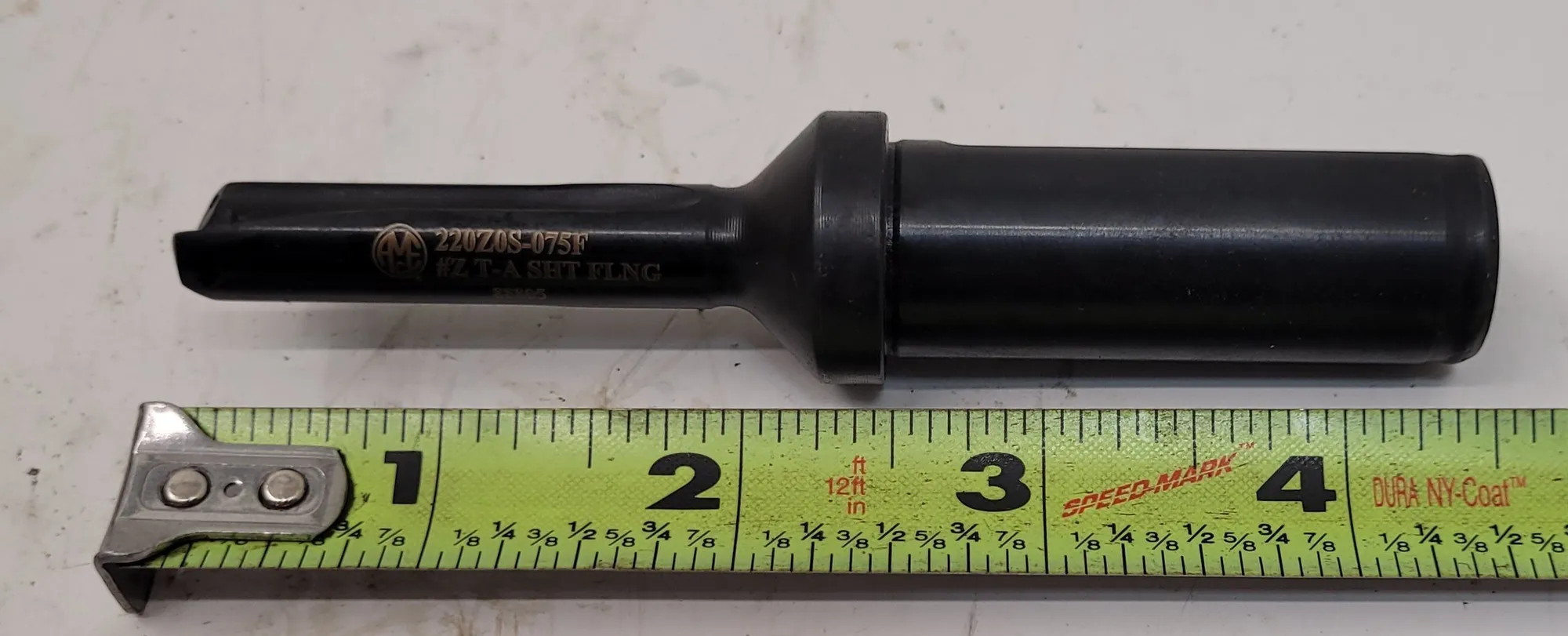

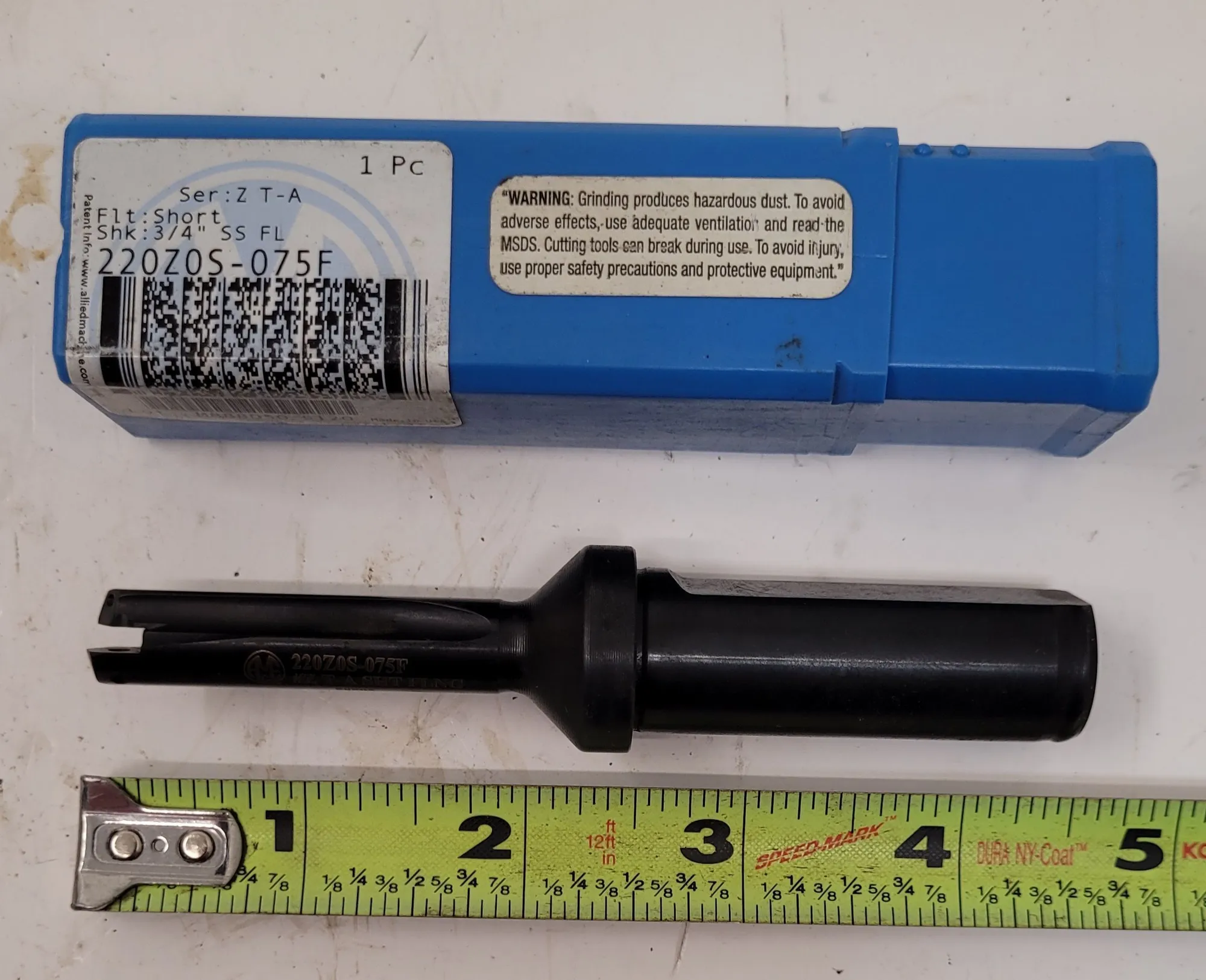

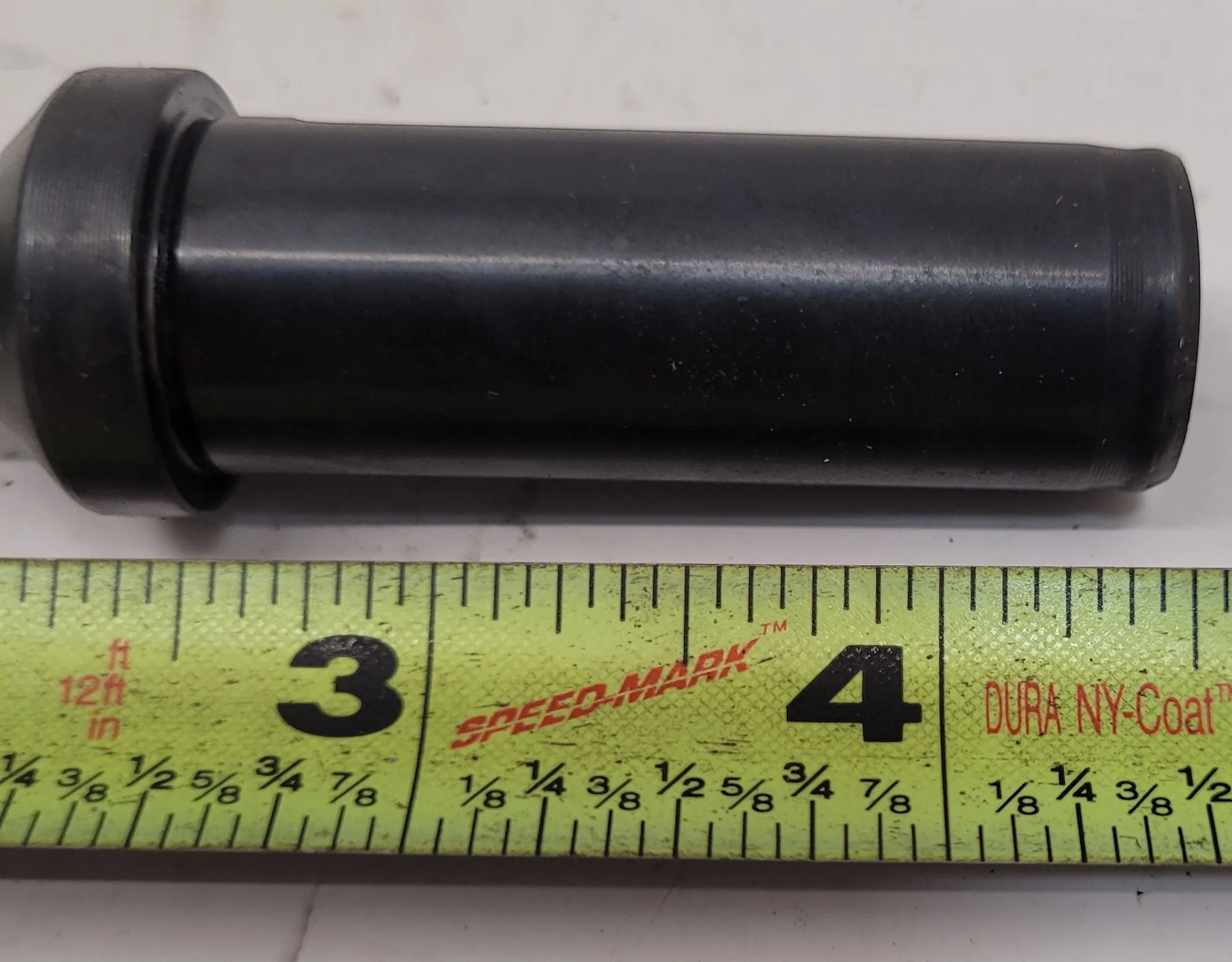

The Allied Machine 220Z0S-075F T-A - Series Z is a flanged shank straight flute holder designed for general purpose drilling applications. Constructed from steel, this tool features a flatted shank with a 3/4-inch diameter and a short length type. The overall length measures 4-7/16 inches. It is compatible with drill diameters ranging from a minimum of 7/16 inch to a maximum of 1/2 inch, with a maximum drill depth of 1-1/4 inches. This holder is part of the T-A Z series and has a straight flute type with a 1-1/4 inch flute length. The body length is 2-13/32 inches, and the shank length is 2-1/32 inches. Coolant entry is facilitated by a 1-axial concentric entry style code with a coolant hole thread size of 1/8. The spade drill length is classified as short.
