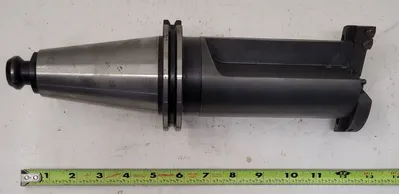

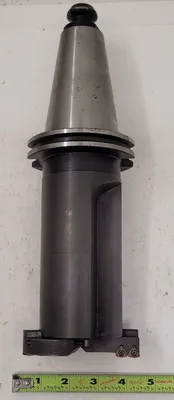

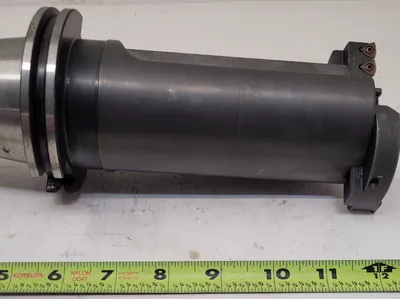

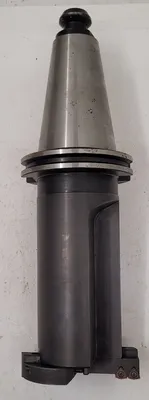

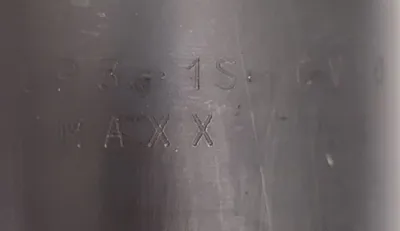

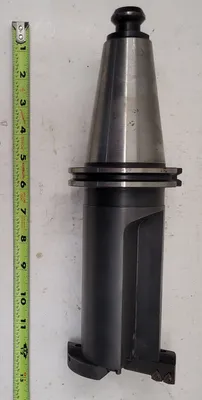

ALLIED MACHINE & ENGINEERING OP3-1S-CV50 VMAXX INDEXABLE DRILL BODY

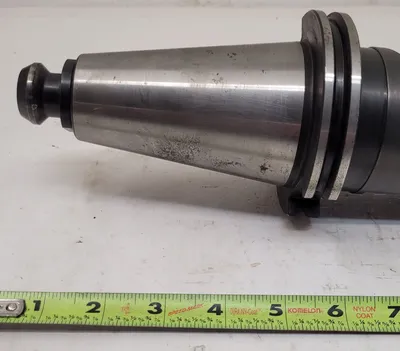

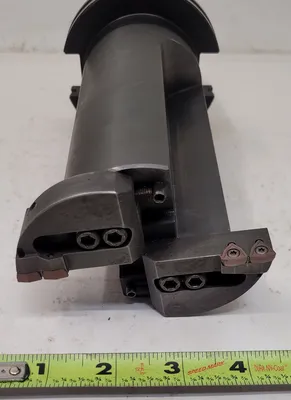

THE AMEC OP3-1S-CV50 VMAXX INDEXABLE DRILL BODY IS MANUFACTURED BY ALLIED MACHINE & ENGINEERING WITH PART NUMBER OP3-1S-CV50. THIS DRILLING TOOL FEATURES A CAT 50 HOLDER AND BELONGS TO THE OP3 SERIES. IT SUPPORTS A MINIMUM DIAMETER OF 3.00 INCHES AND A MAXIMUM DIAMETER OF 4.12 INCHES. THE MAXIMUM DRILL DEPTH IS 5-7/64 INCHES. THE BODY UTILIZES 4 INSERTS WITH THE PREFIX OP-05T308-. IT INCORPORATES A CV 50 SHANK TYPE AND INCLUDES COOLANT CAPABILITY WITH A REAR INLET STYLE, ALLOWING COOLANT PASSAGE THROUGH THE SHANK. THE DRILL BODY HAS A STRAIGHT FLUTE TYPE WITH 2 FLUTES AND A GAGE LENGTH OF 7-3/8 INCHES.
