ALORIS CXA 1 LATHE TOOL POST HOLDER - SET OF 2, WEDGE: 2-1/4", LATHE SWING: 13-18 INCH

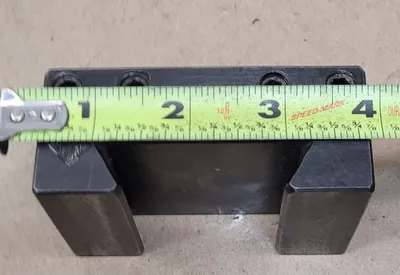

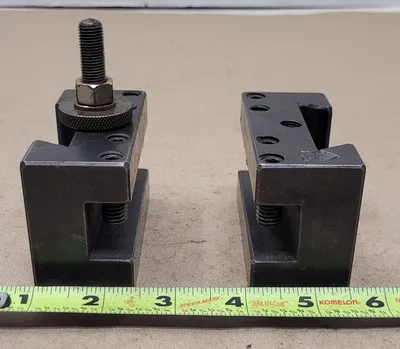

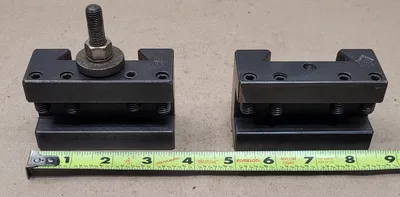

THIS IS AN ALORIS CXA 1 LATHE TOOL POST HOLDER SET, CONSISTING OF TWO HOLDERS. THE TOOL POST HOLDER UTILIZES A CXA 1 PART NUMBER AND IS DESIGNED FOR LATHES WITH A SWING OF 13 TO 18 INCHES. KEY DIMENSIONS INCLUDE AN OVERALL HEIGHT OF 2-1/8 INCHES AND AN OVERALL LENGTH OF 3-1/2 INCHES. THE TOOL HOLDER WEDGE MEASURES 2-1/4 INCHES. THE HOLDER HAS A CENTERLINE HEIGHT OF 1-7/16 INCHES AND ACCOMMODATES A MAXIMUM CUTTING TOOL SIZE OF 3/4 INCH, WITH A TOOL BIT RANGE OF 1/4 TO 3/4 INCH. THE HOLDER DOES NOT SUPPORT THROUGH COOLANT FUNCTIONALITY.
