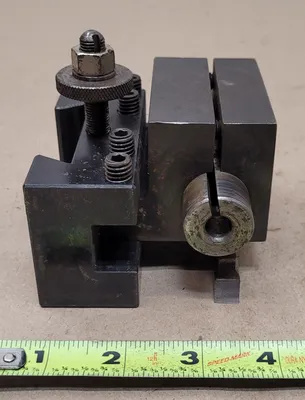

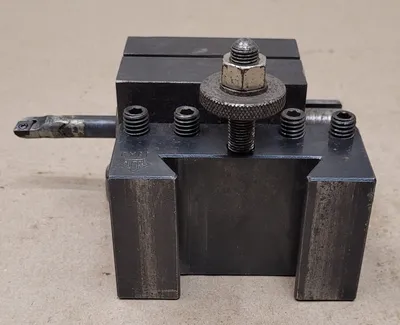

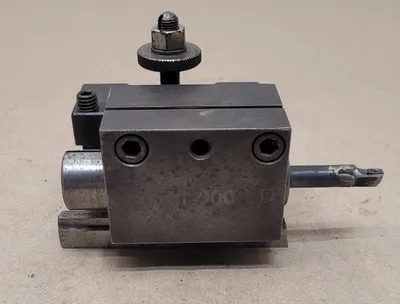

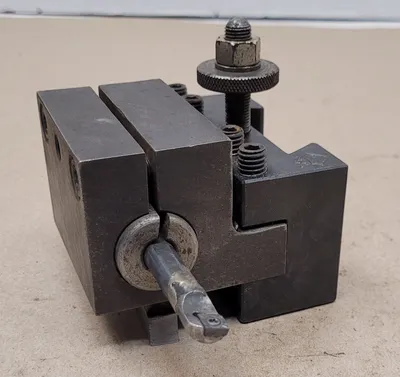

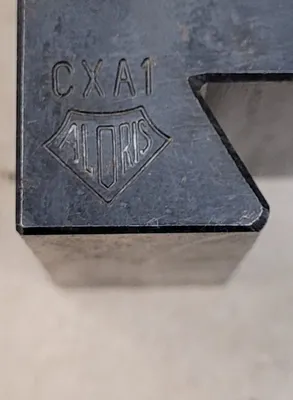

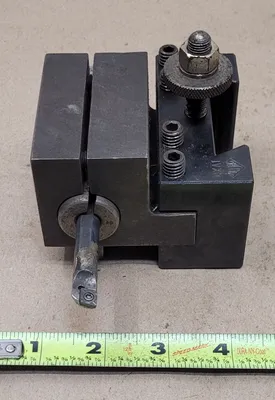

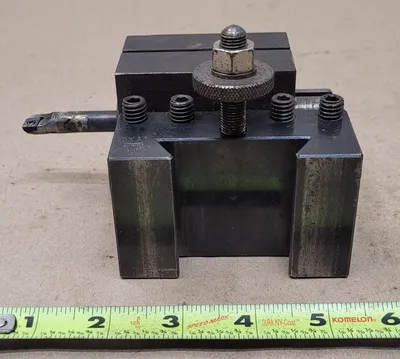

ALORIS CXA 1 LATHE TOOL POST HOLDER W/ HAAS BORING BAR HOLDER (13-18IN SWING)

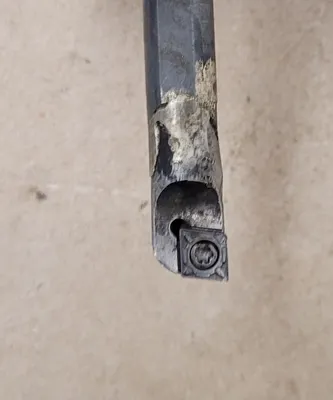

THE ALORIS CXA 1 LATHE TOOL POST HOLDER IS DESIGNED FOR LATHES WITH A SWING OF 13 TO 18 INCHES. THIS TOOL HOLDER HAS A WEDGE SIZE OF 2-1/4” AND AN OVERALL HEIGHT OF 2-1/8 INCHES AND AN OVERALL LENGTH OF 3-1/2 INCHES. IT ACCOMMODATES A MAXIMUM CUTTING TOOL SIZE OF 3/4 INCH AND A TOOL BIT RANGE OF 1/4 TO 3/4 INCH. THE CENTERLINE HEIGHT IS 1-7/16 INCHES. THROUGH COOLANT CAPABILITY IS NOT FEATURED. THE UNIT INCLUDES A HAAS BORING BAR HOLDER WITH A TOOL SHANK SIZE OF 1.0 INCH. THIS ACCOMPANYING HOLDER HAS A HEIGHT OF 0.75 INCHES, AN OVERALL LENGTH OF 2.75 INCHES, AN OVERALL WIDTH OF 2.563 INCHES, AND AN OVERALL HEIGHT OF 2.0 INCHES. IT FEATURES 5/16"-18 THREADS AND IS COMPATIBLE WITH 4-STATION TURRET STATIONS AS PART OF THE TL/CL TOOLHOLDER SERIES FOR INTERNAL TURNING.
