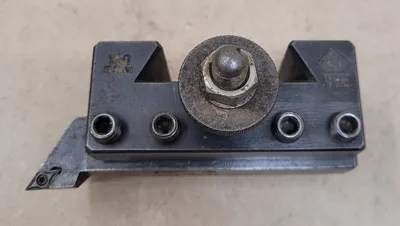

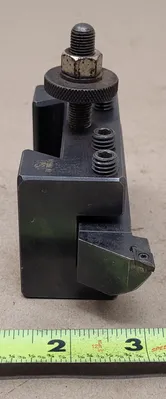

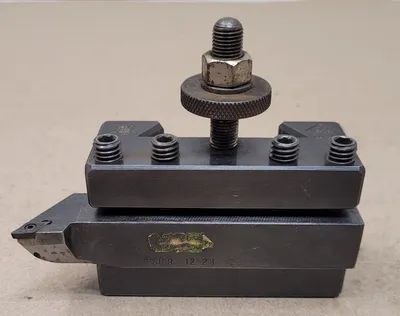

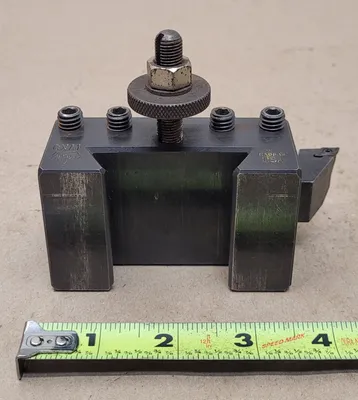

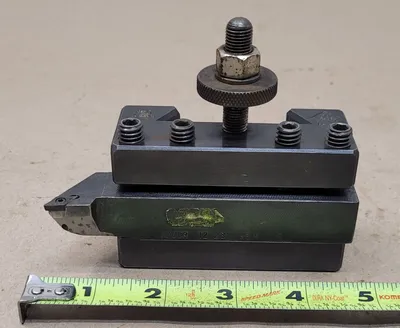

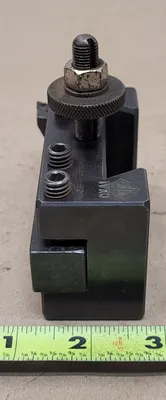

ALORIS CXA 1 LATHE TOOL POST HOLDER W/ SANDVIK SDJCR 12-2B TURNING/FACING TOOL HOLDER

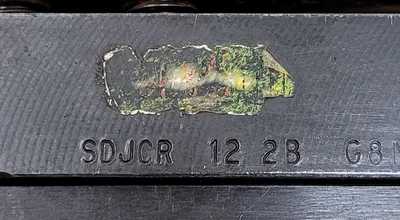

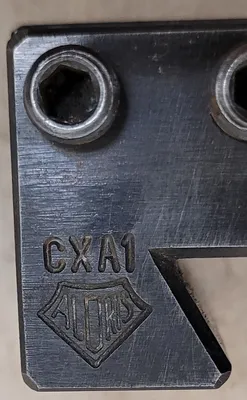

THE ALORIS CXA 1 LATHE TOOL POST HOLDER HAS A 2-1/4 INCH WEDGE AND IS DESIGNED FOR A LATHE SWING RANGING FROM 13 TO 18 INCHES. IT DOES NOT FEATURE THROUGH COOLANT CAPABILITY. THE HOLDER'S OVERALL HEIGHT IS 2-1/8 INCHES, AND ITS OVERALL LENGTH IS 3-1/2 INCHES. IT ACCOMMODATES A MAXIMUM CUTTING TOOL SIZE OF 3/4 INCH. THE CENTERLINE HEIGHT IS 1-7/16 INCHES, AND THE TOOL BIT RANGE IS 1/4 TO 3/4 INCHES. THE HOLDER IS ACCOMPANIED BY A SANDVIK SDJCR 12-2B INSERT HOLDER. THE SANDVIK COMPONENT HAS A 3/4 INCH (19.05 MM) SQUARE SHANK SIZE AND UTILIZES RHOMBIC (DIAMOND) 55 DEGREE INSERTS. IT OPERATES WITH A 93 DEGREE END CUTTING EDGE ANGLE AND A NEGATIVE 3 DEGREE LEAD ANGLE. ITS BODY ANGLES ARE 0 DEGREE FOR THE BODY SIDE AND 0 DEGREE FOR THE RAKE ANGLE, WITH NO INTEGRATED COOLANT ENTRY OR EXIT.
