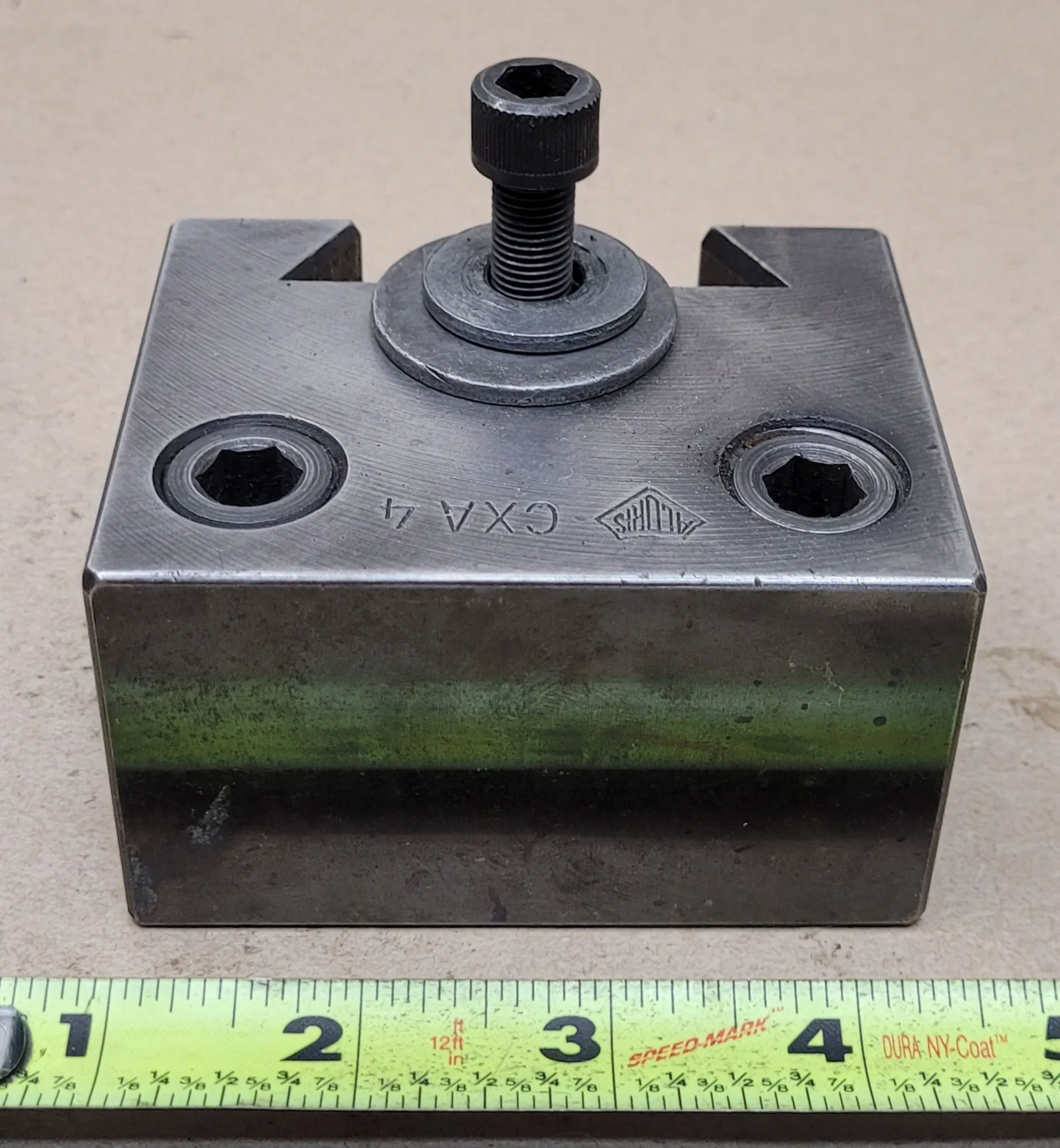

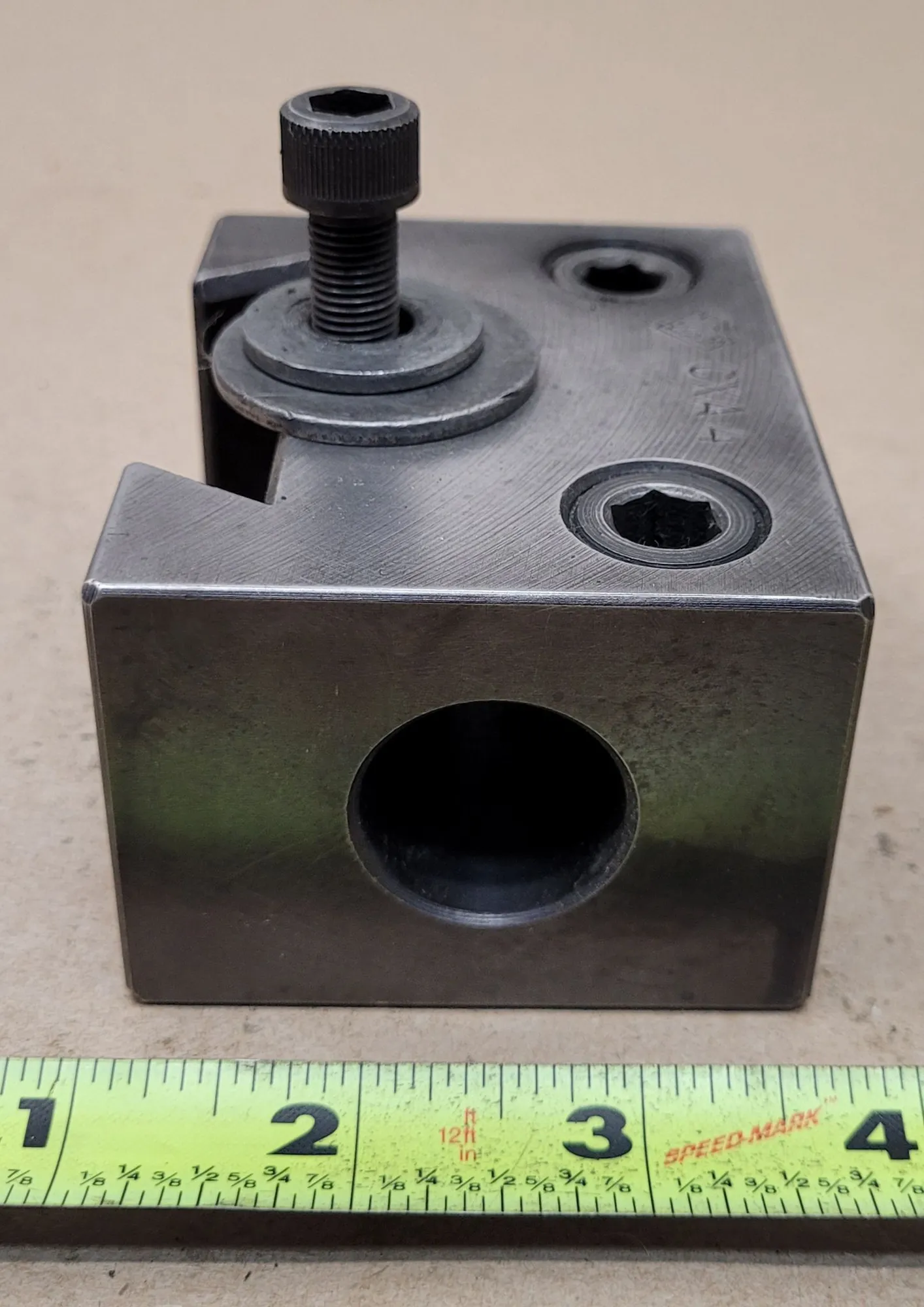

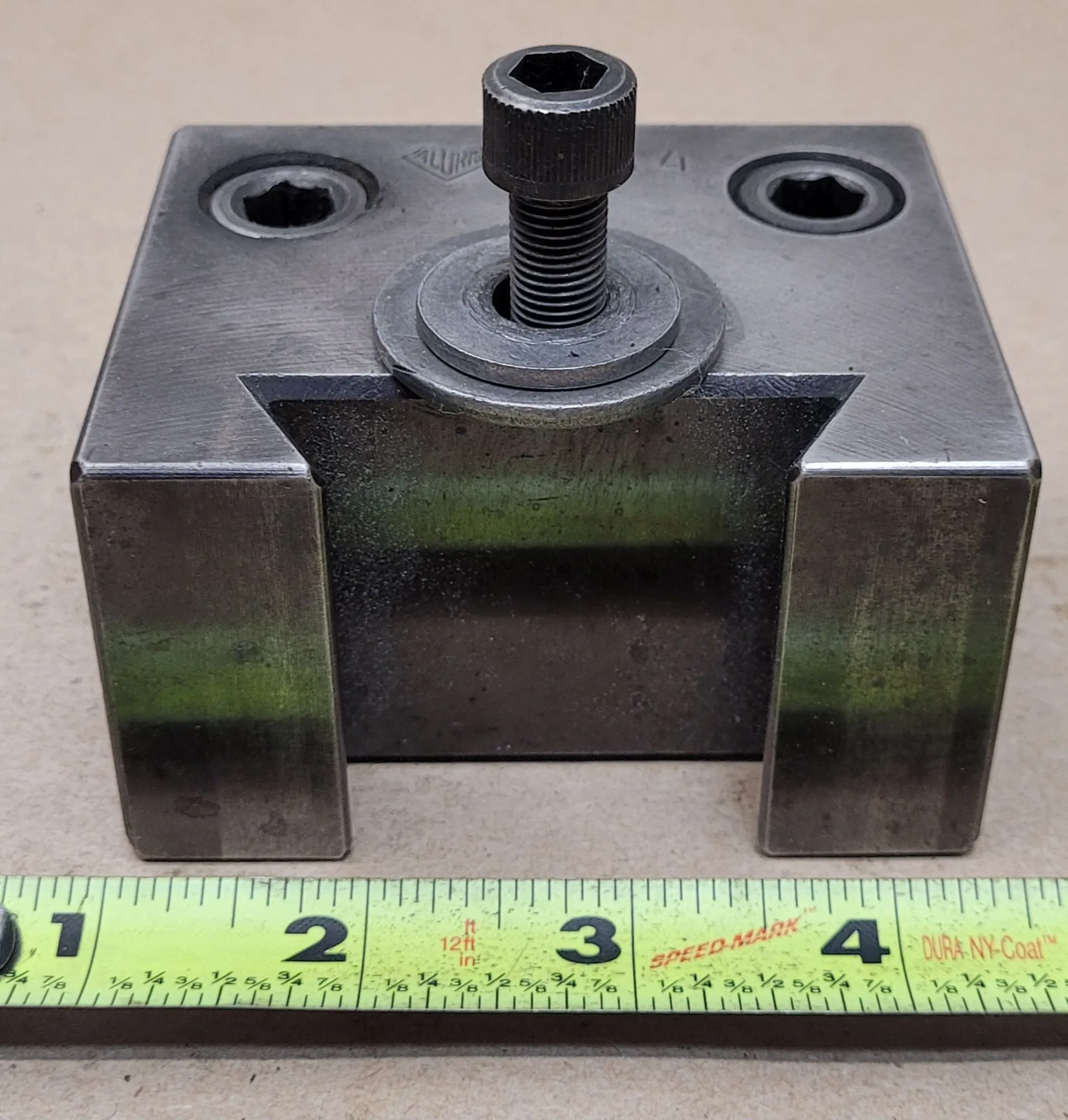

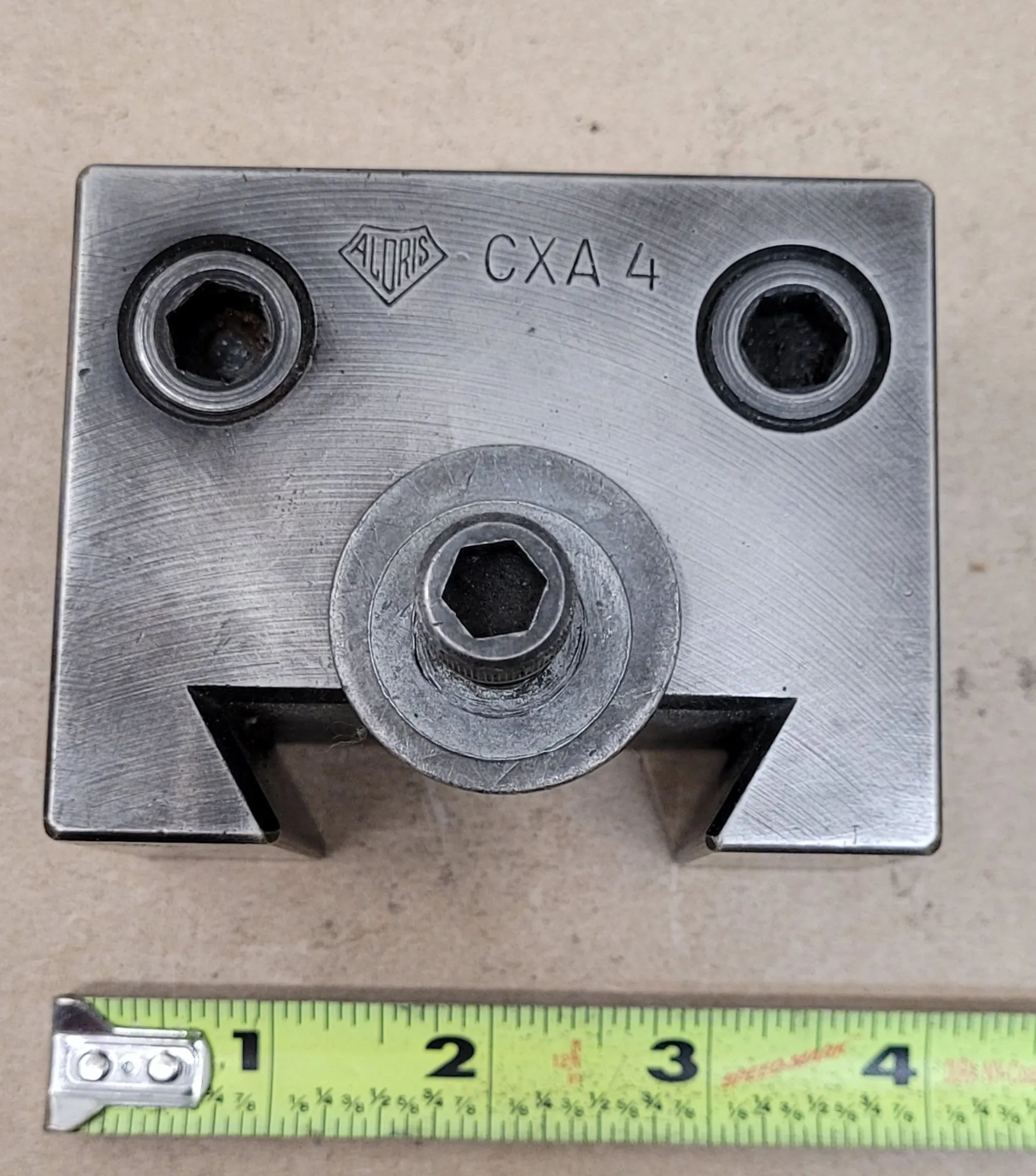

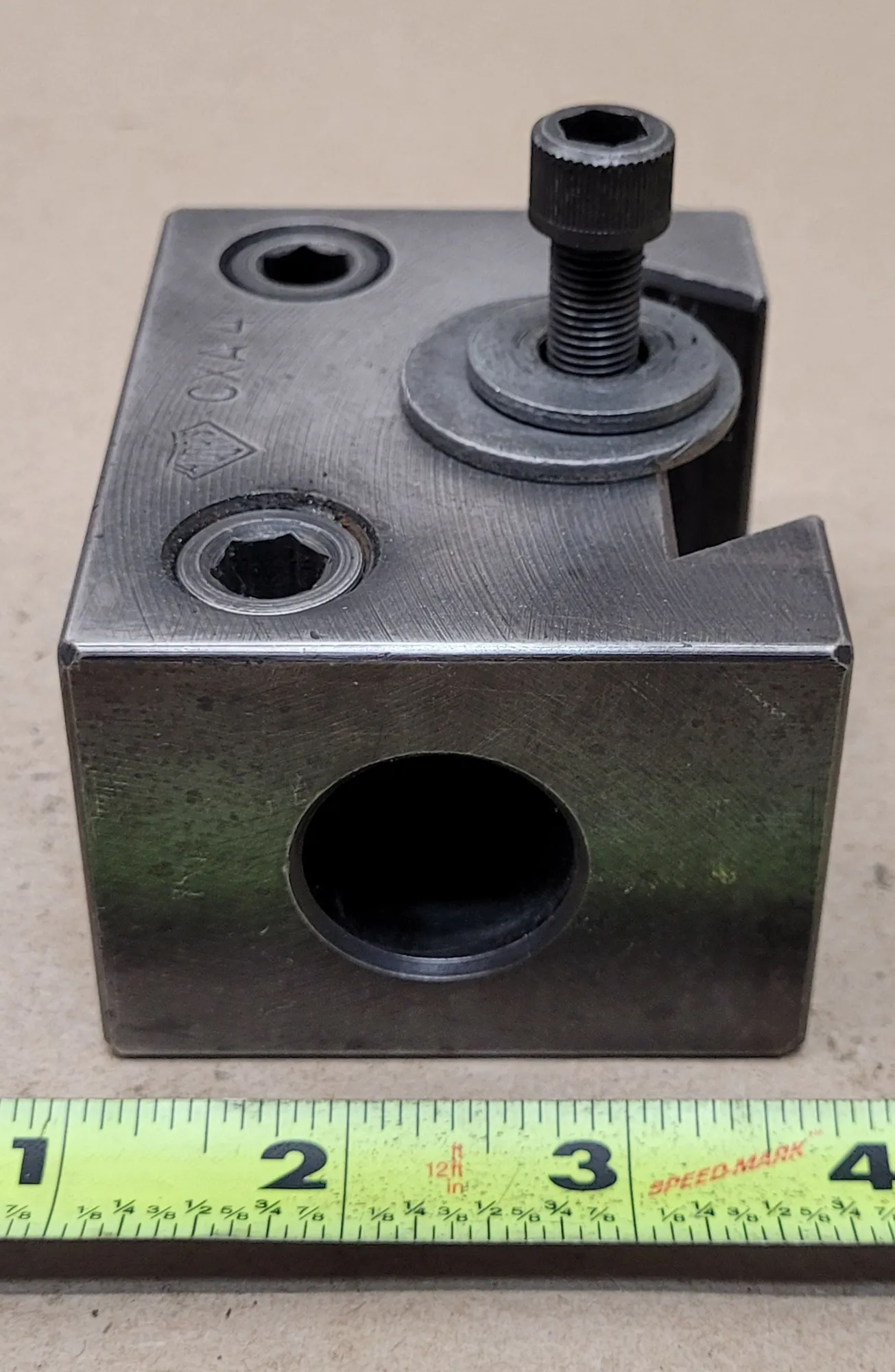

ALORIS CXA 4 BORING BAR HOLDER, 13-18" SWING, 1" OR 3/4" BAR CAPACITY, 1.0000" CENTER HEIGHT

THE ALORIS CXA 4 IS A LATHE TOOL POST BORING BAR HOLDER DESIGNED FOR USE WITH A 2-1/4 INCH WEDGE-TYPE TOOL POST. THIS HOLDER IS COMPATIBLE WITH LATHES FEATURING A SWING BETWEEN 13 AND 18 INCHES. TECHNICAL SPECIFICATIONS INCLUDE AN OVERALL HEIGHT OF 2 INCHES AND AN OVERALL LENGTH OF 3-1/2 INCHES. THE UNIT ACCOMMODATES BORING BARS WITH A 1-INCH DIAMETER WHEN USED WITHOUT A BUSHING, OR 3/4-INCH BORING BARS WHEN USED WITH A BUSHING. IT FEATURES A CENTERLINE HEIGHT OF 1.0000 INCH AND IS NOT EQUIPPED FOR THROUGH-COOLANT APPLICATIONS.
