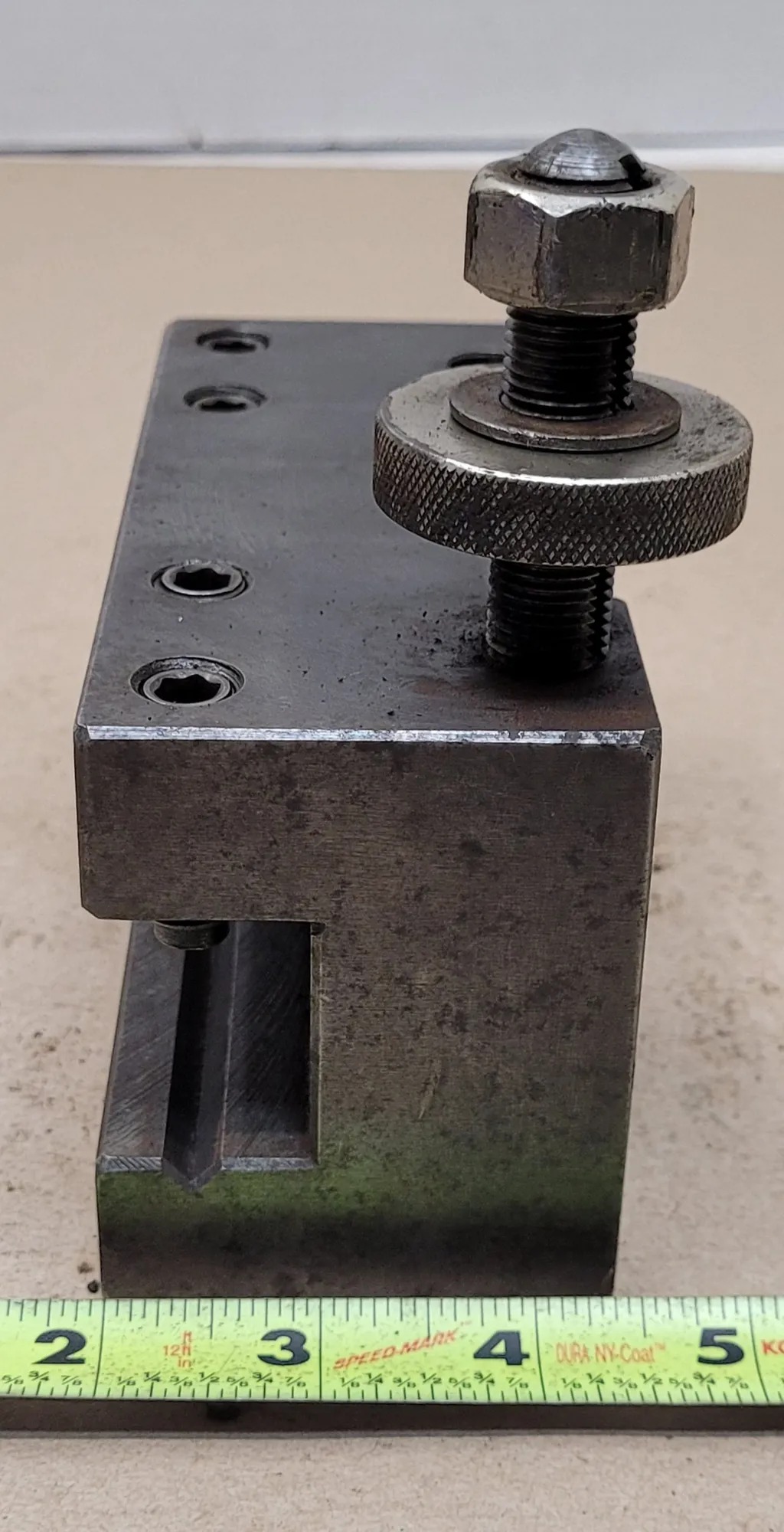

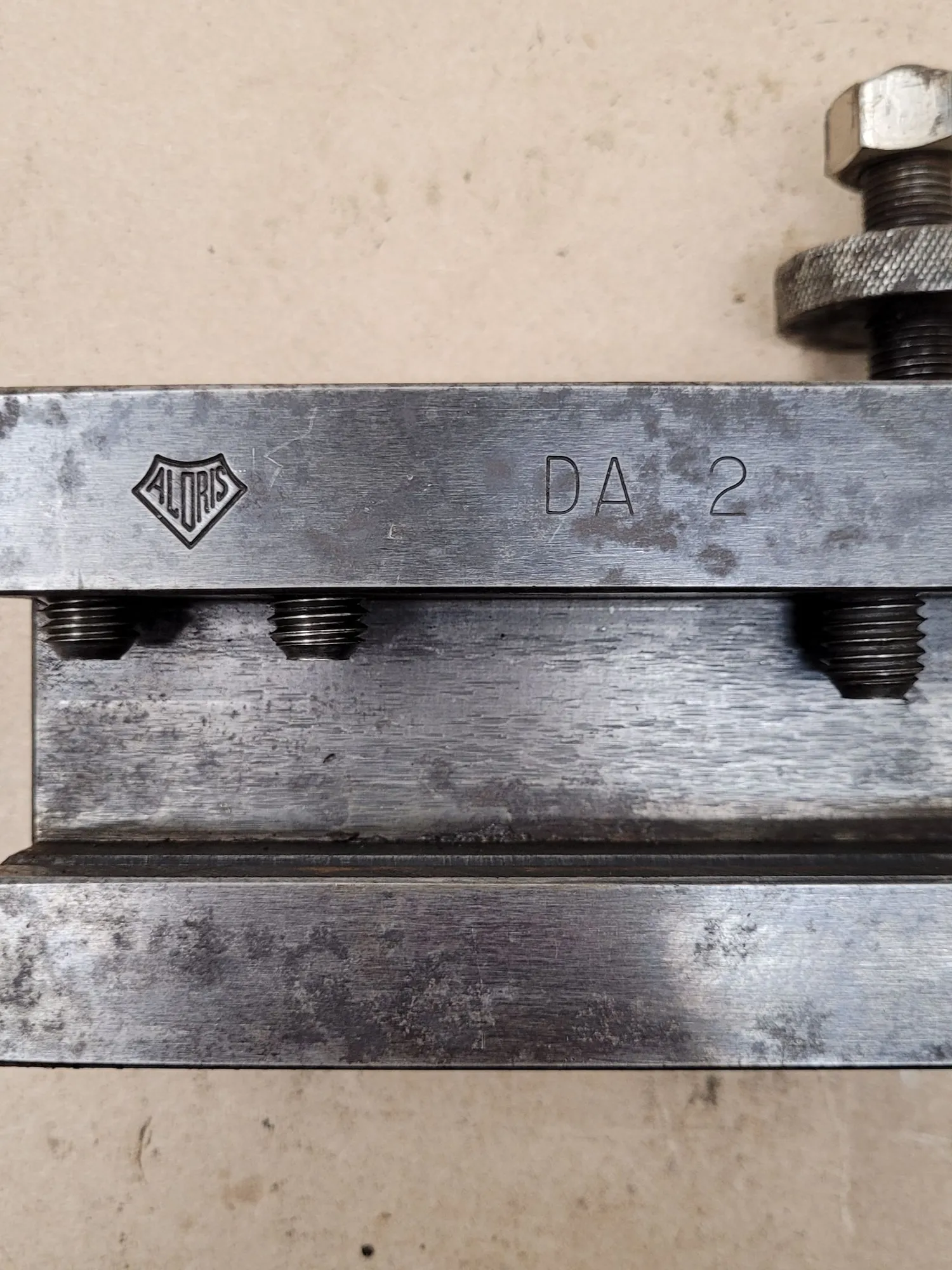

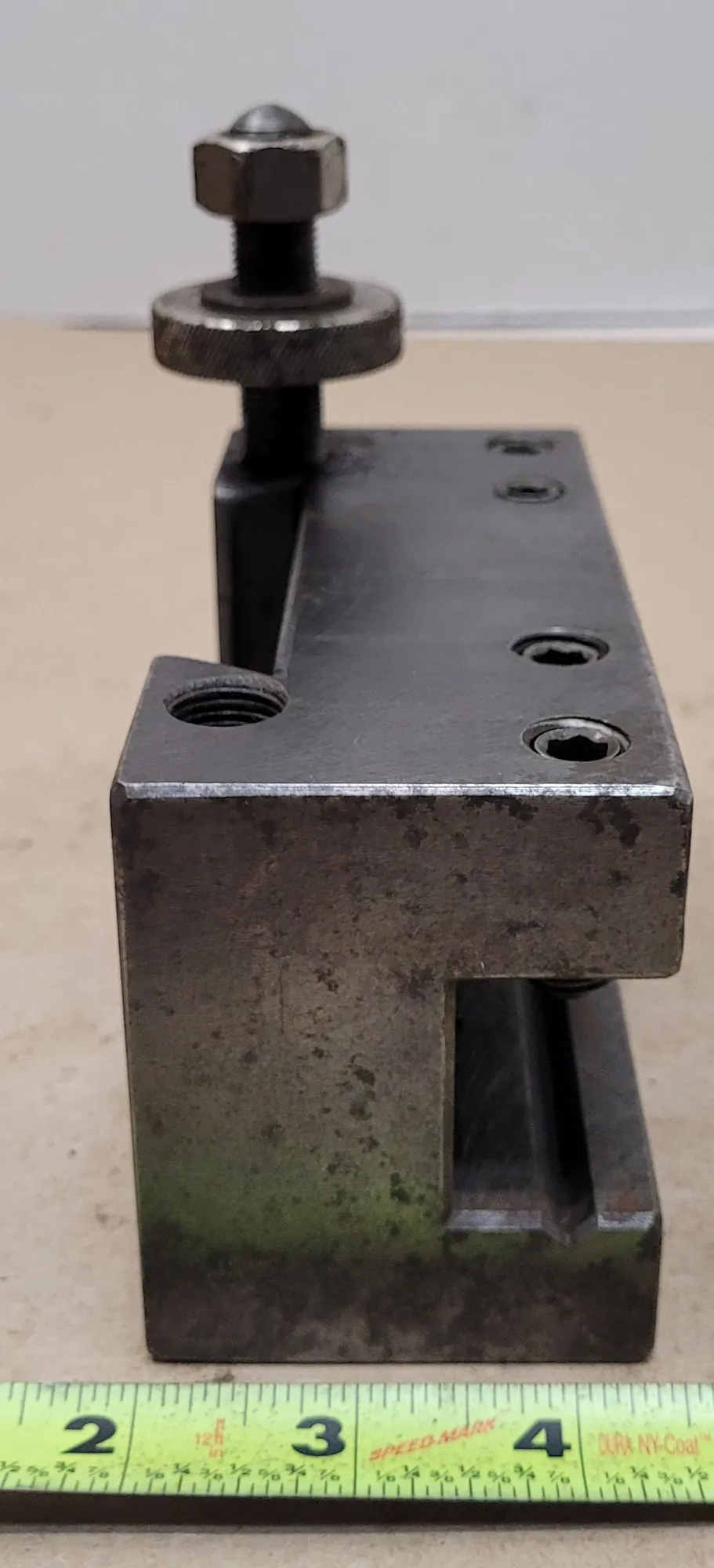

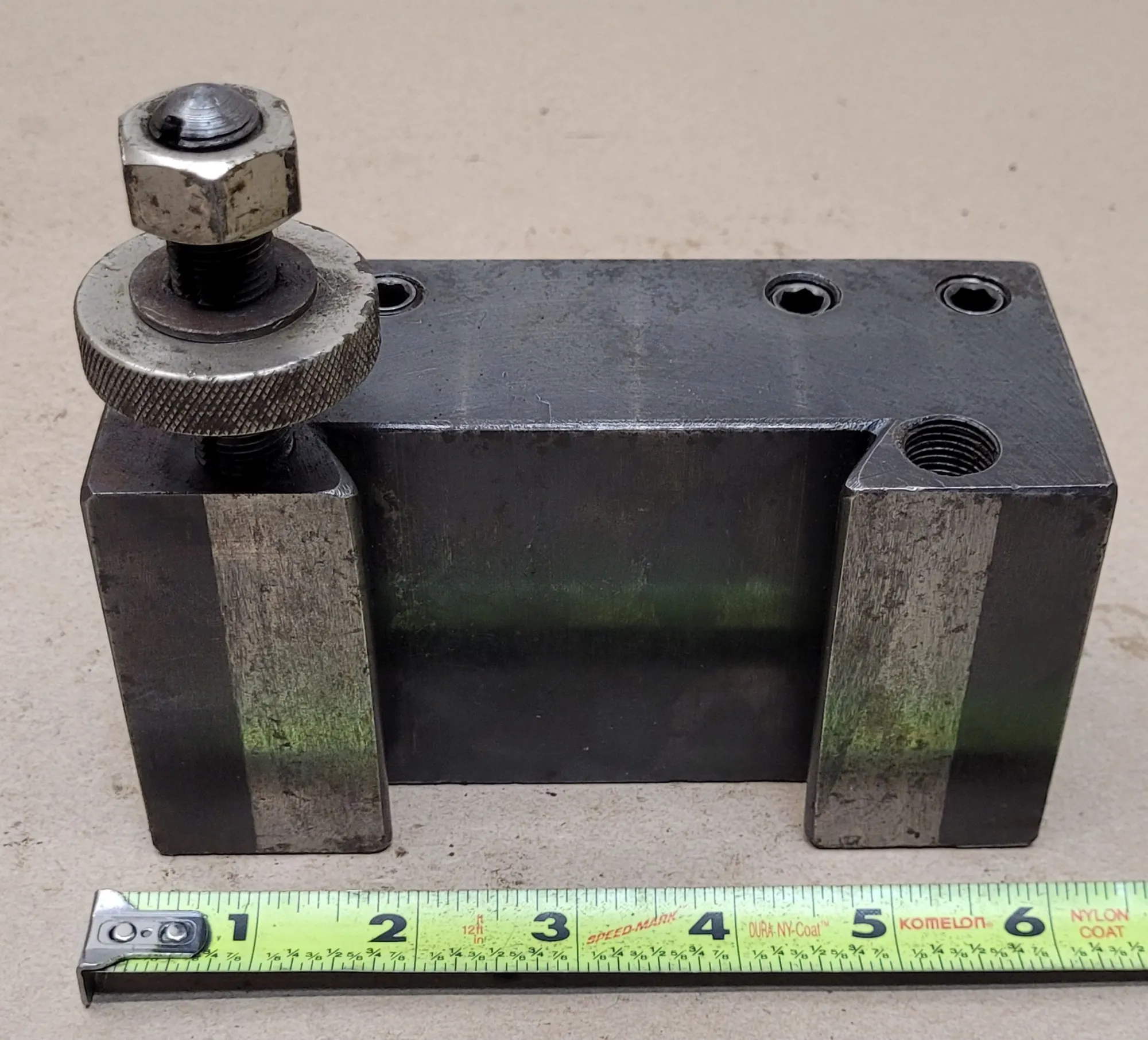

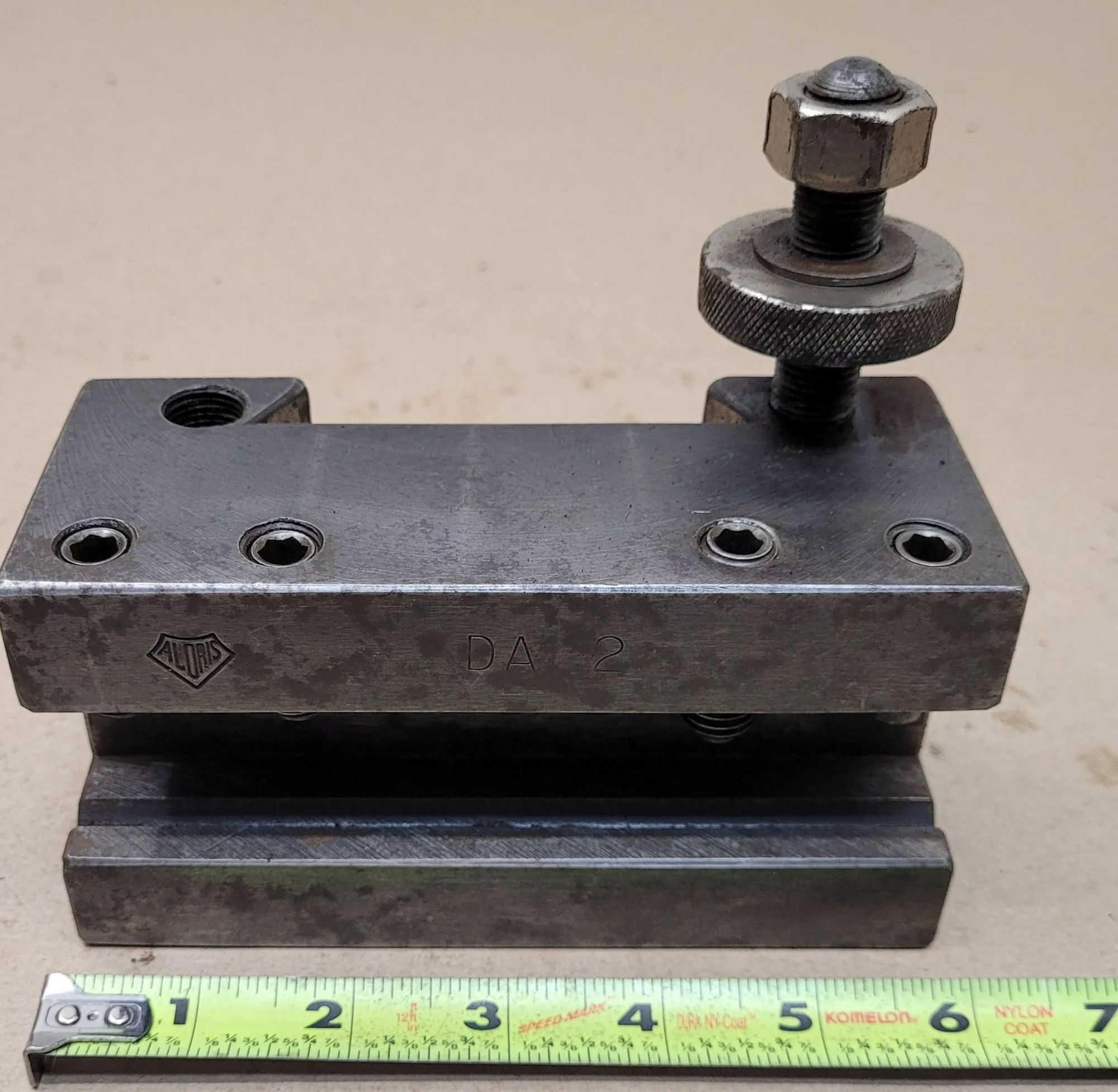

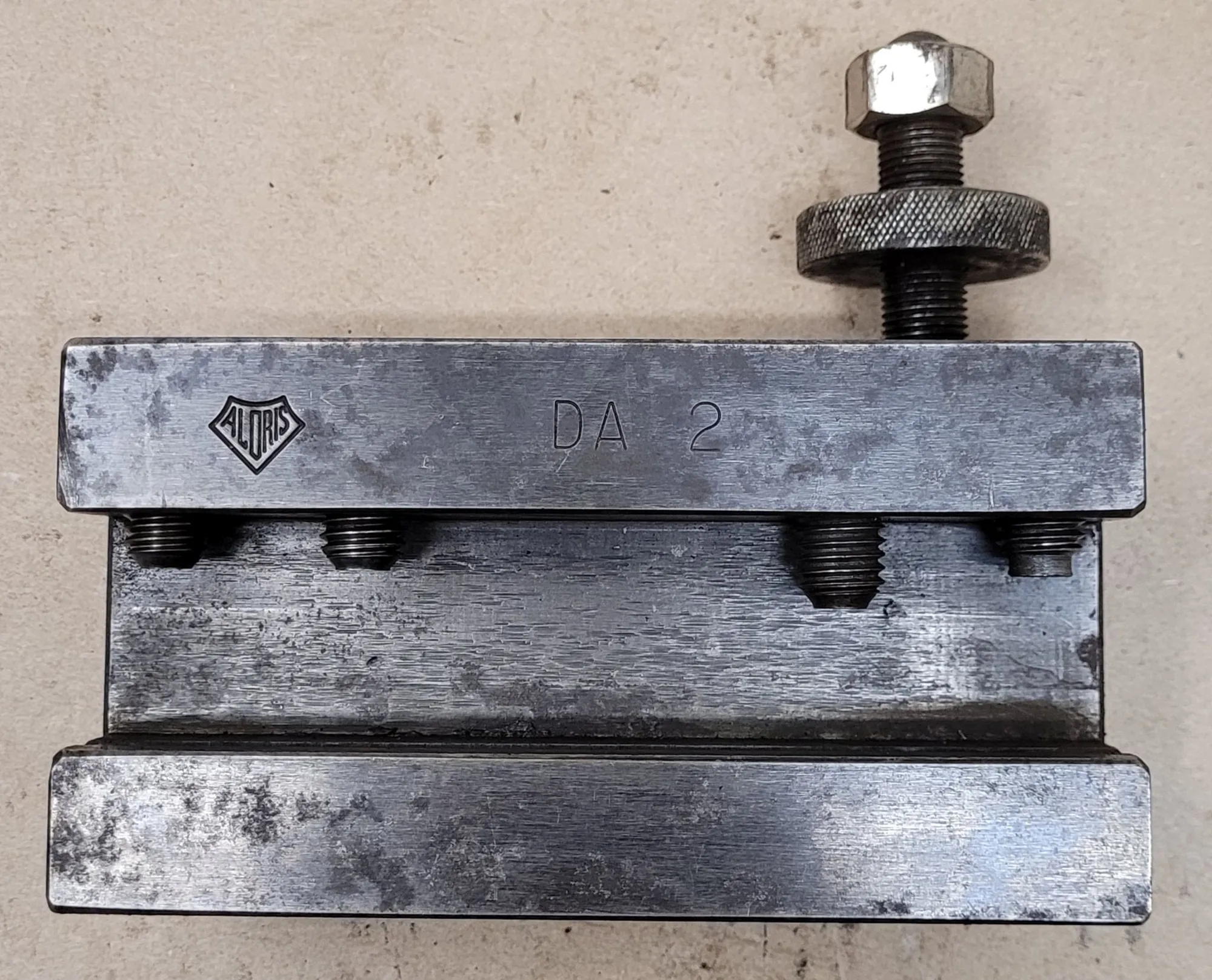

ALORIS DA-2 TOOL HOLDER, 1" SHANK, 1-1/4" MAX TOOL, 17-48" SWING LATHE, 3-1/8" BORING BAR

THE ALORIS QUICK-CHANGE DA-2 TOOL HOLDER IS A TURNING, FACING, AND BORING TOOL POST HOLDER DESIGNED FOR LATHES WITH A SWING RANGING FROM 17 TO 48 INCHES. THIS UNIT FEATURES A 1-INCH SHANK SIZE AND A MAXIMUM CUTTING TOOL CAPACITY OF 1-1/4 INCHES. TECHNICAL SPECIFICATIONS INCLUDE AN OVERALL HEIGHT OF 3-1/8 INCHES, AN OVERALL LENGTH OF 5-7/8 INCHES, AND A HOLDER DEPTH OF 1.0000 INCH. THE BORING BAR SIZE IS 3-1/8 INCHES, WITH A CENTERLINE HEIGHT OF 2-3/16 INCHES AND A TOOL BIT RANGE OF 3/4 TO 1-1/4 INCHES. THIS HOLDER DOES NOT SUPPORT THROUGH-COOLANT APPLICATIONS.
