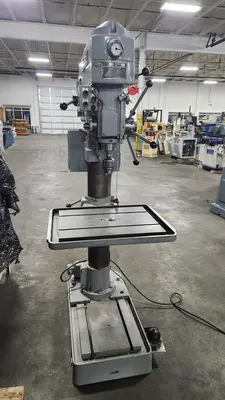

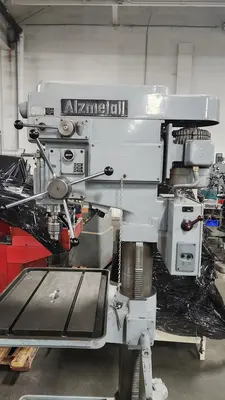

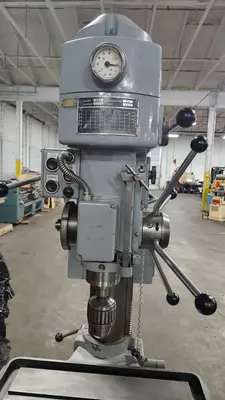

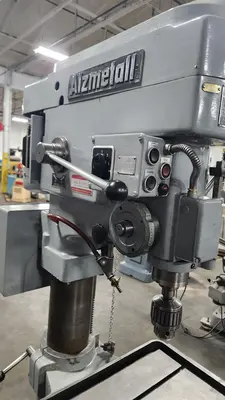

ALZMETALL AB4 DRILL PRESS 1.378"/1.772" DRILL CAP 80-720 RPM 2.5 KW MOTOR

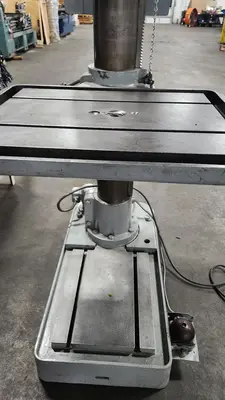

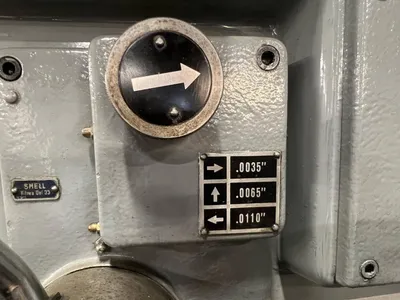

THE ALZMETALL AB4 DRILL PRESS FEATURES A MK 4 TOOL HOLDER AND A 2.5 KW MOTOR. IT OFFERS A DRILLING CAPACITY OF 1.772 INCHES IN CAST IRON AND 1.378 INCHES WITH ST60. THE MACHINE OPERATES WITH TWO SPEED SERIES, BOTH INFINITELY VARIABLE: THE FIRST RANGING FROM APPROXIMATELY 80 TO 240 RPM, AND THE SECOND FROM APPROXIMATELY 240 TO 720 RPM. IT INCLUDES THREE FEEDS: 0.0035", 0.0065", AND 0.0110". THE TABLE AREA MEASURES APPROXIMATELY 28.346 INCHES IN WIDTH BY 22.047 INCHES IN DEPTH. KEY DIMENSIONS INCLUDE A THROAT DEPTH OF 13.386 INCHES, A QUILL STROKE OF APPROXIMATELY 6.69 INCHES, A MAXIMUM DISTANCE FROM THE TABLE TO THE SPINDLE NOSE OF 25.984 INCHES, AND A COLUMN DIAMETER OF 6.299 INCHES. THE OVERALL DIMENSIONS (WXDXH) ARE APPROXIMATELY 27.559 INCHES X 41.338 INCHES X 76.771 INCHES.
