Amine Plant – 38GPM / 36” x 52′ x 1600PSI

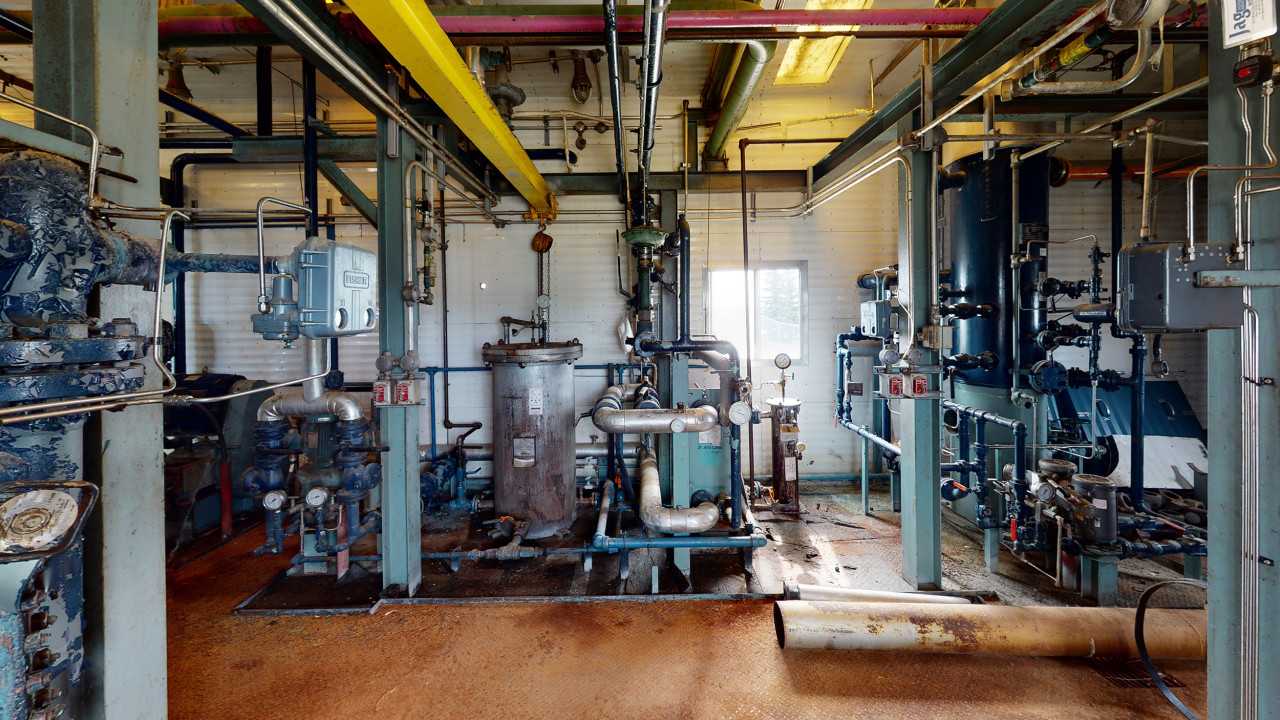

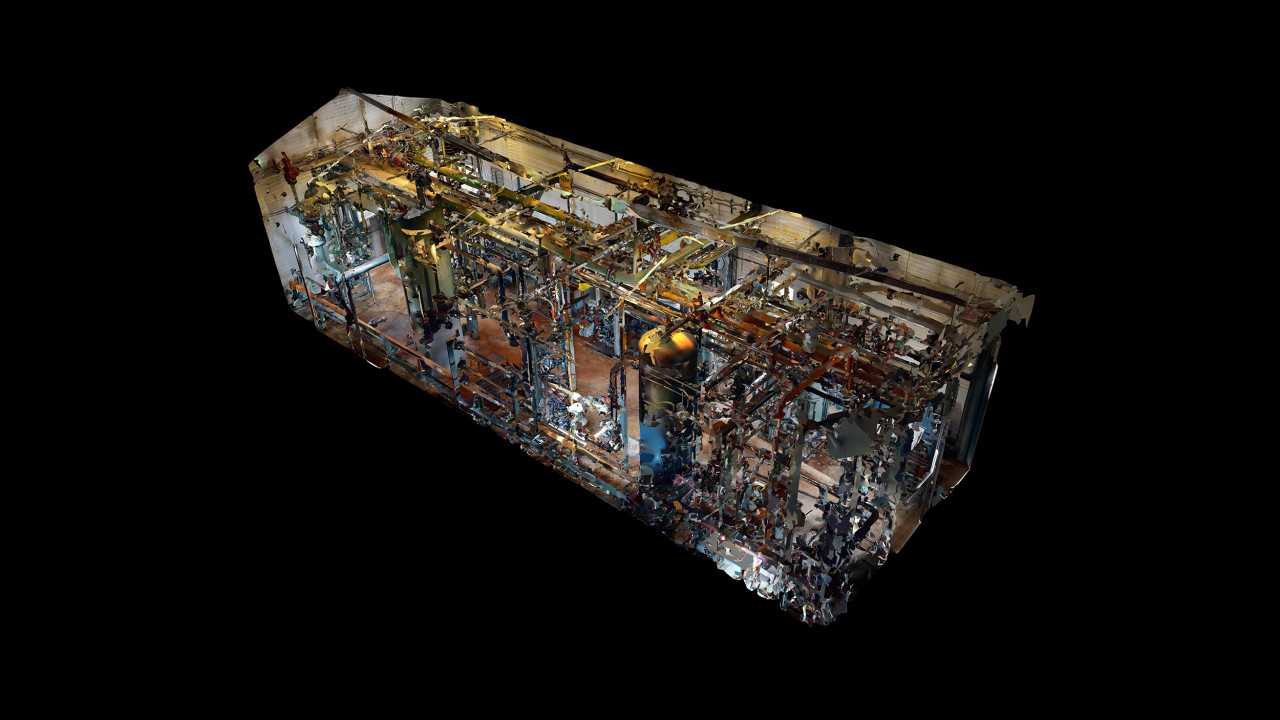

Amine Plant – 38GPM / 36” x 52′ x 1600PSI This unit was removed from .62ppm sour service in 2016 and was moved to Red Deer. It is rare for the market based on it’s 36” contactor size and 900# pressure rating. Manufactured: Alco 1996 Amine Contactor: 36″ ID x 52′ S/S x 1610PSIG @ -20/150° / 20 Stainless Steel Valve Trays Amine Flash Tank: 36″ ID x 8′ S/S x 150PSI Amine Charge Pumps: 2 Union TD VCM 1.5x2x9 / 42GPM @ 26PSI / 100% Backup Lean Amine Cooler: 0.775 MMBTU/Hr @ 150psig Sweet Gas Cooler: 1.1 MMBTU/Hr c/w 30HP Electric Motor @ 1610PSI Amine Reflux Condenser: 2.1 MMBTU/Hr @ 50PSI Lean Amine Reboiler: 84” ID x 30’ S/S / 20” OD Firetubes c/w 25’ High Stacks / 2 x 2.0MMBTU/Hr Flame Arrested Burners Amine / Amine Exchanger: Alva Lava Plate/Frame Stainless @ 1.15MMBTU/Hr H2S Analyzer: 24V Class 1 Div 2 Status: Disconnected
