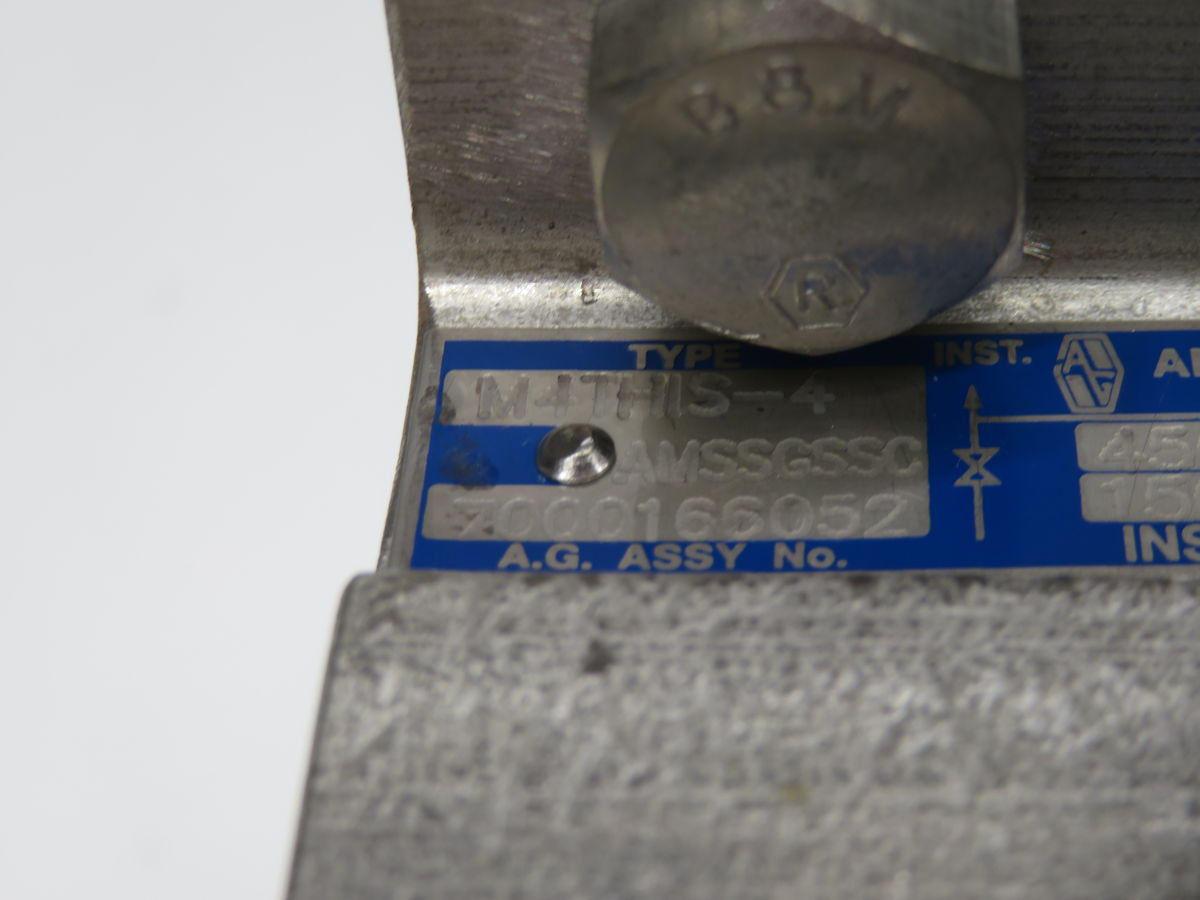

ANDERSON GREENWOOD M4THIS-4-AMS-SG-SSC MANIFOLD VALVE

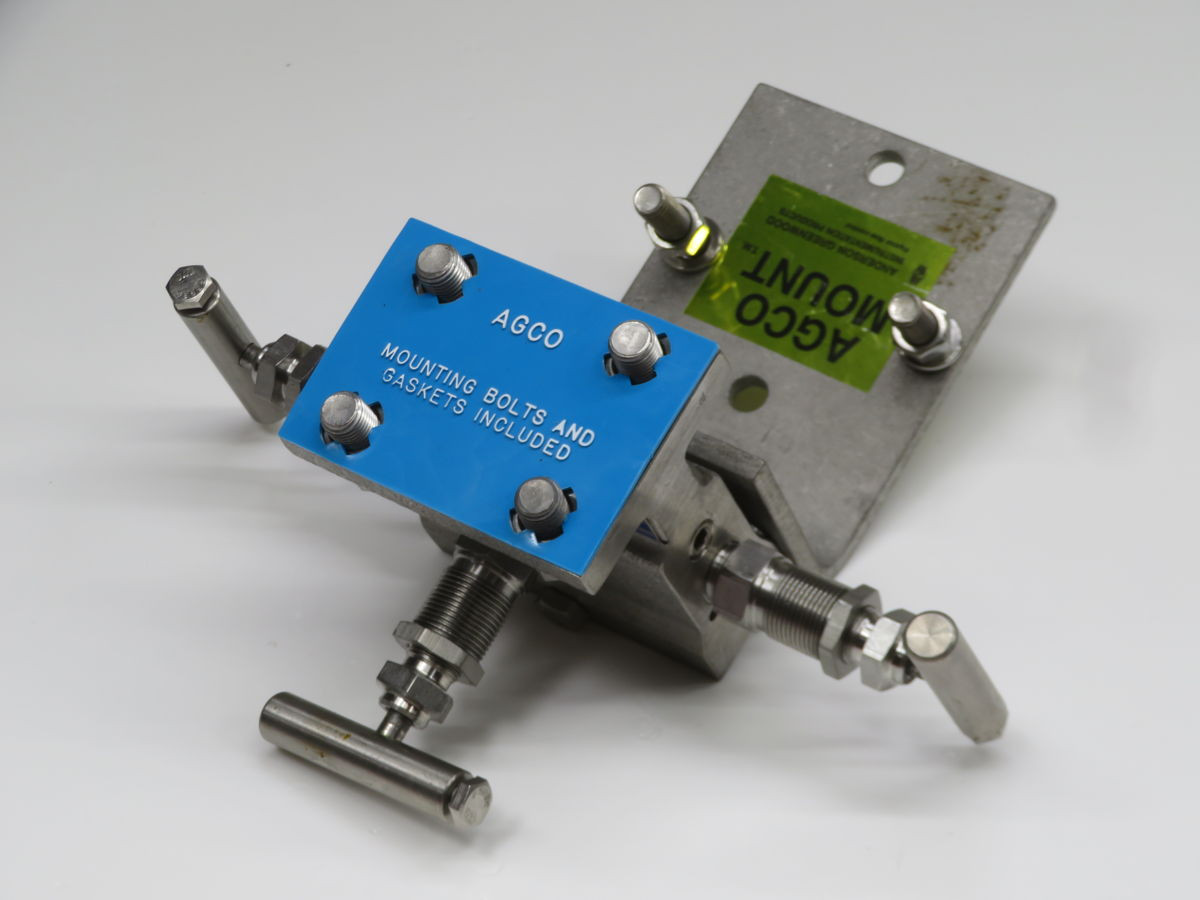

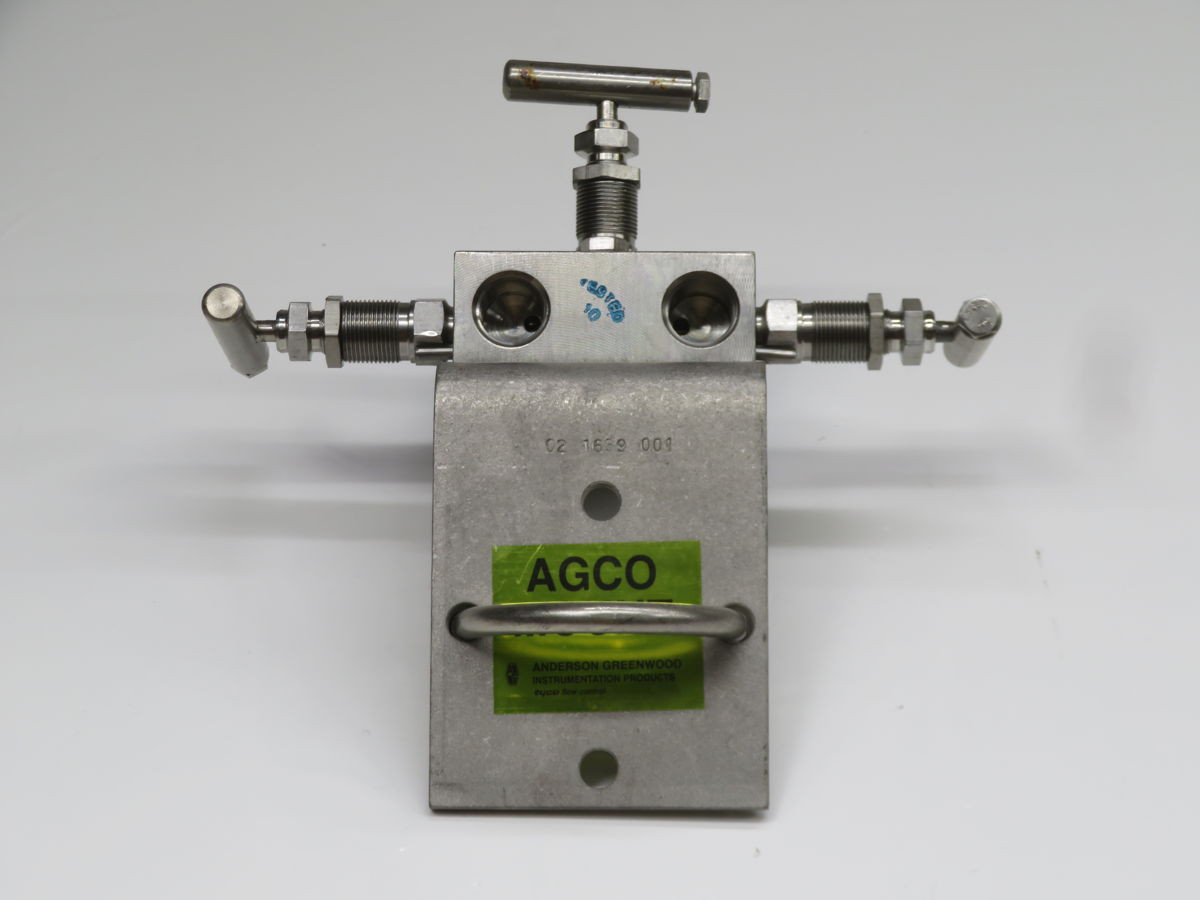

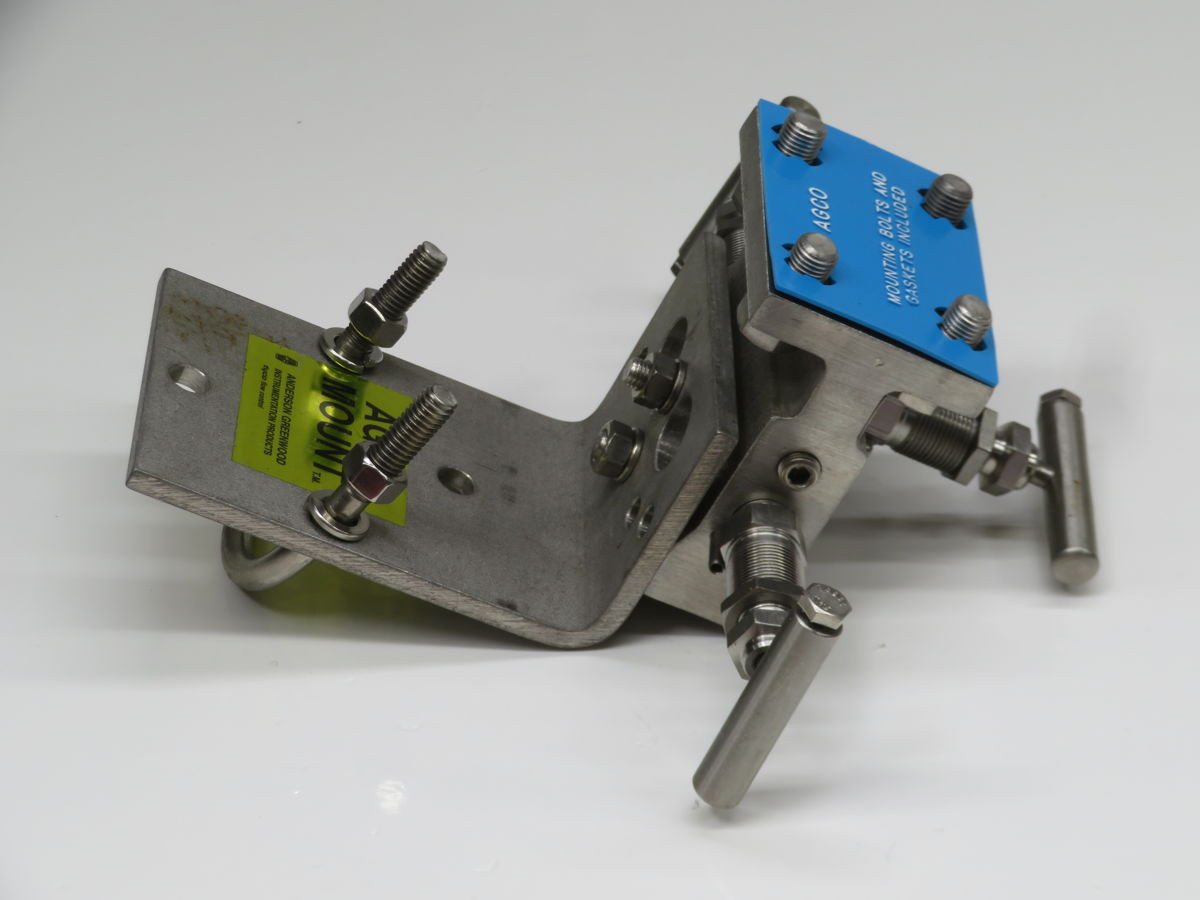

THE ANDERSON GREENWOOD M4THIS-4-AMS-SG-SSC IS A 3-VALVE MANIFOLD ENGINEERED FOR DIRECT MOUNTING TO DIFFERENTIAL PRESSURE TRANSMITTERS. IT FEATURES AN INTEGRAL SINGLE FLANGE H-TYPE CONFIGURATION WITH 1/2" NPT PROCESS CONNECTIONS. THE MANIFOLD CONSTRUCTION UTILIZES 316 STAINLESS STEEL FOR THE BODY, BONNET, AND STEM COMPONENTS. INTERNALLY, IT IS EQUIPPED WITH A PCTFE SOFT SEAT STEM TIP AND PTFE PACKING. THIS CONFIGURATION ENABLES A MAXIMUM WORKING PRESSURE RATING OF 6000 PSIG (414 BARG) AT 100°F (38°C) AND AN OPERATING TEMPERATURE RANGE EXTENDING FROM -65°F TO 400°F (-54°C TO 204°C).
