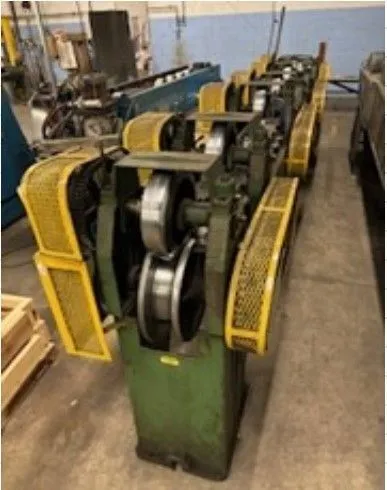

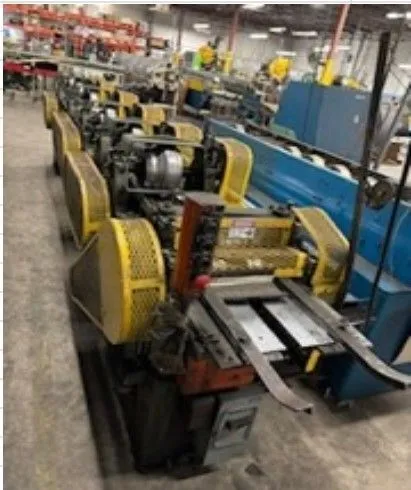

ARTOS 4'' OGEE ROLL FORMER, 165 FPM MAX SPEED, 24 GA MAX THICKNESS

THE ARTOS 4'' OGEE ROLL FORMER IS DESIGNED FOR CONTINUOUS ROLL FORMING, CAPABLE OF A MAXIMUM FORMING SPEED OF 165 FEET PER MINUTE. IT OPERATES ON 230V, 60HZ, 3-H POWER. THIS MACHINE CAN PROCESS MATERIALS INCLUDING ALUMINUM, GALVANIZED STEEL, AND PAINTED STEEL, WITH A MAXIMUM THICKNESS CAPACITY OF UP TO 24 GAUGE STEEL, DEPENDING ON THE PROFILE AND MATERIAL. THE ROLL FORMER IS COIL-FED AND FEATURES A HEAVY WELDED STEEL FRAME CONSTRUCTION. KEY COMPONENTS INCLUDE MULTIPLE FORMING STANDS, HARDENED STEEL FORMING ROLLS, AND BEARING-SUPPORTED STEEL SHAFTS, ALL PROTECTED BY FULL SAFETY GUARDING OVER THE ROLL STATIONS. THE UNIT WEIGHS 3,500 LBS AND HAS MACHINE DIMENSIONS OF 144'' X 36'' X 50''IN. IT IS SUPPLIED WITH SEVERAL PRESS DIES, INCLUDING 4'' OG END CAP, 4'' OG CENTRE DROP/3'' HOLE, 4'' OG CONNECTOR, 4'' OG MITRE FORMING THIRD STAGE, 4'' OG MITER SECOND STAGE BRAKE DIE, 4'' OG MITRE O/S BLANKING STAGE 1, 4'' OG MITRE I/S BLANKING STAGE 1, AND 4'' OG MITRE FORMING.
