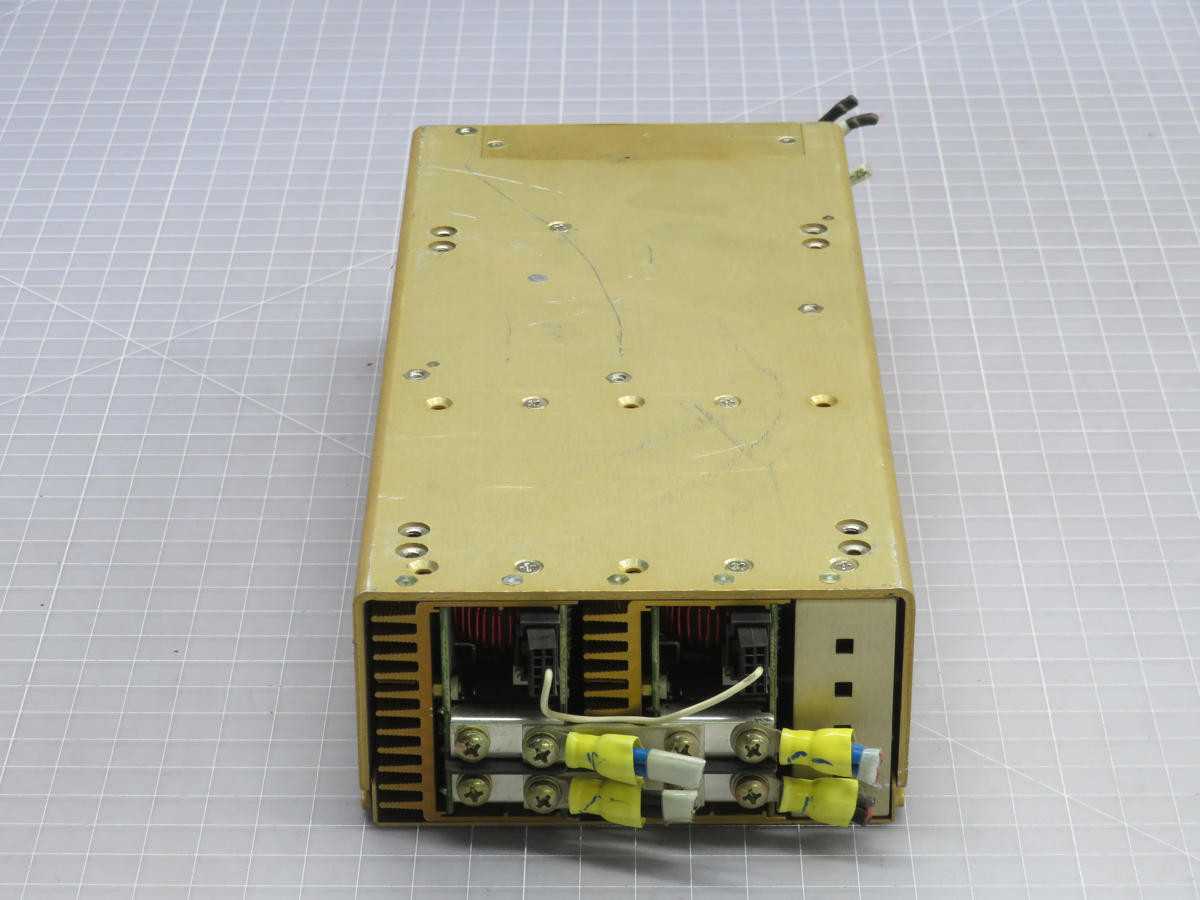

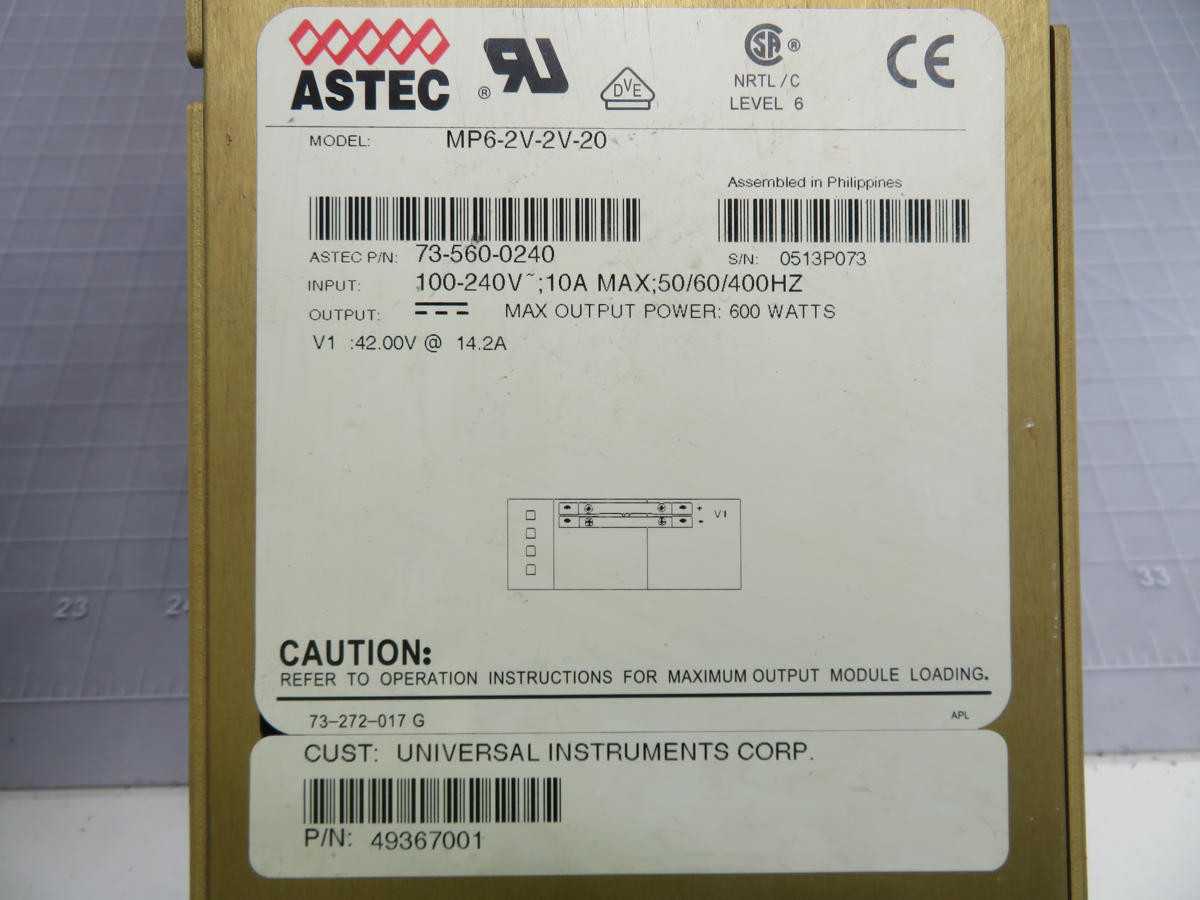

ASTEC MP6-2V-2V-20 AC-DC POWER SUPPLY, 600W POWER, 2X 2VDC 100A, 20VDC 10A OUTPUT

THE ASTEC MP6-2V-2V-20 IS A MODULAR AC-DC POWER SUPPLY DESIGNED FOR AUTOMATION APPLICATIONS. IT FEATURES A UNIVERSAL AC INPUT VOLTAGE RANGE OF 85-264 VAC (47-440 HZ) OR 120-300 VDC. THE UNIT PROVIDES A MAXIMUM TOTAL POWER OUTPUT OF 600 W ACROSS THREE INDIVIDUALLY REGULATED AND ISOLATED OUTPUTS: TWO 2 VDC OUTPUTS AT 100 A EACH, AND ONE 20 VDC OUTPUT AT 10 A. KEY SPECIFICATIONS INCLUDE AN EFFICIENCY TYPICALLY ABOVE 80%, A MINIMUM HOLDUP TIME OF 20 MS AT 115 VAC, AND AN OPERATING TEMPERATURE RANGE OF 0 TO 70°C WITH DERATING ABOVE 50°C. ITS COMPACT FORM FACTOR IS APPROXIMATELY 254 MM (10.0 IN) LONG, 127 MM (5.0 IN) WIDE, AND 63.5 MM (2.5 IN) HIGH.
