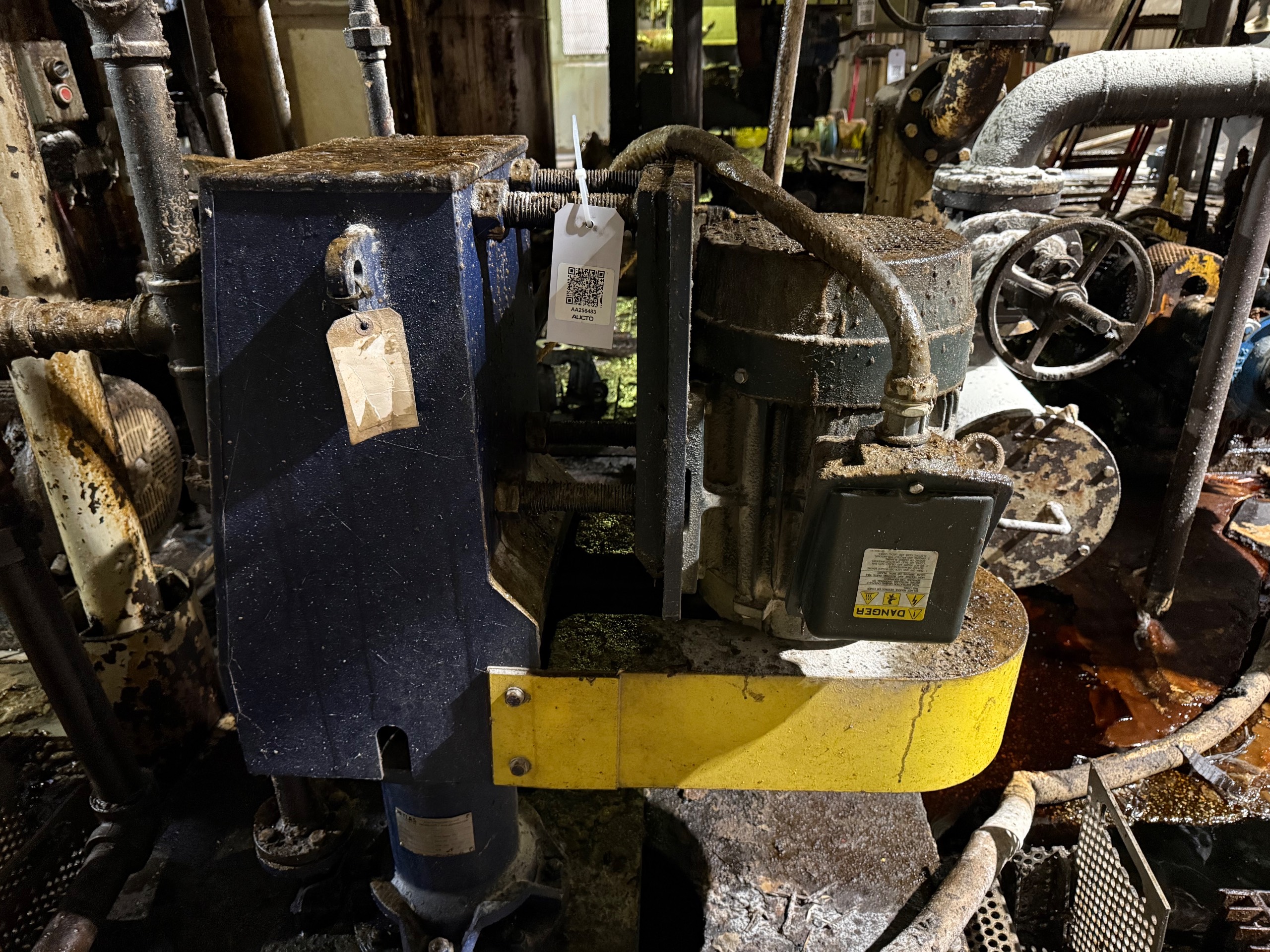

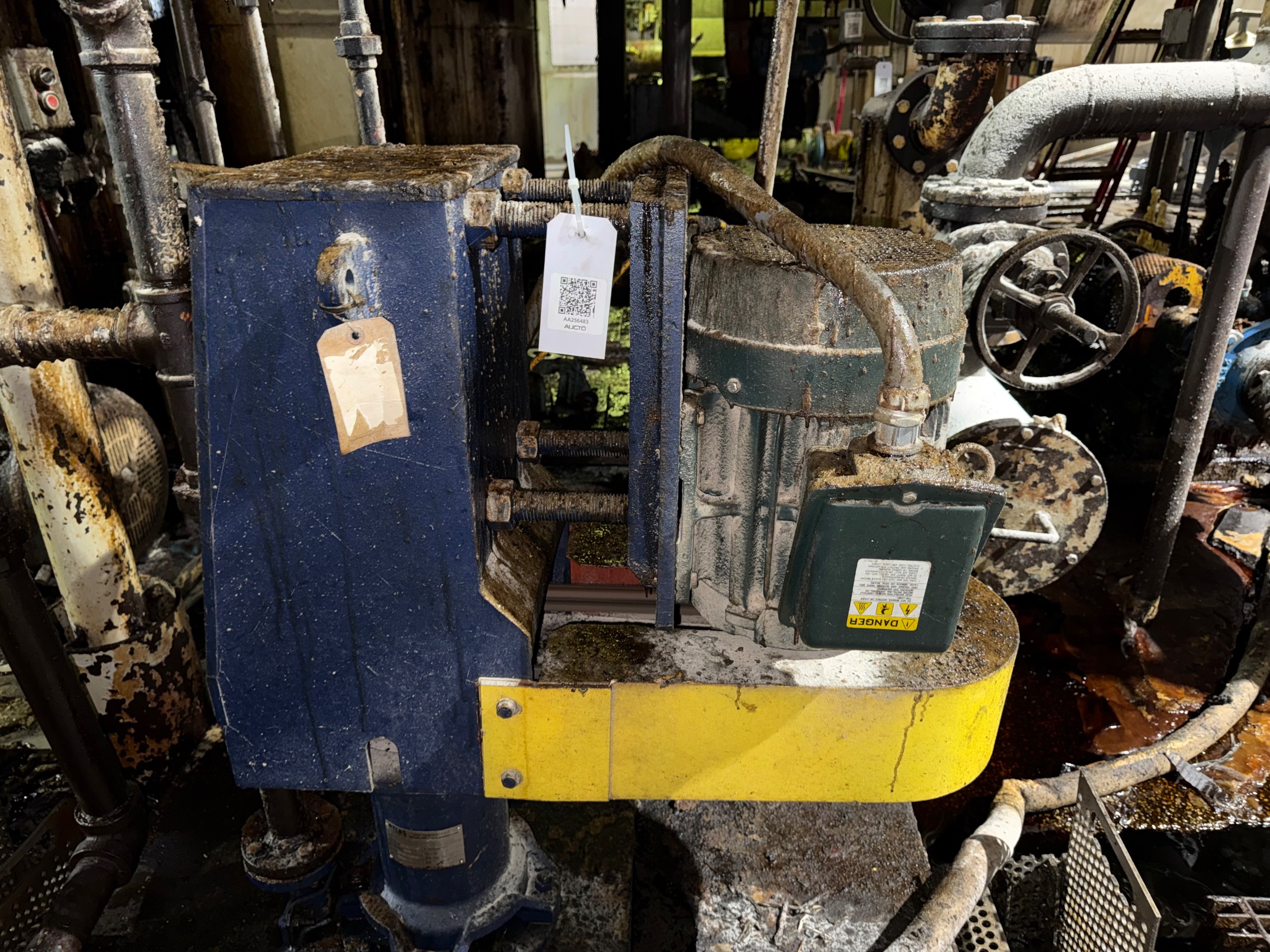

ATLAS EQUIPMENT 1.5 VC PUMP & MOTOR ASSEMBLY

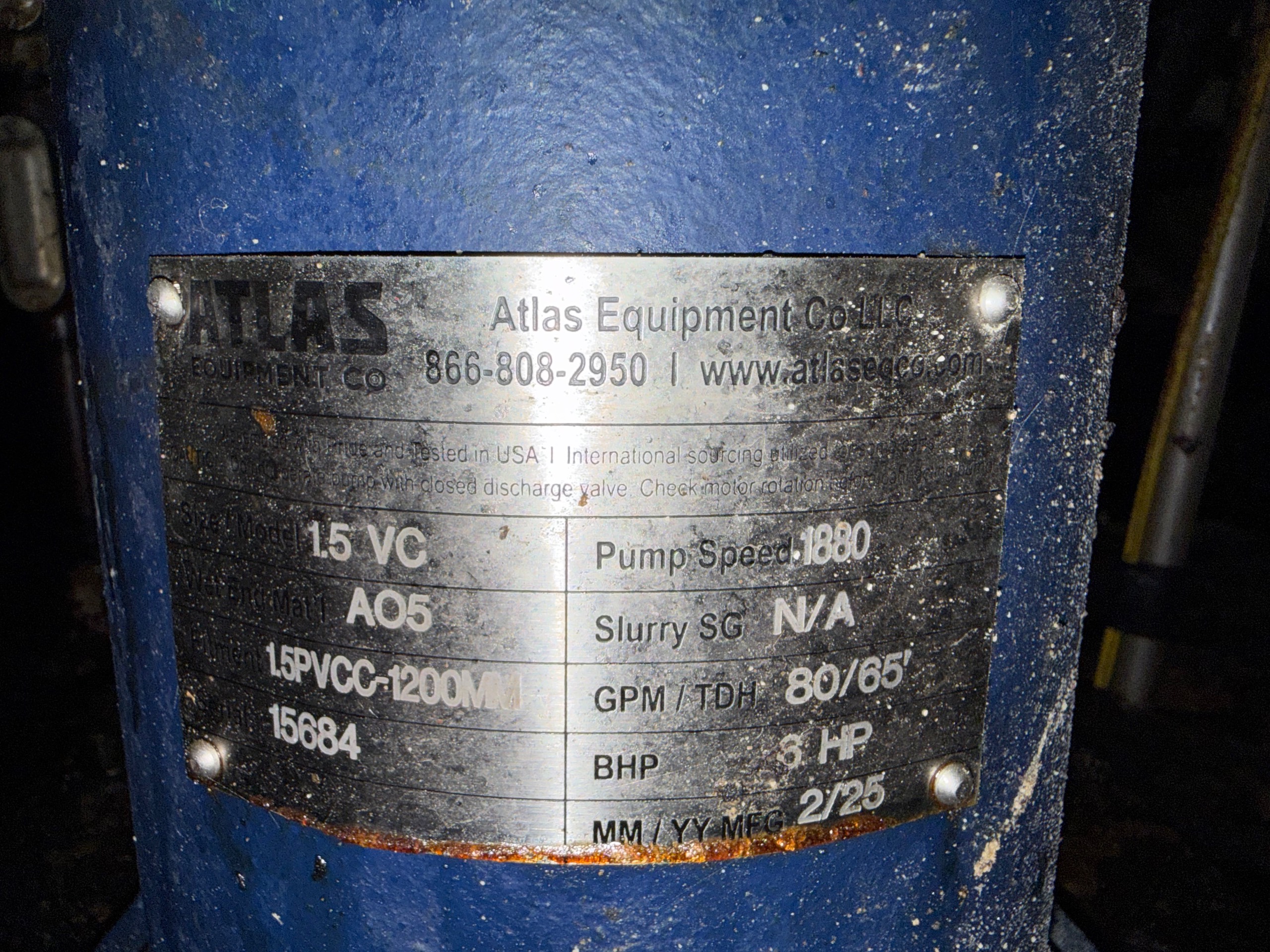

ATLAS EQUIPMENT VC SERIES VERTICAL CANTILEVER SLURRY PUMP, SIZE 1.5 IN, AO5, 1200 MM SETTING, 8 HP, 1880 RPM. THIS HEAVY‑DUTY SUMP PUMP IS ENGINEERED FOR CONTINUOUS HANDLING OF ABRASIVE AND MILDLY CORROSIVE SLURRIES IN PITS, SUMPS, AND PROCESS TANKS. THE VC CANTILEVER DESIGN ELIMINATES THE NEED FOR MECHANICAL SEALS, PACKING, OR SUBMERGED BEARINGS. ALL CRITICAL BEARINGS ARE LOCATED ABOVE THE LIQUID LEVEL IN A RIGID P‑FRAME BEARING HOUSING, REDUCING MAINTENANCE AND IMPROVING RELIABILITY IN DIRTY SERVICES. THIS UNIT IS A 1.5 VC WITH AO5 HIGH‑CHROME ALLOY WETTED COMPONENTS OPTIMIZED FOR EROSION RESISTANCE IN HIGH SOLIDS APPLICATIONS. THE BUILD CODE 1.5PVCC‑1200MM DENOTES A 1.5 IN DISCHARGE, P‑FRAME, VC METAL CONFIGURATION WITH A 1200 MM (48 IN) SETTING DEPTH. THE IMPELLER AND CASING GEOMETRY DELIVER THE TAGGED DUTY OF 80 GPM AT 65 FT TDH AT 1880 RPM, WITH A CORRESPONDING MOTOR REQUIREMENT OF APPROXIMATELY 8 HP. THE DOUBLE‑SUCTION STYLE IMPELLER MINIMIZES AXIAL THRUST AND BEARING LOADS, WHILE SHIM‑ADJUSTABLE IMPELLER CLEARANCE AT THE MOUNTING PLATE MAINTAINS EFFICIENCY AS COMPONENTS WEAR. TYPICAL SERVICES INCLUDE MILL SUMPS, THICKENER UNDERFLOW RETURN, FLOOR SUMPS, AND GENERAL PLANT DRAINAGE WHERE ENTRAINED SOLIDS AND TRAMP MATERIAL ARE PRESENT. CONSTRUCTION FEATURES INCLUDE A HEAVY STEEL COLUMN AND DISCHARGE PIPE, MOUNTING PLATE FOR TANK TOP INSTALLATION, AND HARD‑METAL CASING/IMPELLER IN AO5 FOR EXTENDED WEAR LIFE. OPTIONAL TAILPIPE AND AGITATOR KITS CAN BE FITTED TO IMPROVE DRAWDOWN AND RESUSPEND SETTLED SOLIDS. THIS VC PUMP OFFERS A ROBUST, SEAL‑LESS SOLUTION WITH SIMPLIFIED MAINTENANCE AND DEPENDABLE PERFORMANCE IN ABRASIVE SLURRY ENVIRONMENTS.
