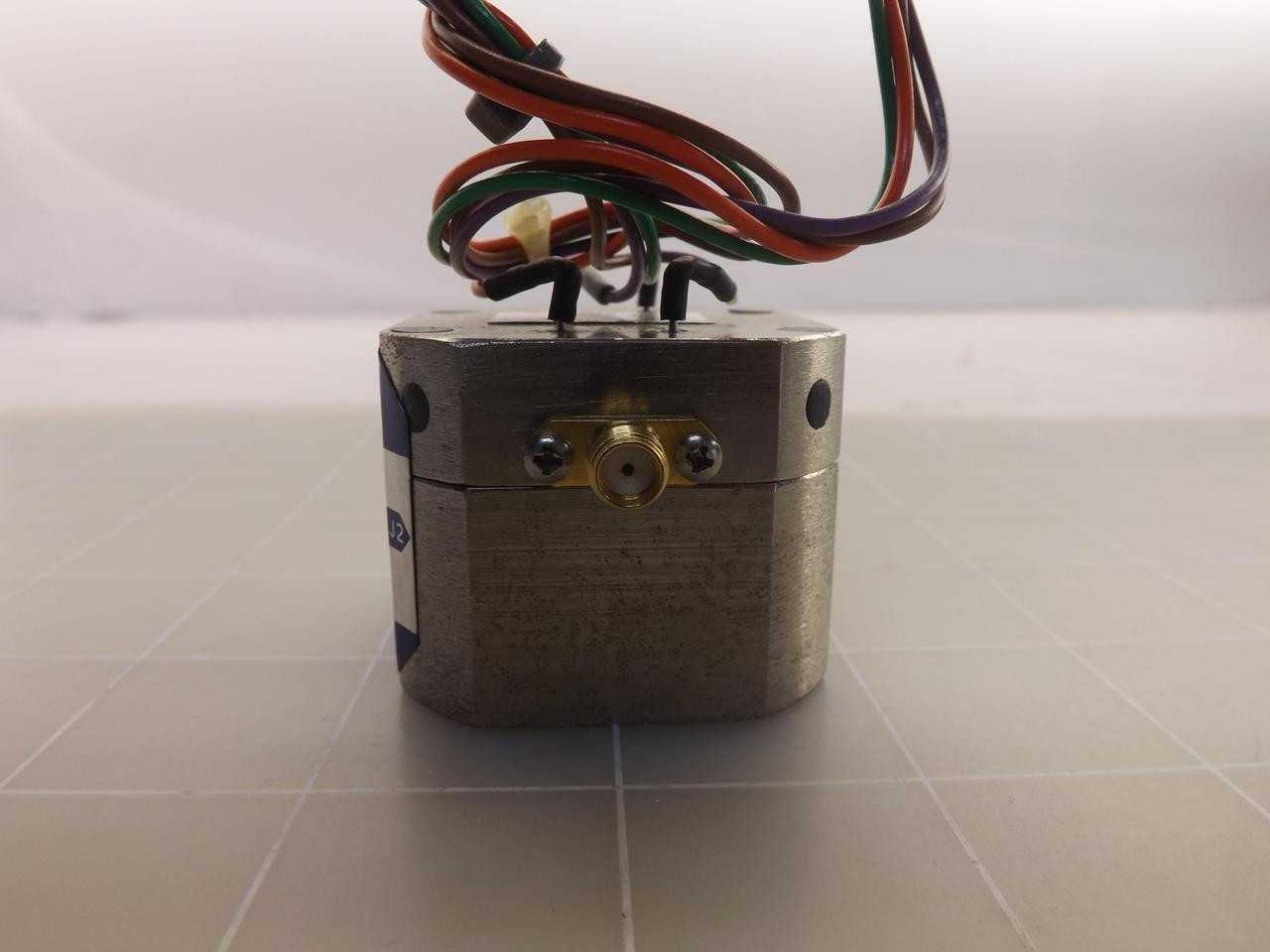

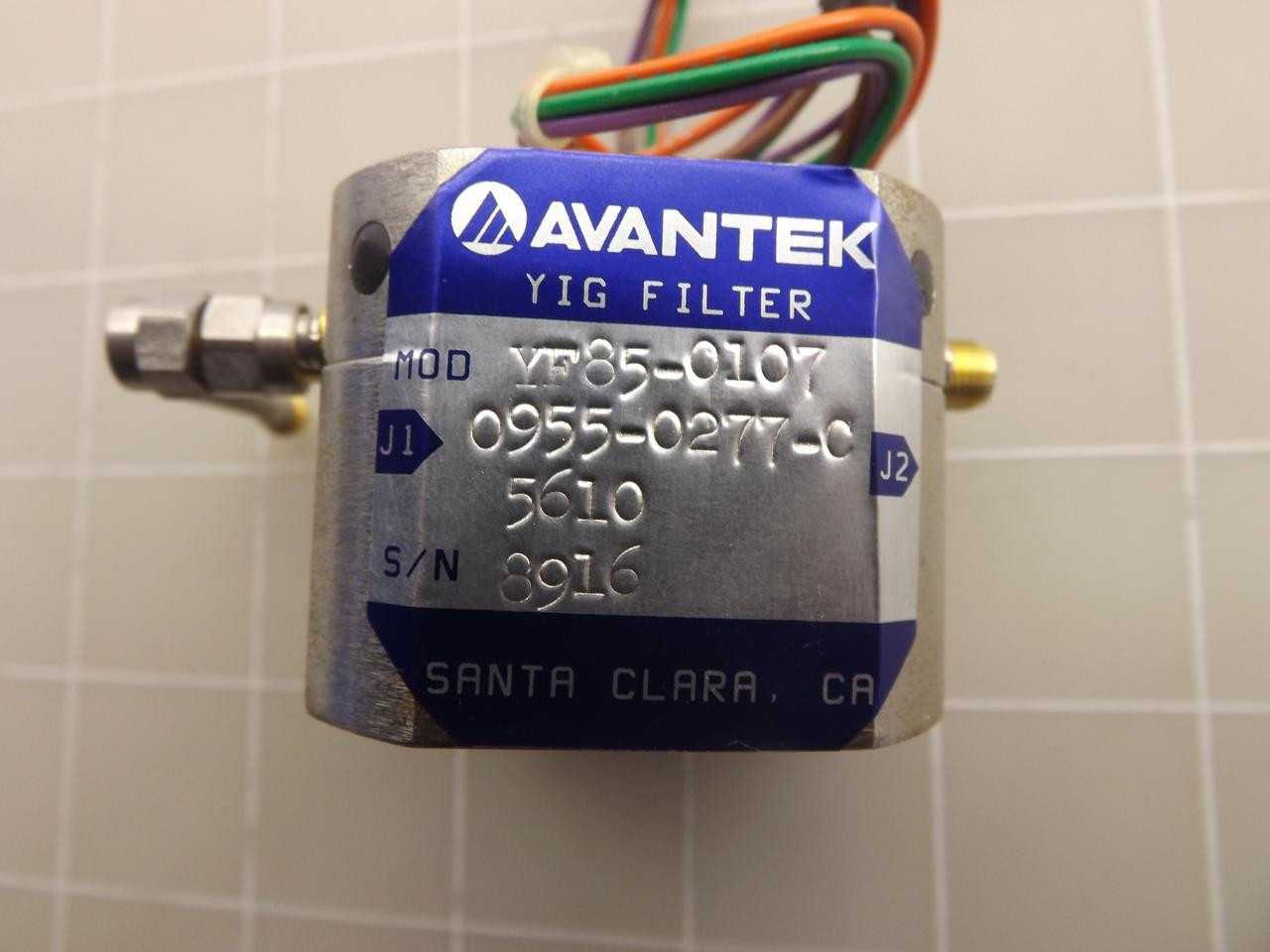

Aventek YF85-0107 0955-0277-0 Filter, 2.9-22 GHz Freq, 50 MHz Bw, 5 Db Insertion Loss

THE AVANTEK YF85-0107, PART NUMBER 0955-0277-0, IS A YIG-TUNED BANDPASS FILTER DESIGNED FOR MICROWAVE FREQUENCY SELECTION. THIS ELECTROMAGNETICALLY-TUNED COMPONENT TYPICALLY OPERATES WITHIN A FREQUENCY RANGE OF 2.9 GHZ TO 22 GHZ. IT FEATURES A NOMINAL 50 MHZ BANDWIDTH AND EXHIBITS A TYPICAL INSERTION LOSS OF 5 DB. THE TUNING MECHANISM RELIES ON CURRENT-DRIVEN COILS TO ADJUST THE MAGNETIC FIELD AROUND YTTRIUM IRON GARNET (YIG) SPHERES, ENABLING PRECISE FREQUENCY ADJUSTMENT. THIS SPECIFIC MODEL FUNCTIONS AS A PRESELECTOR AND WAS UTILIZED IN HP 8592B SPECTRUM ANALYZERS.
