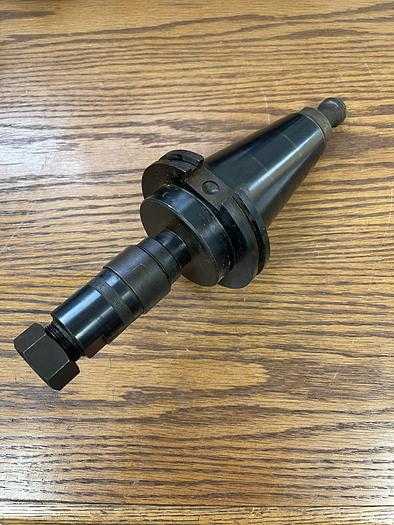

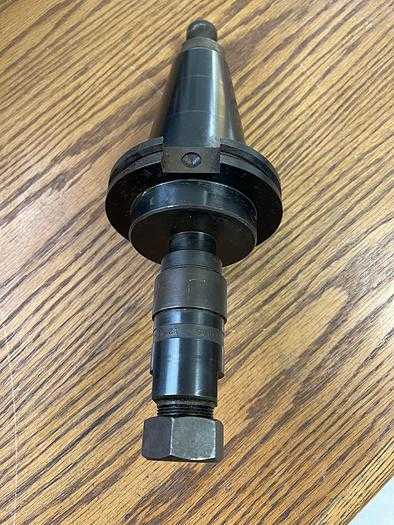

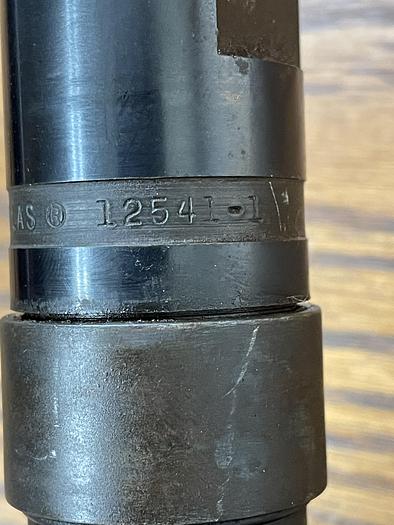

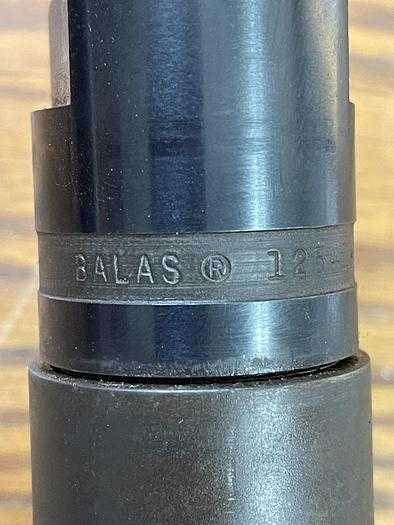

BALAS 50MM-VF 12541-1 TAPPING COLLET CHUCK TOOL HOLDER, CAT 50, 140MM PROJECTION, MODULAR SHANK

THE BALAS 50MM-VF 12541-1 IS A CAT 50 TAPER TAPPING COLLET CHUCK TOOL HOLDER DESIGNED FOR CNC METALWORKING AND MANUFACTURING APPLICATIONS. THIS V-FLANGE TOOLING FEATURES A MODULAR CONNECTION SHANK STYLE AND IS SPECIFICALLY CLASSIFIED AS A TAPPING CHUCK EXTENSION AND COMPRESSION HOLDER TYPE. IT UTILIZES AN STC4 OR C4 COLLET SYSTEM AND PROVIDES A 140 MM (APPROXIMATELY 5 3/8 INCH) PROJECTION. THE UNIT IS COMPATIBLE WITH STANDARD CAT 50 TAPER SPINDLES WHICH USE IMPERIAL THREAD PULL STUDS AND ARE ENGINEERED TO SUPPORT BOTH METRIC AND IMPERIAL SIZED TOOLS. TECHNICAL DIMENSIONS FOR SHIPPING OR STORAGE ARE RECORDED AT 11.00 INCHES IN DEPTH WITH A WIDTH AND HEIGHT OF 4.40 INCHES, WEIGHING APPROXIMATELY 10 TO 30 LBS DEPENDING ON THE SPECIFIC ASSEMBLY CONFIGURATION. MANUFACTURERS ASSOCIATED WITH THIS MODEL NUMBER INCLUDE BALAS AND SANDVIK. YEAR OF MANUFACTURE IS NOT AVAILABLE.
